REMA 350A 150V Industrial Forklift Charger Connector Kit

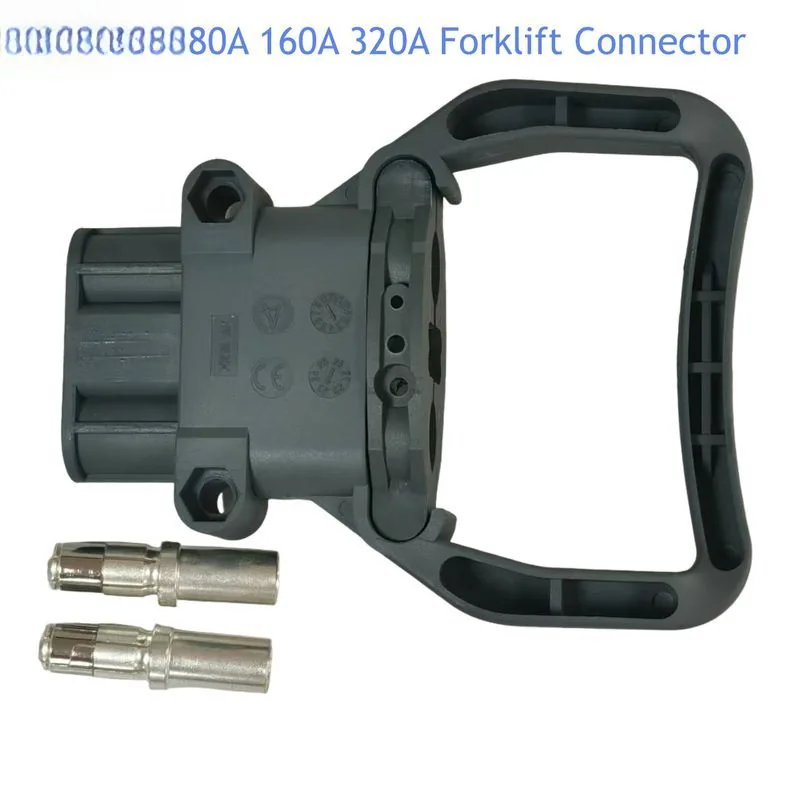

The REMA 350A 150V industrial connector kit is a premium battery charging plug and socket system designed for electric forklifts, industrial cleaning machines, aerial work platforms, and electric material handling equipment. Manufactured by REMA — the German industry standard for high-current connector systems — this kit handles up to 350 amperes continuous current at 150 volts DC, making it suitable for fast-charging large-capacity forklift batteries in warehouses, distribution centers, and manufacturing facilities. The connector body is molded from acid-resistant thermoplastic that withstands prolonged exposure to battery electrolyte fumes, cleaning chemicals, and the mechanical abuse common in industrial charging stations. Color-coded housings with keyed alignment prevent reverse polarity connection and ensure correct mating every time.

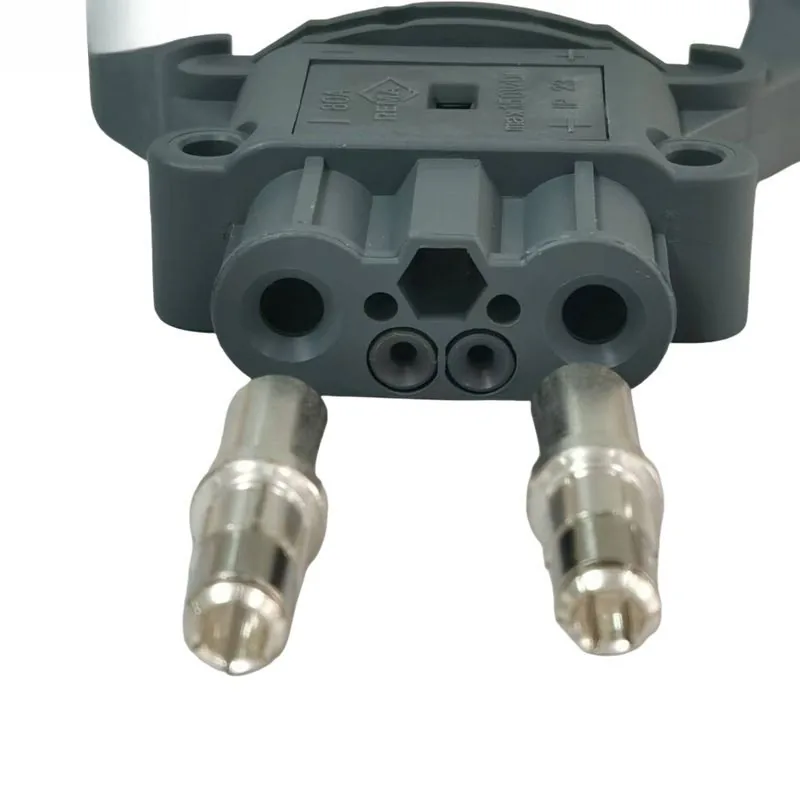

The contacts are machined from high-conductivity copper alloy with heavy silver plating to minimize contact resistance and prevent oxidation under high-current load. Each contact socket features a multi-lamella band design that provides multiple independent contact points, distributing current evenly and ensuring reliable connection even after thousands of mate/unmate cycles. The cable entry accepts heavy-gauge welding cable or flexible power cable up to 70mm², with a compression-type strain relief that prevents cable pull-out and protects the internal crimp connections. The housing includes an integrated locking latch that prevents accidental disconnection during charging, and the connector orientation indicators (top/bottom markings) simplify installation alignment in cramped charger compartments.

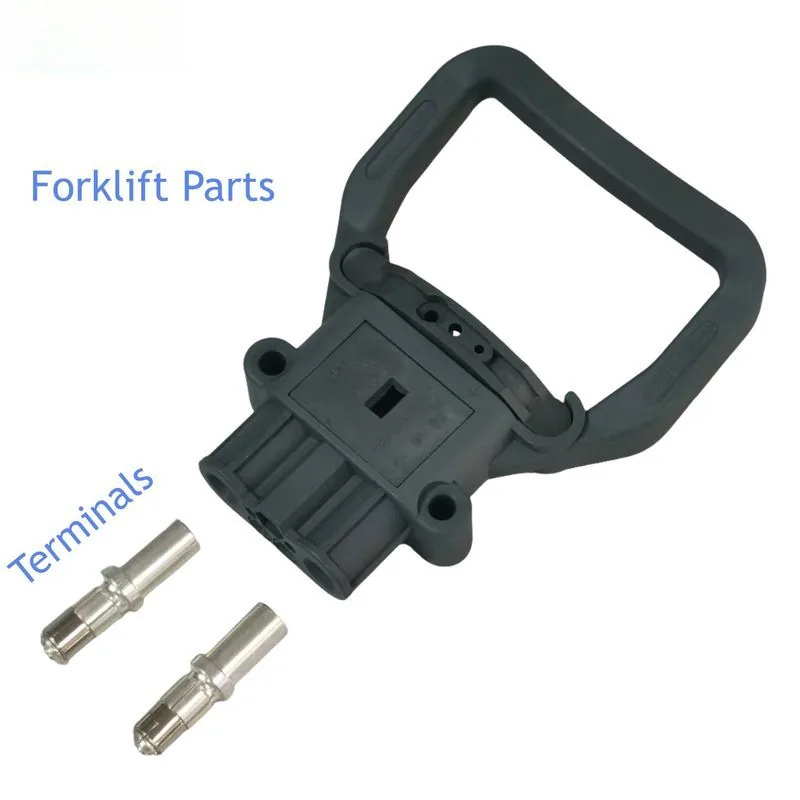

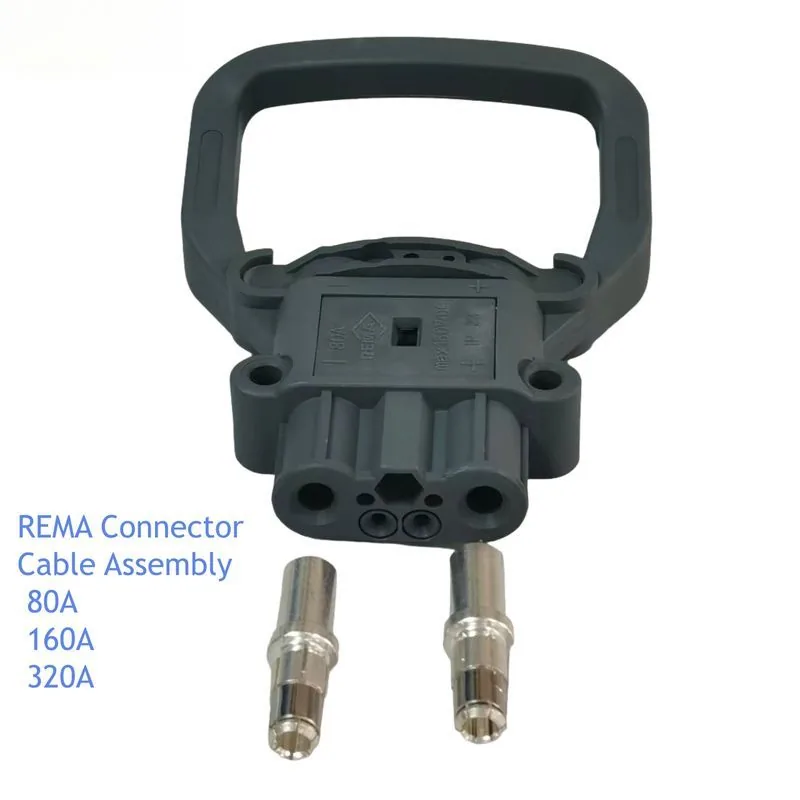

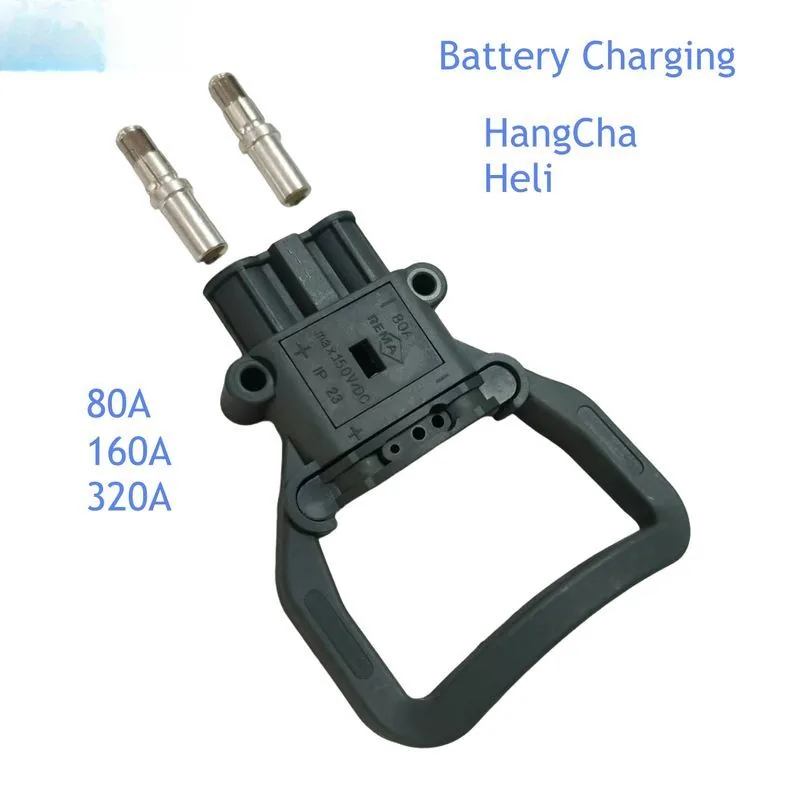

This REMA connector kit includes both the panel-mount socket (for the forklift body) and the mating plug (for the charger cable), along with mounting hardware, crimp terminals, and a protective dust cap for the socket when not in use. Compatible with most electric forklift brands including Toyota, Hyster, Yale, Linde, Jungheinrich, Crown, Raymond, Heli, and Hangcha models using standardized REMA-type charging connectors. Before installation, verify the cable gauge is adequate for 350A continuous — typically 50mm² (1/0 AWG) minimum. Crimp all terminals with a hydraulic crimper to ensure gas-tight connections and insulate exposed conductors with heavy-wall adhesive-lined heat shrink. For compatible battery chargers, charging cables, and Anderson-style connectors, visit our Electronic Control Parts catalog. For REMA connector specifications, refer to REMA Connectors official documentation.

Technical Specifications

• SKU: REMA-350A-150V
• Current Rating: 350A Continuous
• Voltage Rating: 150V DC
• Contact Material: Silver-Plated Copper Alloy
• Housing: Acid-Resistant Thermoplastic
• Kit Includes: Socket + Plug + Terminals + Dust Cap
• Cable Entry: Up to 70mm² (2/0 AWG)

Compatible Equipment

Each REMA connector kit is inspected for contact alignment, latch engagement force, and terminal crimp quality before packaging. The kit is shipped in a compartmented box with foam padding — each component individually bagged to prevent scratches during transit. Installation tip: apply a thin film of dielectric grease to contact surfaces before first use for optimal conductivity and corrosion protection. 12-month warranty. Need assistance selecting the correct connector for your application? Contact our support team with photos of your existing connector and charger specifications.
