Sealed Lead Acid Battery 12V 180Ah – Forklift Automotive

Sealed Lead Acid Battery 12V 180Ah N180-MF — AGM Deep Cycle, 1500-Cycle Life, 1188 CCA, 2160Wh

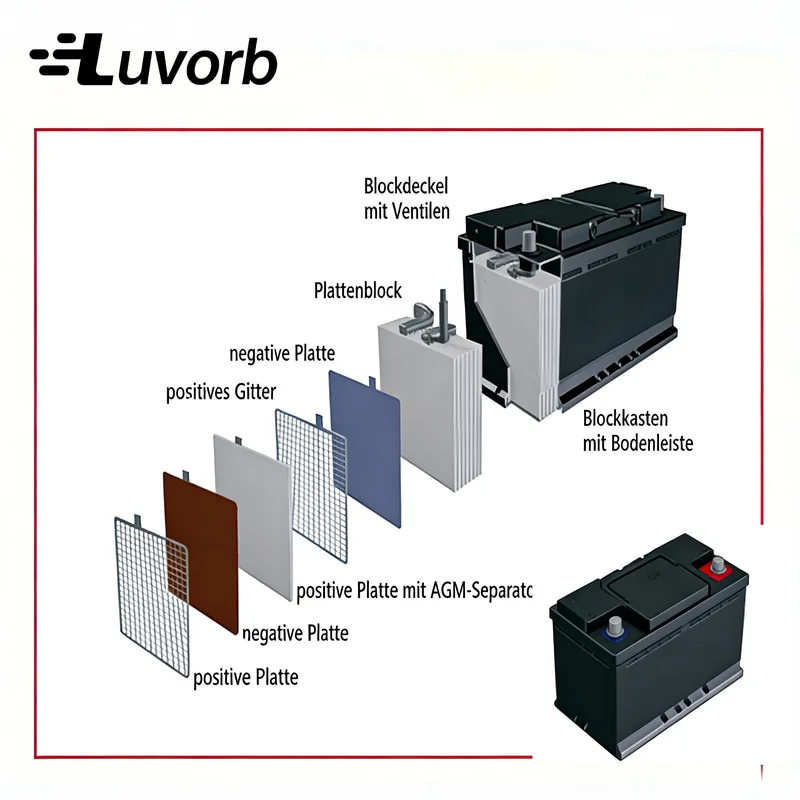

This 12V 180Ah sealed lead acid (SLA) battery model N180-MF is an AGM (Absorbent Glass Mat) deep-cycle starting battery rated at 2160Wh with 1188 cold cranking amps (CCA) and 365 minutes reserve capacity (RC). Designed for automotive starting, electric forklift power, and deep-cycle consumer electronics applications, this maintenance-free battery uses AGM technology to immobilize the electrolyte in glass mat separators — eliminating the need for water topping, preventing acid stratification, and enabling safe operation in any orientation except inverted. With a 1500-cycle service life at 95% discharge rate and a -40°C to 80°C operating temperature range, this battery provides reliable cold-weather starting and high-temperature endurance for forklift fleets in indoor and outdoor environments. The ABS plastic case with sealed construction prevents acid leakage and terminal corrosion, while the 507×220×212mm footprint with 46.5kg weight fits standard Group 31 and similar battery trays. 1-year warranty included.

Installing an AGM battery in an electric forklift requires verifying the battery tray dimensions (507×220×212mm) and terminal type (SAE post or threaded stud) match your equipment. AGM batteries charge faster than flooded lead-acid batteries and accept higher charge currents, but the charging voltage must be limited to 14.4-14.7V to prevent overcharging and dry-out of the glass mat separators. For forklifts with older transformer-based chargers not designed for AGM, verify the charger’s absorption voltage does not exceed 14.7V. The 46.5kg weight is significantly less than equivalent flooded lead-acid designs, but verify the battery tray can accommodate the difference — adding ballast weight may be required on counterbalance forklifts where the battery contributes to rear counterweight stability. The 95% discharge rate capability enables deeper discharge than flooded batteries without permanent capacity loss, extending useful runtime per charge cycle. 1-year warranty with ISO certification.

Technical Specifications

Sealed AGM maintenance-free. ABS plastic case. -40°C to 80°C operating range. 1-year warranty. For bulk orders, contact us.
