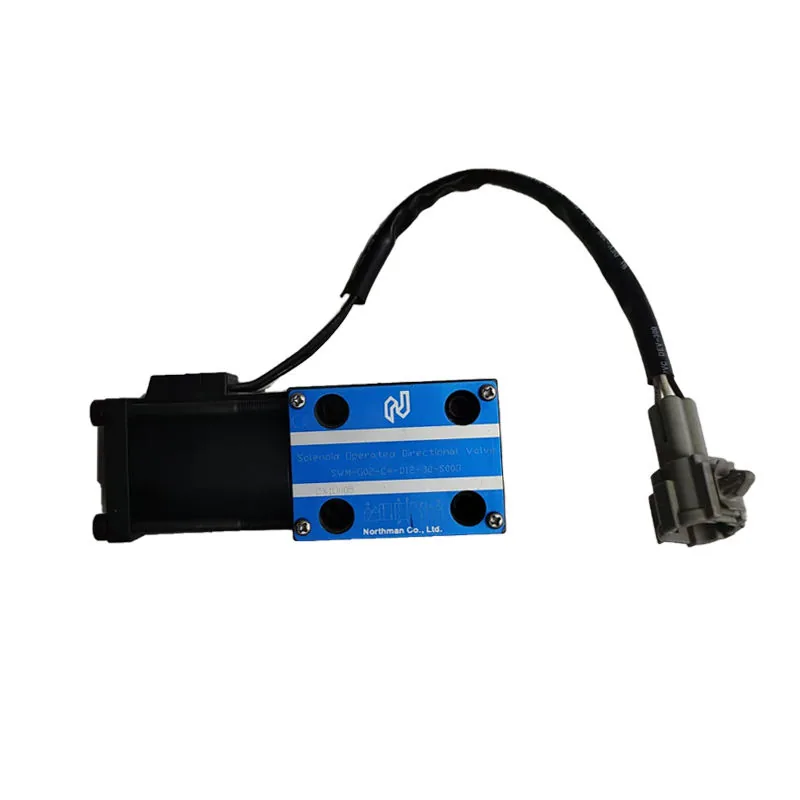

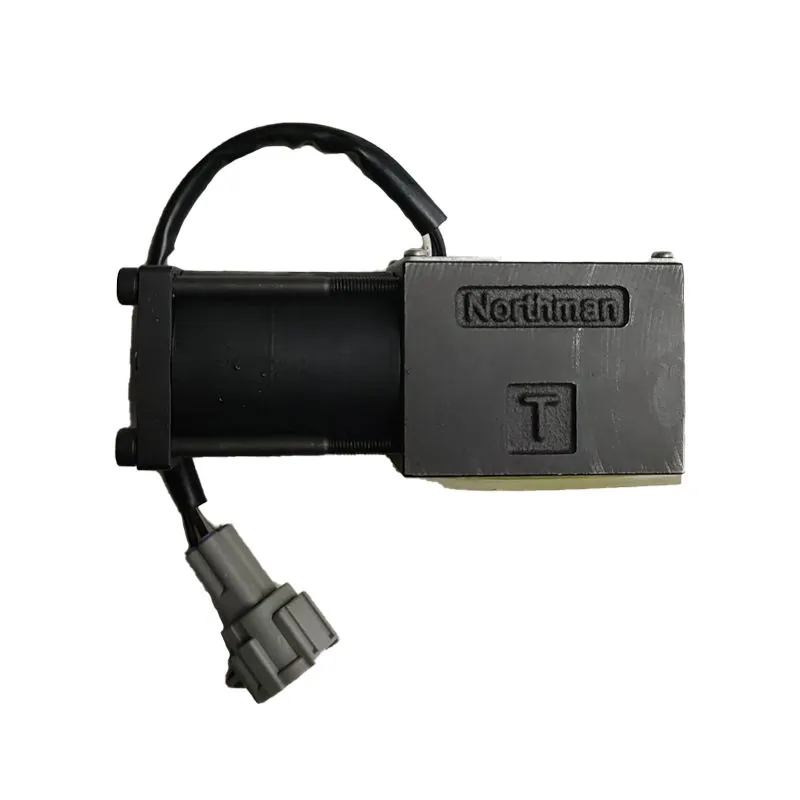

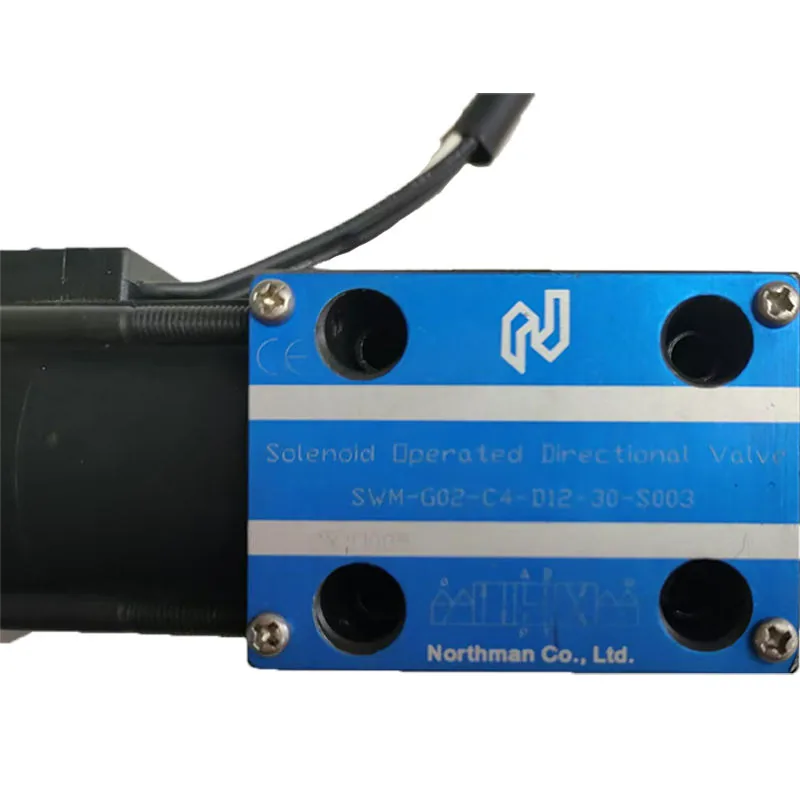

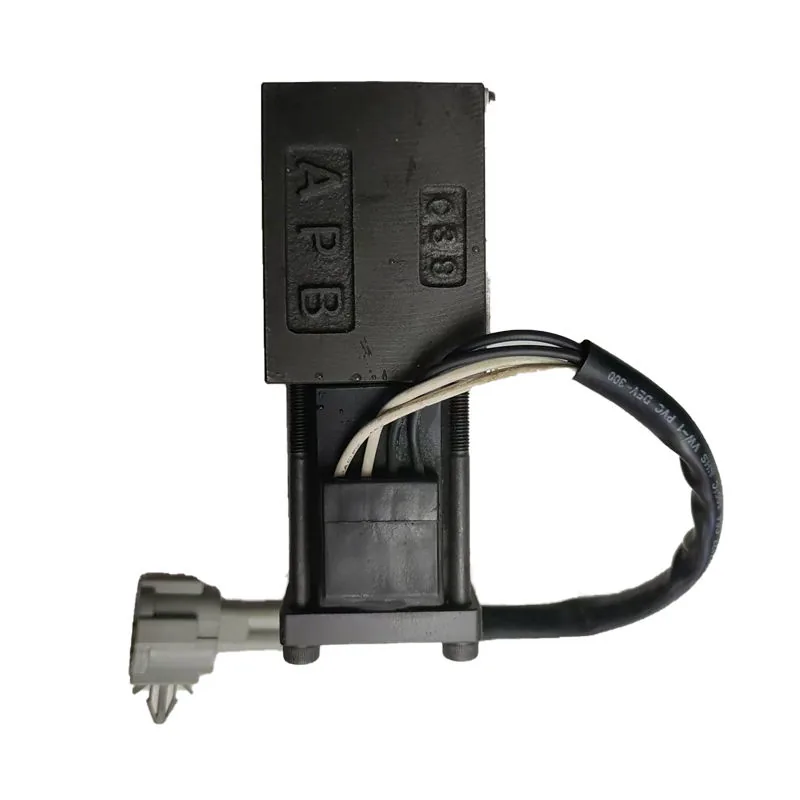

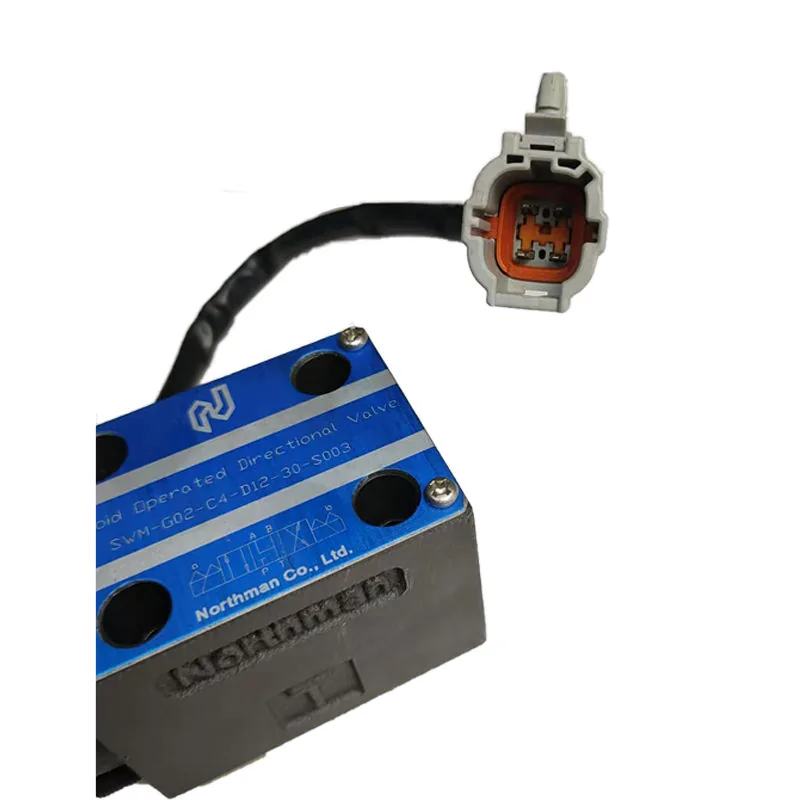

SWM-G02-C4-D12-30 Electromagnetic Directional Control Valve for TCM Forklifts

The SWM-G02-C4-D12-30 is an electromagnetic (solenoid-operated) directional control valve designed as a direct OEM replacement for TCM FD series, Nissan, and compatible forklift hydraulic systems requiring electrically actuated spool control. Unlike manual lever-operated valves where the operator provides the physical force to shift the spool, this valve uses a 12V DC continuous-duty solenoid coil to generate the electromagnetic force required to move the internal spool, enabling electrically controlled hydraulic functions such as mast tilt, side shift, fork positioning, or attachment operation through the forklift’s electronic control system or operator switches. The G02 mounting pattern conforms to the industry-standard ISO 4401-02 (CETOP 02) sub-plate interface, allowing direct bolt-on replacement on TCM and other forklift valve manifolds without adapters or modifications.

The valve body is precision-machined from high-grade cast iron with a honed spool bore finished to Ra 0.4μm or better. The spool is manufactured from hardened and ground alloy steel operating within a diametral clearance of 8-15 microns, providing smooth actuation with minimal internal hydraulic leakage. The solenoid coil is wound with Class H (180°C) insulated copper wire and completely encapsulated in epoxy potting compound, providing reliable operation in the high-temperature, high-vibration environment of forklift engine compartments where ambient temperatures can exceed 100°C. The coil is rated for continuous duty at 12V DC with a nominal power consumption of approximately 25-35 watts, and the solenoid plunger acts directly on the spool through a hardened push pin, achieving response times under 50 milliseconds from energization to full spool displacement. The spool is spring-offset to a defined neutral/fail-safe position when de-energized, ensuring the hydraulic function returns to a safe state if electrical power is interrupted. The C4 spool designation indicates a specific port flow path configuration optimized for directional control applications.

Direct replacement for TCM FD20 through FD50 series, Nissan F02-F05 series, and other forklift models using SWM-G02 series electromagnetic directional valves with C4 spool configuration and 12V DC coil voltage. The D12 designation confirms 12V DC operation — verify your forklift’s electrical system voltage before ordering; 24V variants are also available. Before installation, inspect the electrical connector terminals for corrosion and apply dielectric grease to prevent moisture ingress and terminal oxidation. Verify the sub-plate port O-rings are intact and properly seated. After installation, cycle the solenoid 10-15 times before applying full system pressure to ensure the spool moves freely without binding. For compatible hydraulic sub-plates, replacement solenoid coils, Deutsch-style electrical connectors, and complete hydraulic system components, visit our Forklift Engine Parts section. For solenoid valve specifications and ISO sub-plate standards, refer to Bosch Rexroth industrial hydraulics documentation.

Technical Specifications

• PN: SWM-G02-C4-D12-30
• Type: Solenoid-Operated Directional Control Valve
• Voltage: 12V DC, Continuous Duty, ~25-35W
• Coil Insulation: Class H (180°C), Epoxy Encapsulated
• Mounting: ISO 4401-02 / CETOP 02 Sub-Plate Standard
• Spool: C4 Configuration, Spring-Offset to Neutral
• Response Time: <50ms Energization to Full Stroke
• Body Material: Cast Iron, Honed Bore Ra 0.4μm

Compatible Forklift Models

Each SWM-G02-C4-D12-30 valve undergoes a complete pre-shipment test sequence: coil resistance measurement (specified value at 20°C), dielectric strength test at 1500V AC for 1 second, spool shift function verification at rated voltage, internal leakage testing at 210 bar, and pressure boundary integrity test at 1.5x rated pressure. The valve ships with the solenoid coil installed, sub-plate mounting surface protected with a plastic cover, and packed in anti-static foam. 12-month warranty against manufacturing defects. Troubleshooting tip: if the solenoid valve fails to shift, first check coil resistance with a multimeter (should match specification, typically 5-15 ohms at 20°C for 12V coils), then verify supply voltage at the connector with the coil energized. For replacement coils, connector repair kits, or technical assistance, contact our team.
