Forklift Steering Knuckle 42504217 — Left/Right Knuckle Assembly for Tailift 3-Ton Forklifts

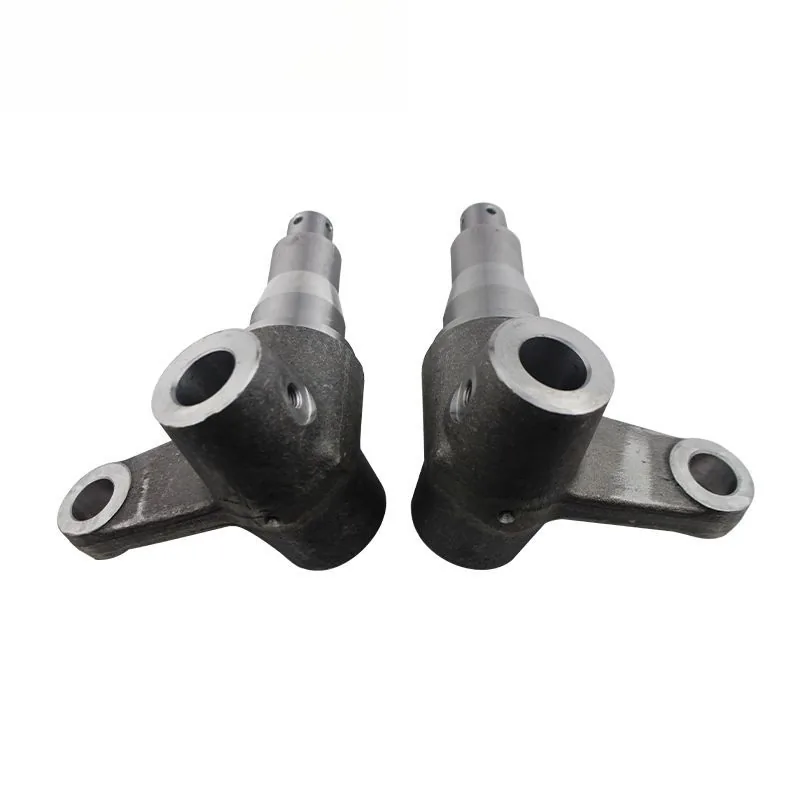

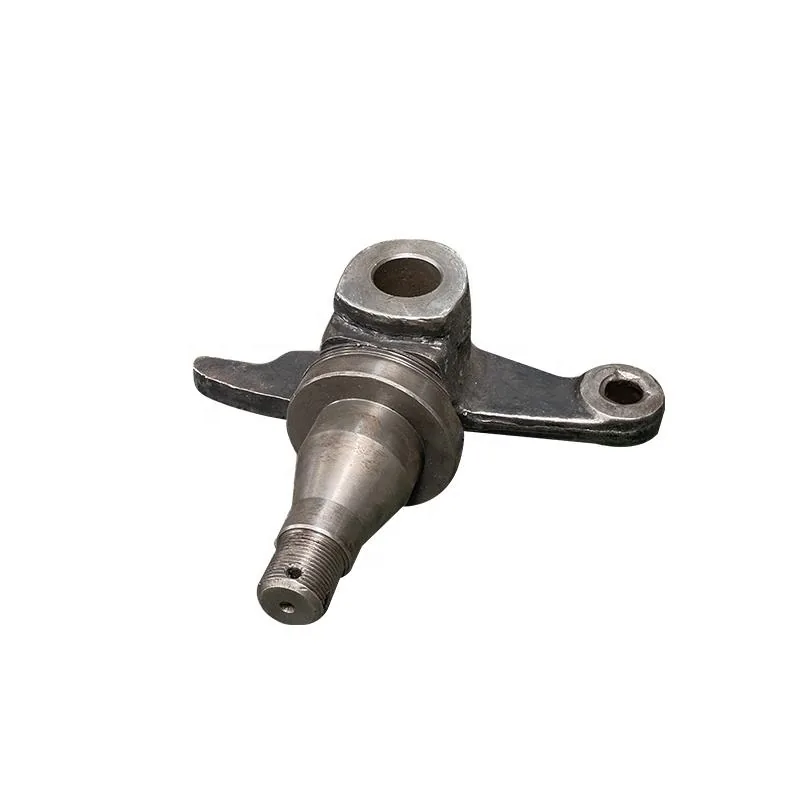

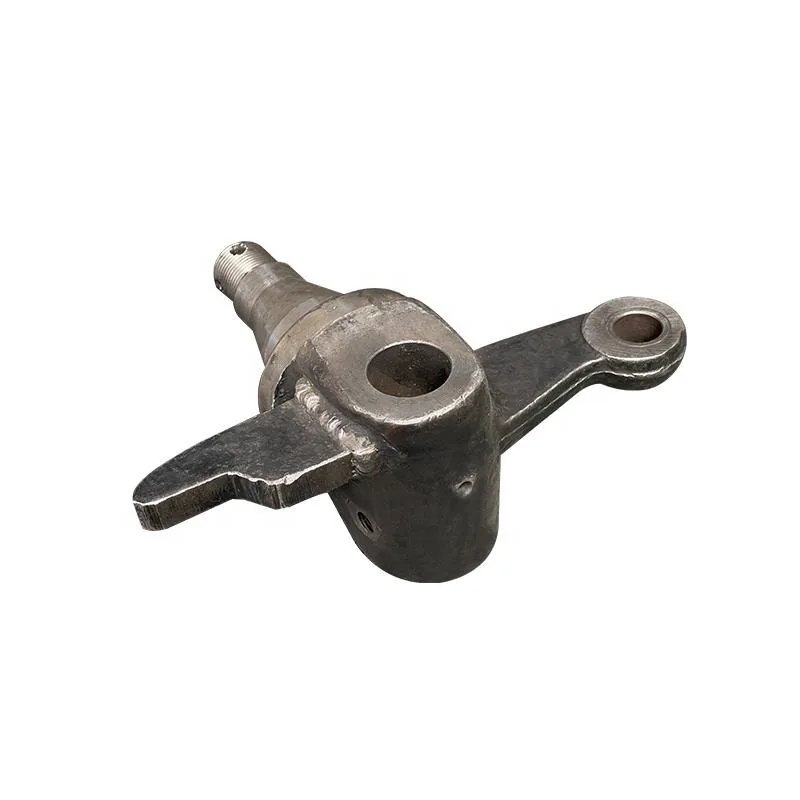

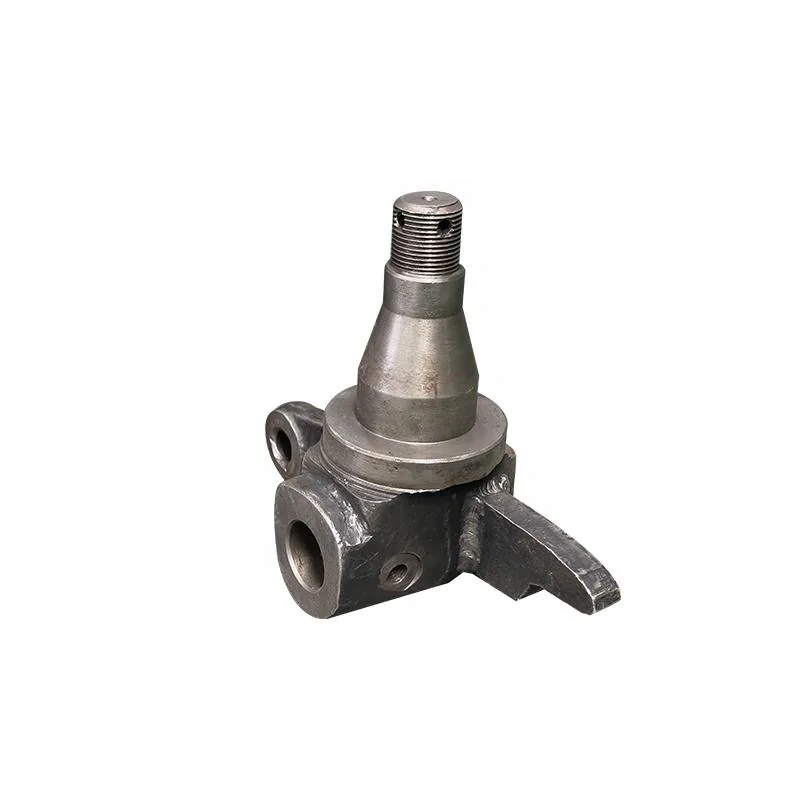

The 42504217 steering knuckle is an OEM steering axle component for Tailift 3-ton forklifts, available in both left-hand and right-hand configurations. The steering knuckle is the critical structural component that connects the wheel hub and bearing assembly to the steering axle beam via the kingpin — it carries the full vertical load of the rear of the forklift (approximately 40-50% of the total vehicle weight plus load, distributed across two knuckles) while simultaneously pivoting around the kingpin axis to steer the wheels. This knuckle is a ductile iron casting (ASTM A536 Grade 65-45-12 equivalent) with induction-hardened kingpin bores (HRC 50-55) and machined tie rod arm mounting surfaces. The ductile iron material provides approximately 2x the impact toughness of gray cast iron, which is essential for a steering knuckle that must absorb shock loads from potholes, dock plates, and uneven floor transitions without fracturing. The left and right knuckles are mirror-image parts — verify the orientation of the tie rod arm (forward-facing vs rearward-facing) and the wheel mounting flange offset before ordering to ensure correct fitment.

Steering knuckle replacement is required when the kingpin bore has worn beyond the maximum allowable clearance of 0.12mm (measured between the kingpin and the knuckle bore with the kingpin installed). A worn kingpin bore allows the knuckle to rock on the kingpin, which changes the wheel camber angle by 0.5-1.0 degrees during steering — this camber change causes the tire contact patch to shift to the outer edge, producing rapid outer-shoulder tire wear that can reduce tire life by 50-70%. The tie rod arm on the knuckle must also be inspected for straightness: a bent tie rod arm (typically from a forklift collision with a rack upright or bollard) changes the Ackermann steering geometry, causing the inside wheel to scrub during turns instead of tracking the correct radius. The arm can be checked by laying a straightedge across the machined mounting surface and measuring the gap — more than 0.3mm of deviation indicates a bent arm requiring knuckle replacement. During installation, the kingpin must be pressed into the axle beam (not the knuckle) using a hydraulic press — the interference fit is in the axle beam bore (0.02-0.04mm), while the knuckle bore is a slip fit (0.03-0.06mm clearance) to allow the knuckle to pivot freely. The thrust bearing at the bottom of the knuckle carries the vertical load and must be packed with NLGI #2 lithium grease before assembly. Common failure symptoms: steering wheel vibration at speeds above 8 km/h (worn kingpin bore allowing knuckle oscillation), outer-edge tire wear with a scalloped pattern (camber change from kingpin bore wear), and a metallic creaking noise during low-speed steering (dry or worn thrust bearing).

This knuckle fits Tailift 3-ton forklifts (models FD30, FG30, and equivalent). Verify OEM number 42504217 and the knuckle orientation (left or right) before ordering. For related steering axle components including kingpins, bearings, and tie rods, visit our Forklift Steering Axle section.

Technical Specifications

• Part Number: 42504217
• Material: Ductile Iron Casting (ASTM A536 Grade 65-45-12)
• Kingpin Bore Hardness: HRC 50-55 (Induction Hardened)
• Kingpin-to-Knuckle Clearance: 0.03-0.06mm (Slip Fit)
• Max Kingpin Bore Wear: 0.12mm
• Application: Tailift 3-Ton Forklifts (Left/Right)

Compatible Forklift Models

Each knuckle is inspected for kingpin bore diameter and tie rod arm straightness, packed in protective packaging, and ships within 1-2 business days. 12-month warranty. Browse our Forklift Steering Axle catalog.
