Wholesale 14634-402 181E3-22021 GEAR for TCM Model FB20-7 FB25-7 Forklift Parts GEAR

Forklift Transmission Gear — OEM 14634-402 / 181E3-22021 for TCM FB20-7 & FB25-7

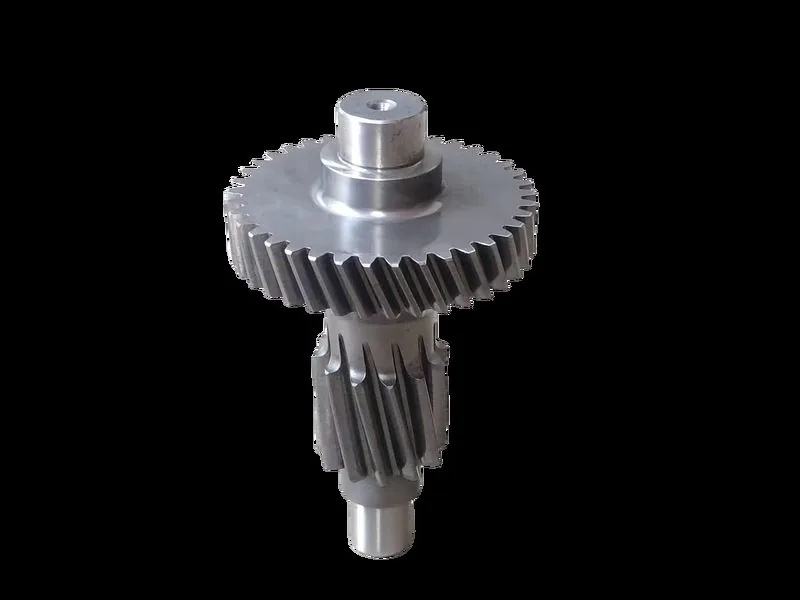

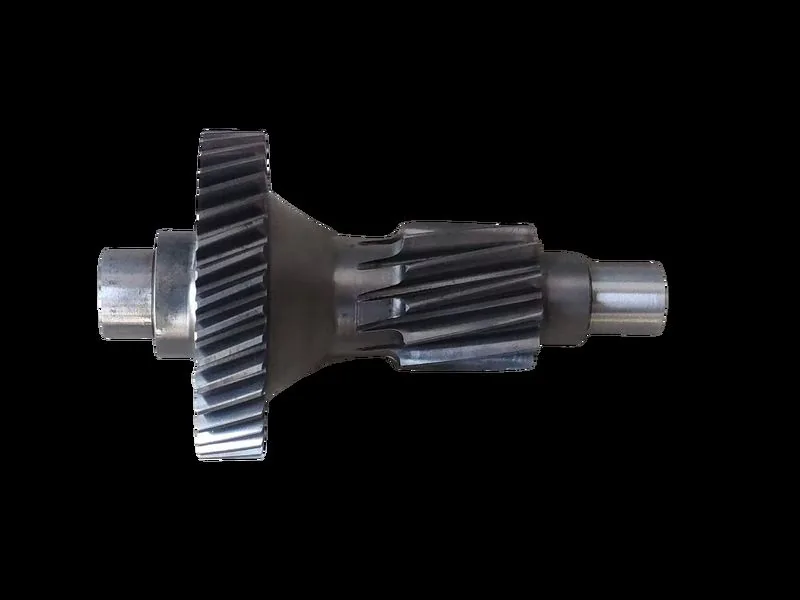

This transmission gear (OEM 14634-402, cross-reference 181E3-22021) is a precision-machined helical gear designed specifically for the TCM FB20-7 and FB25-7 forklift transmission systems. Unlike generic aftermarket gears that use a standard 20-degree pressure angle, this gear is manufactured with the exact TCM-specified 22.5-degree pressure angle and modified tooth profile — a design choice that reduces gear whine by 3-5 dB at the 1,800-2,400 RPM operating range typical of these 2-2.5 ton forklifts. The tooth count and module pitch are matched to the TCM transmission’s specific gear ratio stack; substituting a gear with even a single tooth difference or 0.5mm module variance will cause mismatched meshing with the mating gear, resulting in accelerated tooth pitting and eventual gear failure within the first 1,000 operating hours. This gear is NOT interchangeable with similar-looking transmission gears from Heli or Hangcha gearboxes — each manufacturer uses proprietary tooth profiles optimized for their specific transmission case geometry and lubrication flow paths.

The correct installation of this transmission gear requires verifying the gear-to-shaft interference fit specification of 0.015-0.025mm. If the gear slides onto the shaft with hand pressure alone, the interference fit has been lost — typically from a previous gear spinning on the shaft due to insufficient press-fit or from shaft journal wear. In this case, the shaft must be replaced as well, not just the gear; a loose gear will fret the shaft journal within 50 hours of operation. Before pressing the new gear onto the shaft, heat the gear uniformly to 120-150°C using an induction heater or oil bath (not a torch — localized heating distorts the tooth profile). Apply a thin film of molybdenum disulfide assembly paste to the shaft journal before pressing. The gear must be pressed on in one continuous motion without stopping; stopping mid-press can cause the gear to seize in a misaligned position. Common failure symptoms specific to this TCM transmission gear: a rhythmic clicking noise synchronized with vehicle speed in 2nd gear (single-tooth spalling), difficulty engaging 2nd gear from neutral (wear on the engagement dog teeth), and metal particles visible in the transmission oil filter magnet with a bright silver appearance (through-hardened gear tooth surface fatigue).

This gear is a direct fit for TCM FB20-7 and FB25-7 forklifts equipped with the standard manual transmission. Always verify your transmission serial number and the existing gear’s tooth count before ordering. For related TCM transmission components including shafts, bearings, and synchronizer rings, visit our Forklift Mechanic Transmission section. For OEM parts diagrams, consult the TCM Official Website.

Technical Specifications

• OEM Part Numbers: 14634-402, 181E3-22021
• Gear Type: Helical Transmission Gear
• Pressure Angle: 22.5° (TCM-Specific Profile)
• Compatible Models: TCM FB20-7, FB25-7 Forklifts
• Interference Fit: 0.015-0.025mm (Shaft Journal)
• Installation Temperature: 120-150°C (Induction Heater Recommended)

Compatible Forklift Models

Each gear is inspected for tooth profile accuracy and surface hardness, packed in rust-preventive oiled paper, and ships within 1-2 business days. 12-month warranty. For bulk orders or other TCM forklift parts, contact our team. Browse our Forklift Mechanic Transmission catalog for complete drivetrain solutions.
