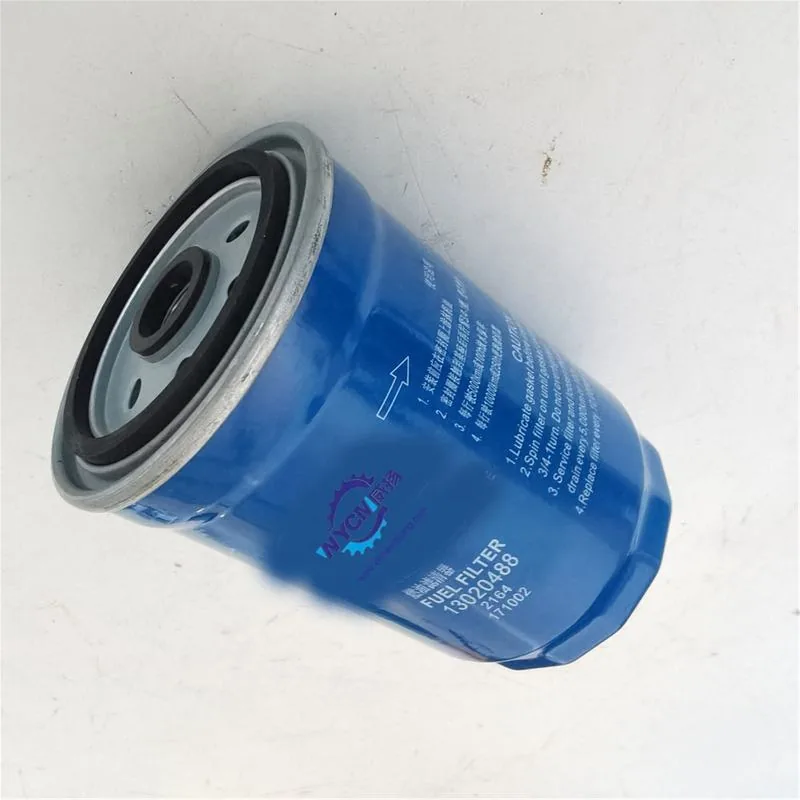

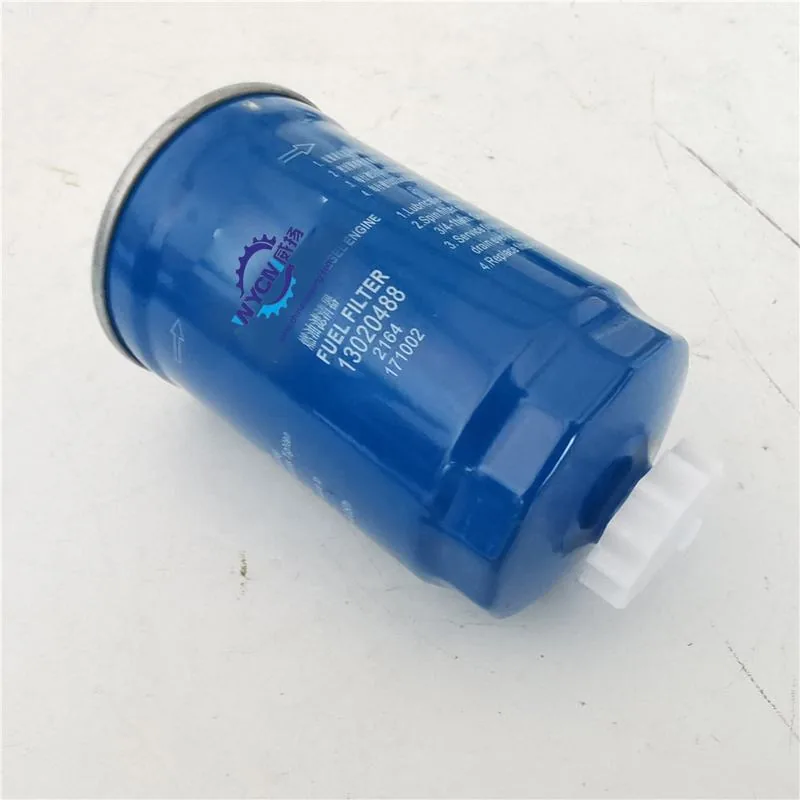

Diesel Fuel Filter — OEM 13020488 for TD226B Engine

This fuel filter (OEM 13020488) is designed for the Weichai-Deutz TD226B diesel engine series, a common power unit in construction equipment, generator sets, and industrial machinery. The filter uses a depth-filtration cellulose media with a nominal rating of 5-7 microns — significantly finer than the 10-15 micron rating of standard automotive fuel filters — because the TD226B’s distributor-type injection pump requires fuel cleanliness at or below 5 microns to prevent plunger scoring and injector nozzle erosion. The filter housing is a spin-on canister with a double-rolled seam at the base plate, rated to withstand a burst pressure of 500 PSI (34.5 bar), which provides a safety margin above the engine’s lift pump delivery pressure of 3-5 bar. The water separator bowl at the bottom of the filter has a clear drain port with a knurled thumb screw — this should be drained at every refueling interval, not just at oil change intervals, as accumulated water in diesel fuel is the primary cause of injection pump corrosion failure during extended equipment storage.

Installation of a diesel fuel filter requires priming the filter housing before engine start — a dry filter holds approximately 200-250ml of air that must be purged through the injection system, which can take 30-60 seconds of cranking and risk battery drain or starter motor overheating. Pre-fill the filter with clean diesel fuel through the outer ring of inlet holes (not the center threaded hole — filling through the center bypasses the filter media). After installation, loosen the bleed screw on the injection pump and operate the manual lift pump primer until bubble-free fuel flows from the bleed port. Tighten the bleed screw before starting. Common failure symptoms: engine starts then stalls after 10-15 seconds (air lock from improperly bled filter), black smoke under load with normal boost pressure (restricted fuel flow from clogged filter), and water-in-fuel warning light illuminated (water separator bowl full — drain immediately to prevent injection pump damage).

This fuel filter fits Weichai-Deutz TD226B-4 and TD226B-6 engines. Verify your existing filter part number (13020488 or cross-reference) before ordering. For related maintenance items including oil filters, air filters, and fuel system components, visit our Forklift Maintenance Parts section.

Technical Specifications

• OEM Part Number: 13020488
• Compatible Engine: Weichai-Deutz TD226B Series
• Filtration Rating: 5-7 Microns (Nominal)
• Media Type: Depth-Filtration Cellulose
• Burst Pressure: 500 PSI (34.5 bar)
• Water Separator: Integrated Bowl with Thumb-Screw Drain

Compatible Applications

Each filter is factory-sealed and ships within 1-2 business days. 12-month warranty. For bulk orders, contact us. Browse our Forklift Maintenance Parts catalog.
