Toyota Forklift Cylinder Block 11401-78210-71 – 7-8F Diesel Engine OEM Japan

Toyota Forklift Cylinder Block 11401-78210-71 — 7-8F Diesel Engine, OEM Japan, 57kg

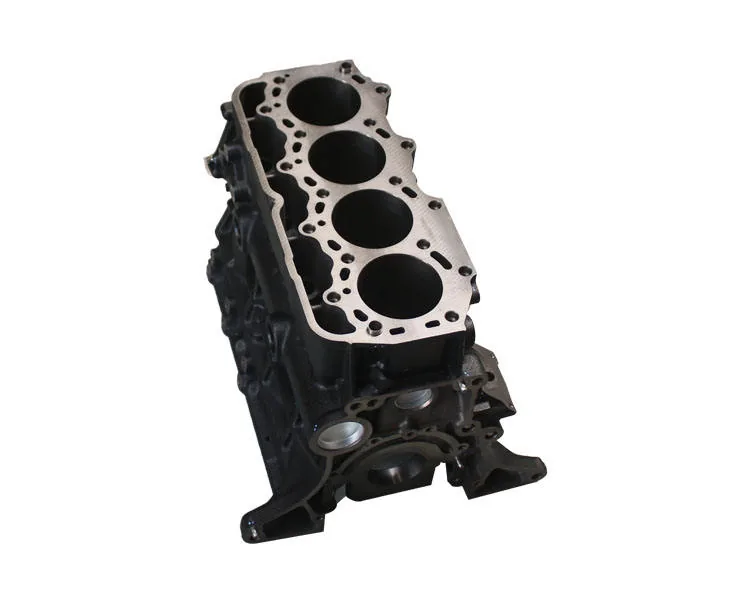

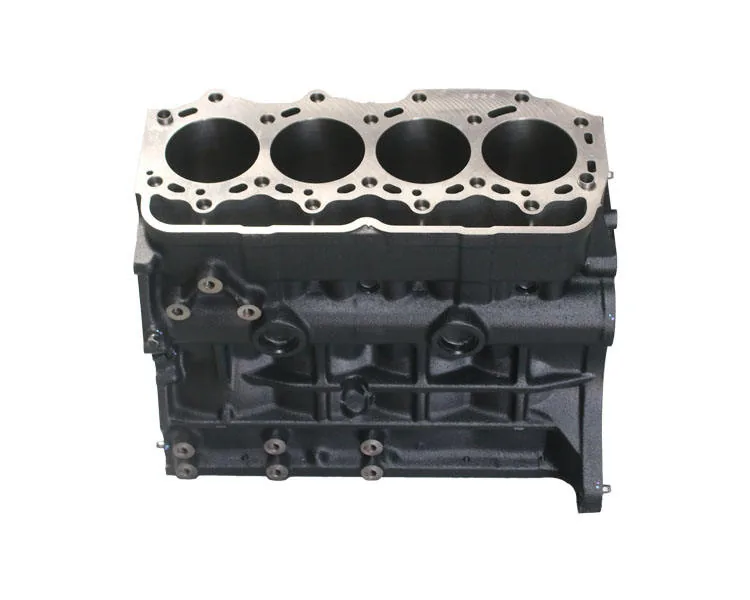

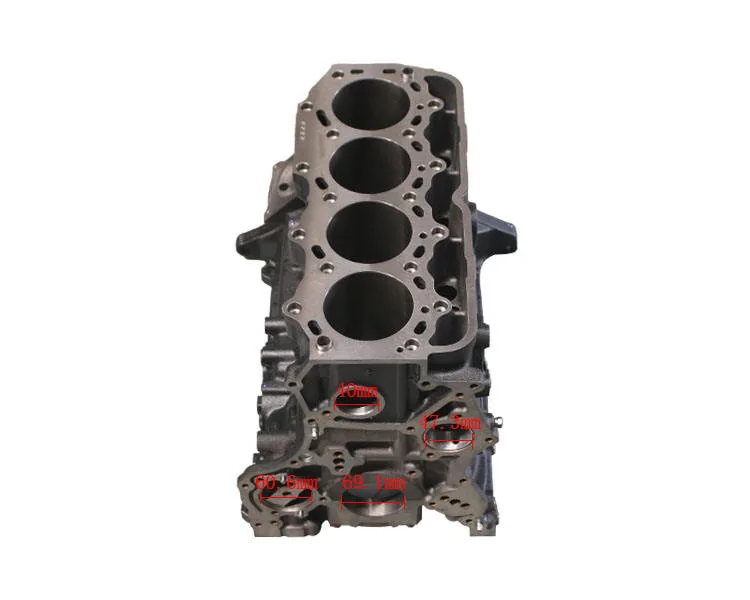

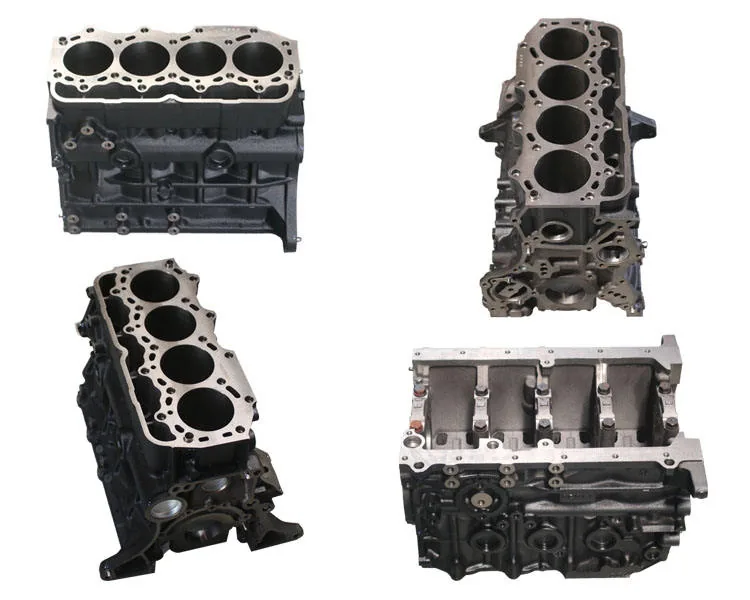

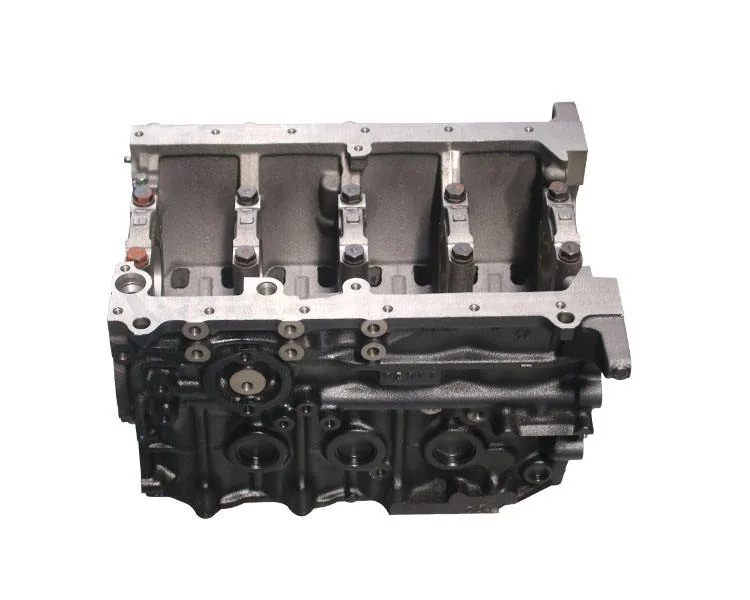

This is the Toyota OEM diesel engine cylinder block (part number 11401-78210-71) for the Toyota 1DZ-II and 2Z diesel engines used in Toyota 7F and 8F series 1.5-3.5 ton IC forklifts. The cylinder block is the cast iron foundation of the entire engine — the single most expensive and structurally critical component in the powertrain. It houses the precision-bored cylinders where the pistons generate combustion power, the line-bored main bearing saddles where the forged steel crankshaft rotates at up to 2,600 RPM, the camshaft bore that controls valve timing, the pressurized oil galleries (machined passages that distribute 30-60 psi of oil to every bearing, bushing, and rocker arm), and the coolant water jacket that circulates a 50/50 glycol-water mixture to maintain 82-95°C operating temperature. This is the OEM Toyota block from Japan — not an aftermarket casting — which means the cylinder bore diameters, main bearing bore alignment, deck surface flatness, and all threaded holes are machined to Toyota’s original factory tolerances. A cracked or damaged block on a Toyota 7-8F forklift is typically a terminal engine failure — the labor to transfer all components to a replacement block (or to install a complete engine assembly) often exceeds the value of a new block by itself. Common causes include freezing damage from insufficient coolant concentration, overheating from a failed water pump or radiator that warps the cylinder head deck surface beyond machinable limits, or a thrown connecting rod that punctures the cylinder wall.

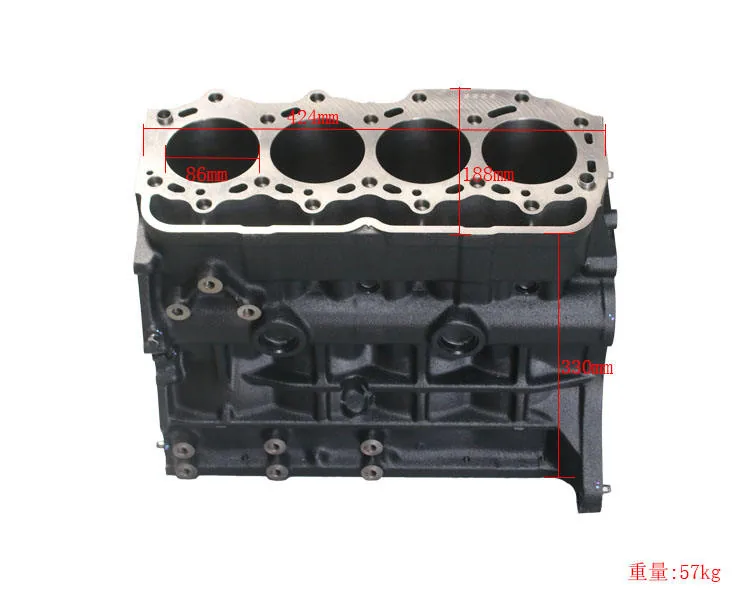

This is a genuine OEM block manufactured in Japan with machinery test report and video outgoing-inspection provided. 57 kg gross weight (the block is a substantial casting). New condition, forklift parts type. 6-month warranty with free replacement parts and online technical support — including a 1-year extended service support package. Marketing type: Hot Product 2019. When installing a replacement cylinder block on a Toyota 7-8F engine, every wear component must be replaced simultaneously: main bearings, connecting rod bearings, thrust washers, piston rings, cylinder head gasket, all seals and O-rings, and timing components. The block’s cylinder bores must be measured for diameter, out-of-round, and taper before piston installation — Toyota specifies a maximum of 0.01mm out-of-round on the cylinder bores. The main bearing saddles must be checked for alignment using a precision straightedge and bore gauge — a misaligned bearing saddle from a dropped or overheated block will cause immediate bearing failure. The cylinder head deck surface must be measured for flatness across its entire length using a machinist’s straightedge and feeler gauge — Toyota specifies a maximum deviation of 0.05mm across the deck. All threaded holes must be chased with a thread tap to remove any rust or debris from storage and shipping before bolt installation.

Compatible with Toyota 7F and 8F series IC forklifts (1.5-3.5 ton) using the 11401-78210-71 cylinder block specification. Also fits Toyota 7-8F / 1DZ and 2Z diesel engine platforms. Browse our cylinder block selection for Xinchai and Mitsubishi engine platforms. For engine specifications, visit Toyota Forklift official website.

Technical Specifications

Compatible Models

Genuine Toyota OEM from Japan. Freight shipping. Confirm your Toyota forklift model →
