Toyota Forklift Foot Brake Pedal Assembly 46120-26610-71 – 8FD20-30 OEM
$109.99
Toyota forklift foot brake pedal assembly 46120-26610-71 OEM 8FD20-30. 100% tested. 6-month warranty. Black. Direct bolt-on. 2.3 kg. Professional quality.
Toyota Forklift Foot Brake Pedal Assembly 46120-26610-71 — 8FD20~30 OEM

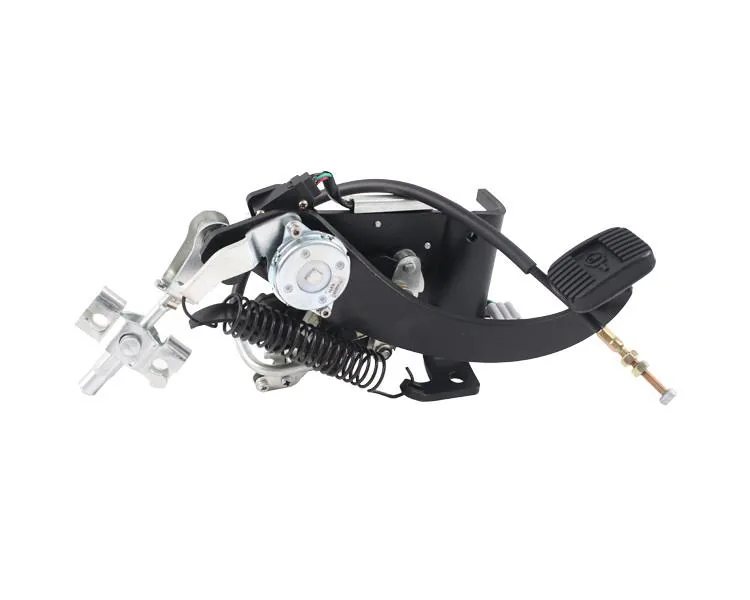

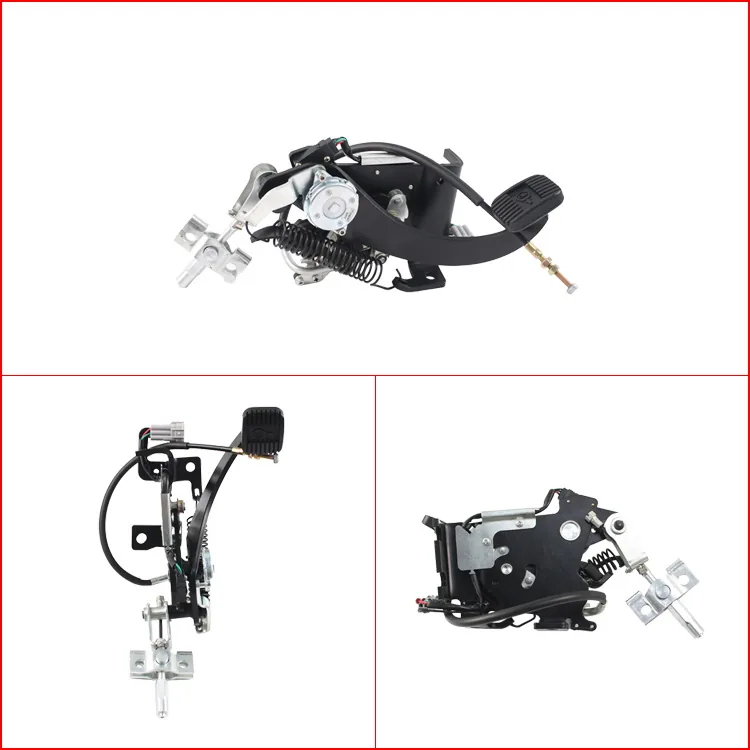

This is the genuine Toyota OEM foot brake pedal assembly (part number 46120-26610-71) for Toyota 8FD20 through 8FD30 series forklifts. The foot brake pedal is the operator’s primary braking interface — it transfers the driver’s foot pressure through a mechanical linkage to the brake master cylinder, which generates hydraulic pressure to stop the forklift. A worn pedal assembly with sloppy pivot bushings, a bent pedal arm, or a loose return spring creates dead travel in the brake pedal — the operator presses the pedal but the first inch of travel doesn’t engage the brakes, reducing reaction time in emergency stops. A $109 pedal assembly restores factory brake pedal feel and travel.

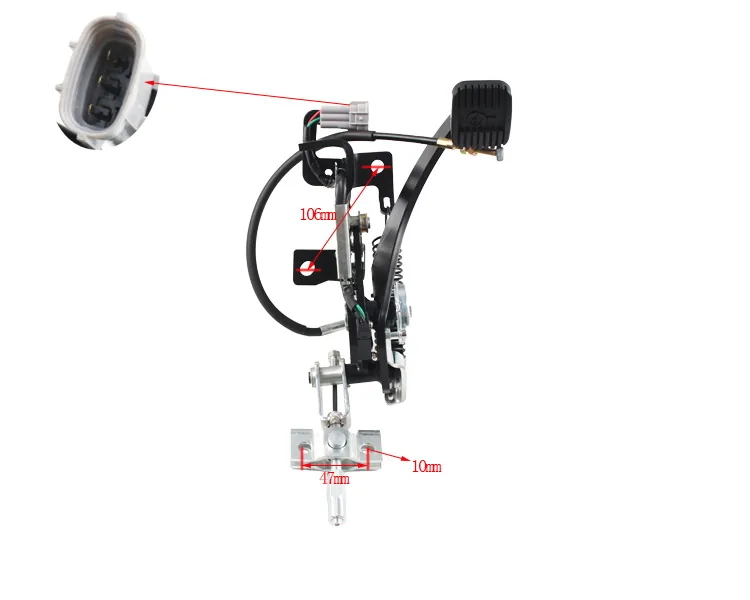

The 46120-26610-71 assembly is 100% professionally tested and comes in black finish matching Toyota OEM appearance. Net weight: 2.3 kg, packaged at 2.62 kg in a 42×25×25cm carton. 6-month warranty. Manufactured in China to Toyota OEM specifications for the 8FD20, 8FD25, and 8FD30 series internal combustion forklifts. The pedal assembly includes the pedal arm, pivot bushing, return spring, and rubber pedal pad — direct bolt-on replacement with no modification required. Always check the brake pedal free play adjustment after installation: specification is typically 3-8mm of free play before the master cylinder pushrod engages.
Compatible exclusively with Toyota 8FD20, 8FD25, and 8FD30 series IC forklifts. Not interchangeable with other Toyota forklift series or other brands. Browse our foot brake assembly selection for other models.
Technical Specifications
| Parameter | Value |
|---|---|
| SKU | 46120-26610-71 |
| OEM Part Number | 46120-26610-71 |
| Application | Toyota 8FD20, 8FD25, 8FD30 |
| Type | Foot Brake Pedal Assembly |
| Color | Black (OEM match) |
| Net Weight | 2.3 kg |
| Quality | 100% Professional Tested |
| Condition | 100% Brand-New |
| Warranty | 6 Months |
| Origin | China |
Compatible Models
| Brand | Models |
|---|---|
| Toyota | 8FD20, 8FD25, 8FD30 IC forklifts |
