Toyota Forklift Rear Steering Hub 7FB15-8FD-B15 – 6-Hole Japan AWD OEM

Toyota Forklift Rear Steering Hub 7FB15-8FD-B15 — 6-Hole, Japan, AWD Drive Type

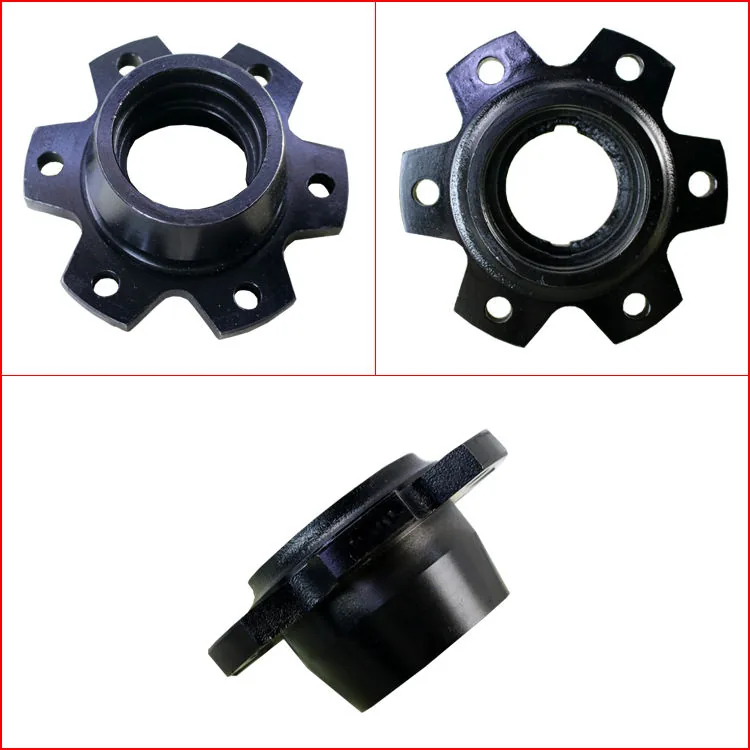

This is the Toyota rear steering hub for 7FB15 and 8FD-B15 series forklifts — a 6-hole hub that mounts on the steering knuckle spindle and carries the rear wheel bearings and wheel studs. Unlike front drive axle hubs that transmit engine torque, the rear steering hub carries only the vehicle weight and steering side loads. However, it’s subjected to high lateral forces during tight turns, especially on forklifts operating in narrow warehouse aisles where the steer tires scrub at full lock. The 6-hole bolt pattern must match exactly — Toyota 7FB and 8FD series rear hubs use a specific bolt circle diameter that is not interchangeable with other brands or even other Toyota series.

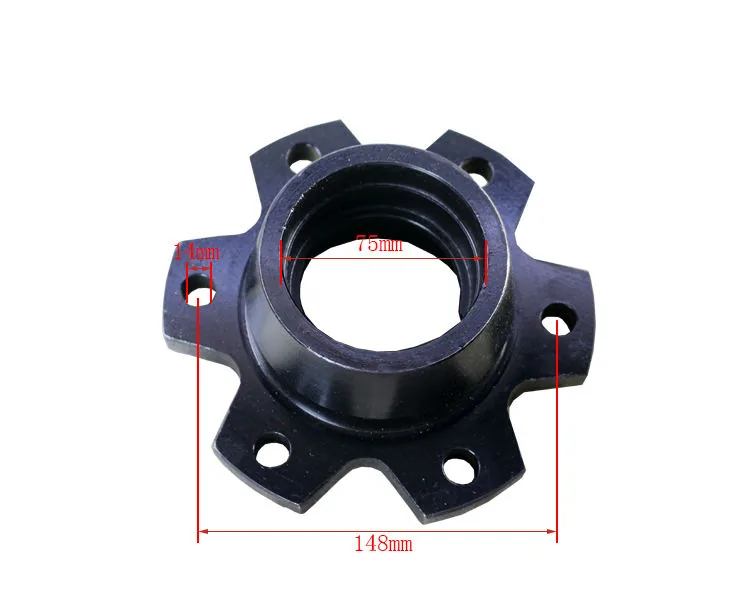

This hub is manufactured in Japan to Toyota OEM specifications with a 6-month warranty. Dimensions: 150mm length × 150mm width × 80mm height. Package: 20×20×10cm, 3.85 kg gross weight. AWD drive type designation. The hub includes the bearing race seats and wheel stud mounting flange — worn or elongated stud holes cannot be reliably repaired and require hub replacement. Always replace the wheel bearing and seal when replacing the hub.

Compatible with Toyota 7FB15 and 8FD-B15 series forklifts. Browse our driving hub selection for front drive and other models.

Technical Specifications

Compatible Models

Japan manufactured. 6-hole pattern. Verify your Toyota model →
