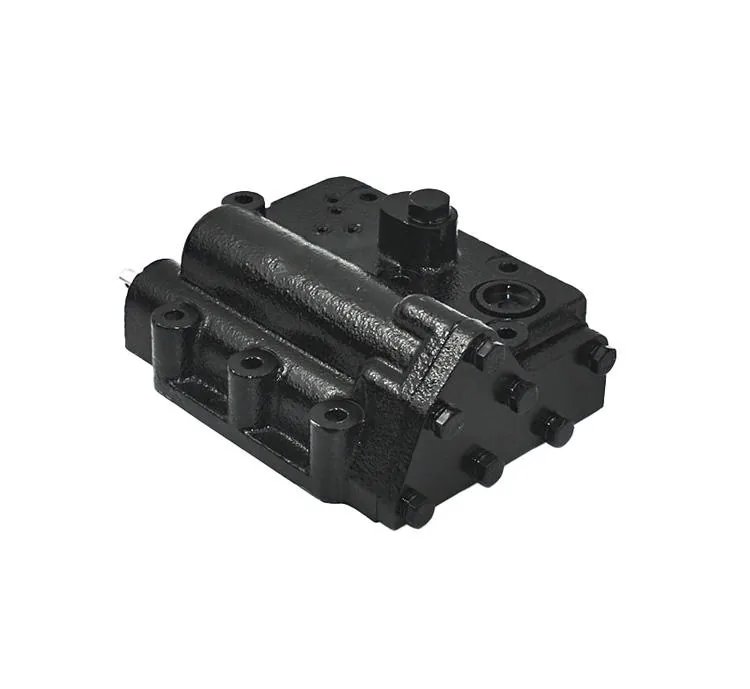

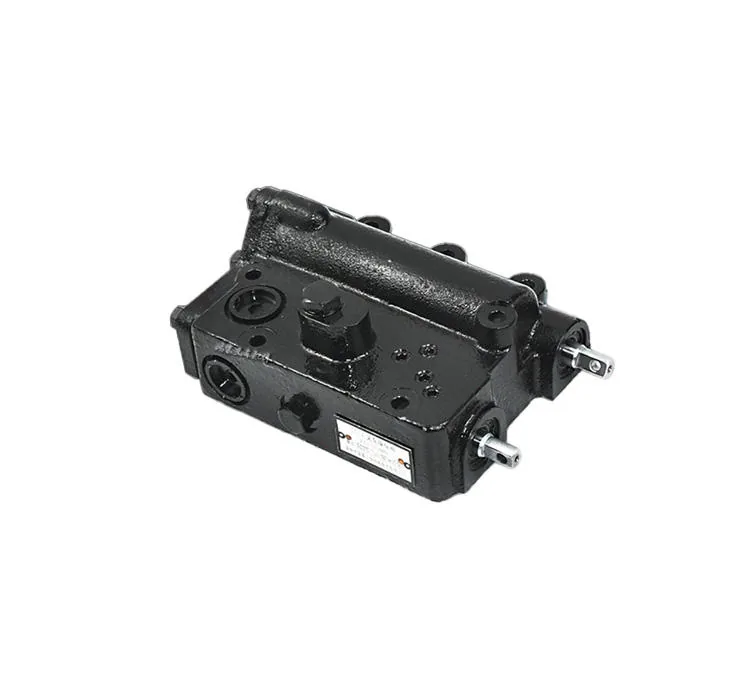

Forklift Transmission Control Valve YDS45.903 – Forklift Gearbox

Forklift Transmission Control Valve YDS45.903 — Forklift Gearbox Hydraulic Control Valve

This forklift transmission control valve part number YDS45.903 is a Kingstream OEM hydraulic control valve for forklift automatic transmissions in manufacturing, construction, port, warehousing, logistics, and material handling environments. The transmission control valve is the hydraulic brain of the automatic transmission — it directs pressurized transmission fluid to the correct clutch packs and brake bands based on the gear selector position, throttle position, and vehicle speed. The valve body contains a series of spool valves, check balls, springs, and oil passages that control shift timing, shift quality, and torque converter lockup. 10kg with 50×50×50cm carton box packaging. 100% professional tested. 7-10 day delivery. Kingstream OEM for forklift fleet transmission maintenance.

INSTALLATION PROCEDURE: Step 1 — Drain the transmission fluid. Step 2 — Remove the transmission oil pan to access the valve body. Step 3 — Disconnect the electrical connectors and shift linkage from the valve body. Step 4 — Remove the valve body mounting bolts — note that valve body bolts are different lengths and MUST be reinstalled in the exact same positions. Step 5 — Carefully lower the old valve body — be aware that check balls and springs may fall out. Note the position of each check ball and spring for correct reassembly. Step 6 — Clean the transmission case mounting surface thoroughly with solvent. Step 7 — Install the new valve body with a new gasket or separator plate. Install check balls and springs in the correct positions. Step 8 — Torque valve body bolts to specification in the correct sequence. Step 9 — Reconnect electrical connectors and shift linkage. Step 10 — Install a new transmission oil pan gasket and reinstall the pan. Step 11 — Refill with the correct specification transmission fluid. Step 12 — Start the engine and cycle through all gear positions several times. Check fluid level with the transmission at operating temperature. Step 13 — Test drive and verify smooth, timely shifts in all gears. 100% professional tested. Kingstream OEM.

SYMPTOMS OF CONTROL VALVE FAILURE: Harsh or delayed gear engagement, transmission slipping between gears, failure to shift into certain gears, transmission stuck in one gear, erratic shift patterns, and transmission fluid contamination from worn valve body components. For forklift fleet automatic transmission maintenance, contact us. Kingstream OEM.

Technical Specifications

100% professional tested. Kingstream OEM. Contact us.
