Toyota forklift 8FGU25: specs and parts fitment checks
TL;DR
Start with the complete model code and serial number, then confirm the truck configuration and old-part details before treating any Toyota 8FGU25 listing as a match.
Key Takeaways
- Use the complete 8FGU25 model code, not a broad Toyota capacity label.
- Treat the serial number as a required fitment input for configuration-specific parts.
- Separate manufacturer references, public summaries, buyer inputs, and supplier confirmation.
- Routine wear-part requests still need the truck identity and old-part details.
- Delay an order when a listing cannot show the configuration or serial range it covers.
Table of Contents
- Key Takeaways
- Why 8FGU25 parts fitment starts with identity
- The 8FGU25 decision framework: five fields to check
- Use case one: routine wear-part requests
- Use case two: configuration-specific parts
- 8FGU25 reference table: public specs versus buyer inputs
- How to send an 8FGU25 parts request
- What not to use as proof of 8FGU25 fitment
- When to delay the order
- Toyota 8FGU25 parts and specifications FAQ
- Conclusion
- References
Why 8FGU25 parts fitment starts with identity
For a buyer searching for Toyota forklift 8FGU25 parts, the complete model code is the first filter, not the final fitment answer. Use the truck identity to narrow the reference set, then add the serial number, configuration, and removed-part evidence before comparing a listing. (Toyota Material Handling, n.d.)
The distinction matters because a short capacity label or a nearby Toyota model code can point to a different component revision, mast arrangement, or production range. A listing that says “Toyota 25” is a clue, not proof that it belongs on an 8FGU25.
Note: This page is a quote-ready verification guide. It does not promise that every Toyota 8FGU25 part listing fits every truck, and it does not replace the supplier’s final catalog, diagram, or serial-break check.
Toyota Material Handling’s model and serial guidance treats the model number and serial number as the key identity pair for replacement-part lookup. For a Toyota 8FGU25, that pair should be recorded before a buyer treats a listing or cross-reference as a fitment answer. (Toyota Material Handling, n.d.)

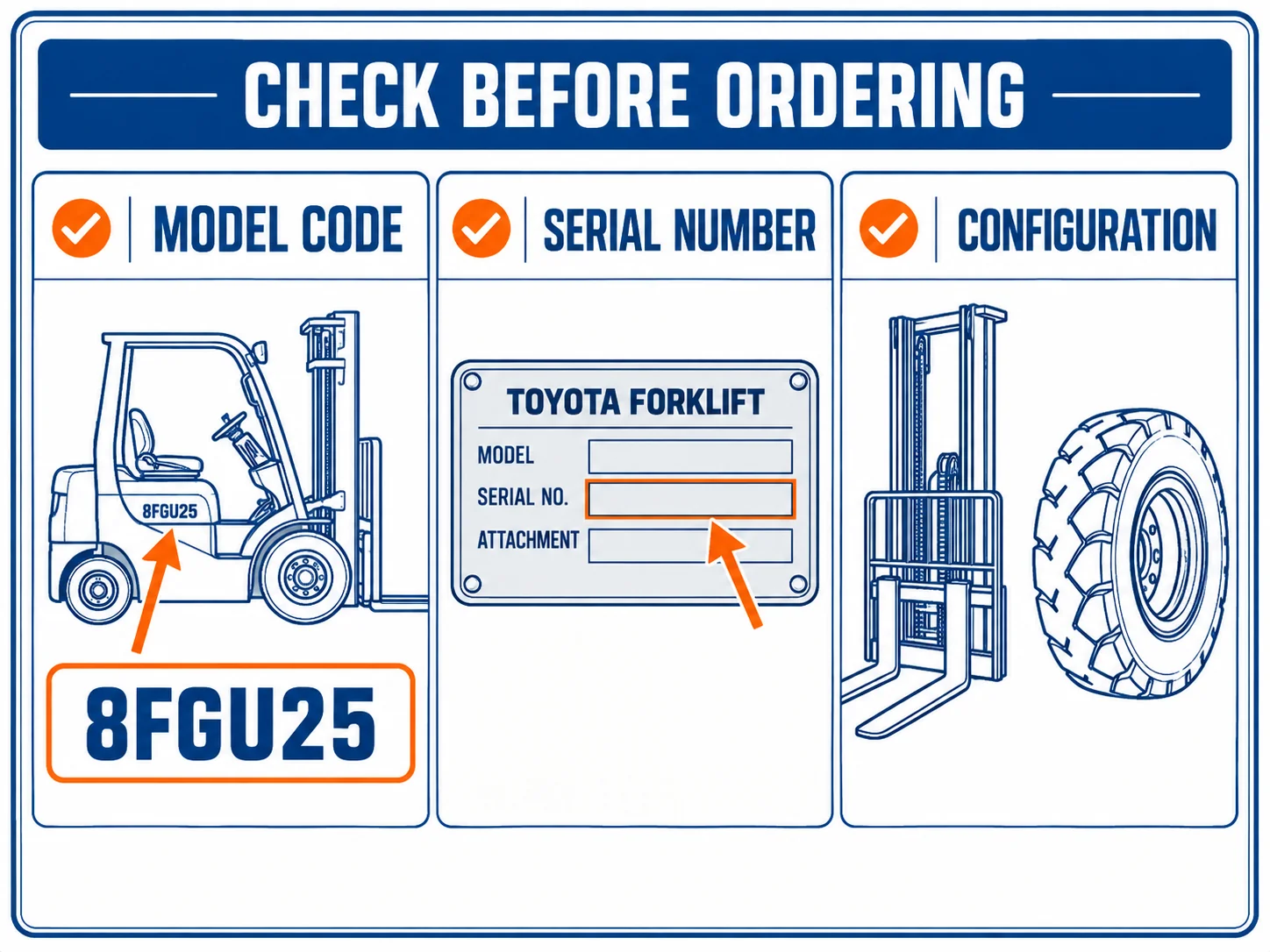

The 8FGU25 decision framework: five fields to check
Before opening a Toyota 8FGU25 parts manual, build the request in five fields. The aim is to make the fitment question answerable, not to collect every specification on the truck.
Model and serial
Copy the complete model code from the data plate and record the serial number exactly as shown. If a character is unclear, flag it instead of silently guessing. Toyota’s model and serial guidance is the right starting reference for this step. (Toyota Material Handling, n.d.)
Configuration
Record the mast and attachment arrangement, tire type, fuel configuration, and any option that is visible on the truck or data plate. These are buyer inputs that help a supplier select the correct catalog branch. They are not universal specifications for every 8FGU25. (Toyota Material Handling, n.d.)
Old-part evidence
Add the visible part number, label, connector, hose, mounting face, dimensions, and clear photos of the removed component. Note the quantity and the system being repaired. A part number that cannot be read should remain unknown.
Supplier confirmation
Ask the supplier to confirm the part number, serial range, revision or supersession, and any missing dimension before ordering. (Toyota Material Handling, n.d.)

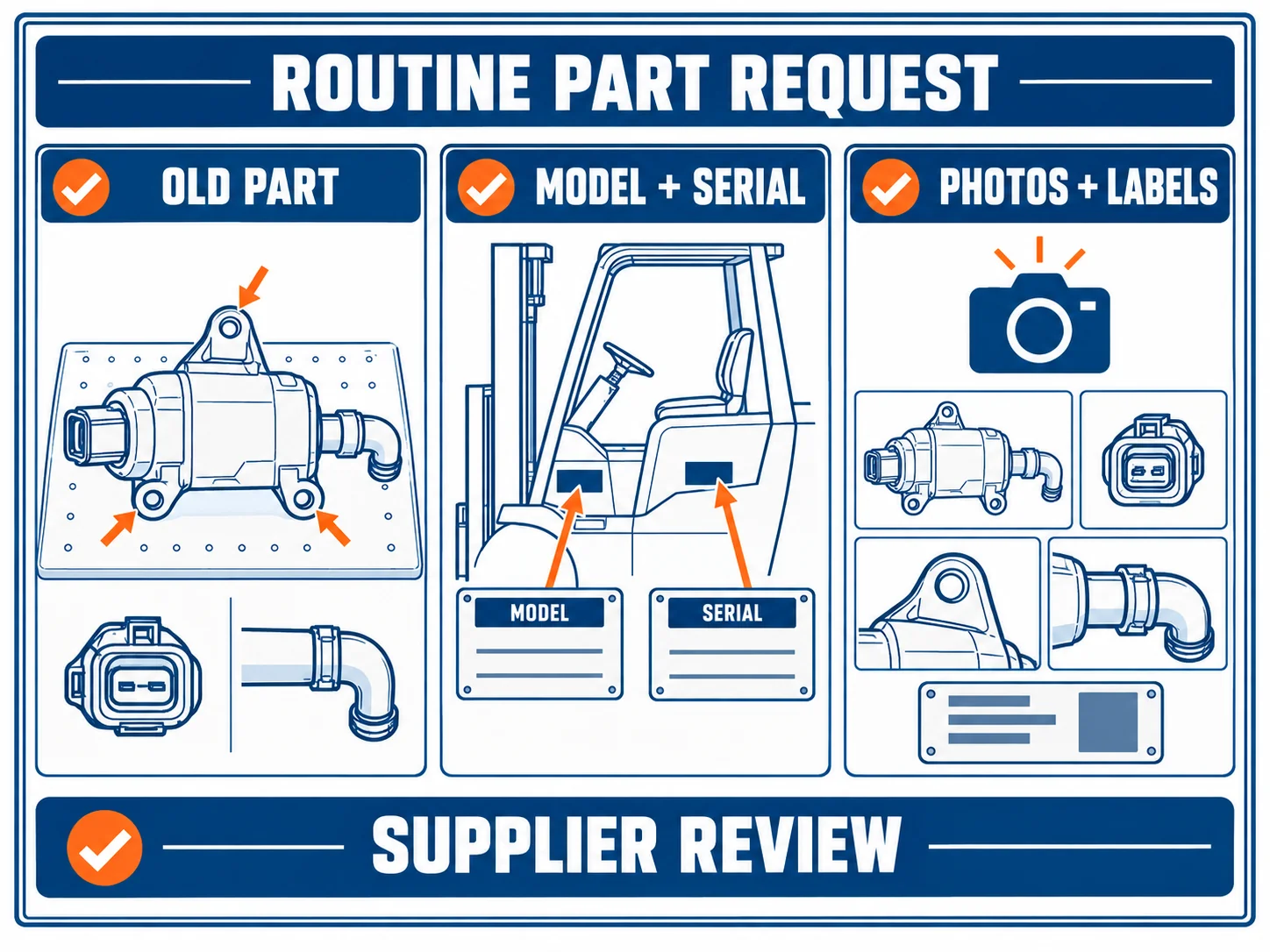

Use case one: routine wear-part requests
Routine service parts still need a complete truck identity. Send the 8FGU25 model code and serial number together with the old part number, if readable, and photos of the part in place and removed. Show mounting points, connectors, hose ends, fasteners, and any stamped marks that could separate one variant from another.
Use the public reference page to understand the part family, but do not treat a generic “Toyota 25” result as a confirmed match. Ask the supplier to compare the evidence with the applicable catalog entry before a purchase order is issued. This creates a short request that is useful for filters, service items, electrical pieces, and other routine inquiries without claiming that one universal list covers every production configuration.
Where we can help
Single-source forklift parts sourcing covers 14 major brands and provides OEM-compatible forklift parts backed by fast quotation for fleet-maintenance managers. Explore forklift parts sourcing.
Use case two: configuration-specific parts
Some requests need a deeper review because the model family alone does not describe the complete part path. Examples can include mast-related components, hydraulic assemblies, brake or steering components, and electrical parts where the supplier may need a serial break, option, connector, or measured dimension.
For these requests, attach the data-plate photo, full serial number, mast or attachment information, fuel or electrical details, and photos of the old component. Treat dimensions as buyer inputs unless a manufacturer source or the actual truck verifies them. Do not copy a value from a different Toyota 8-series model into the order.
If the listing and the truck evidence disagree, pause and send the conflict to fitment review. A slower confirmation is safer than converting a visually similar component into an assumed Toyota 8FGU25 match.
8FGU25 reference table: public specs versus buyer inputs
The table below is for orientation. Public reference pages describe a common Toyota 8FGU25 configuration, while the actual truck and its serial number control a parts request. Confirm every field that changes the catalog path before ordering. (Toyota Material Handling, n.d.)
| Field | Public reference for orientation | What the buyer must confirm |
|---|---|---|
| Model identity | Toyota 8FGU25 | Complete model code and serial number from the truck |
| Rated capacity | Common references describe 5,000 lb at a 24-in load centre | The data plate and the actual application |
| Engine and fuel | The manufacturer sheet lists 4Y-US or Kubota WG2503 by fuel option; some third-party pages label configurations differently | Fuel setup, production configuration, and any option shown on the truck |
| Mast and lift | FV two-stage mast and a published maximum fork height of about 131.5 in appear in reference data | Mast type, lift height, attachment, and serial range |
| Dimensions and tires | Reference data includes a 45.3-in overall width and 7.00-12 front pneumatic tires | Actual tire, mast, attachment, and clearance requirements |
| Total weight | Toyota’s sheet lists 7,840 lb for the 50-8FGU25 configuration | Actual truck, mast, tires, and attachments |
These values help a reader recognize the model family, but they are not a universal parts list. The manufacturer specification sheet and the actual truck record should take priority over a third-party summary when the values disagree.
Toyota Material Handling’s Core IC pneumatic sheet lists the 50-8FGU25 at 5,000 lb capacity, 131.5 in maximum fork height, and 7,840 lb total weight. Those are published reference values for one configuration, not a substitute for the truck’s serial, mast, tire, and attachment checks when selecting parts. (Toyota Material Handling, n.d.)
By the Numbers
- 5,000 lb capacity for the 50-8FGU25 configuration. (Toyota Material Handling, n.d.)
- 131.5 in maximum fork height for the 50-8FGU25 configuration. (Toyota Material Handling, n.d.)
- 7,840 lb total weight for the 50-8FGU25 configuration. (Toyota Material Handling, n.d.)

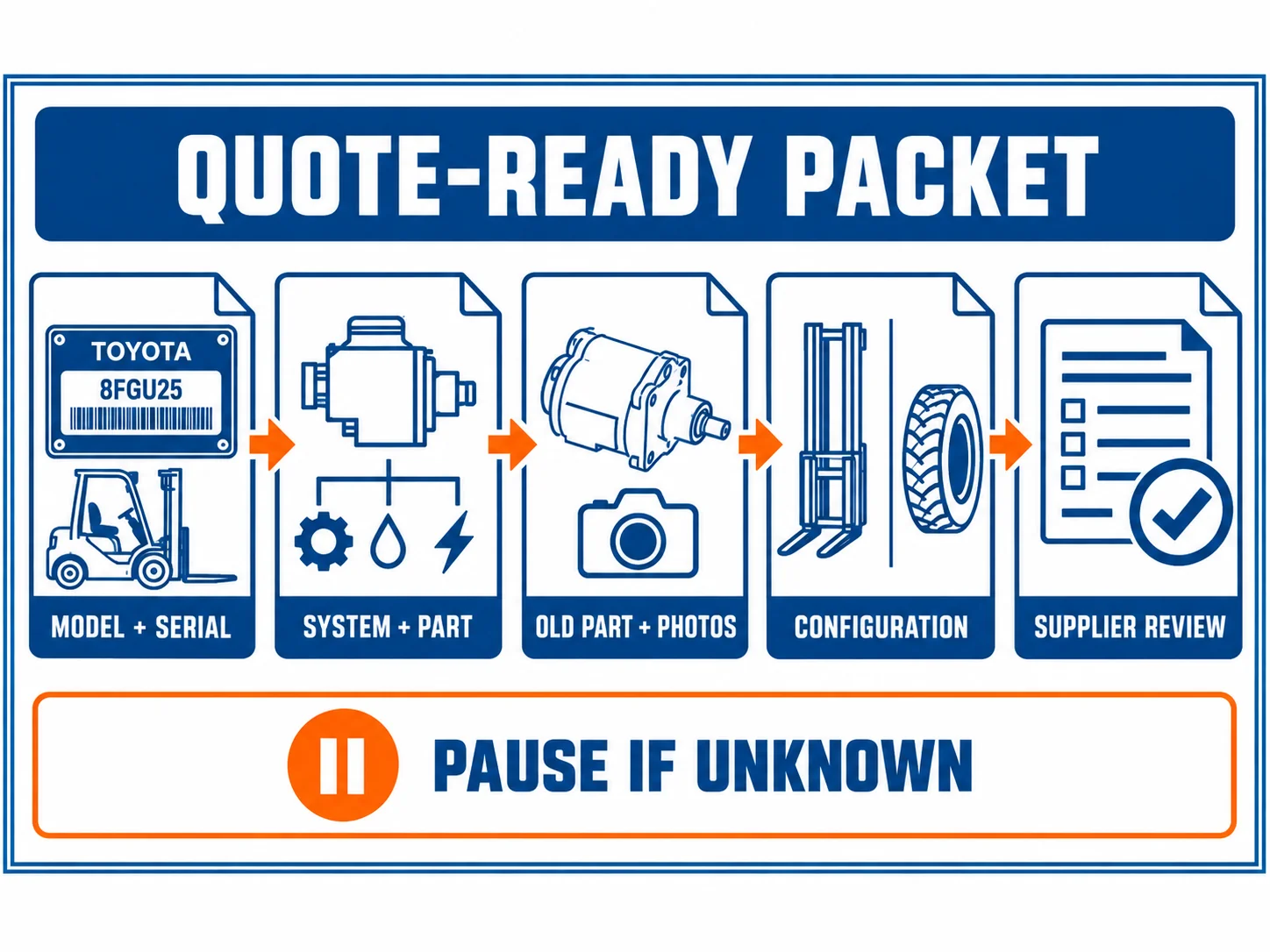

How to send an 8FGU25 parts request
Use this sequence when sending a Toyota 8FGU25 parts inquiry:
- State the complete model code and serial number.
- Identify the system and the component being replaced.
- Add the old part number, if readable, plus photos of labels, connectors, hose ends, and mounting points.
- Record the mast, attachment, tire, fuel, and other configuration details that are visible on the truck.
- Ask the supplier to return the proposed part number, serial range, revision or supersession status, and any remaining unknown.
This packet lets the supplier compare the request with the applicable Toyota 8FGU25 parts manual or catalog path. It also creates a written record of what was confirmed and what was still a buyer input. (Toyota Material Handling, n.d.)
Do not send only “Toyota 25 forklift part.” That description is too broad for a reliable fitment review.
What not to use as proof of 8FGU25 fitment
Treat these as leads that require checking, not as confirmation:
- A listing that says only Toyota 25, Toyota 8-series, or forklift 5,000 lb.
- A product photo with no readable part number, serial range, or configuration note.
- A cross-reference that names a nearby model but does not show the 8FGU25 application.
- A public specification copied into an order without checking the actual truck.
- A seller statement that uses “fits Toyota” without defining the model and serial scope.
The safe question is not “Does this look similar?” It is “Which source confirms this exact model, serial range, and component revision?”
When to delay the order
Warning: Pause the Toyota 8FGU25 parts order when the serial number is missing or unreadable, the model code conflicts across photos, the mast or attachment is unknown, or the proposed part belongs to a different model family.
Also pause when the listing omits the part number, revision, serial range, or a dimension that the supplier says controls fitment.
A delay is especially reasonable when the replacement is expensive, safety-related, difficult to return, or likely to stop the truck. Ask for the missing evidence, document the uncertainty, and wait for a fitment-reviewed answer. Do not fill a gap with a guess based on the capacity suffix.
Toyota 8FGU25 parts and specifications FAQ
How much does a Toyota 8FGU25 forklift weigh?
Toyota’s specification sheet lists 7,840 lb for the 50-8FGU25 configuration. Use that figure as orientation only. The actual truck’s configuration, mast, tires, and attachments can change the working figure, so weight should not be used as a parts-fitment field. (Toyota Material Handling, n.d.)
What does a Toyota 25 forklift weigh?
“Toyota 25” is not a complete model identity. Ask for the full model code, such as 8FGU25, plus the serial number before using a weight or parts reference.
Where can I find manuals for my equipment?
Start with Toyota’s equipment manual and model/serial resources, then use the exact truck identity to find the applicable reference. A manual keyword alone does not confirm that a part shown in a document fits every 8FGU25 production range.
Conclusion
The practical answer for Toyota forklift 8FGU25 parts fitment is to use the complete model and serial identity as the first filter, then document the mast, tire, fuel, and old-part evidence. Public figures such as 5,000 lb capacity, 131.5 in maximum fork height, and 7,840 lb total weight describe the cited 50-8FGU25 reference configuration, not every truck or every parts variant. (Toyota Material Handling, n.d.)
Send that evidence as a quote packet and ask for the applicable part number, serial range, revision or supersession status, and any remaining unknown. If the model, serial, or configuration conflicts, pause the order until the fitment review resolves it.
References
- Toyota Material Handling. (n.d.). Core IC pneumatic specification sheet. Toyota Material Handling. Retrieved September 13, 2026, from https://www.toyotaforklift.com/content/dam/tmh/marketing/en/pdf/product-spec-brochures/2023_Core%20IC%20Pneumatic_Spec%20Sheet_Digital.pdf
- Toyota Material Handling. (n.d.). Finding your model and serial number. Toyota Material Handling. Retrieved September 13, 2026, from https://www.toyotaforklift.com/help/mytoyota-store/articles/22978549001627-finding-your-model-and-serial-number
- Toyota Material Handling. (n.d.). Where can I find manuals for my equipment? Toyota Material Handling. Retrieved September 13, 2026, from https://www.toyotaforklift.com/help/mytoyota/articles/23914288808347-where-can-i-find-manuals-for-my-equipment
Last reviewed and updated: September 2026. Author: Kingstream team. For tailored guidance, contact our team.
