3 Ton Steel Hinged Fork Carriage – 3000kg Capacity

3-Ton Steel Hinged Fork Carriage — 3000kg Hydraulic Forklift Attachment, Diesel Compatible

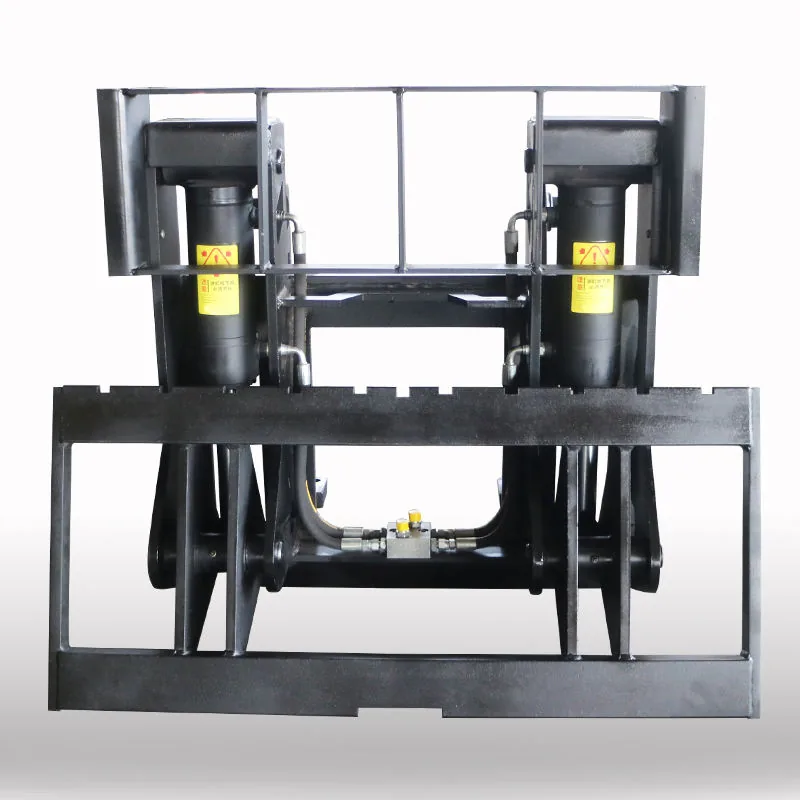

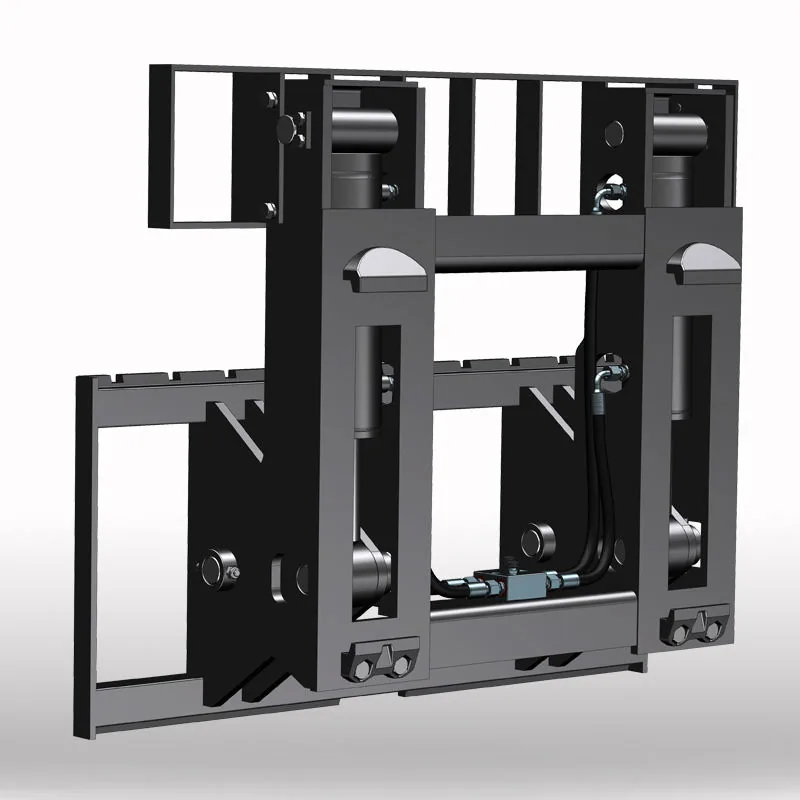

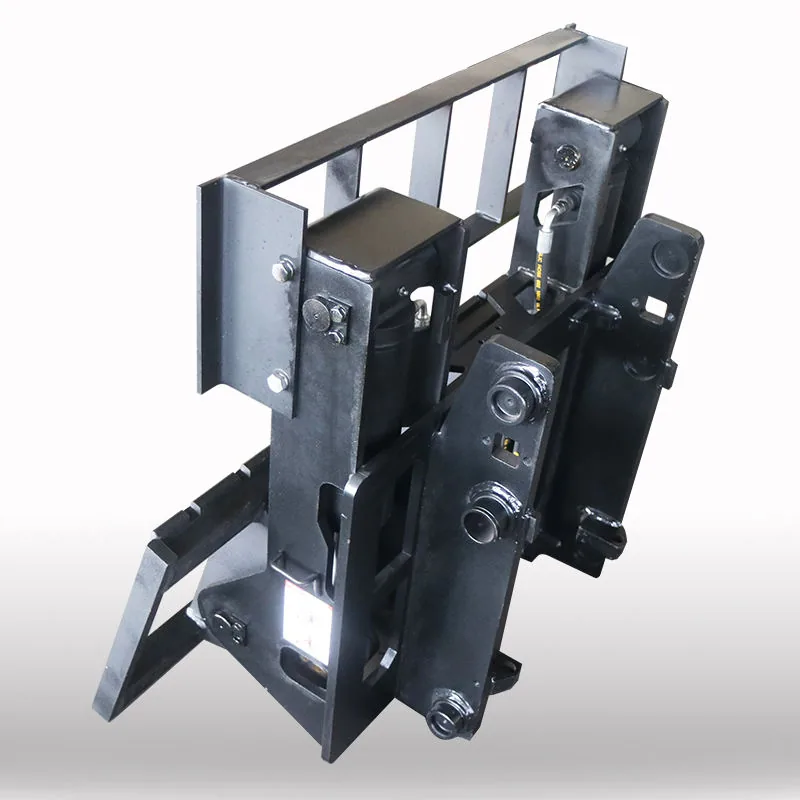

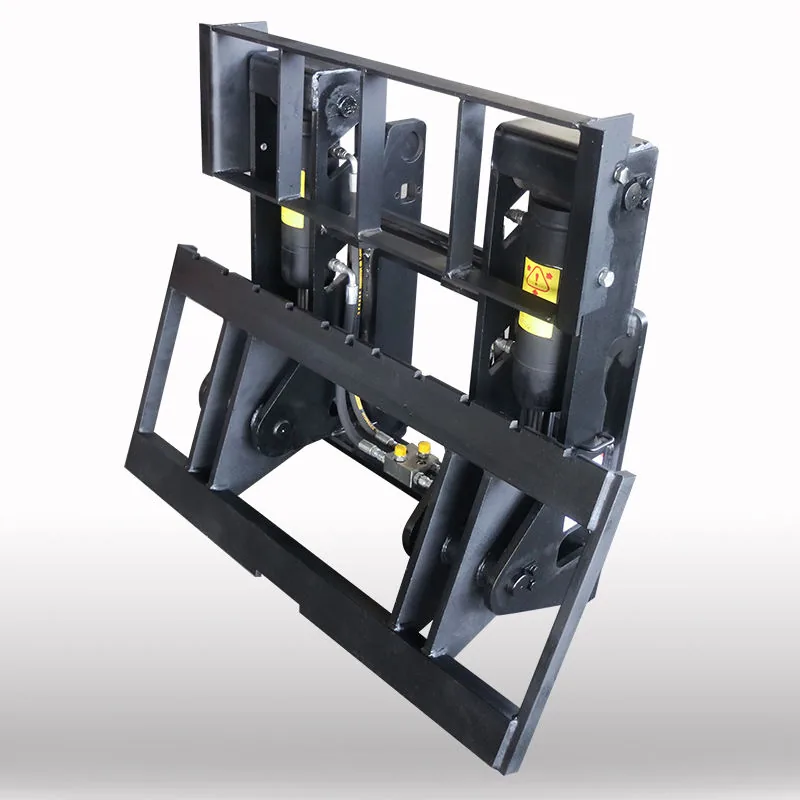

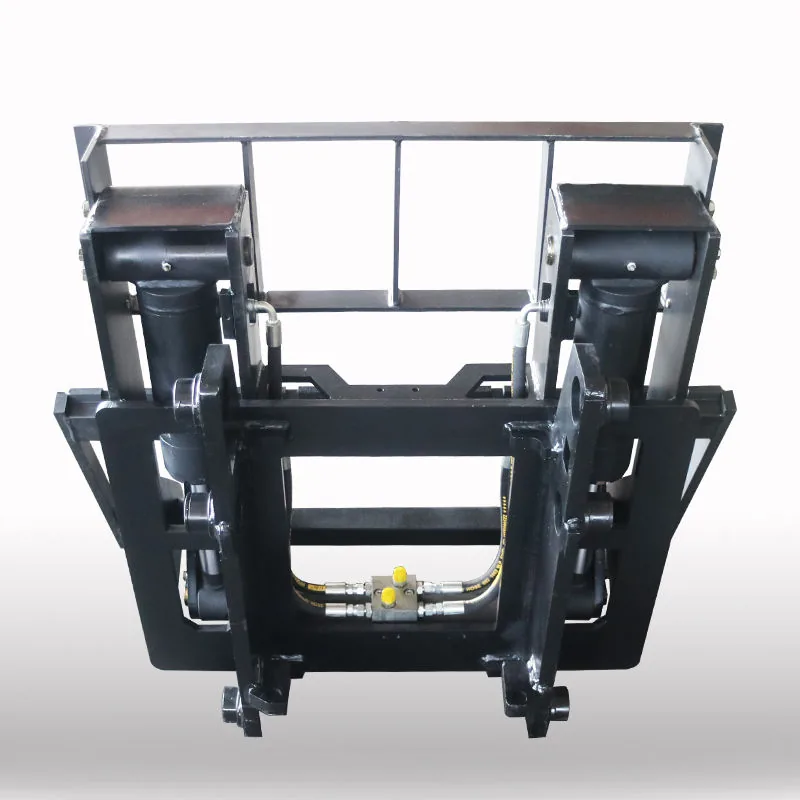

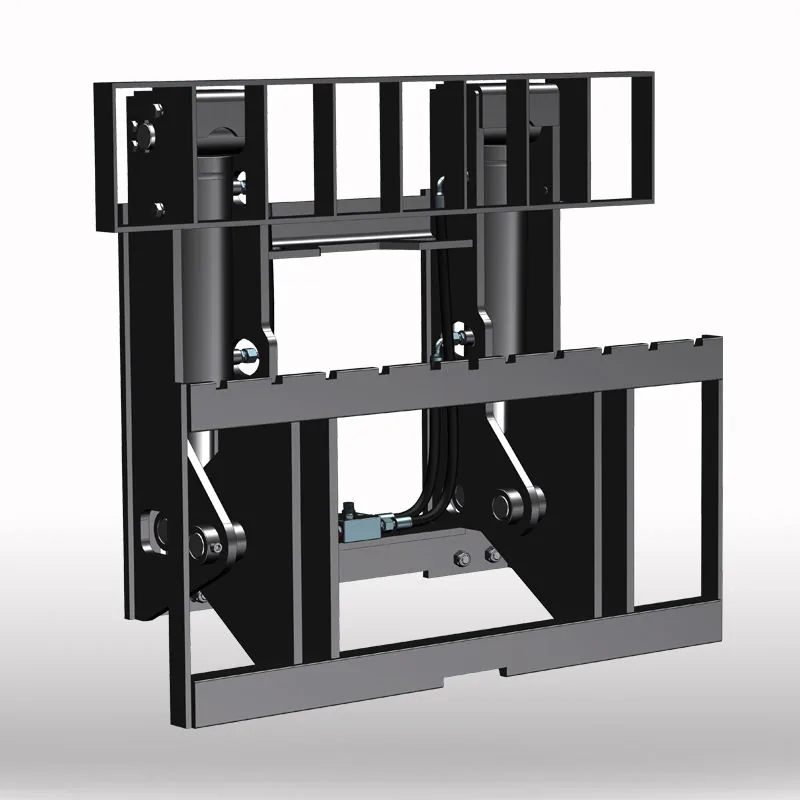

This 3-ton steel hinged fork carriage is a 3000kg-capacity hydraulic attachment designed for diesel forklifts with 1250mm wheelbase and single-stage mast configuration. The hinged fork mount design enables each fork to pivot independently around the hinge axis, allowing the forks to conform to uneven load surfaces — a critical feature for construction, mining, farm, and outdoor material handling operations where ground conditions are rarely level. Constructed from heavy-gauge steel with a weight range of 350-520kg depending on configuration, this carriage is engineered for continuous heavy-load cycling in industries where load engagement reliability directly impacts productivity. The 1520mm fork length, 180mm fork width, 395mm load center distance, and 1350×160×100mm fork specifications provide a stable load platform for palletized goods, construction materials, and bulk containers. Compatible with diesel forklifts rated at 3000kg capacity, this carriage is also available with optional paper clamp configuration for specialized material handling applications in the paper and packaging industries.

Installing a 3000kg hinged fork carriage on a diesel forklift is a heavy-duty procedure requiring overhead crane or second forklift support for the 350-520kg assembly weight. The carriage mounts to the mast via roller channels — verify roller spacing, channel width, and hydraulic connection compatibility before installation. The hinged fork pivot points incorporate grease fittings that must be lubricated weekly in high-duty-cycle operations; dry hinges accelerate pin and bushing wear, creating progressive fork wobble that defeats the articulated design’s load-stabilizing purpose. After installation, bleed the hydraulic tilt circuit to remove air and cycle the forks through full hinge range to verify clearance with the mast, load backrest, and overhead guard at all lift heights and tilt angles. The 1950mm turning radius specification is a reference for the base forklift — verify your machine’s actual turning radius accommodates the carriage width without interference. Common failure points include hinge pin wear creating asymmetric fork movement, carriage frame stress cracking at the mast roller mounting points from shock loading, and tilt cylinder drift under sustained load indicating internal seal bypass. Monthly inspection of all welds, hinge pins, and hydraulic connections is recommended for safety-critical applications.

This hinged carriage is designed for 3-ton diesel forklifts with 1250mm wheelbase and single-stage mast. Verify your forklift specifications before ordering. Browse our Fork Carriage category for fixed carriages, side shifters, and paper clamp options. For OEM specifications, visit HELI Forklift official site. For bulk orders or custom configurations, contact us.

Technical Specifications

Compatible Forklift Specifications

Each carriage is inspected for weld integrity and hydraulic function before shipment. Seaworthy export packaging. Optional paper clamp configuration available. For bulk orders or technical inquiries, contact us.
