Hinged Fork Carriage for 2.5 & 3 Ton Forklifts

Hinged Fork Carriage SJ-QFC-00 — 3000kg Capacity Hydraulic Attachment, 2.5-3 Ton Forklifts

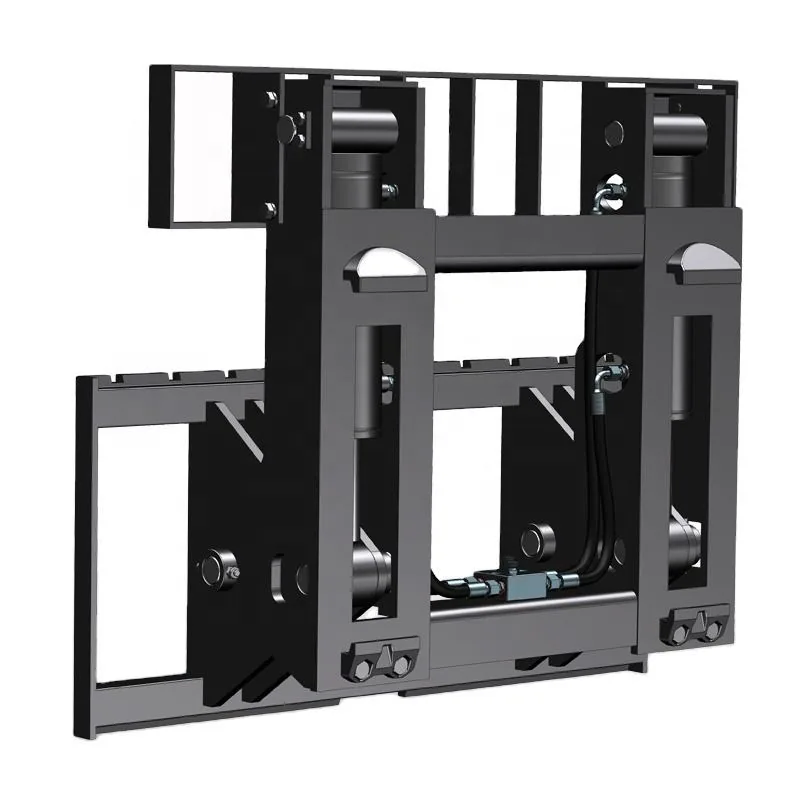

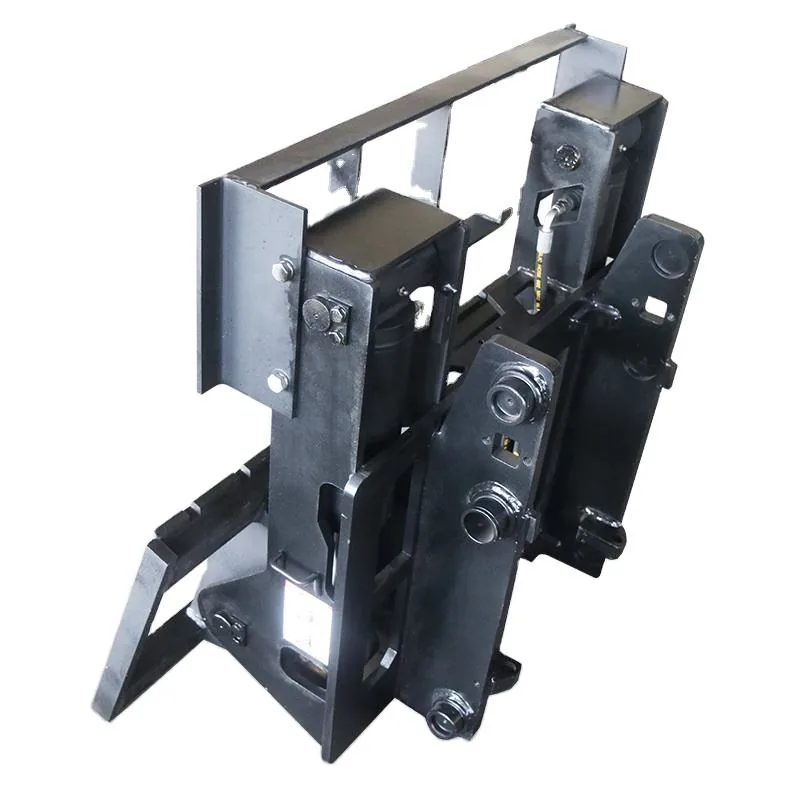

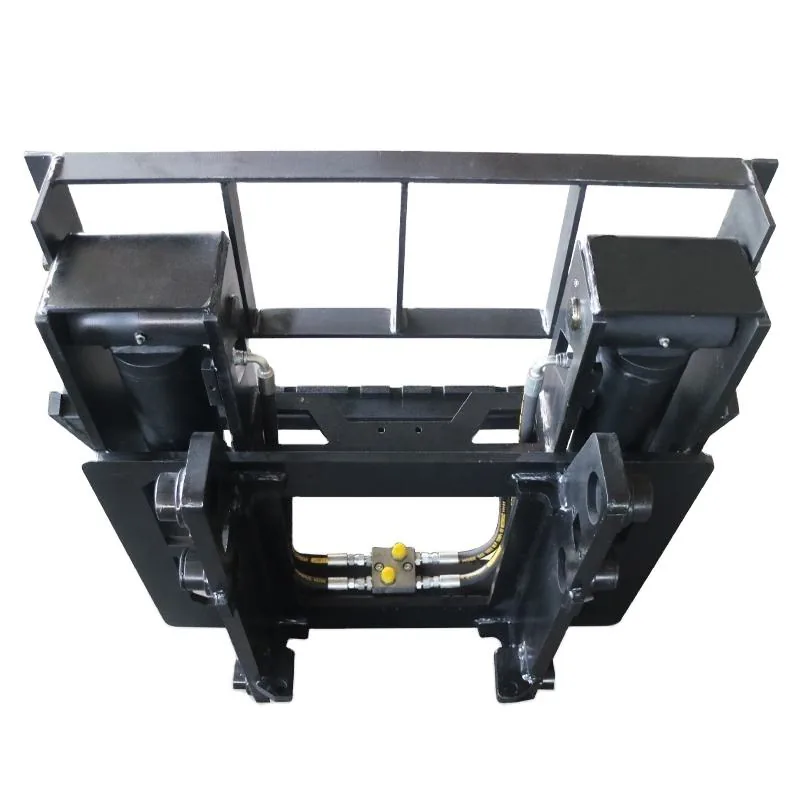

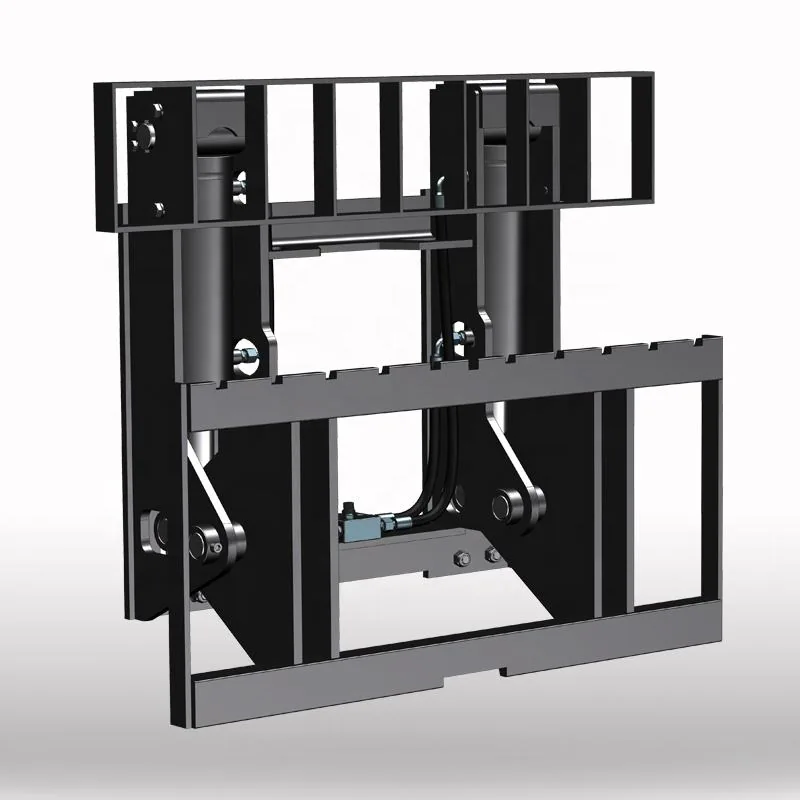

The hinged fork carriage SJ-QFC-00 is a 286kg hydraulic forklift attachment engineered for 2.5-3 ton counterbalance forklifts with 3000kg carrying capacity. This unit integrates a hinged fork mounting system, side shifter, and hydraulic cylinder into a single carriage assembly with a 360×1100mm frame — a compact but robust platform that combines three functions (hinged articulation, lateral fork positioning, and hydraulic actuation) in one bolt-on unit. Constructed with a pallet-ready 250kg gross packaged weight and 110×110×160cm package dimensions, the SJ-QFC-00 is built for building material, construction, energy/mining, and manufacturing operations where fork articulation on uneven ground and lateral positioning without manual fork adjustment directly impact productivity. The hydraulic cylinder powers the hinged fork tilt function, while the integrated side shifter enables lateral fork movement for fine-positioning pallets without repositioning the entire forklift — a significant time-saver in high-density warehousing and container loading operations. 1-year warranty on core components (hinged fork, side shifter, hydraulic cylinder) included.

Installing the SJ-QFC-00 requires connecting the hydraulic cylinder to the forklift’s auxiliary hydraulic circuit — verify your machine has a spare auxiliary circuit with adequate flow rate for the carriage’s hydraulic cylinder before ordering. The 286kg carriage weight requires mechanical lifting assistance for safe mounting to the mast. After mounting, bleed the hydraulic cylinder circuit thoroughly; air in the system causes jerky tilt actuation and can create load instability during fine-positioning operations. The hinged fork pivots and side shifter slide rails incorporate grease fittings that require weekly lubrication in multi-shift operations — dry hinges and slide rails accelerate pin, bushing, and rail wear, progressively increasing fork wobble and side-shift play. The 360×1100mm frame is compatible with ITA Class II/III mast mounting dimensions; verify your mast channel spacing before ordering. Post-installation, test the full tilt and side-shift range with a known-weight load at low height to confirm smooth hydraulic operation without cylinder drift, which indicates internal seal bypass requiring cylinder rebuild or replacement.

This carriage fits 2.5-3 ton forklifts with ITA Class II/III mast mounting. Confirm your mast dimensions and auxiliary hydraulic specifications before ordering. Browse our Fork Carriage category for fixed carriages, tilt carriages, and fork components. For OEM specifications, visit HELI Forklift official site. For bulk orders or custom configurations, contact us.

Technical Specifications

Compatible Forklift Models

Each carriage is inspected for hydraulic function, hinge articulation, and weld integrity before shipment. Pallet-packed for export. 1-year warranty on core components. For bulk orders or technical inquiries, contact us.
