Friction Disc Plate Forklift Spare Parts Clutch Friction Plate for 3-3.5 Ton Automatic Forklift
$29.99
Wet clutch friction plate for 3-3.5 ton automatic powershift forklifts. Copper-loaded compound for high thermal conductivity. Heli CPCD30-35 TCM FD30-35 Toyota Komatsu.

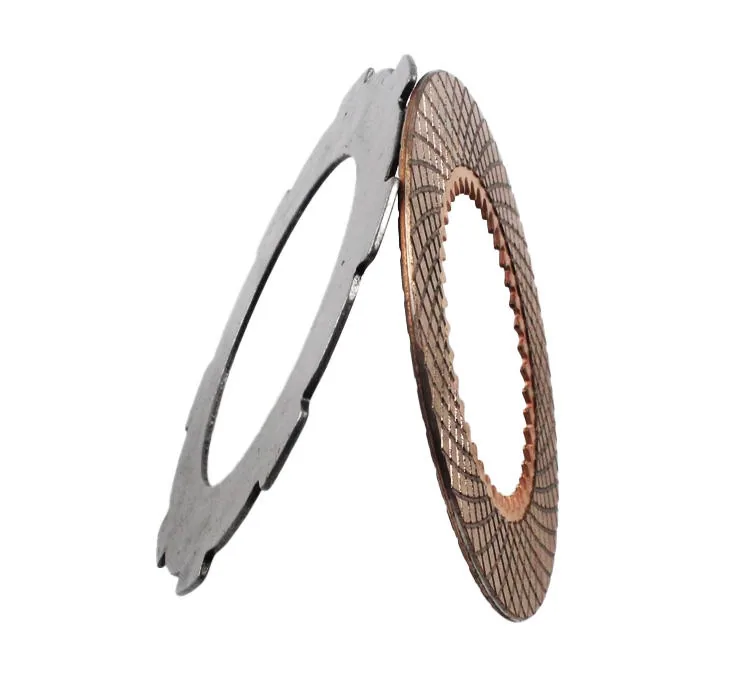

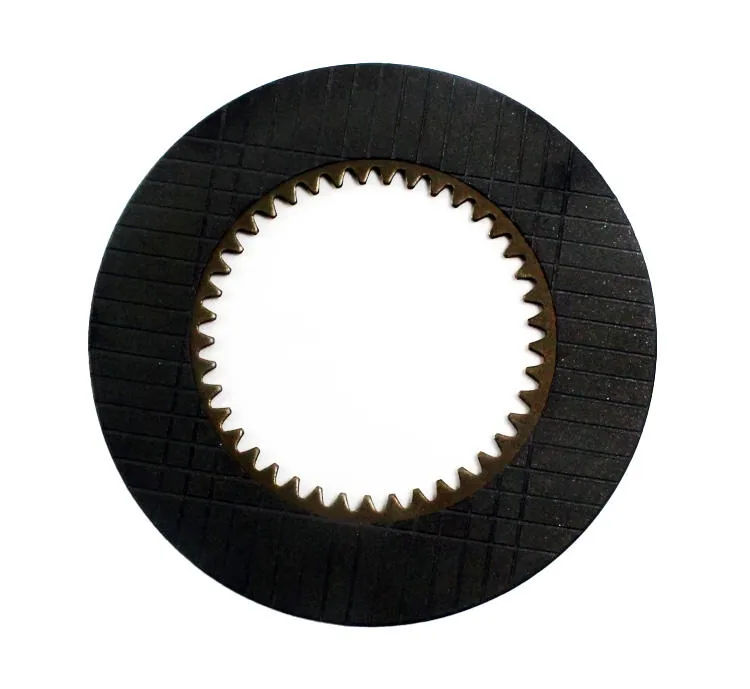

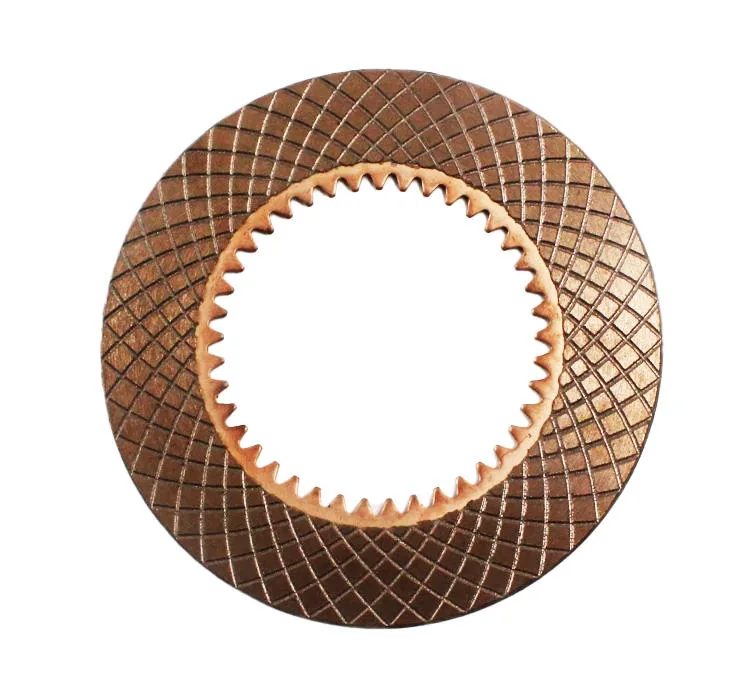

Clutch Friction Disc Plate for 3-3.5 Ton Automatic Forklift Transmission
This friction disc plate is a wet-type clutch pack plate for automatic (powershift) transmissions on 3-3.5 ton forklifts. It operates submerged in ATF at 80-100°C, alternating between compression against steel separator plates when engaged and spinning freely when released. The friction material uses a cellulose-resin compound with sintered copper particles for higher thermal conductivity than 1-2 ton plates — critical for the 3.5T torque loads. Always measure steel separators for thickness when replacing friction plates; worn separators cause the rebuild to slip immediately.

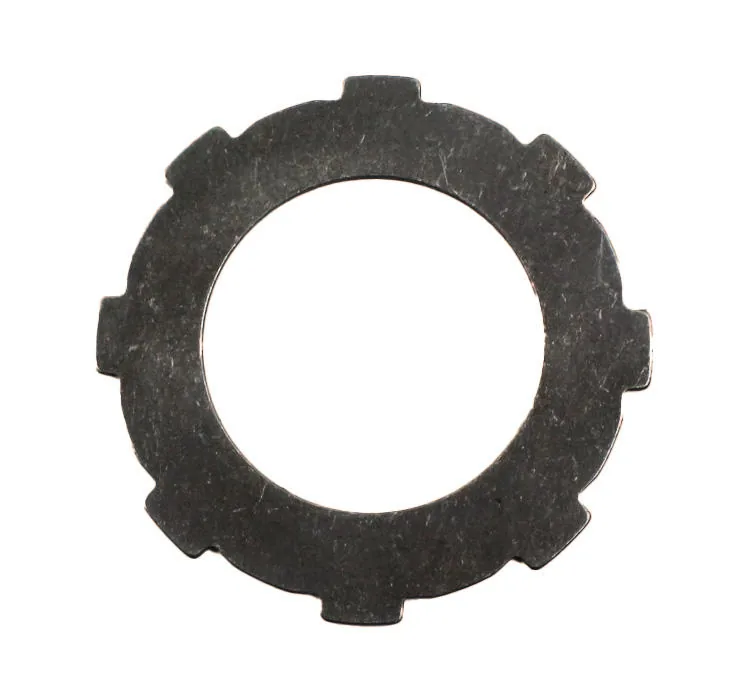

The most frequent cause of repeat transmission failure after a friction plate replacement is neglected separator plate inspection. Steel separators wear 0.05-0.1mm per friction plate set, and when the combined clearance across the pack exceeds piston stroke, the clutch never fully engages. Measure all separators with a micrometer — any below minimum thickness must be replaced.
Direct fit for Heli CPCD30-35, Hangcha CPCD30-35, TCM FD30-35, Toyota 7FD30-35, Komatsu FD30-35. Replace as complete set, flush transmission, change filter. Transmission parts. Heli official.
Technical Specifications
- SKU: FRICTION-3-35T-AUTO
- Key Differentiator: 3-3.5T automatic transmission friction plate with copper-loaded compound
- Type: Wet Clutch Pack Plate — Powershift Transmission
- Material: Cellulose-Resin + Sintered Copper
- Application: Heli CPCD30-35, TCM FD30-35, Toyota 7FD30-35
- Warranty: 12 Months
Compatible Models
| Brand | Models |
|---|---|
| Heli/Hangcha | CPCD30-35 |
| TCM | FD30-35 |
| Toyota/Komatsu | 7FD30-35 / FD30-35 |
Kingstream plates oil-wrapped, rigid cartons. QC: tooth count, OD, thickness, bond check. 12-month warranty. Contact us.
Full Category Coverage
One supplier for all forklift systems — engine, hydraulic, electrical, mast, brake, undercarriage. No need to juggle multiple vendors.
No Minimum Order
Trial orders welcome. Single-piece to bulk supply. You test first, scale later. We treat every order seriously.
Three Quality Choices
Original, OEM, or Aftermarket. You decide based on budget and application. We don't upsell — you control cost and performance.
Direct 1-on-1 Communication
You talk to the sourcing decision maker. No sales reps, no forwarding. Faster answers, clearer quotes, real accountability.
Mixed Order Consolidation
Combine different parts in one shipment. Save on freight. We handle the picking, packing, and export documentation.
After-Sale Warranty
Manufacturing defects covered. Free replacement or credit arranged quickly. Your trust is worth more than any single transaction.
Same part, different brand numbers. This cross-reference table helps you confirm compatibility across multiple forklift brands. If your brand or part number is not listed, send it to us — we will match it.
| Brand | OEM Part Number | Notes |
|---|---|---|
| TOYOTA | 47201-23300 | Original |
| KOMATSU | 3EB-30-41200 | Original |
| HELI | 24022-83011 | Original |
| HANGCHA | R240-83011 | Original / OEM |
| LINDE | 0009830123 | OEM |
| HYSTER | H47201-233 | OEM |
| TCM | TCM-47201 | OEM |
| AFTERMARKET | AM-47201 | Cost-effective replacement |
Follow these four steps to get the fastest and most accurate quotation. The more details you provide, the quicker we can confirm compatibility and pricing.
Send Your Part Number or Forklift Information
Provide the OEM part number, a clear photo of the old part, or the forklift brand and model. Any one of these works. We'll use it to cross-match the correct part.
Tell Us Your Quality Preference and Quantity
Choose Original, OEM, or Aftermarket quality. Let us know how many pieces you need — a single trial unit or a bulk order. We'll quote accordingly.
Provide Your Destination and Shipping Preference
Tell us the destination country and preferred shipping method (sea freight, air freight, or express courier). This helps us calculate delivery time and cost accurately.
Combine Related Parts (Optional)
If you need other forklift parts, include them in the same inquiry. We support mixed order consolidation — less freight cost, less paperwork.
Request Forklift Parts Quotation
📦 Part Number
If you already have the OEM number or reference number, quotation and matching will usually be much faster.
🚜 Forklift Model or Serial
If the exact part number is not available, forklift model details can help narrow the correct product range.
📸 Product Photos
Clear old-part photos, labels or packaging images are useful when buyers need help confirming the correct part.
🌍 Quantity & Destination
Quantity, country and shipping terms help improve quotation structure for EXW, FOB or CIF comparison.
