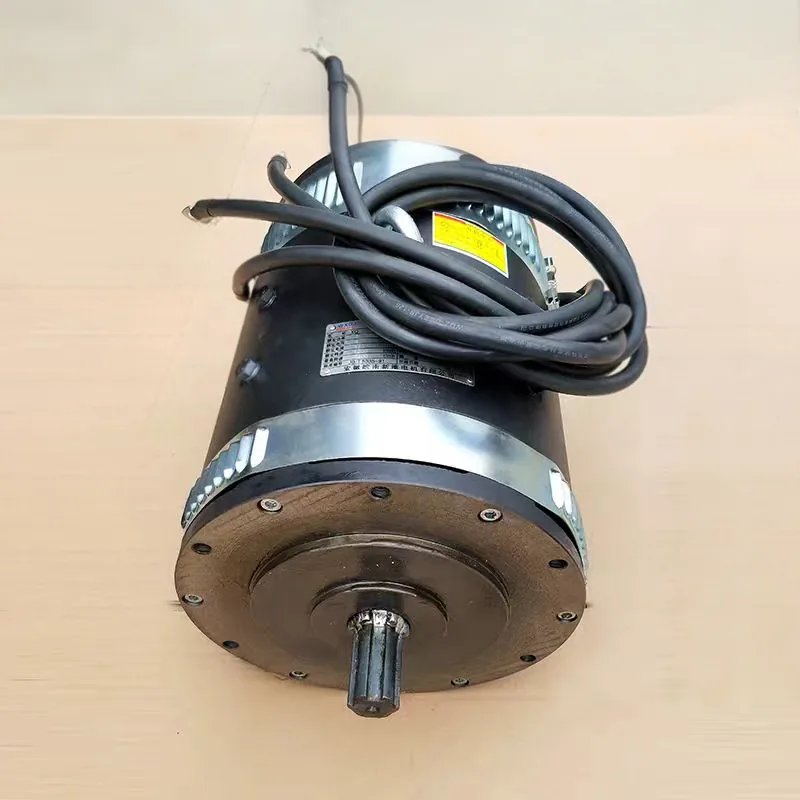

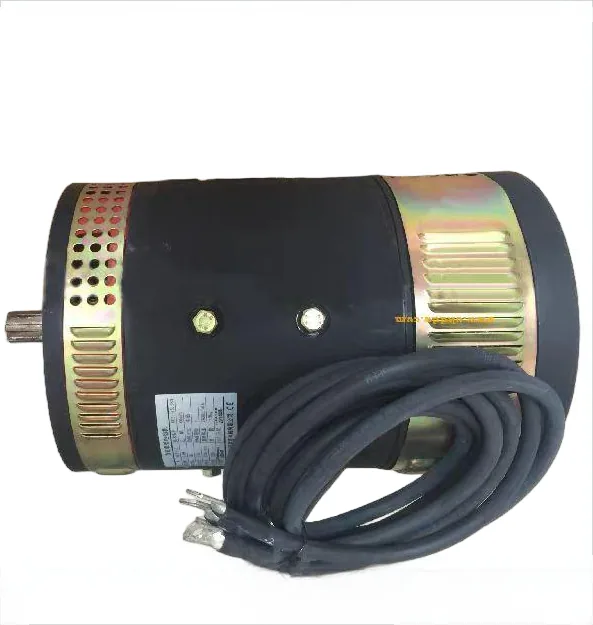

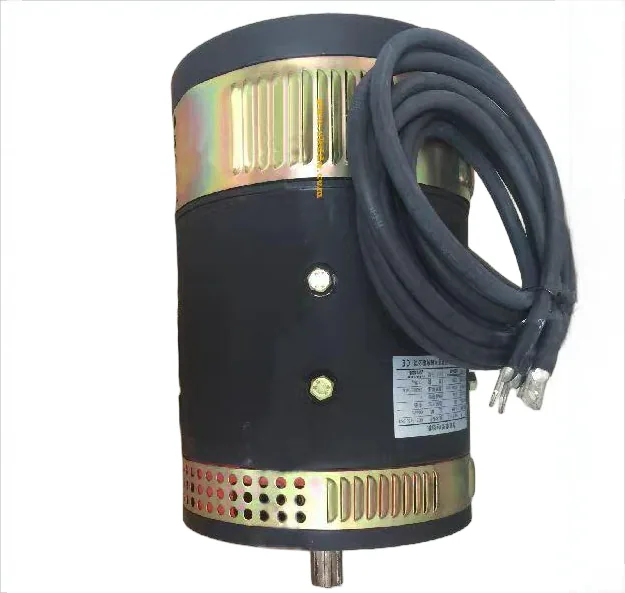

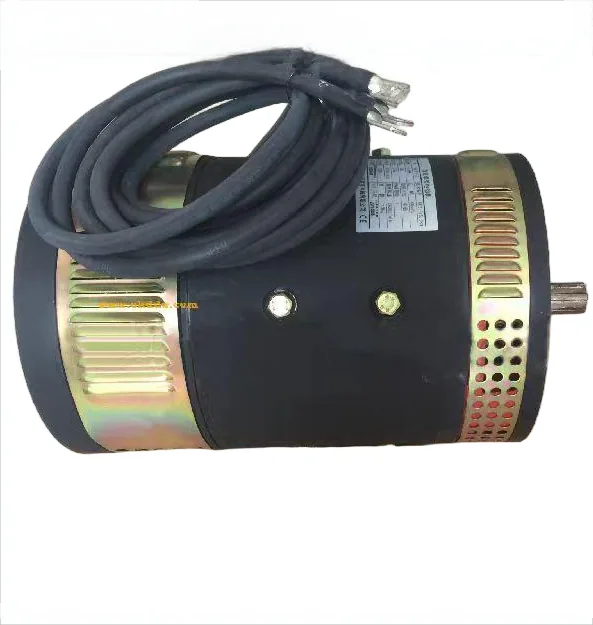

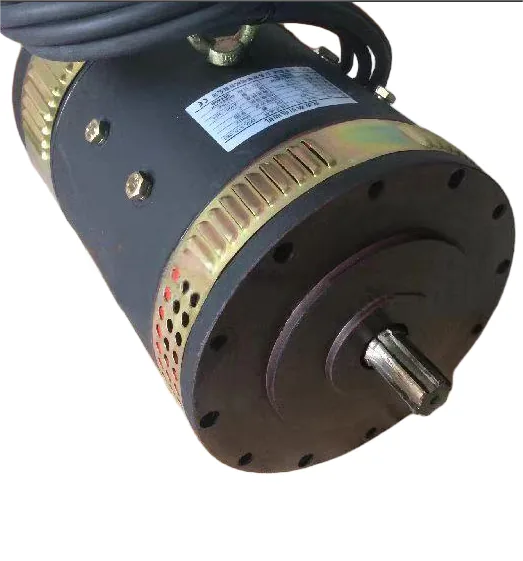

DC Traction Motor XQ-6.3-2 45V 6.3KW – Forklift
$4,399.00
DC traction motor XQ-6.3-2 — 45V 6.3KW (8.45HP) 2400RPM series motor for electric forklift and golf cart drive. XQ series family from 3.8KW to 6.3KW. MOQ 1PC.
DC Traction Motor XQ-6.3-2 — 45V 6.3KW (8.45HP) 2400RPM Series Motor for Forklift & Golf Cart, MOQ 1PC
This DC series-wound traction motor model XQ-6.3-2 delivers 6.3KW (8.45 horsepower) at 45V with 2400 RPM rated speed and 173A continuous current draw — a high-torque series motor designed for electric forklift drive systems, golf carts, club cars, and light electric vehicle propulsion. The series-wound DC motor configuration provides inherently high starting torque that decreases as speed increases, making it ideal for traction applications where heavy loads must be accelerated from standstill. This motor is part of the XQ series family which includes models from XQ-3.8 through XQ-6.3 at various power ratings — allowing standardization across a fleet of vehicles with different power requirements while maintaining common mounting dimensions and electrical interface specifications. Application coverage includes forklift traction, golf cart drive (Club Car, EZ-GO, Yamaha), and industrial vehicle propulsion. MOQ 1 piece with 3-month to 1-year warranty options.
Installing an XQ-6.3-2 series DC motor requires verifying the motor’s mounting frame dimensions, shaft diameter, and keyway match the existing motor and drive coupling. Series DC motors are speed-controlled through armature voltage variation — the motor controller must be rated for 45V input with at least 173A continuous current capacity (higher peak current rating recommended for acceleration). After installation, verify motor rotation direction before coupling to the drive train — reversing the armature or field connections reverses rotation in series motors. The 2400 RPM rated speed should be confirmed under load; no-load speed will be significantly higher and should not be used for performance verification. Carbon brush inspection and replacement intervals depend on duty cycle — high-utilization forklift applications may require brush inspection every 500-1000 operating hours. 3-month to 1-year warranty based on application and duty cycle.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | XQ-6.3-2 |
| Rated Power | 6.3 KW (8.45 HP) |
| Voltage | 45V DC |
| Rated Speed | 2400 RPM |
| Continuous Current | 173 A |
XQ series available: XQ-3.8, XQ-5.3, XQ-6.3, XQ-4DT, XQ-3-4T, XQ-5-7HV, XQ-5FC, XQ-5.3A. MOQ 1PC. Warranty 3 months to 1 year. For bulk orders, contact us.
Full Category Coverage
One supplier for all forklift systems — engine, hydraulic, electrical, mast, brake, undercarriage. No need to juggle multiple vendors.
No Minimum Order
Trial orders welcome. Single-piece to bulk supply. You test first, scale later. We treat every order seriously.
Three Quality Choices
Original, OEM, or Aftermarket. You decide based on budget and application. We don't upsell — you control cost and performance.
Direct 1-on-1 Communication
You talk to the sourcing decision maker. No sales reps, no forwarding. Faster answers, clearer quotes, real accountability.
Mixed Order Consolidation
Combine different parts in one shipment. Save on freight. We handle the picking, packing, and export documentation.
After-Sale Warranty
Manufacturing defects covered. Free replacement or credit arranged quickly. Your trust is worth more than any single transaction.
Same part, different brand numbers. This cross-reference table helps you confirm compatibility across multiple forklift brands. If your brand or part number is not listed, send it to us — we will match it.
| Brand | OEM Part Number | Notes |
|---|---|---|
| TOYOTA | 47201-23300 | Original |
| KOMATSU | 3EB-30-41200 | Original |
| HELI | 24022-83011 | Original |
| HANGCHA | R240-83011 | Original / OEM |
| LINDE | 0009830123 | OEM |
| HYSTER | H47201-233 | OEM |
| TCM | TCM-47201 | OEM |
| AFTERMARKET | AM-47201 | Cost-effective replacement |
