Type F15 Forklift Spare Parts Hydraulic Single One Piece Control Valve

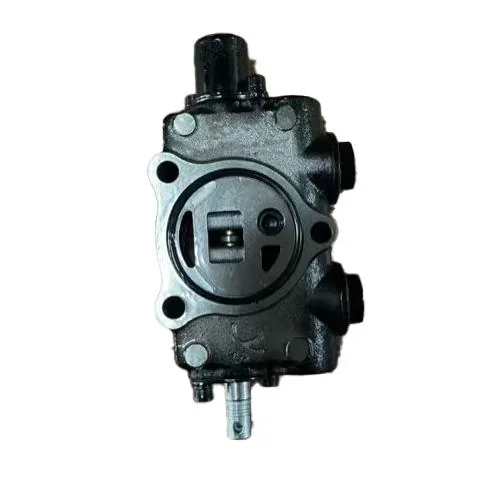

Type F15 Single-Piece Hydraulic Control Valve for 1-3 Ton Forklifts

The Type F15 is a single-piece monoblock hydraulic directional control valve designed as the primary mast control valve for 1-3 ton internal combustion and electric counterbalance forklifts. As one of the most widely used valve types in the Chinese forklift industry — specified in HELI CPCD10-CPCD30, Hangcha CPCD10-CPCD30, Lonking LG10-LG30DT, and dozens of other domestic-brand trucks — the F15 valve provides independent directional control of the mast lift/lower and tilt forward/backward functions through two integrated spool sections in a single compact cast iron body. The simplicity of the monoblock design eliminates the inter-section bolts, alignment dowels, and O-ring seals required by sectional valve stacks, resulting in a lighter, more compact, and inherently more leak-resistant assembly perfectly suited to the space and weight constraints of 1-3 ton forklift counterweight and chassis designs.

The valve body is cast from high-grade gray iron using a precision sand casting process that achieves uniform wall thickness and minimal porosity, ensuring consistent hydraulic pressure containment without risk of casting voids causing leakage paths. After casting, the body undergoes multi-axis CNC machining to produce parallel spool bores with a surface finish of Ra 0.4μm that serve as the bearing surface for the spools. Each spool is manufactured from 20CrMnTi alloy steel with case-hardened working surfaces to 58-62 HRC, operating within a diametral clearance of 8-15 microns — a critical tolerance that balances low spool actuation force with minimal internal leakage. Both spool sections are equipped with integrated load check valves that trap pressurized oil in the cylinder circuits, preventing the forks from drifting downward under load during directional transitions. The adjustable main relief valve protects the hydraulic system from pressure spikes and can be field-adjusted between approximately 140-200 bar to match the forklift’s specific hydraulic system rating. All spools are spring-centered to neutral position, providing automatic fail-safe return to hold position when the operator releases the control lever.

The F15 valve uses an open-center circuit configuration: pump output flows through the central valve gallery and returns to the hydraulic oil reservoir at low back pressure (5-10 bar) when both spools are in neutral, minimizing parasitic load on the engine or electric pump motor during idle. This energy-efficient design is particularly important for electric forklifts where every watt of hydraulic power consumed during idle directly reduces available battery runtime. Direct bolt-on replacement for HELI CPCD10-CPCD30, CPQD10-CPQD30, CPD10-CPD30; Hangcha CPCD10-CPCD30; Lonking LG10-LG30DT; and equivalent 1-3 ton forklifts using F15-type monoblock control valves. Verify port thread sizes (typically metric M14-M18), spool function assignments matching your specific forklift’s lever configuration, and mounting bolt pattern before installation. Flush the hydraulic system and replace the return filter with each valve replacement to prevent contamination-induced spool sticking. Fill with appropriate hydraulic oil after completing connections. For compatible hydraulic hoses, quick-connect couplers, gear pumps, lift and tilt cylinders, and complete hydraulic system service kits, visit our Forklift Engine Parts section. For hydraulic system design guidelines, consult Bosch Rexroth industrial hydraulics resources.

Technical Specifications

• SKU: F15-CONTROL-VALVE
• Type: Single-Piece Monoblock Directional Control Valve
• Capacity: 1.0 – 3.0 Ton Forklift
• Flow Rate: 20-40 L/min (Typical)
• Body: Gray Cast Iron, CNC-Machined, Honed Bores
• Spools: 20CrMnTi Hardened Steel, 58-62 HRC, Spring-Centered
• Relief Valve: Adjustable Direct-Acting Poppet, 140-200 bar
• Circuit: Open-Center with Load Checks
• Oil: ISO VG 32/46 Hydraulic Oil

Compatible Forklift Models

Each Type F15 control valve is pressure-tested at 1.5x rated pressure, undergoes spool stroke and return force verification on both sections, has its relief valve setting confirmed, and is cycle-tested with heated hydraulic oil to verify consistent performance across the full operating temperature range. The valve ships with all ports fitted with protective plastic caps, wrapped in VCI anti-corrosion paper, and packed in a foam-lined reinforced carton. 12-month warranty against manufacturing defects. Installation tip: after mounting the valve and connecting all hydraulic lines, start the engine (or activate the electric pump) at idle and slowly cycle each mast function through its full range of motion 5-10 times to purge air from the cylinders and hoses before applying full rated load. Observe the hydraulic oil level in the reservoir after purging and top up as needed. For fleet hydraulic system service programs, valve selection assistance, or technical support identifying the correct F15 variant for your forklift, contact our team with your forklift model, serial number, and photos of your existing valve.
