Forklift 3 Spool Hydraulic Control Valve CDB2-F15-AOO – TCM FD30C

Forklift 3-Spool Hydraulic Control Valve CDB2-F15-AOO — TCM FD20C / FD25C / FD30C

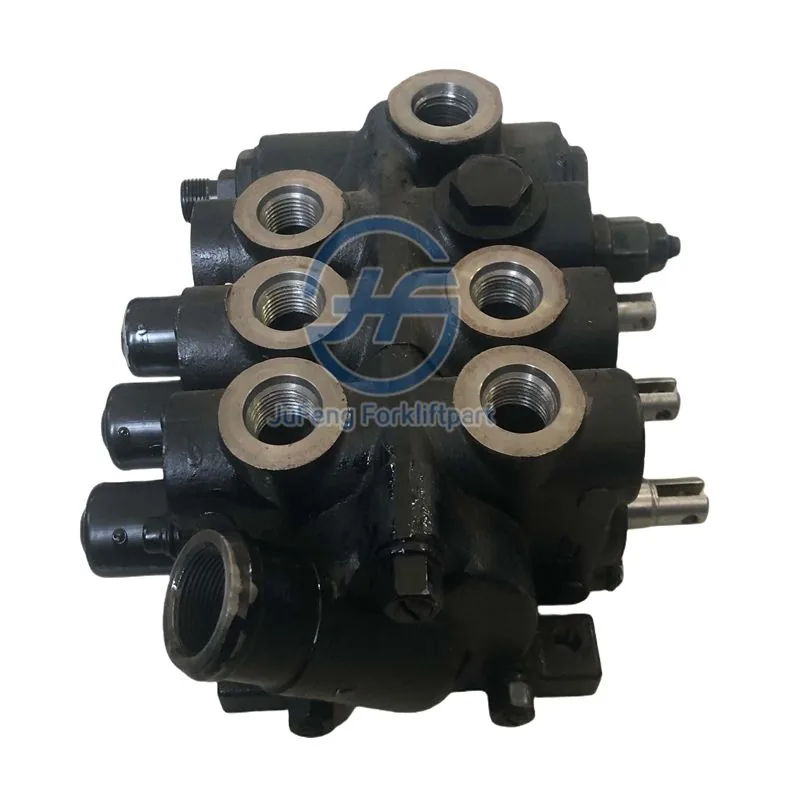

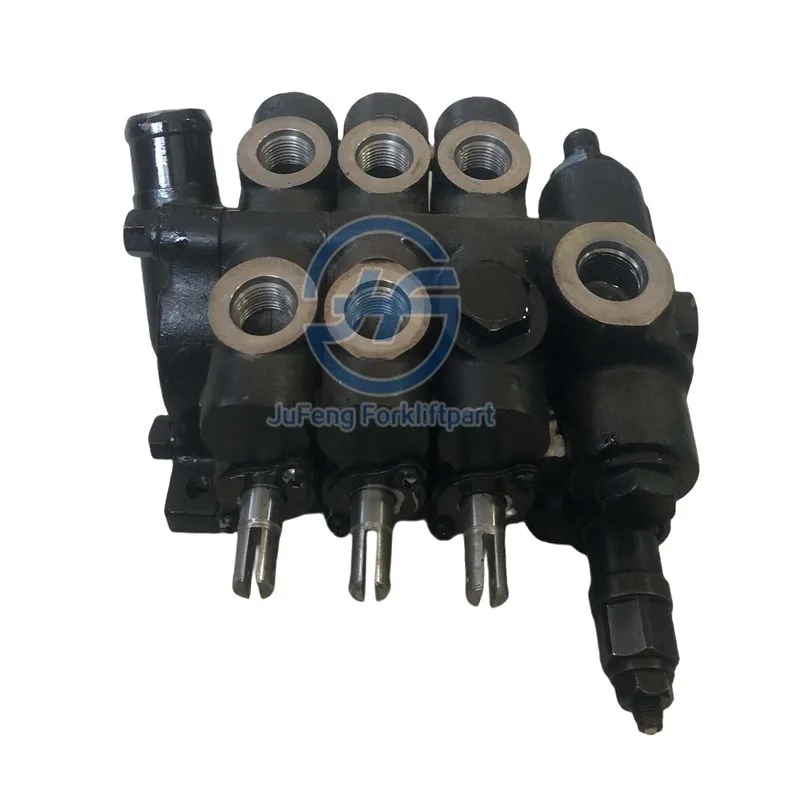

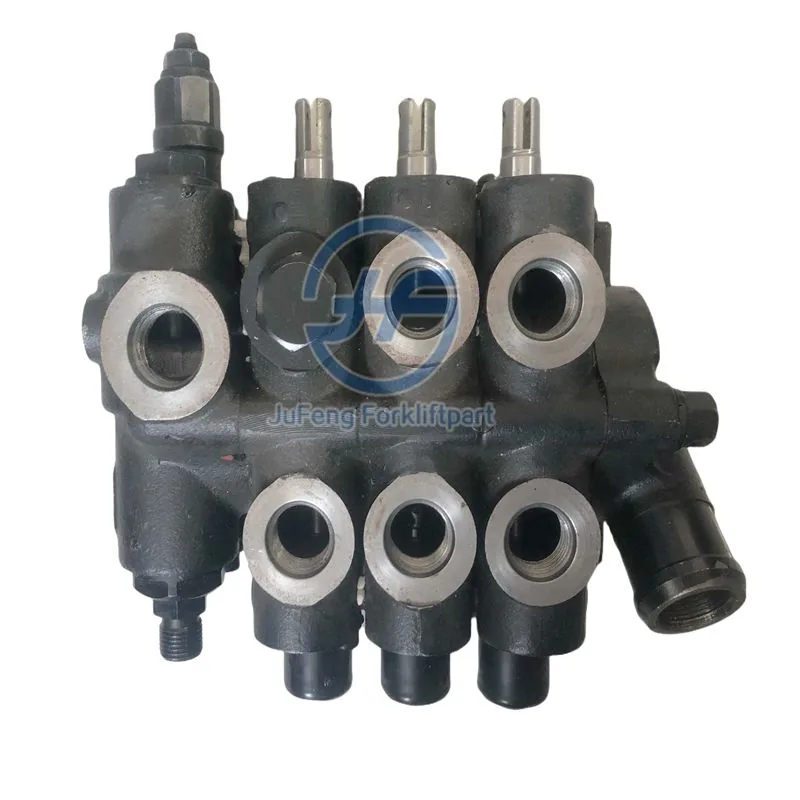

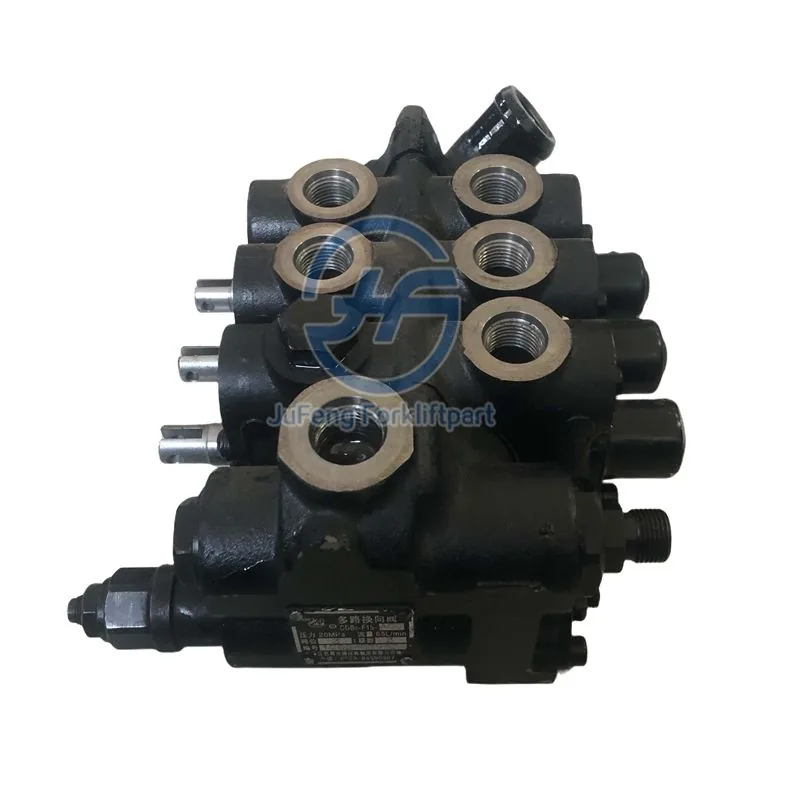

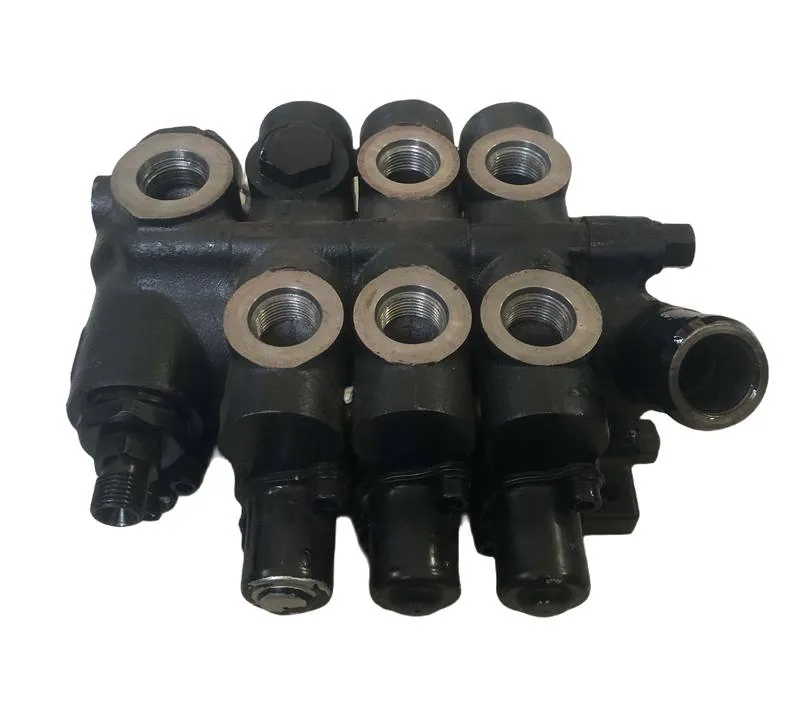

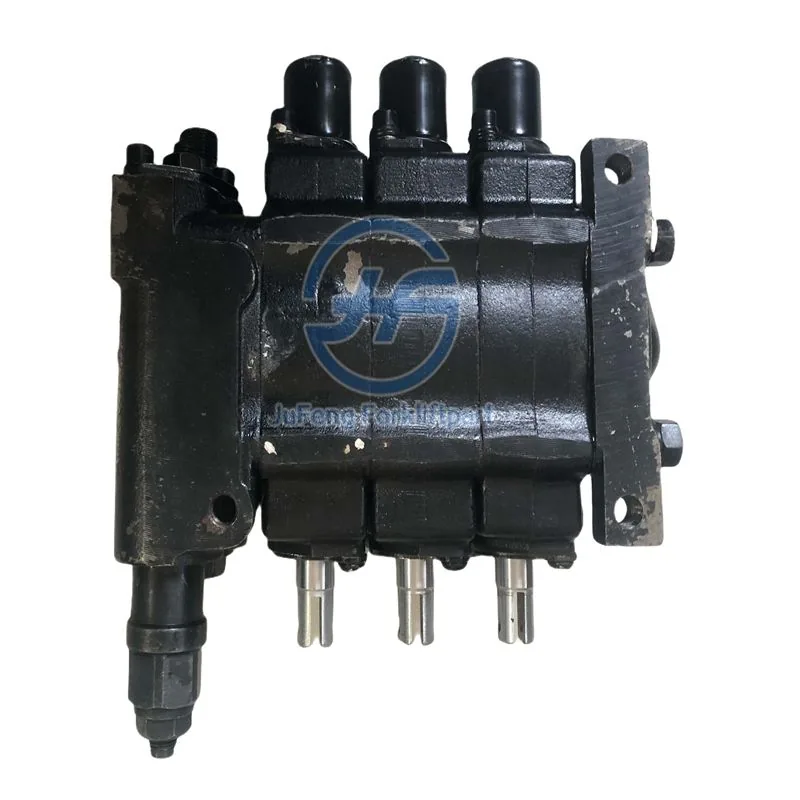

The CDB2-F15-AOO is a 3-spool hydraulic control valve that directs hydraulic fluid flow to the mast lift, tilt, and auxiliary attachment circuits on TCM FD20C, FD25C, and FD30C forklifts. Each spool controls one hydraulic function independently — typically spool 1 for mast lift/lower, spool 2 for mast tilt forward/backward, and spool 3 for an auxiliary attachment such as a sideshift, fork positioner, or clamp. The CDB2-F15-AOO is a monoblock-style valve with all three spools housed in a single cast body, providing compact packaging and fewer potential leak points compared to sectional valves. Part number YY000519 cross-references to the TCM OEM control valve assembly.

Each of the three spools in the CDB2-F15-AOO valve has a spring-centered neutral position — when the operator releases the control lever, the spool returns to center and stops hydraulic flow to that circuit, holding the mast or attachment in position. The valve incorporates built-in pressure relief protection on each circuit to prevent hydraulic system overpressure if a cylinder reaches its end of travel or an attachment jams. Common failure symptoms include: control lever feels loose or unresponsive (broken spool return spring); hydraulic function drifts — mast slowly lowers or tilt angle changes without operator input (worn spool-to-bore clearance allowing internal leakage); external oil leak from between spool sections (failed O-ring or gasket between valve body sections); and intermittent or jerky hydraulic function operation (contaminated spool bore causing spool sticking). The valve assembly is not field-serviceable for internal components — it must be replaced as a complete unit.

Installation involves disconnecting the hydraulic lines at the valve ports (label each line before removal to ensure correct reconnection), unbolting the valve from its mounting bracket, and installing the replacement valve with new O-ring seals at all port connections. The three control lever linkages must be adjusted after installation to ensure full spool travel in both directions without binding. Bleed the hydraulic system by cycling each function through its full range several times with the engine at idle. For related TCM hydraulic components, browse our Forklift Hydraulic Transmission Parts catalog.
