Forklift Battery Charging Cable – M8 Post 50A 8-12AWG Silicone 600V
$34.99
Forklift battery charging cable: M8 post connectors, 50A 600V, 8-12AWG copper core silicone jacket. 50cm length. CE/RoHS certified. 100K+ flex cycles.

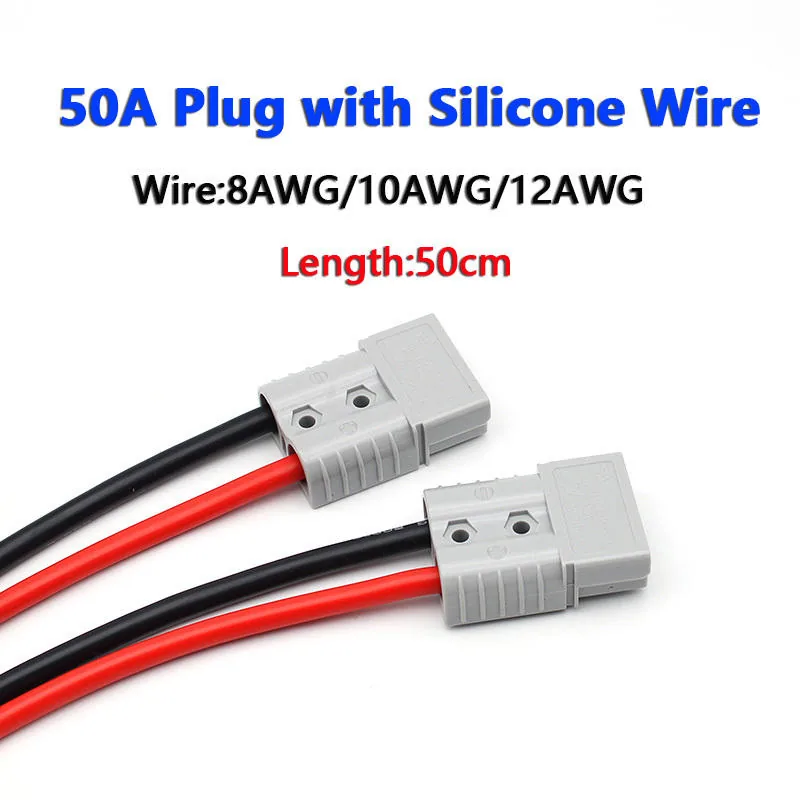

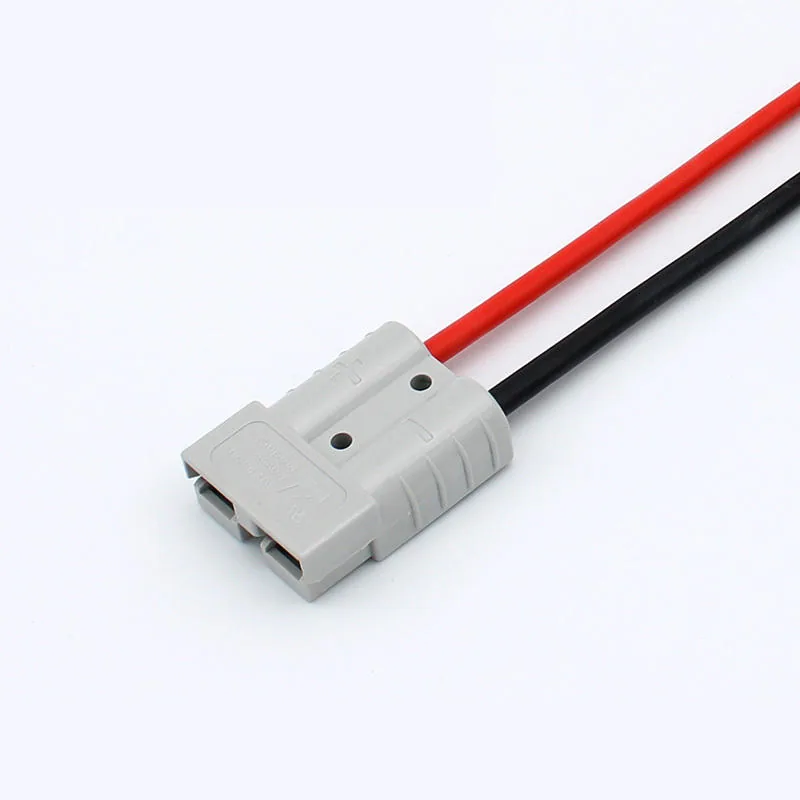

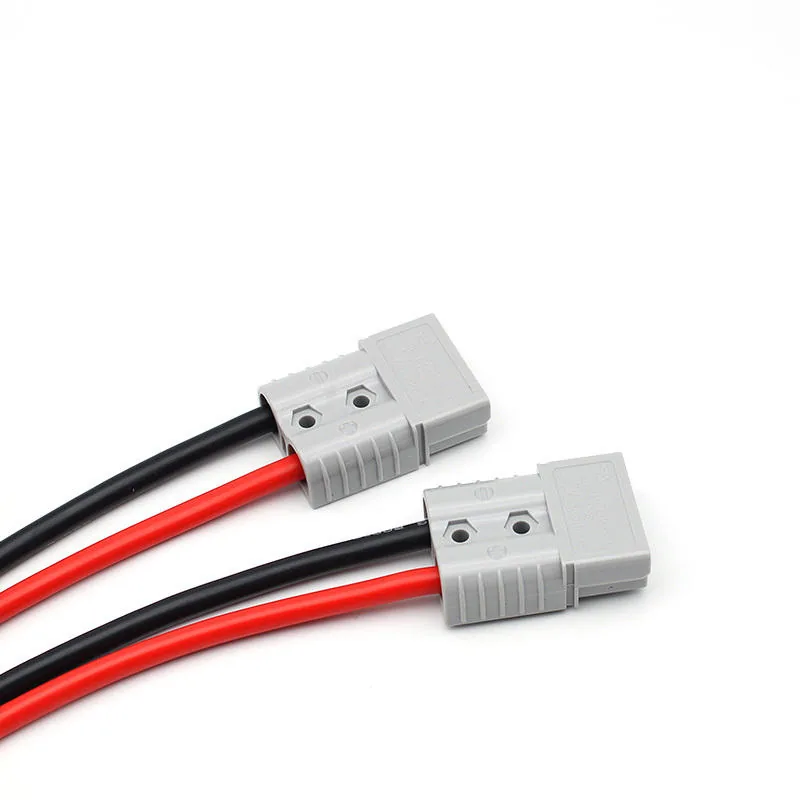

Forklift Battery Charging Cable — M8 Post Connector, 50A, 8-12AWG, Silicone 600V

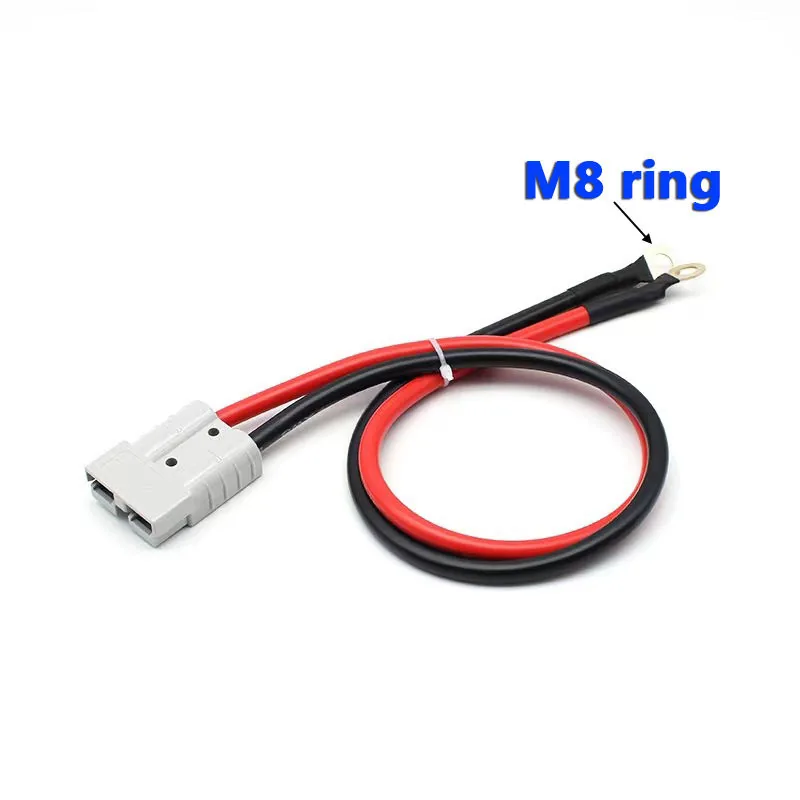

This battery charging cable features M8 post-style connectors on a 50cm silicone-jacketed copper core cable, purpose-built for external battery charger connections on electric forklifts. The M8 eyelet terminals bolt directly to battery posts and charger studs — no adapter needed. Available in 8AWG, 10AWG, and 12AWG gauges to match your charger’s current rating, the copper core conductor minimizes voltage drop during charging, ensuring the battery reaches full charge without the charger overcompensating for cable resistance. Silicone jacket withstands flexing over 100,000 cycles — critical for charging cables that get coiled and uncoiled daily.
This is a charging cable, not a traction cable: rated 50A continuous at 600V, it’s designed for the steady current of a battery charger, not the 300A+ peak inrush of a starter motor. Using a charging cable as a starter cable will overheat the conductor. The 50cm length is standard for direct charger-to-battery connections where the charger is positioned adjacent to the forklift. M8 terminals fit standard battery post bolts — check your battery terminal size before ordering (some heavy-duty forklifts use M10 posts).
Compatible with HELI CPD series, Toyota 7FB, Komatsu FB, CAT EP, Jungheinrich, and Linde electric forklifts using external battery chargers with M8 post connectors. Also suitable for EV battery charging interfaces and power interconnect applications where CE/RoHS-certified cabling is required. Browse our forklift battery cable selection for permanent wiring and starter cables.
Technical Specifications
- SKU: CHARGE-CABLE-M8-50A
- Rated Voltage: 600V
- Rated Current: 50A
- Gauge Options: 8AWG / 10AWG / 12AWG
- Conductor: Copper Core
- Insulation/Jacket: Silicone (Silica Gel)
- Connector Type: M8 Post (Adapter)
- Length: 50cm (customizable)
- Flex Life: ≥100,000 cycles
- IP Rating: IP20
- Certifications: CE, RoHS
Each cable is continuity and insulation tested before packing. We ship worldwide within 24 hours. Specify your required AWG gauge and any custom length →
Full Category Coverage
One supplier for all forklift systems — engine, hydraulic, electrical, mast, brake, undercarriage. No need to juggle multiple vendors.
No Minimum Order
Trial orders welcome. Single-piece to bulk supply. You test first, scale later. We treat every order seriously.
Three Quality Choices
Original, OEM, or Aftermarket. You decide based on budget and application. We don't upsell — you control cost and performance.
Direct 1-on-1 Communication
You talk to the sourcing decision maker. No sales reps, no forwarding. Faster answers, clearer quotes, real accountability.
Mixed Order Consolidation
Combine different parts in one shipment. Save on freight. We handle the picking, packing, and export documentation.
After-Sale Warranty
Manufacturing defects covered. Free replacement or credit arranged quickly. Your trust is worth more than any single transaction.
Same part, different brand numbers. This cross-reference table helps you confirm compatibility across multiple forklift brands. If your brand or part number is not listed, send it to us — we will match it.
| Brand | OEM Part Number | Notes |
|---|---|---|
| TOYOTA | 47201-23300 | Original |
| KOMATSU | 3EB-30-41200 | Original |
| HELI | 24022-83011 | Original |
| HANGCHA | R240-83011 | Original / OEM |
| LINDE | 0009830123 | OEM |
| HYSTER | H47201-233 | OEM |
| TCM | TCM-47201 | OEM |
| AFTERMARKET | AM-47201 | Cost-effective replacement |
