Forklift Oil Filter JX85100C / JX0810D1 — Engine Oil Filtration for 490B Diesel Engines

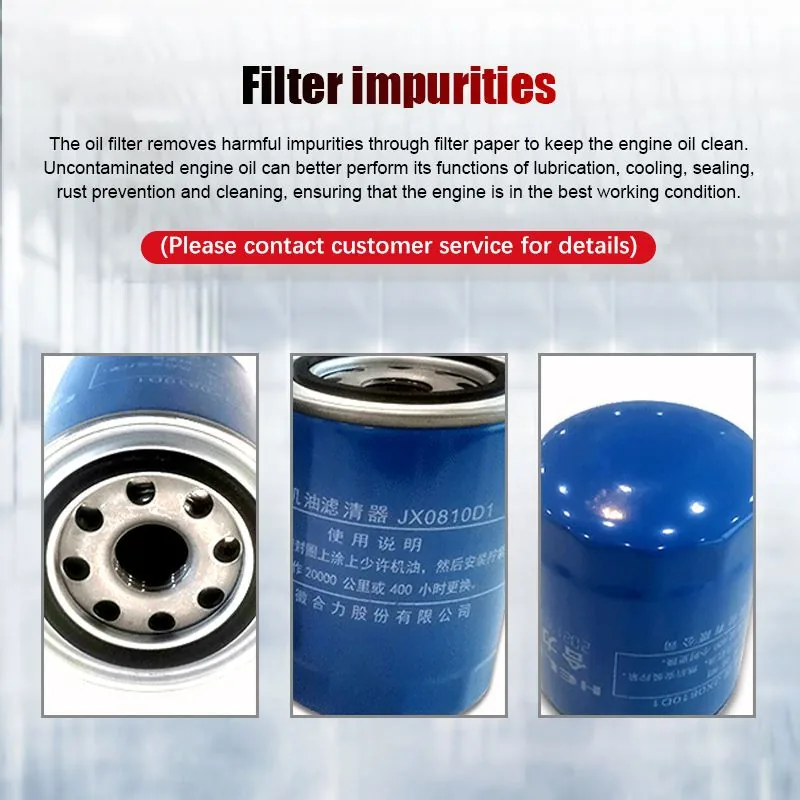

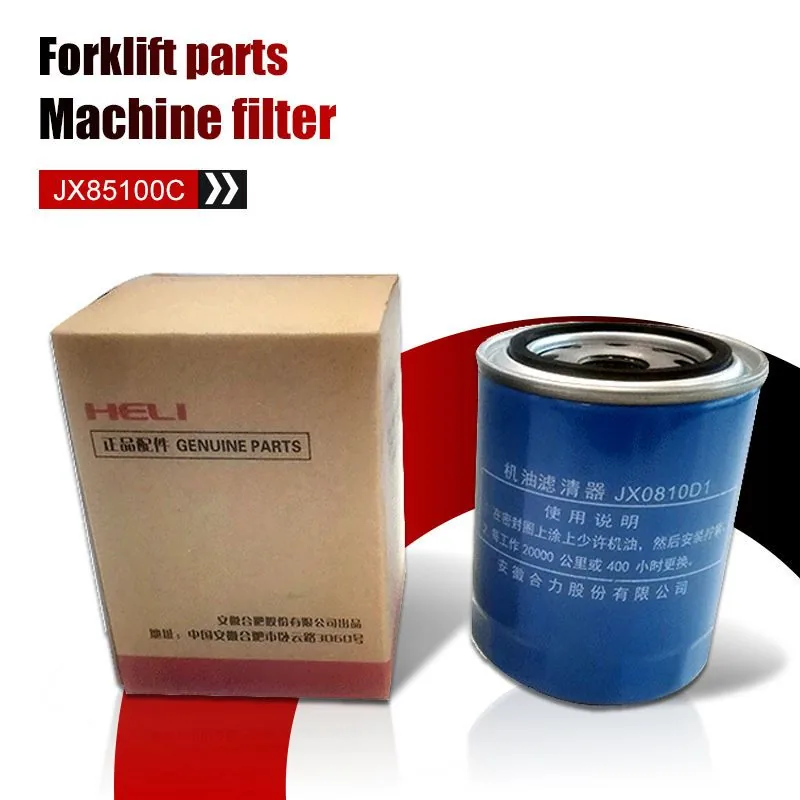

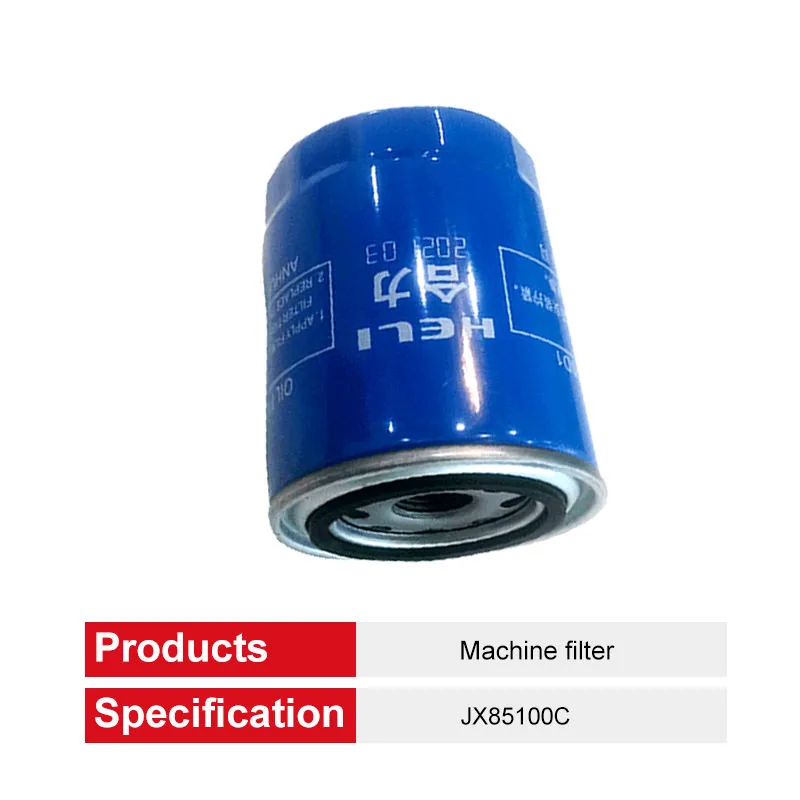

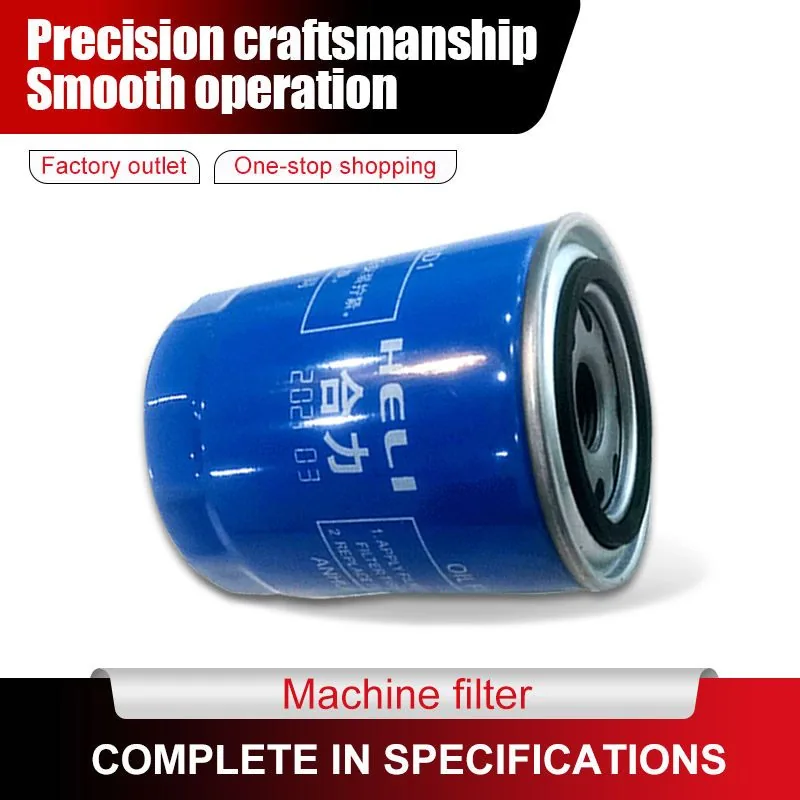

The JX85100C (cross-reference JX0810D1) is a spin-on oil filter specifically designed for the 490B series diesel engines widely used in Chinese-manufactured forklifts including Heli, Hangcha, and Baoli 2-3.5 ton models. This filter handles the 490B’s oil pump flow rate of 16-20 L/min with a filtration efficiency of 96% at 30 microns — optimized for the soot-loading characteristics of the 490B’s indirect-injection combustion system, which generates finer carbon particles than direct-injection engines. The bypass valve opens at 1.0 ± 0.2 bar, matched to the 490B’s cold-start oil pressure curve that peaks at 4.5-5.0 bar at 2,000 RPM. Using a generic filter with a lower bypass setting will cause the valve to flutter open during normal operation, resulting in unfiltered oil circulating through the engine for approximately 15-20% of each operating hour — enough to accelerate main bearing wear by 2-3x over a 500-hour service interval.

The JX85100C has a unique M20×1.5 thread that is NOT interchangeable with the more common 3/4″-16 UNF filters used on Japanese and European engines — attempting to cross-thread a 3/4″-16 filter onto a 490B engine will damage the aluminum oil filter adapter within the first thread turn. During installation, fill the filter with clean 15W-40 diesel engine oil before spinning it on — the 490B’s oil pump is gear-driven directly from the crankshaft and will build pressure quickly, but those first 2-3 seconds of dry running at 800 RPM idle are enough to scuff the #3 main bearing, which is the last bearing in the oil gallery circuit. Tighten to 18-22 N·m (hand-tight plus 3/4 turn). The 490B engine is particularly sensitive to oil filter drain-back during shutdown — if the anti-drainback valve fails, the filter will be empty at the next cold start, causing a 4-6 second delay in oil pressure buildup that manifests as a pronounced “hammering” noise from the valve train until the hydraulic lifters refill. Common failure symptoms: valve train ticking noise for 3-5 seconds after cold start (failed anti-drainback valve), oil pressure gauge reading 0.2-0.3 bar lower than normal at hot idle (filter media restriction), and oil seepage from the filter base gasket (over-tightened or double-gasketed).

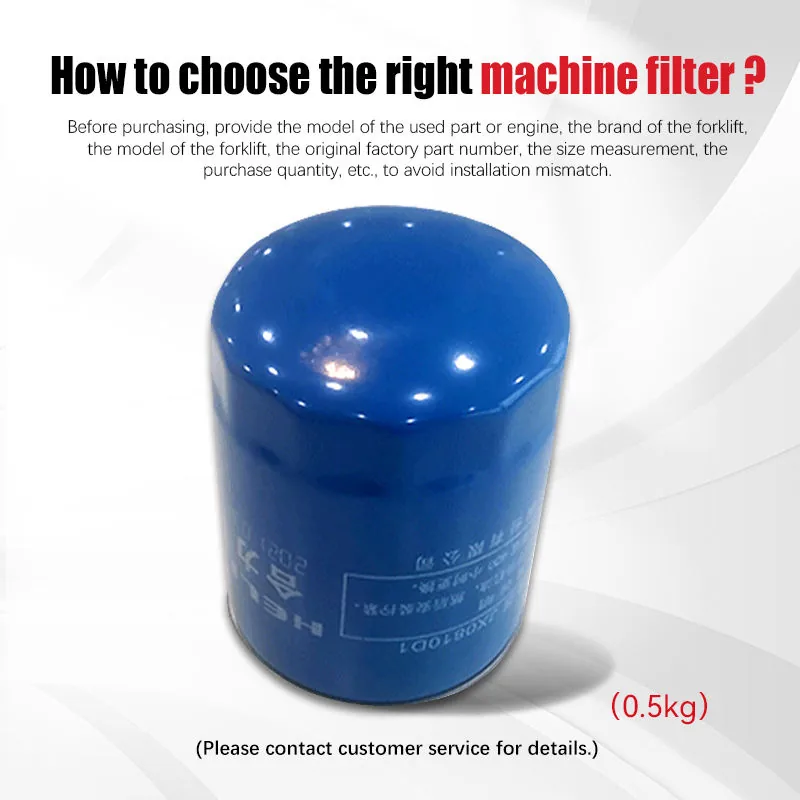

This oil filter fits all 490B diesel engines used in Heli CPCD20-CPCD35, Hangcha CPCD20-CPCD35, and Baoli 2-3.5T forklifts. Verify your existing filter part number (JX85100C or JX0810D1) and thread size before ordering. For related maintenance products including fuel filters and air filters for the 490B engine platform, visit our Forklift Maintenance Parts section.

Technical Specifications

• Part Numbers: JX85100C, JX0810D1
• Engine Platform: 490B Diesel (2.54L, 4-Cylinder)
• Thread Size: M20×1.5 (Metric — Not 3/4″-16 UNF)
• Bypass Valve: 1.0 ± 0.2 bar
• Filtration Efficiency: 96% at 30 Microns
• Installation Torque: 18-22 N·m

Compatible Forklift Models

Each filter is factory-sealed and ships within 1-2 business days. 12-month warranty. For bulk orders, contact us. Browse our Forklift Maintenance Parts catalog.
