Forklift PU Drive Wheel – 160x55mm 6 Slots Electric

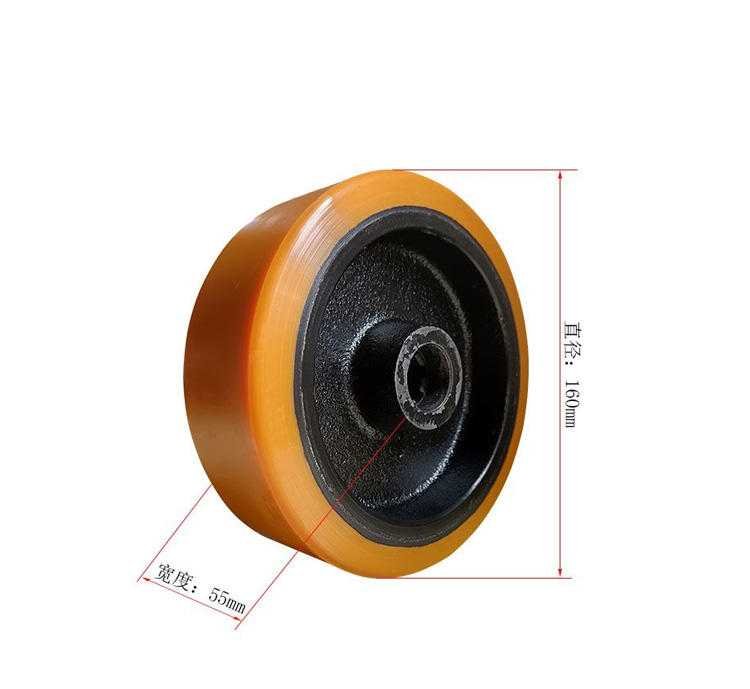

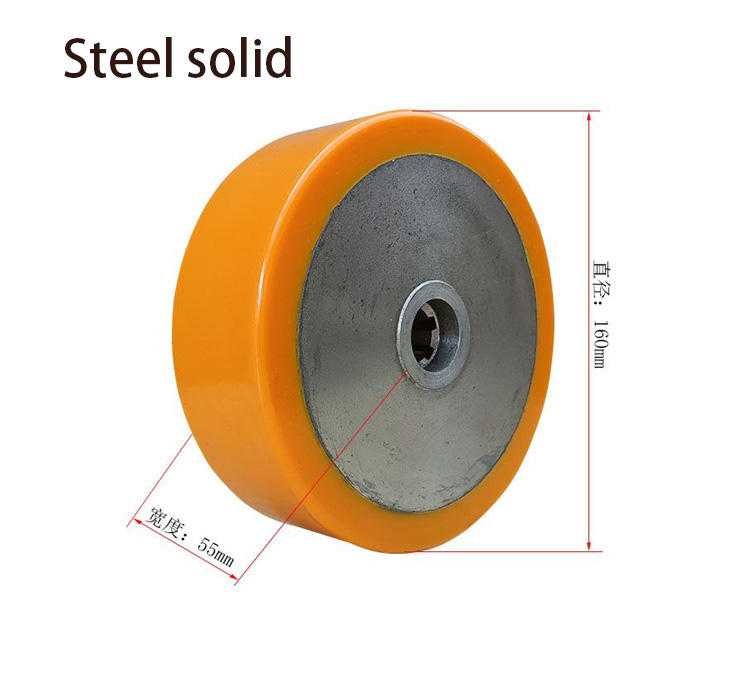

Forklift PU Drive Wheel — 160×55mm 6-Slot Polyurethane Drive Wheel for Electric Forklift Trucks

This forklift PU drive wheel measures 160×55mm with a 6-slot mounting interface, designed for electric forklift drive axles in garment, building material, manufacturing, food and beverage, construction, port, logistics, warehousing, freight yard, mining, and agricultural environments. The 160mm outer diameter provides a balanced combination of ground clearance and low center of gravity for stable cornering with compact forklifts, while the 55mm tread width delivers the traction contact patch for electric drive motor torque transmission without excessive width that would increase rolling resistance and energy consumption. The 6-slot interface — rather than a bolt-hole pattern — uses radial slots cut into the polyurethane wheel hub that engage corresponding drive pins or lugs on the drive motor output hub, transmitting torque through positive mechanical engagement between the metal pins and the PU slot walls. This slot design allows for slight manufacturing tolerances while maintaining secure torque transfer, and makes wheel changes faster than bolt-on designs because the wheel simply slides onto the drive hub pins without requiring individual bolt alignment and torqueing — a significant maintenance time savings for multi-shift warehouse operations where forklift downtime directly impacts throughput. 5kg weight with 50×50×50cm packaging. Kingstream OEM with 100% professional testing and 7-10 day delivery in carton box packaging. Machinery test report provided.

Installing the 160×55mm 6-slot drive wheel requires pulling the old wheel straight off the drive hub pins — no bolts to remove, which significantly reduces wheel change time compared to bolt-pattern wheels. However, this speed advantage comes with an installation caveat: the 6-slot interface relies on a precise friction fit between the PU hub material and the metal drive pins, and a wheel that slides on too easily will develop rotational play within hours of operation as the slots wear larger. If the replacement wheel fits loosely on the drive pins, the drive hub pins may be worn undersize from years of service and should be replaced along with the wheel to ensure the interference fit required for zero-play torque transmission. Before installation, thoroughly clean the drive hub pins of old polyurethane debris, rust, and lubricant — the slot interface is designed for dry friction engagement, and any lubricant on the pins will cause the wheel to slip under high torque, generating heat that melts the PU hub material and permanently ruins the wheel. After sliding the wheel onto the pins, verify it is fully seated against the hub flange. Rotate the wheel by hand through a full revolution and verify no wobble or contact with brake components or chassis. For electric forklifts operating in cold storage environments, allow the new PU wheel to acclimate to operating temperature before full-load use — polyurethane becomes harder and less flexible at sub-zero temperatures, and immediately loading a cold-soaked wheel can cause the slot interface to crack under the concentrated stress of the drive pins.

Browse our complete Forklift PU Wheel category for additional drive wheels from 210mm to 252mm and caster wheels from 80mm to 250mm. For electric forklift fleet wheel replacement programs, contact us.

Technical Specifications

100% professional tested. Carton box packaging. Machinery test report provided. Kingstream OEM. For bulk orders, contact us.
