Forklift PU Drive Wheel – 230x75x82mm 5 Hole Electric

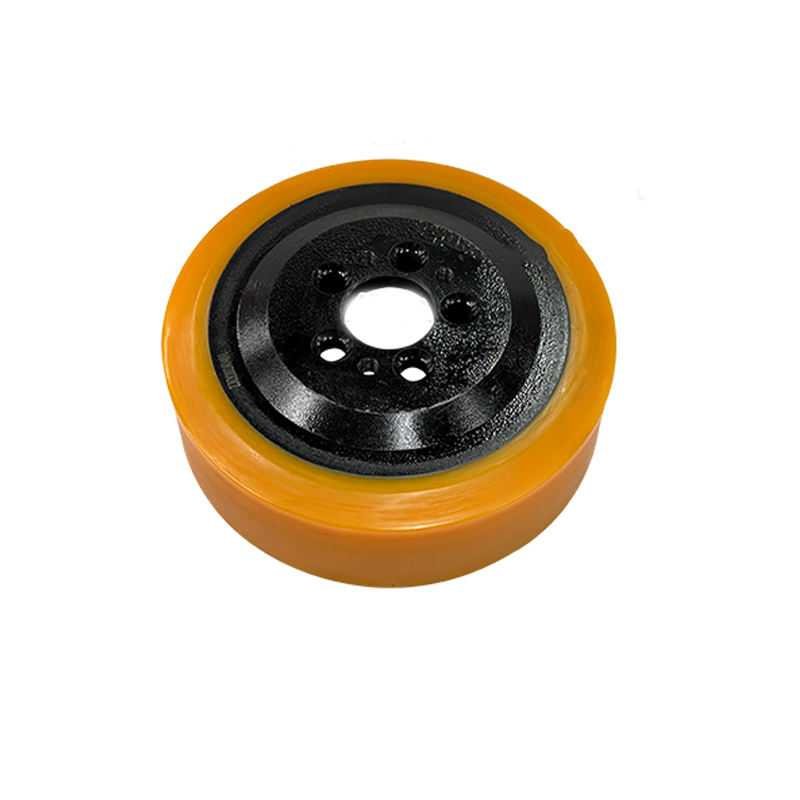

Forklift PU Drive Wheel — 230×75×82mm 5-Hole Polyurethane Drive Wheel for Electric Forklift Trucks

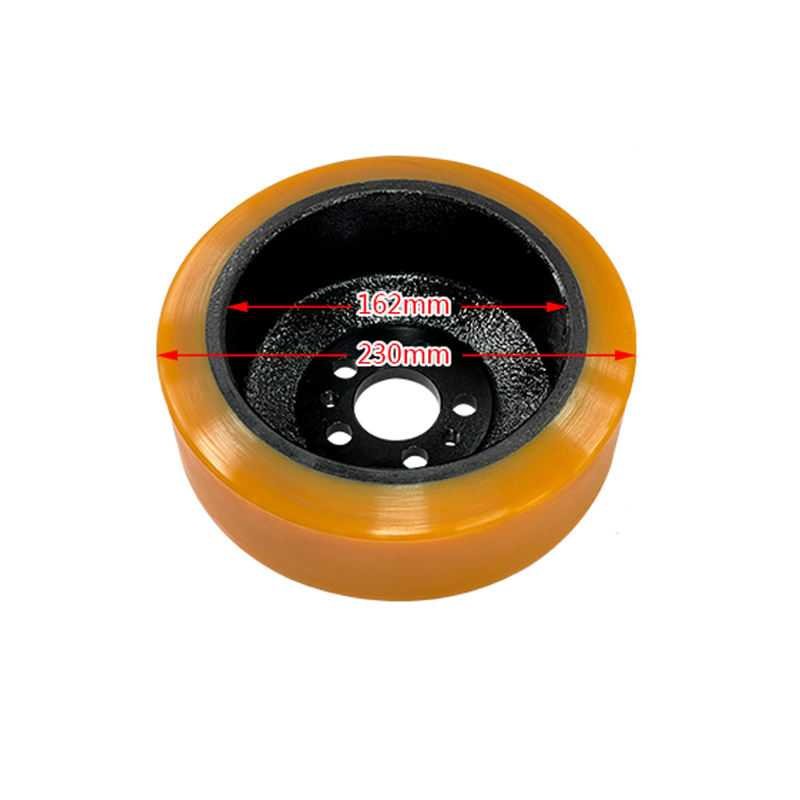

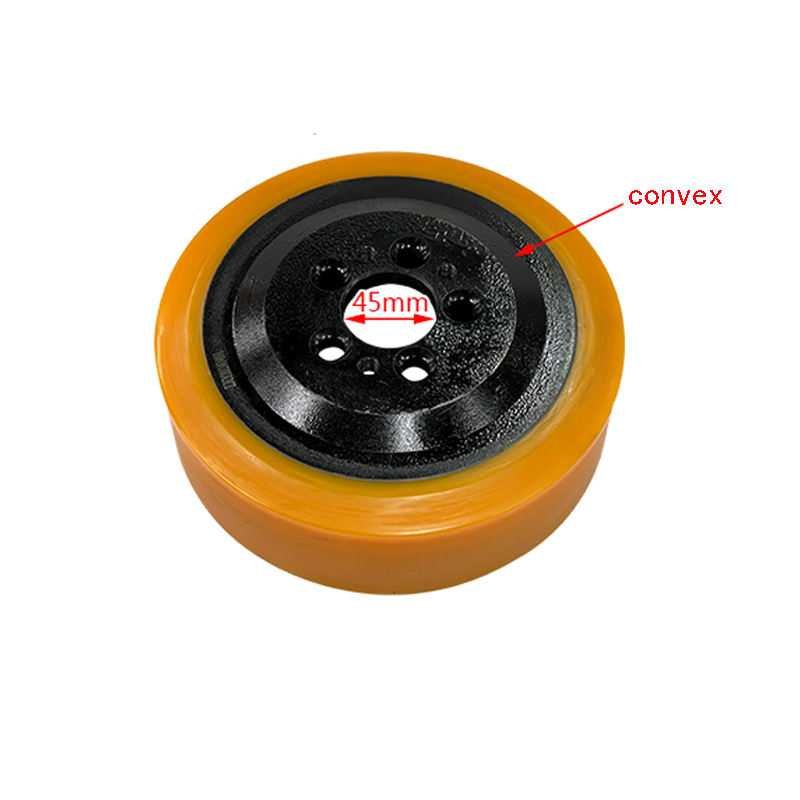

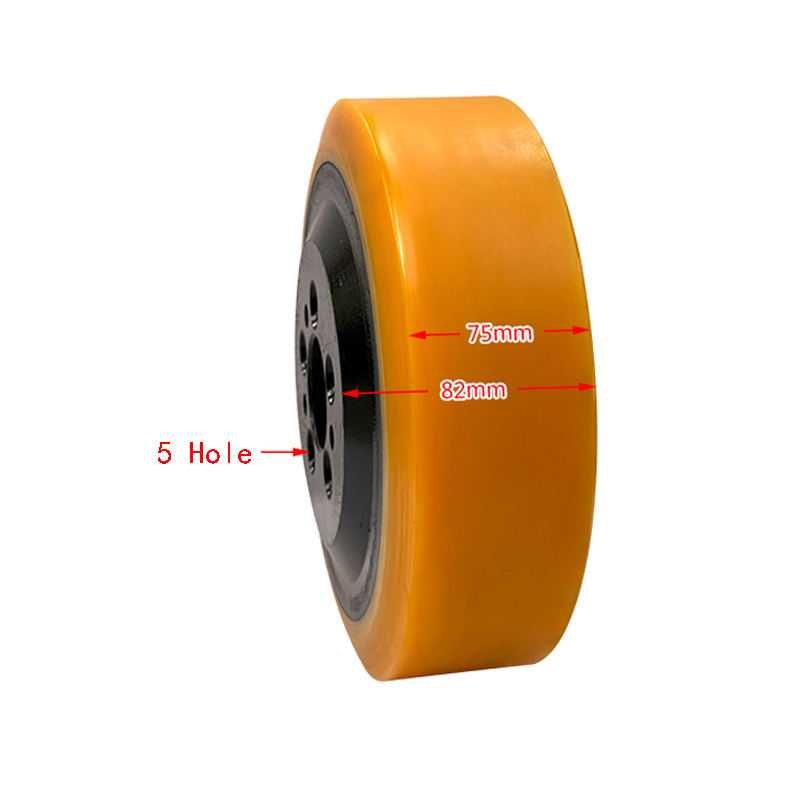

This forklift PU drive wheel measures 230×75×82mm with a 5-hole mounting pattern, designed for electric forklift drive axles in garment, building material, manufacturing, food and beverage, construction, port, freight yard, mining, and agricultural environments. The 230mm outer diameter is a standard electric forklift drive wheel size that provides adequate ground clearance while maintaining a low center of gravity for stability during cornering and load handling. The 75mm tread width provides the traction contact patch that transmits the electric drive motor’s substantial low-end torque to the floor surface — electric motors develop peak torque from zero RPM, meaning the drive wheel must handle instantaneous full-torque loading every time the operator presses the accelerator from a standstill. The 82mm hub width houses the 5-hole bolt pattern that matches the electric forklift drive motor output hub flange — the five equally spaced bolts ensure uniform torque distribution and prevent the stress concentration that leads to bolt hole elongation and eventual hub failure under the cyclic loading of acceleration and regenerative braking. Using a wheel with the wrong number of bolt holes or incorrect bolt circle diameter will not mount to the hub — attempting to force it can damage both the wheel and the hub flange. The yellow polyurethane compound provides the optimal balance of traction on concrete and epoxy warehouse floors, wear resistance for extended service intervals, and floor-safe non-marking performance. A significant advantage of PU over rubber is its resistance to oil, hydraulic fluid, and chemical spills that are common in forklift operating environments — rubber drive wheels swell, soften, and delaminate when exposed to hydraulic oil and diesel fuel, while PU maintains its structural integrity and traction characteristics. 6kg net weight with 30×30×20cm compact packaging. Kingstream OEM available with 100% professional testing and 7-15 day delivery in carton box packaging.

Installing the 230×75×82mm drive wheel requires removing the five hub bolts and pulling the old wheel off the drive motor output hub. Before mounting the replacement, thoroughly clean the hub flange surface of rust, debris, and old polyurethane residue — even a 1mm thickness of debris between the wheel and hub flange creates a wobble that, at typical forklift travel speeds of 10-15 km/h, generates high-frequency vibration that the operator feels through the steering wheel, seat, and floor. This vibration accelerates wear on the wheel tread, drive motor bearings, and steering components. The five bolts must be torqued in a star pattern to the manufacturer’s specification — uneven torque warps the wheel hub and creates a permanent wobble that cannot be corrected without replacing the wheel. After installation, rotate the wheel by hand through a full revolution and verify consistent clearance from brake components, motor housing, and chassis — any contact point will either wear through the wheel tread or damage the contacting component during operation. For electric forklifts with regenerative braking, the wheel mounting bolts must be re-torqued after the first 8 hours of operation because the reversing torque of regenerative braking can loosen bolts that were torqued under forward-drive-only conditions.

Browse our complete Forklift PU Wheel category for additional drive wheels in 210mm, 248mm, and 252mm sizes, plus caster wheels from 80mm to 250mm. For electric forklift fleet wheel replacement programs and custom PU hardness specifications, contact us.

Technical Specifications

Compatible Equipment

100% professional tested. Carton box packaging. Kingstream OEM available. For bulk orders, contact us.
