1-3 Ton Forklift Forklift Accessories Brake Wheel Cylinder
$7.99

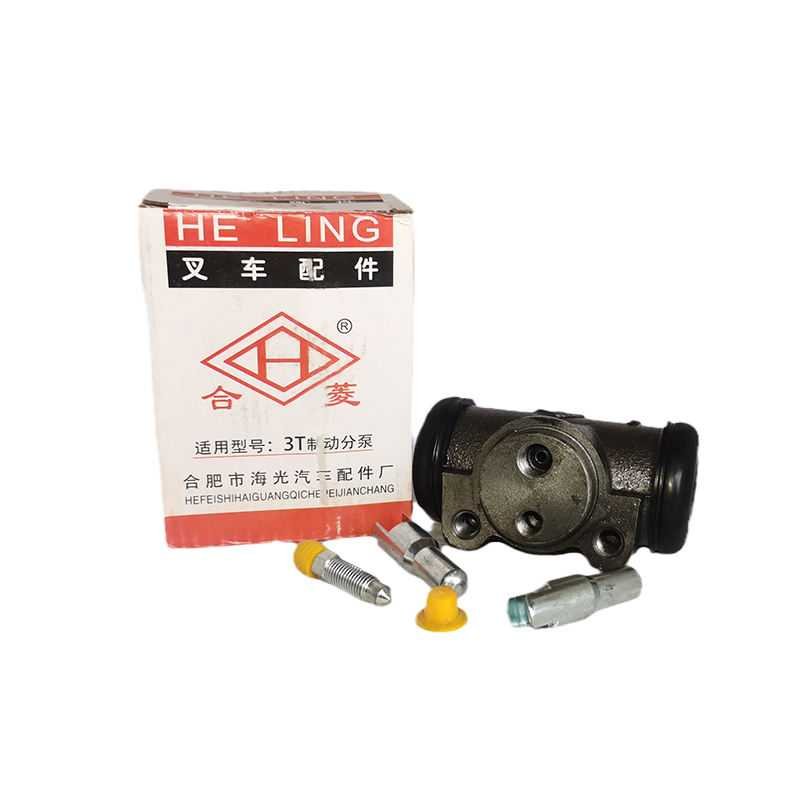

Forklift Brake Wheel Cylinder for 1-3 ton drum brake forklifts. Cast iron body, honed bore, new piston assembly with seals. Part #WC-1-3T. Worldwide shipping from Kingstream.
Forklift Brake Wheel Cylinder 1-3 Ton OEM Replacement
The brake wheel cylinder on 1-3 ton forklifts is the hydraulic component mounted inside each drum brake backing plate that receives pressurized brake fluid from the master cylinder and converts it into the mechanical force that pushes the brake shoes against the drum. This lightweight-class wheel cylinder uses a smaller bore diameter than heavy-duty 5-15 ton variants, matching the lower fluid displacement requirements of the compact drum brake assemblies found on warehouse and distribution center forklifts.
Wheel cylinder failure in 1-3 ton forklifts most commonly presents as fluid weeping from the dust boot area during pre-shift brake inspections, indicating piston cup seal deterioration. Continuing to operate with a leaking wheel cylinder contaminates the brake shoes with brake fluid — brake fluid-soaked friction material loses its coefficient of friction and cannot be cleaned or recovered, requiring both wheel cylinder and brake shoe replacement. The small additional cost of replacing shoes during the wheel cylinder job avoids the doubled labor of doing them separately two weeks later.

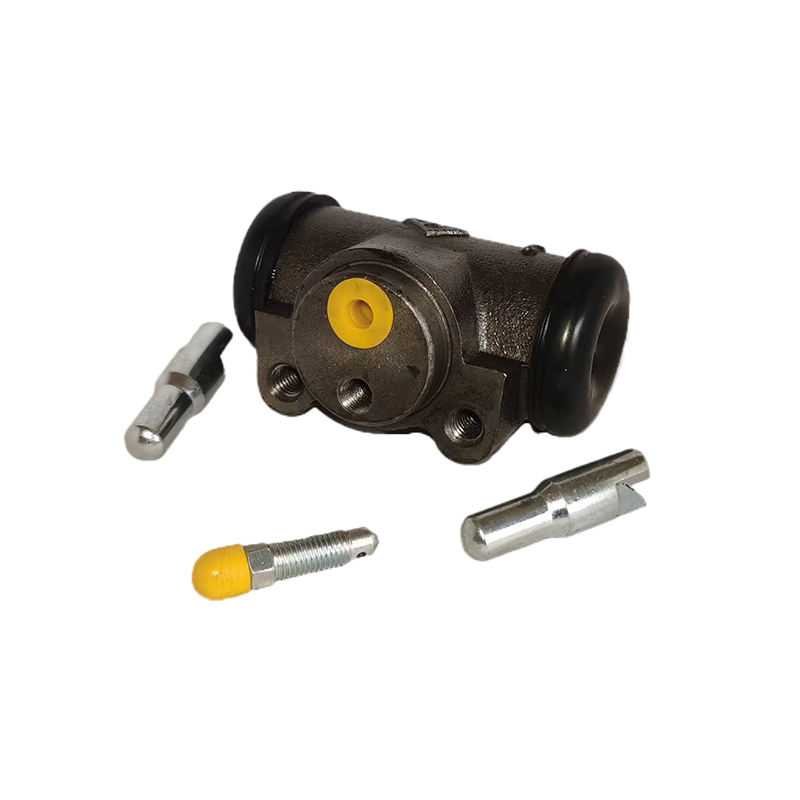

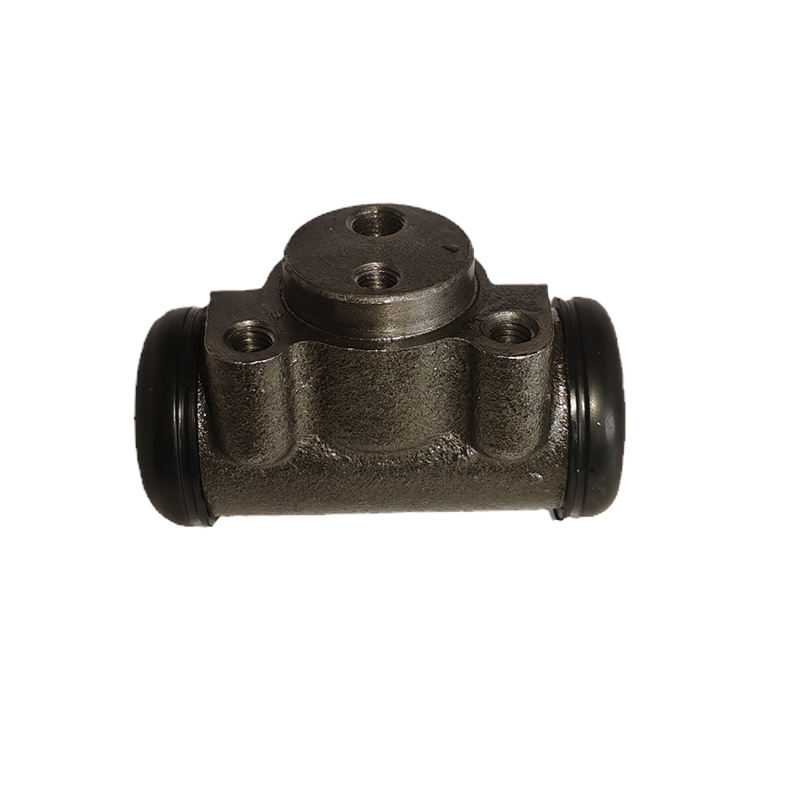

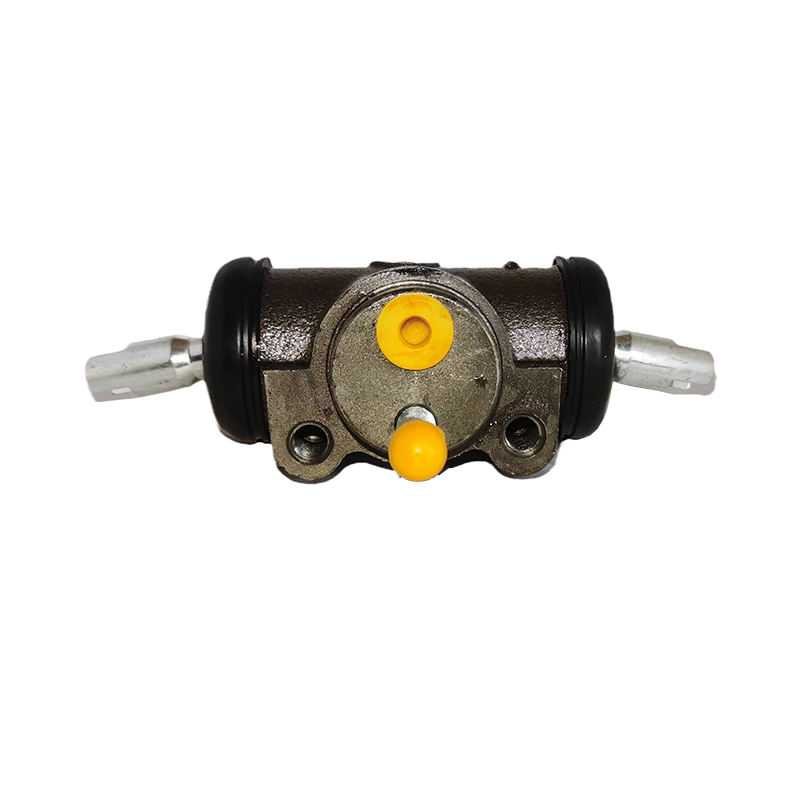

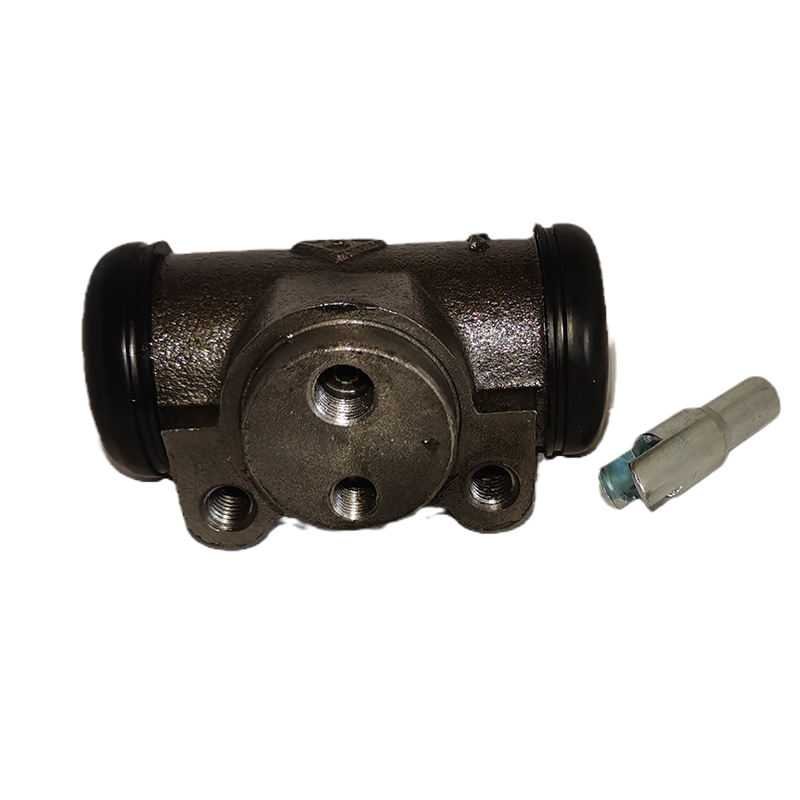

This replacement forklift brake wheel cylinder features a cast iron body with honed bore, new piston assembly with cup seals, and dust boots for the exposed piston interface. The bolt spacing, inlet port thread size, and piston diameter match standard 1-3 ton drum brake specifications. Bleed the brake system after installation.
Technical Specifications
- Model / SKU: WC-1-3T
- Product Type: Brake Wheel Cylinder
- Load Capacity: 1-3 Ton Forklift
- Body Material: Cast iron with honed bore
- Components: Piston assembly, cup seals, dust boots
- Quality Standard: OEM-grade replacement
- Application: Forklift drum brake hydraulic system
Compatible Forklift Brands
| Brand | Models |
|---|---|
| Toyota | 1-3T drum brake |
| HELI | CPC/CPD H2000 1-3T |
| Komatsu | FG/FD 1-3 ton |
| TCM | FG/FD 1-3 ton |
| Hangcha | CPCD 1-3 ton |
Replace leaking wheel cylinders immediately — contaminated brake shoes demand both cylinder and shoe replacement for the same labor. Browse our brake parts for brake shoes, master cylinders, and drums. For safety standards, see OSHA forklift safety requirements. Available from Kingstream with worldwide shipping.
Brand
LINDE
Full Category Coverage
One supplier for all forklift systems — engine, hydraulic, electrical, mast, brake, undercarriage. No need to juggle multiple vendors.
No Minimum Order
Trial orders welcome. Single-piece to bulk supply. You test first, scale later. We treat every order seriously.
Three Quality Choices
Original, OEM, or Aftermarket. You decide based on budget and application. We don't upsell — you control cost and performance.
Direct 1-on-1 Communication
You talk to the sourcing decision maker. No sales reps, no forwarding. Faster answers, clearer quotes, real accountability.
Mixed Order Consolidation
Combine different parts in one shipment. Save on freight. We handle the picking, packing, and export documentation.
After-Sale Warranty
Manufacturing defects covered. Free replacement or credit arranged quickly. Your trust is worth more than any single transaction.
Same part, different brand numbers. This cross-reference table helps you confirm compatibility across multiple forklift brands. If your brand or part number is not listed, send it to us — we will match it.
| Brand | OEM Part Number | Notes |
|---|---|---|
| TOYOTA | 47201-23300 | Original |
| KOMATSU | 3EB-30-41200 | Original |
| HELI | 24022-83011 | Original |
| HANGCHA | R240-83011 | Original / OEM |
| LINDE | 0009830123 | OEM |
| HYSTER | H47201-233 | OEM |
| TCM | TCM-47201 | OEM |
| AFTERMARKET | AM-47201 | Cost-effective replacement |
