Forklift Clutch Release Bearing 9688211 92x55x21 – Heli A30-A35

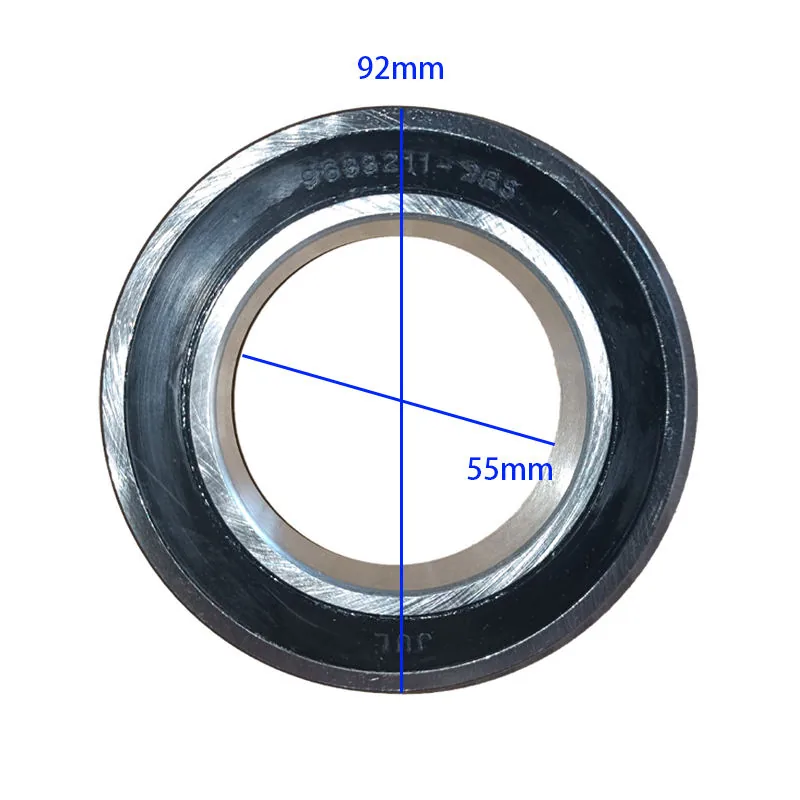

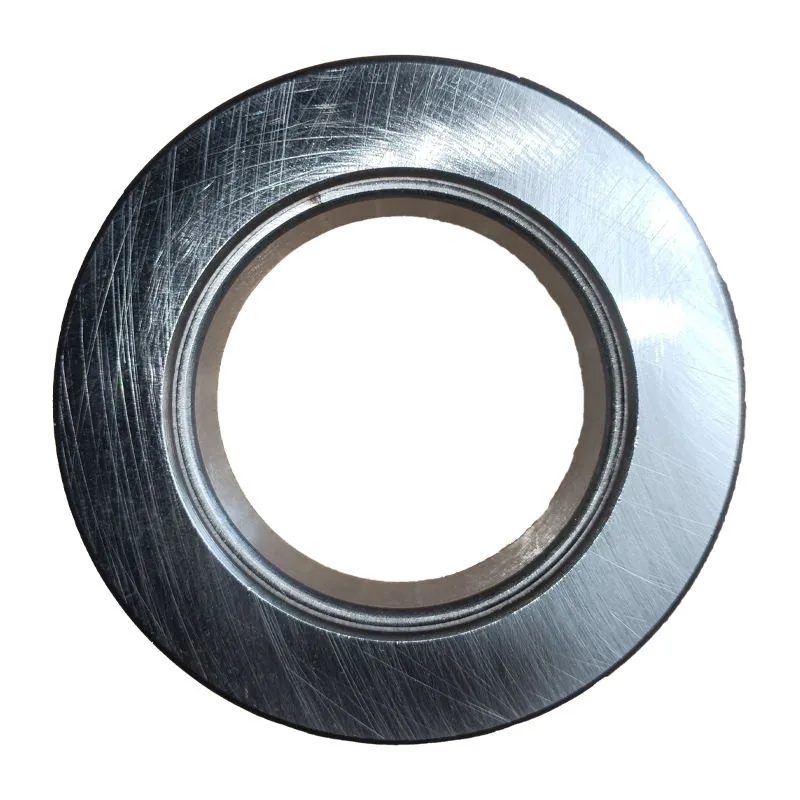

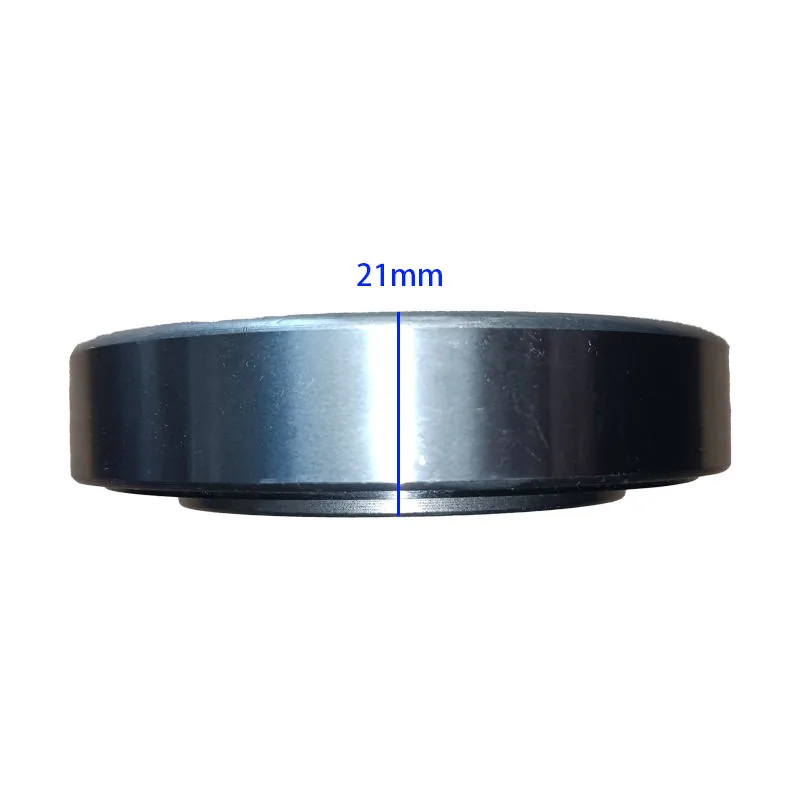

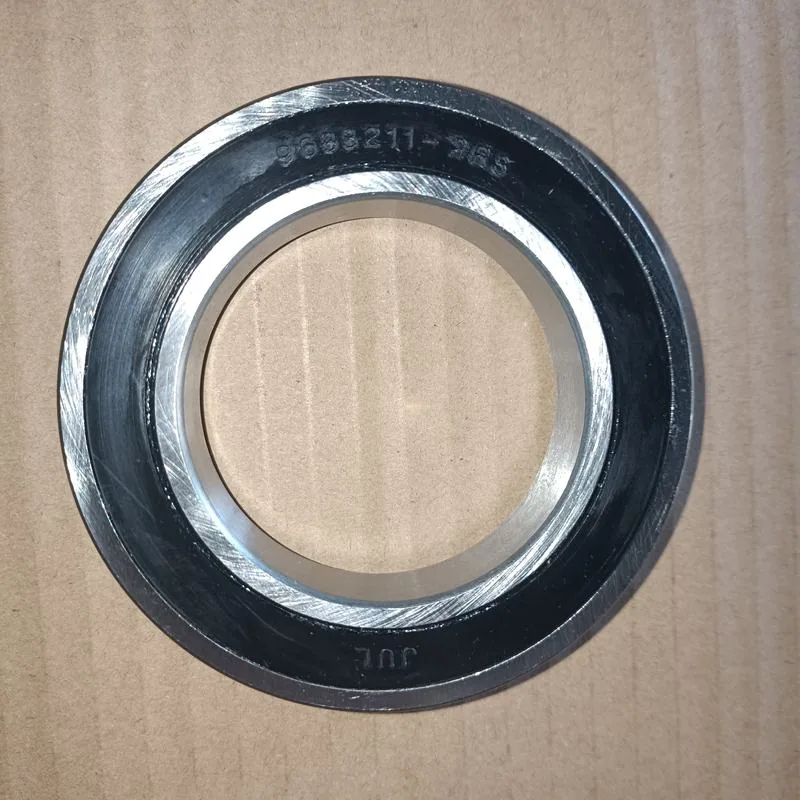

Forklift Clutch Release Bearing 9688211 92×55×21mm — Heli A30 / A35 Forklift Clutch Throw-Out Bearing

This forklift clutch release bearing part number 9688211 (cross-reference 9688211RS) with dimensions 92×55×21mm is a Kingstream OEM clutch release bearing for Heli A30 and A35 3-3.5 ton forklift trucks in material handling, warehousing, construction, and industrial applications. The release bearing engages the pressure plate diaphragm spring fingers when the driver presses the clutch pedal — this thrust load releases clamping pressure on the clutch disc, allowing smooth gear changes without grinding. The bearing is a sealed, pre-lubricated unit designed for intermittent operation only during clutch disengagement. 0.5kg with 30×30×30cm wooden box or carton packaging. 100% professional tested. 7-15 day delivery. Kingstream OEM quality for Heli A30-A35 forklift fleet clutch maintenance.

INSTALLATION PROCEDURE: Step 1 — Remove the transmission from the forklift. Step 2 — Slide the old release bearing off the transmission input shaft sleeve. Step 3 — Clean the input shaft sleeve thoroughly with solvent — remove all old grease and wear debris. Step 4 — Inspect the sleeve for scoring or wear grooves — a damaged sleeve will cause premature bearing failure. Step 5 — Apply a thin coat of high-temperature clutch grease to the sleeve. Step 6 — Install the new release bearing, ensuring smooth sliding movement. Step 7 — Verify the bearing contact face is clean. Step 8 — Reinstall transmission. Step 9 — Adjust clutch pedal free play to Heli specification. Step 10 — Test for quiet operation. 100% professional tested. Kingstream OEM.

SYMPTOMS OF FAILURE: Squealing or grinding when clutch pedal depressed, pedal vibration, difficult shifting, rough bearing rotation. For Heli A30-A35 forklift fleet clutch maintenance, contact us. Kingstream OEM.

Technical Specifications

100% professional tested. Kingstream OEM. Contact us.
