Diesel Engine Generator WEIFANG4100 – Forklift Excavator Tractor

Diesel Engine Generator WEIFANG4100 — Forklift / Excavator / Tractor / Generator Set Diesel Engine Generator

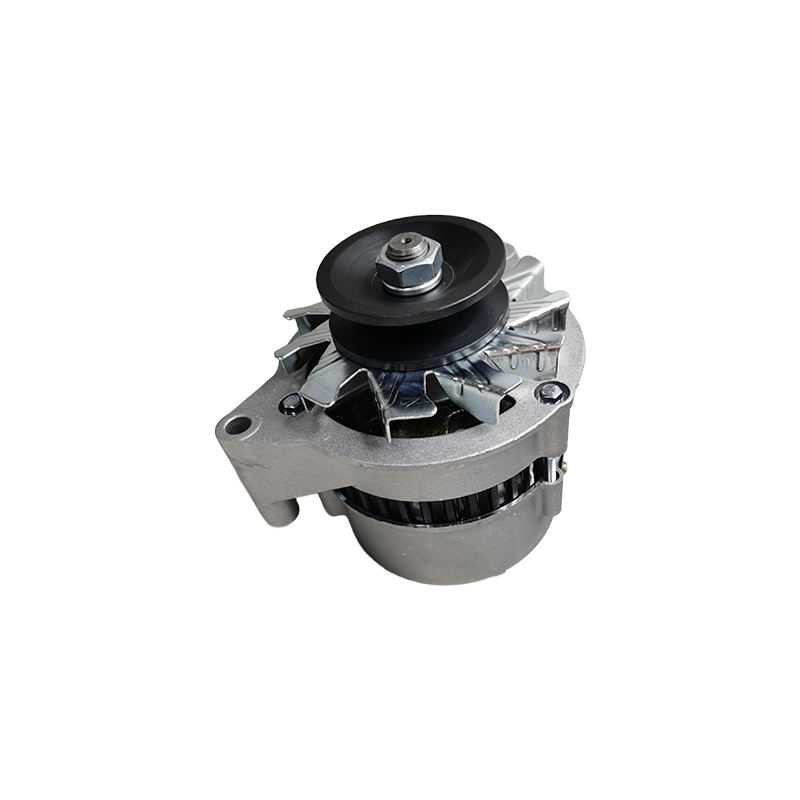

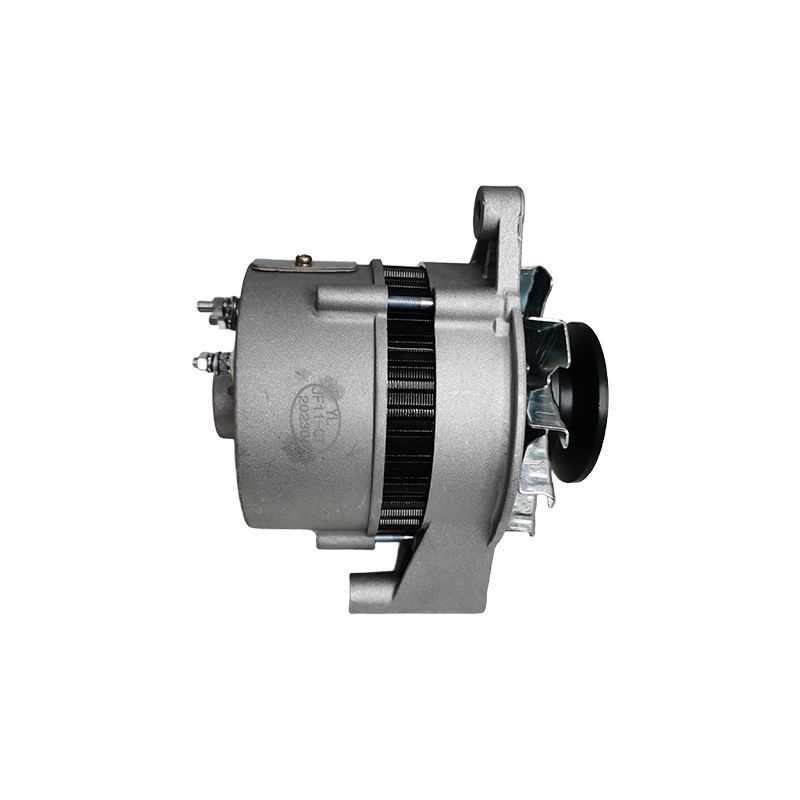

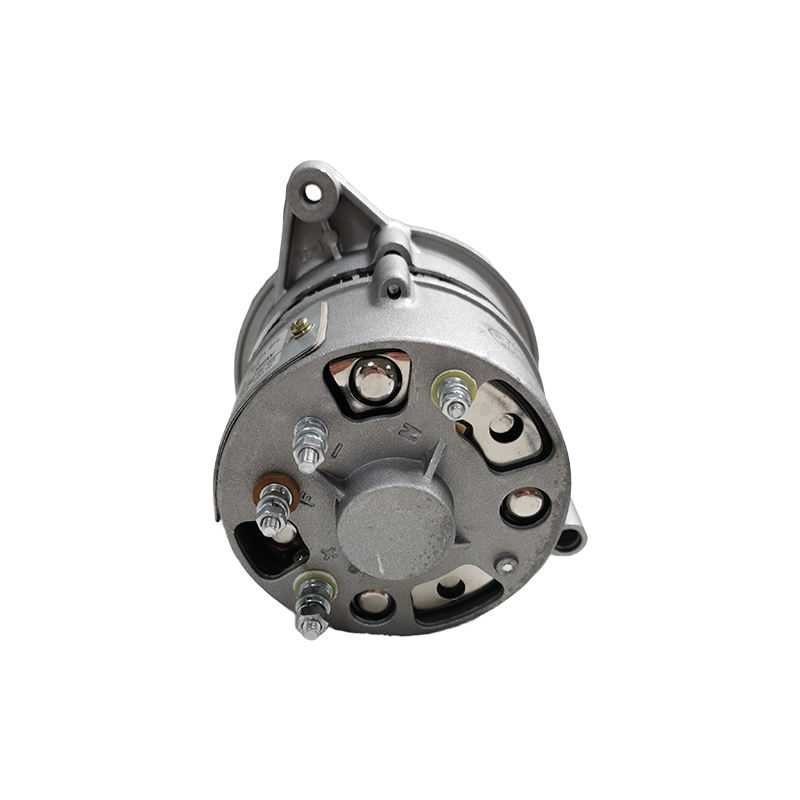

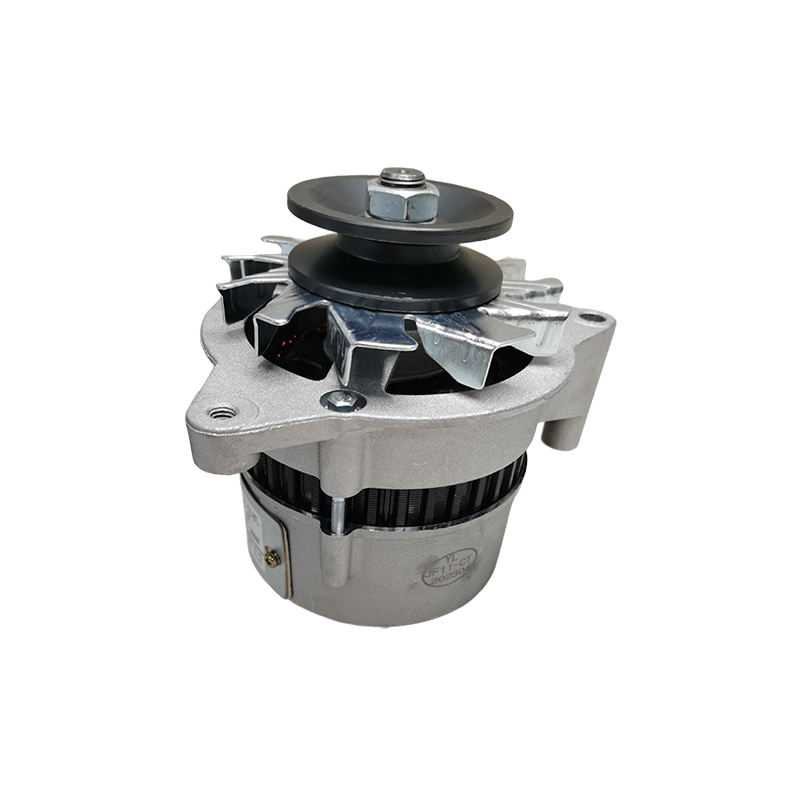

This diesel engine generator for WEIFANG4100 engine is a Kingstream OEM replacement generator (alternator) for forklifts, tractors, excavators, and generator sets with the WEIFANG4100 diesel engine and other compatible models including Weichai, Xinchai, Laidong, Quanchai, Chaochai, Yunnei, Yangchai, Yangdong, Changchai, and Yuchai engine families. The generator charges the battery and powers the vehicle electrical system — converting mechanical energy from the engine crankshaft pulley into DC electrical power through a belt-driven rotor and stator assembly with an integrated voltage regulator. Compatible with engine models 4102, 4105, 4100, 4100QB, 495, WD615, 490, 498, 480, 385, 485, 496, 380, 375, 4L22B, QCN85DI, 4108, 6102, 6105, 6108, 4168, 4188, NJ5041, NJ5062, NJ5120, JD330, 3010, 4000, 4010, 4350, 7020, 955, 5055B, 3100, 354, 454, and 554. 44kg with 40×40×10cm neutral or custom packaging. GB/ISO9001:2008 certified. 1-year warranty. OEM/ODM accepted. Galvanized surface treatment. T/T, L/C, Western Union, or PayPal payment. 7-25 day delivery. Kingstream OEM for diesel engine fleet operators in Southeast Asia, South Asia, and Africa markets.

INSTALLATION PROCEDURE: Step 1 — Disconnect the battery negative terminal. Step 2 — Loosen the generator mounting bolts and pivot bolt. Step 3 — Remove the drive belt from the generator pulley. Step 4 — Disconnect the electrical connector and main output cable from the generator terminals. Step 5 — Remove the mounting bolts and lift out the old generator. Step 6 — Compare the new generator to verify identical mounting bracket dimensions, pulley alignment, and electrical connector type. Step 7 — Install the new generator on the mounting bracket with bolts hand-tightened. Step 8 — Install the drive belt and adjust belt tension by pivoting the generator — correct tension allows approximately 10mm belt deflection under moderate thumb pressure. Step 9 — Torque all mounting bolts. Step 10 — Reconnect the electrical connector and main cable. Step 11 — Reconnect battery and start the engine. Verify charging voltage at the battery terminals — should be 13.5-14.5V for 12V systems. 1-year warranty. Kingstream OEM.

SYMPTOMS OF GENERATOR FAILURE: Battery warning light illuminated on the instrument panel, dimming headlights and electrical accessories, battery requiring frequent jump starts or charging, abnormal whining or grinding noise from the generator bearings, burning smell from overheated windings or seized bearings, and measured charging voltage below 13V or above 15V at the battery. For diesel engine fleet electrical system maintenance programs, contact us. Kingstream OEM.

Technical Specifications

OEM/ODM accepted. Neutral or custom packing. Kingstream OEM. Contact us.
