Forklift Parts Ignition Switch Assembly for EP Electric Pallet Truck

Ignition Switch Assembly for EP Equipment Electric Pallet Truck

This ignition switch assembly is a direct OEM-spec replacement for EP Equipment electric pallet trucks and powered stackers. The key-operated 4-position rotary switch serves as the master power control for the vehicle: OFF disconnects all circuits, ON energizes the traction controller and instrument panel through the main contactor, START engages the hydraulic pump motor for lifting operations, and ACC powers auxiliary circuits including lights and horn. A worn ignition switch that requires wiggling the key to make contact produces high-resistance arcing at the terminals — generating localized heating exceeding 200°C that carbonizes the plastic housing and can escalate to electrical fire when combined with hydrogen gas from battery charging in enclosed warehouse charging stations.

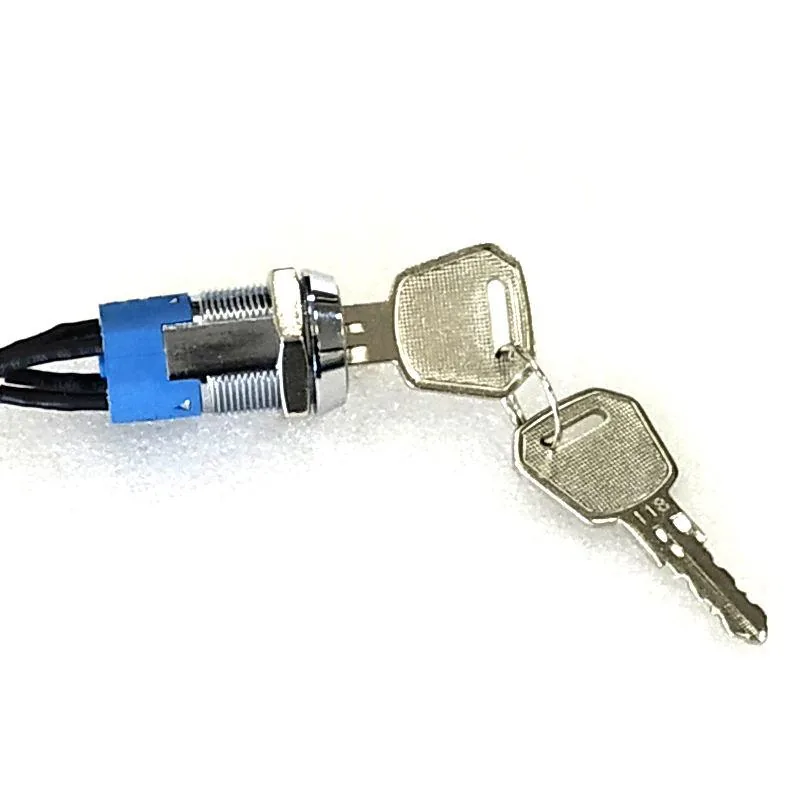

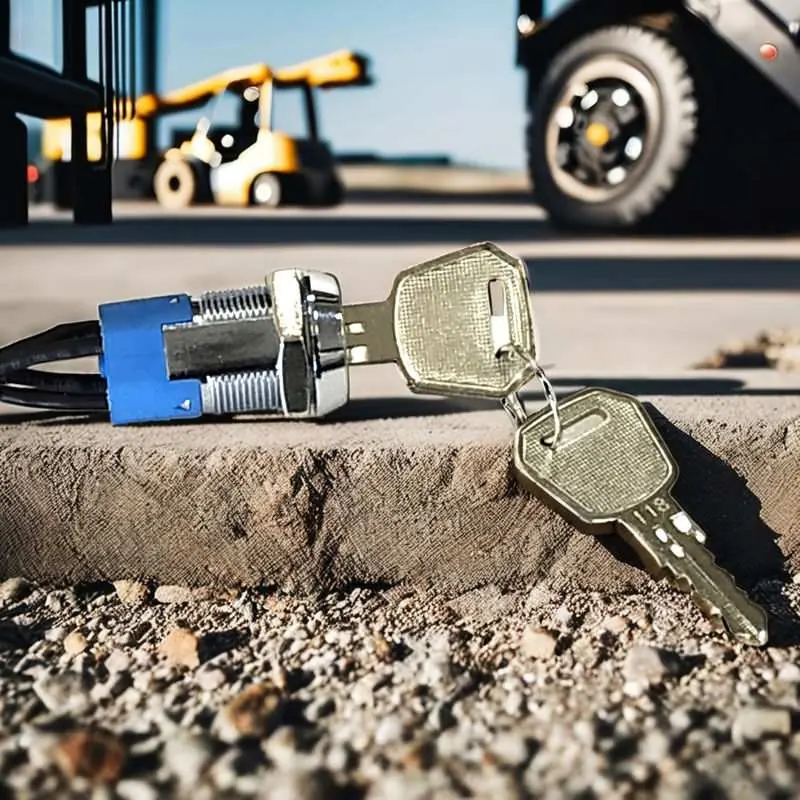

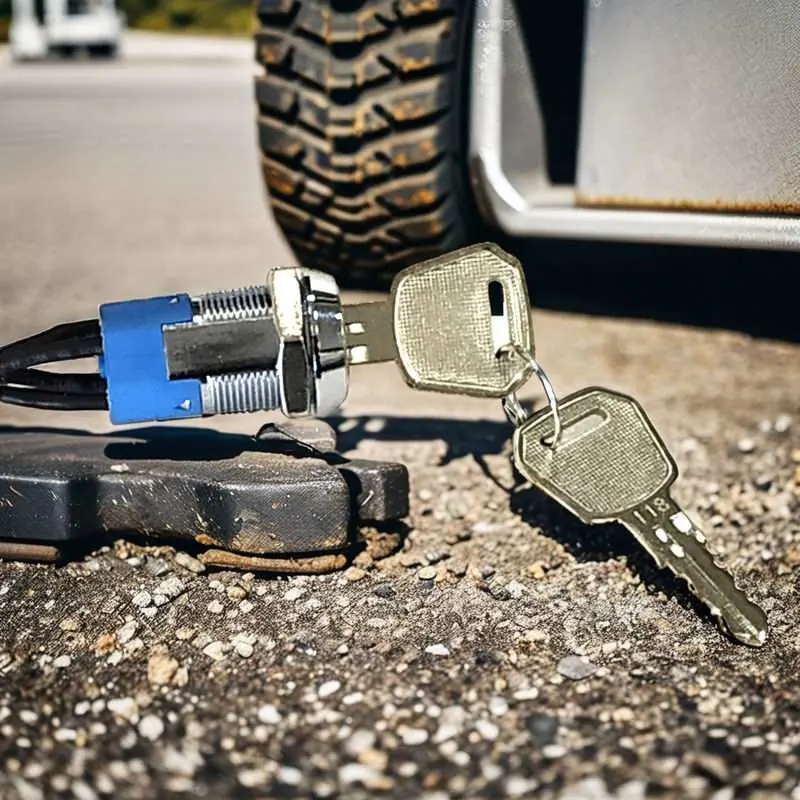

The switch features a die-cast zinc alloy lock cylinder with a 5-tumbler pin mechanism providing keyed security against unauthorized equipment use. Two keys are included. The keyed multi-pin connector matches the EP Equipment factory wiring harness without soldering or adapter leads. Forklift directional switch category.

Technical Specifications

• Type: 4-position key-operated rotary ignition switch
• Positions: OFF-ON-START-ACC
• Lock Cylinder: Die-cast zinc alloy, 5-tumbler pin mechanism
• Keys: 2 included

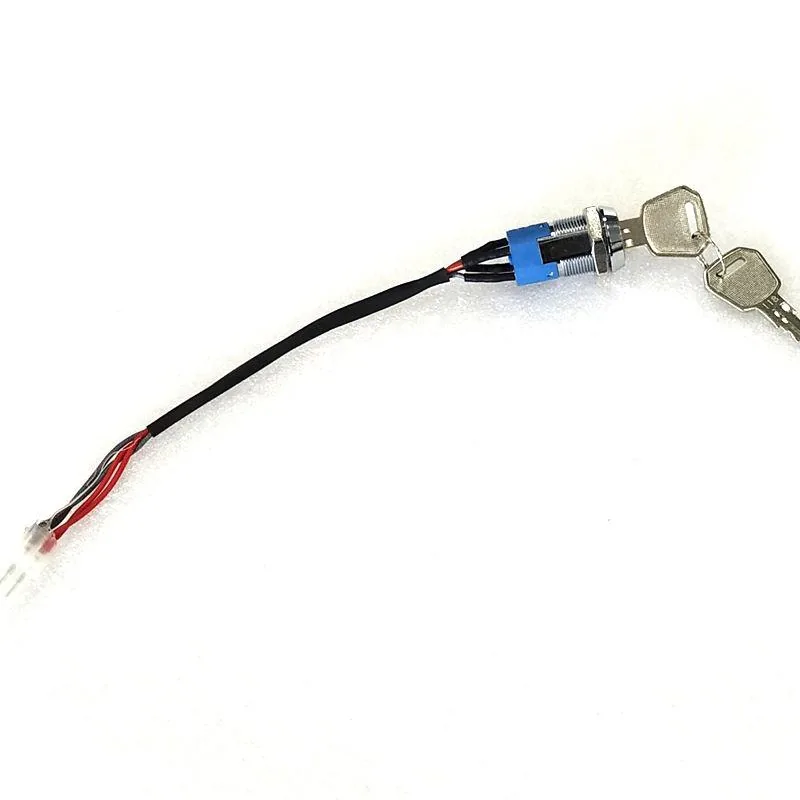

• Connector: Keyed multi-pin, EP Equipment harness compatible
• Mounting: Threaded barrel with lock nut, dash panel
• Fitment: EP Equipment electric pallet trucks and powered stackers

Compatible Models

Replace immediately if the key requires wiggling to make contact. Always disconnect the battery before replacement. Baldwin Filters. Worldwide shipping from Kingstream.
