Genuine 1120-520002-0B Wiring Harness Key for CBD20-ABC1S Electric Pallet Truck Parts

$24.99

Genuine 1120-520002-0B wiring harness key switch for CBD20-ABC1S electric pallet trucks. Complete pre-assembled unit with key cylinder, 500mm XLPE pigtail, and weatherproof connector. No field crimping required.

SKU 1120-520002 Categories ,
✉️ Send Inquiry Contact Us

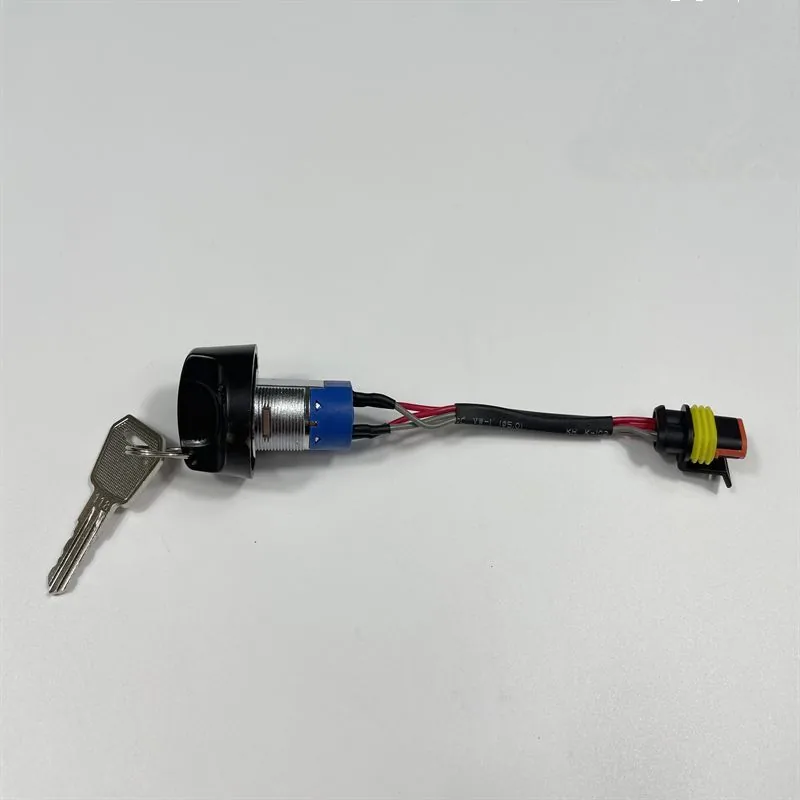

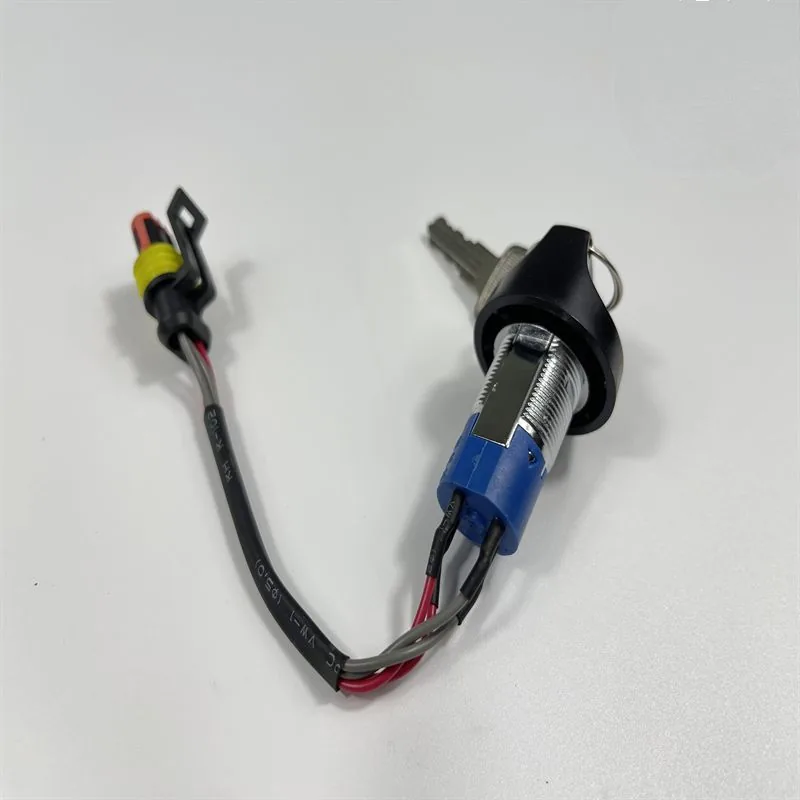

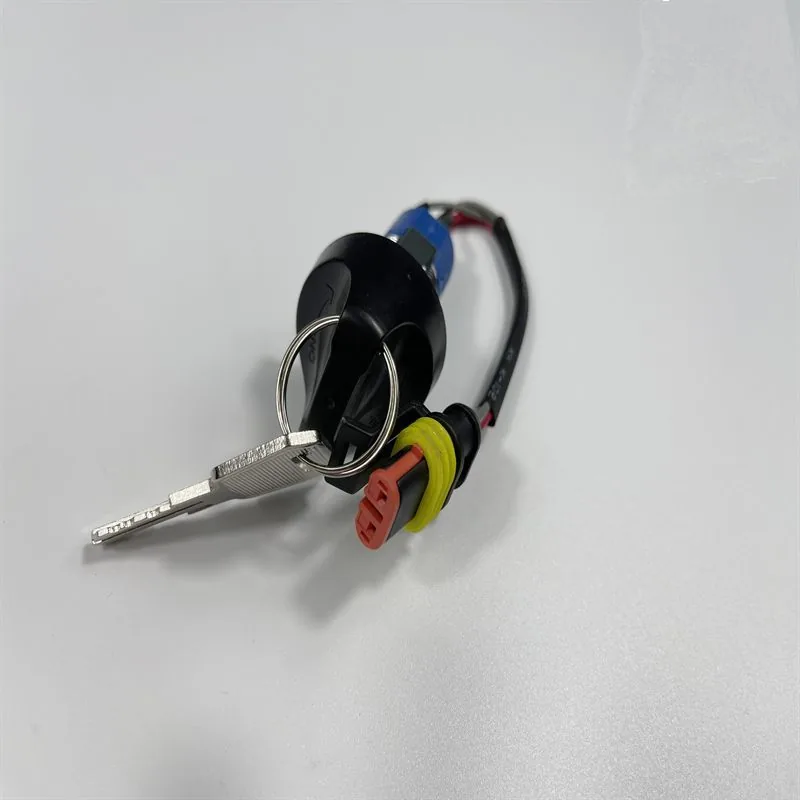

Genuine 1120-520002-0B Wiring Harness Key Switch for CBD20 Electric Pallet Truck

The genuine 1120-520002-0B is a complete wiring harness-integrated key switch assembly for CBD20-ABC1S electric pallet trucks. Unlike standalone switches requiring field crimping, this pre-assembled module includes the key cylinder, 500mm XLPE-insulated pigtail with color-coded conductors, and weatherproof connector plug — eliminating incorrect terminal crimping and reversed polarity wiring, the two most common causes of intermittent power loss and traction controller damage after switch replacement.

The key cylinder features a rubber weatherproof boot preventing dust ingress that eventually blocks key insertion on non-booted switches. The XLPE insulation is rated for 125°C continuous, exceeding the thermal requirements of enclosed battery compartments where rapid charging can push ambient temperatures to 60°C. Directional switch category.

Technical Specifications

  • OEM: 1120-520002-0B
  • Type: Key switch with integrated wiring harness assembly
  • Includes: Key cylinder, 500mm XLPE pigtail, weatherproof connector
  • Key Boot: Rubber weatherproof dust seal
  • Wire Insulation: XLPE, 125°C rated
  • Fitment: CBD20-ABC1S electric pallet truck

No field crimping required — pre-assembled connector eliminates installation errors. Baldwin Filters. Worldwide shipping from Kingstream.
