Forklift Controller 1268-5403 – Curtis 48V 400A Sepex

Forklift Sepex Motor Controller Curtis 1268-5403 — 36-48V 400A Programmable Controller for Electric Forklifts & Utility Vehicles

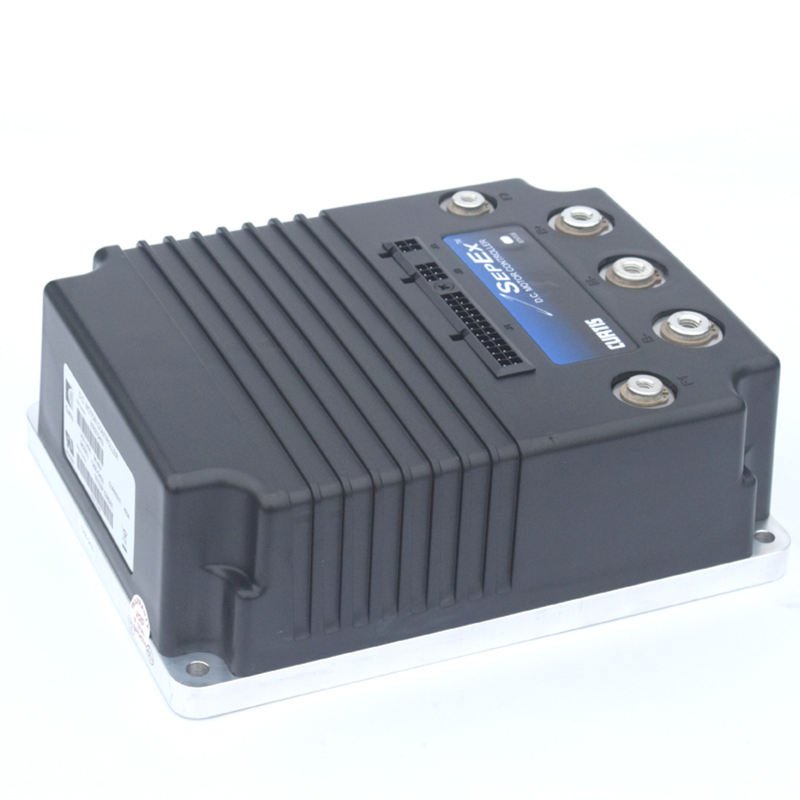

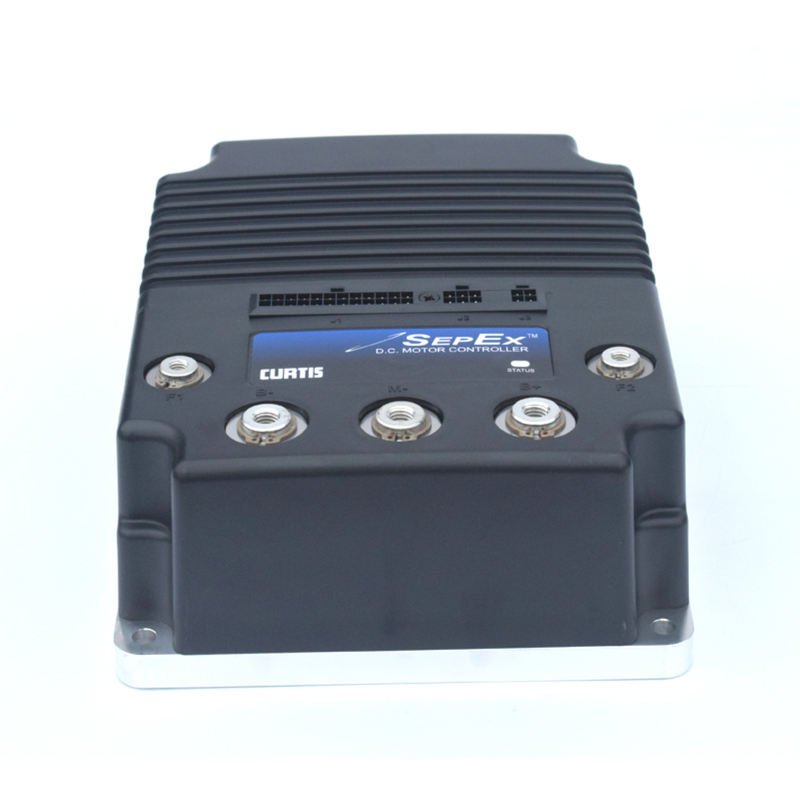

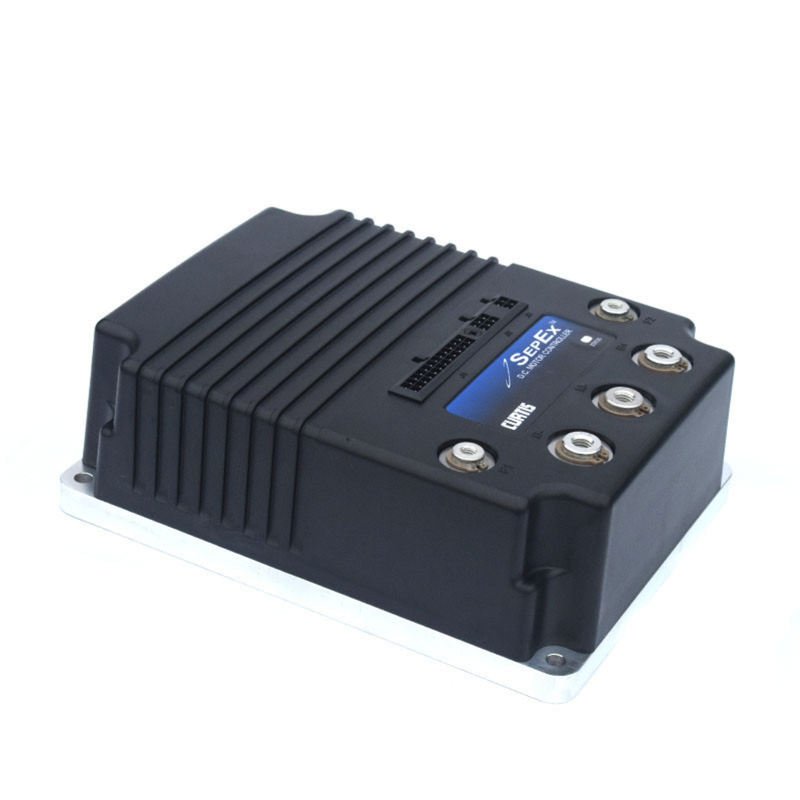

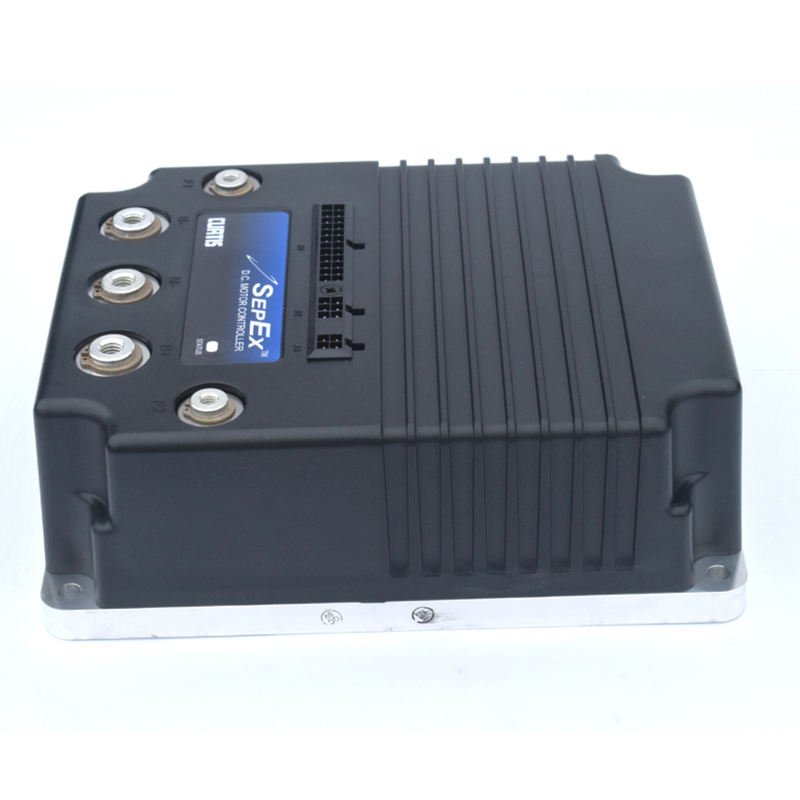

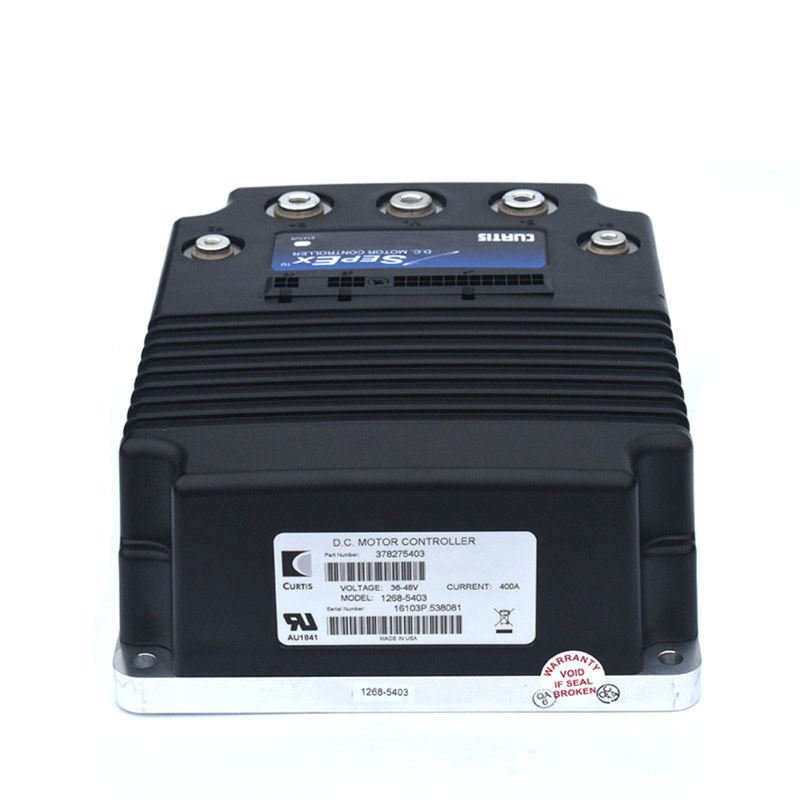

This forklift motor controller model 1268-5403 (Kingstream reference A.B.01.03.3540A1) is a Kingstream OEM Curtis specification separately excited (sepex) motor speed controller rated at 36-48V and 400A for electric forklifts, heavy-duty golf carts, personnel transports, burden carriers, and utility vehicles in machinery repair, manufacturing, retail, and energy and mining environments. The 1268 controller is fully programmable via the Curtis 1313-4401 handheld programmer or 1314 PC programming station — allowing parameter customization for specific vehicle applications. 16kHz PWM operating frequency with 500V AC minimum electrical isolation to heatsink. IP64 or IP67 environmental rating. 4kg weight with 229×178×81mm dimensions. Supports three throttle types: 3-wire potentiometer (5kΩ-10kΩ), 0-5V, and 2-wire electronic ITS. 1-year warranty. Kingstream OEM quality.

Installing the Curtis 1268-5403 sepex motor controller requires mounting in a clean, ventilated location with adequate clearance for the heatsink, connecting the battery power cables to B+ and B- terminals, connecting the separately excited motor armature to M- and A2 and the field winding to F1 and F2 terminals, and connecting the throttle input matching one of three supported types: 3-wire potentiometer (5kΩ-10kΩ resistance), 0-5V voltage signal, or 2-wire electronic ITS (Inductive Throttle Sensor). The throttle type must be configured in the controller parameters using the Curtis 1313-4401 handheld programmer or 1314 PC programming station — an incorrect throttle type setting causes the controller to interpret the throttle input incorrectly, resulting in either no response or erratic vehicle speed. The 1268 sepex controller provides independent control of armature current and field current, enabling precise speed regulation and regenerative braking that returns energy to the battery during deceleration — a significant efficiency advantage over series motor controllers. After wiring, program the controller for the specific vehicle application including acceleration rate, deceleration rate, maximum armature current, maximum field current, field weakening parameters for extended speed range, and regenerative braking current limits. Test the vehicle through all speed ranges and verify smooth operation, proper regenerative braking engagement, and no fault codes on the programmer display. IP64/IP67 rating ensures reliable operation in dusty and wet environments. 1-year warranty covers controller electronics.

Technical Specifications

1-year warranty. Fully programmable. Kingstream OEM. For bulk orders, contact us.
