Forklift Engine Oil Pan 490B-07100 – Xinchai 490-498 Diesel

Forklift Engine Oil Pan 490B-07100 — Xinchai 490BPG / 495 / 498 / 4D27G31 / 4D30G31 Diesel Engine Oil Sump

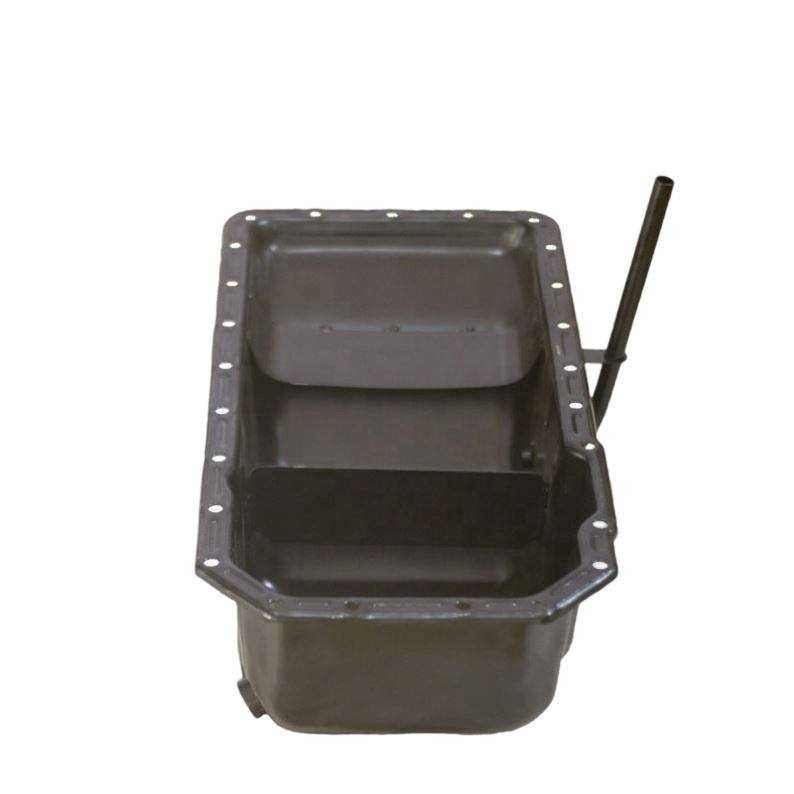

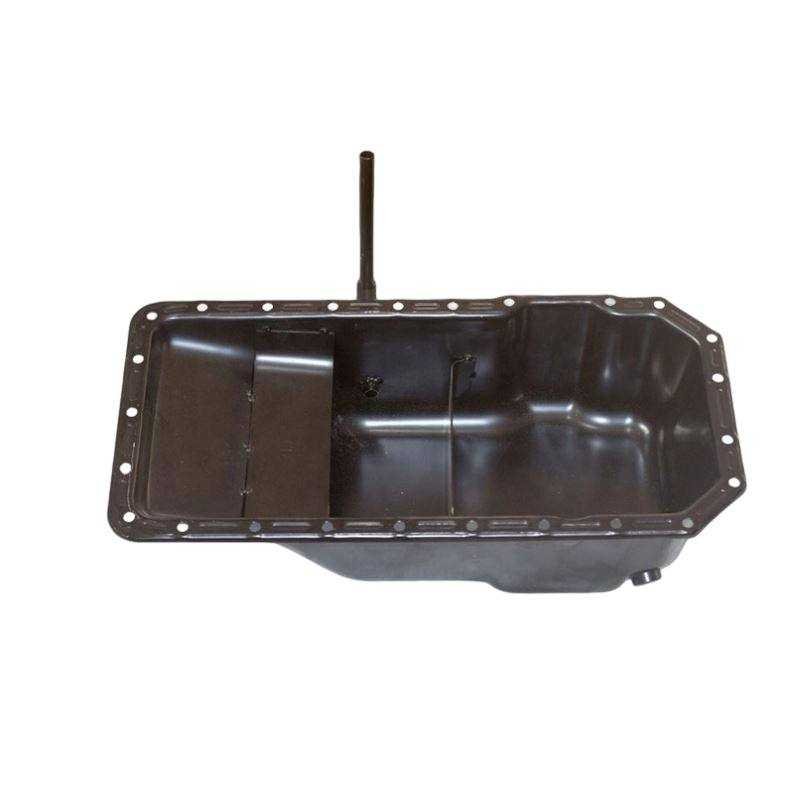

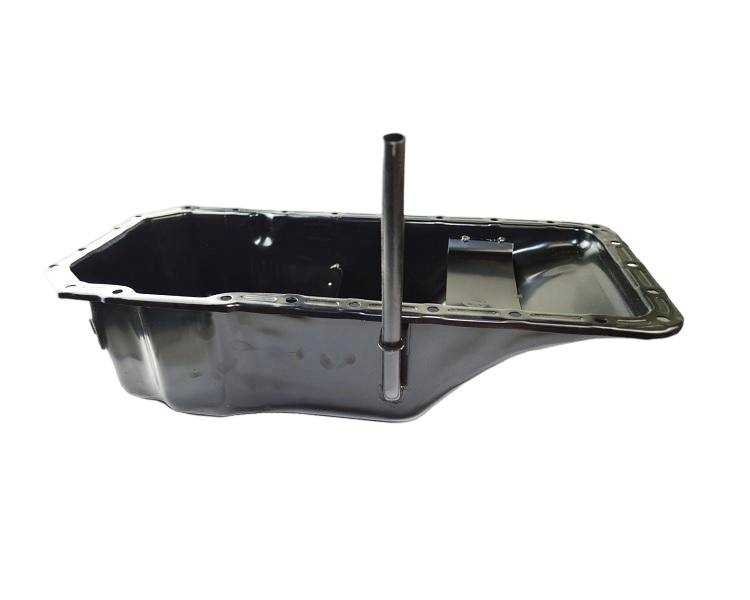

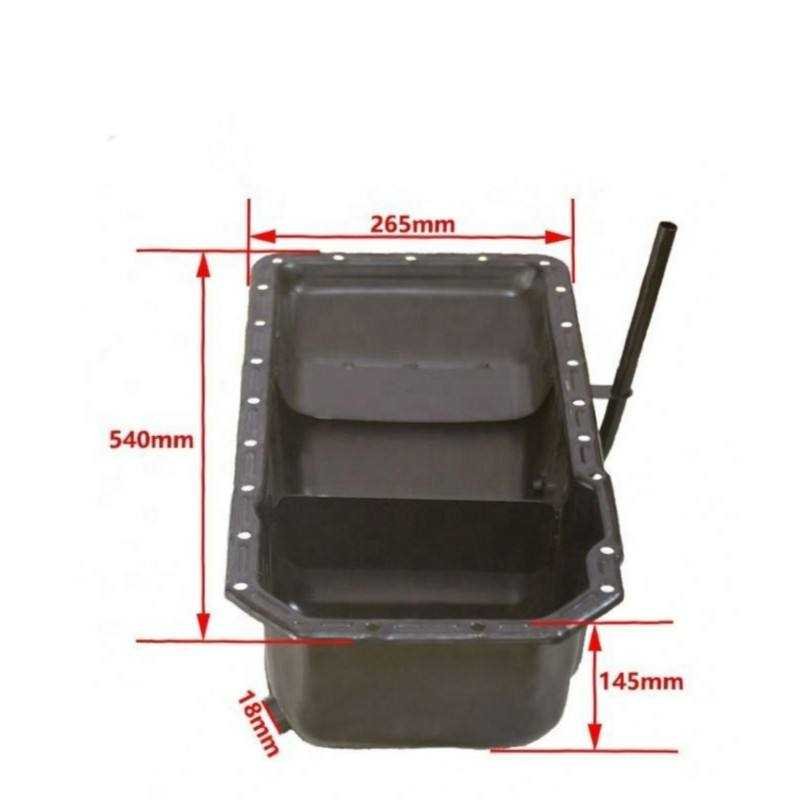

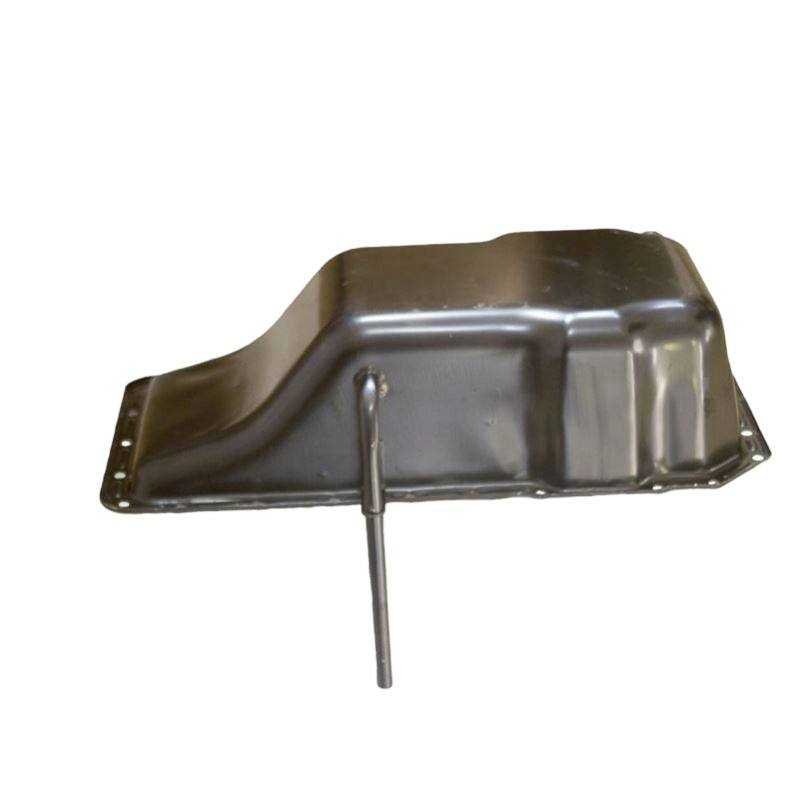

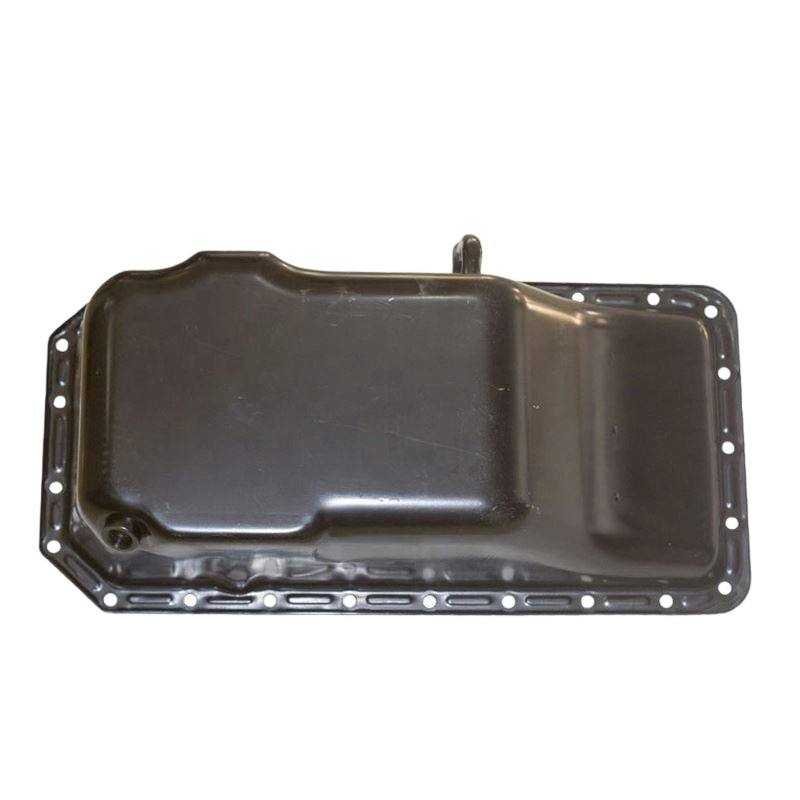

This forklift engine oil pan part number 490B-07100 is a Kingstream OEM replacement oil pan for Xinchai 490BPG, 495, 498, 4D27G31, and 4D30G31 series 4-cylinder diesel engines in 1-3.5 ton forklifts, construction equipment, agricultural machinery, and industrial applications. The engine oil pan is the stamped or cast steel sump bolted to the bottom of the engine block that serves as the engine oil reservoir — it holds 5-8 liters of engine oil that the oil pump draws from through the pickup tube and screen assembly. Dimensions: 54×26.5×14.5cm. Weight: 3.7kg net (4.1kg gross with 60×30×20cm packaging). 6-month warranty. Hot product with machinery test report and video inspection provided. Kingstream OEM quality for Xinchai diesel engine fleet operators.

INSTALLATION PROCEDURE: Step 1 — Park the forklift on level ground and allow the engine to cool. Drain the engine oil completely through the drain plug. Step 2 — Remove any components blocking access to the oil pan such as exhaust pipes, steering linkages, or skid plates. Step 3 — Loosen and remove all oil pan bolts in a cross-pattern sequence. Step 4 — Carefully break the gasket seal using a pry tool at the designated pry points — never pry between the pan and block on the gasket surface to avoid damaging the sealing surface. Step 5 — Remove the old oil pan and thoroughly clean the engine block mounting surface with a gasket scraper to remove all old gasket material, oil, and debris. Step 6 — Inspect the oil pickup tube and screen for damage or clogging. Clean or replace the screen if necessary. Step 7 — Apply a continuous 3-4mm bead of RTV silicone gasket maker to the oil pan flange, circling each bolt hole. Step 8 — Position the new oil pan and thread all bolts finger-tight before final torque in a cross-pattern sequence. Step 9 — Allow the RTV to cure for the time specified by the manufacturer (typically 1 hour before oil fill). Step 10 — Refill with the correct grade and quantity of engine oil, start the engine, and check for oil leaks at the pan gasket and drain plug. 6-month warranty. Kingstream OEM.

SYMPTOMS OF OIL PAN FAILURE: Oil puddles under the engine, visible cracks or impact damage to the oil pan, stripped or leaking drain plug threads, oil level dropping between services, rusty or corroded pan leaking through pinholes, and contaminated oil from water ingress through a cracked pan. For Xinchai 490-498 diesel engine fleet lubrication system maintenance, contact us. Kingstream OEM.

Technical Specifications

Machinery test report provided. Kingstream OEM. Contact us.
