Forklift Gearbox Assembly BSX-A29B2-50201G – Heli Komatsu 2-3T

Forklift Gearbox Assembly BSX-A29B2-50201G — Heli / Komatsu 2-3 Ton Forklift Hydraulic Transmission Gearbox Assembly

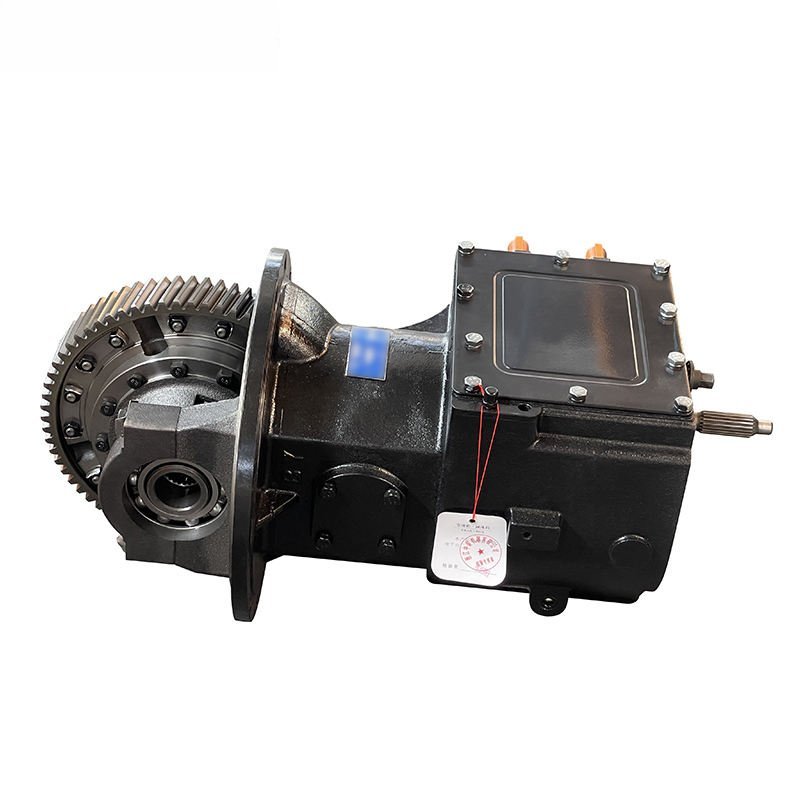

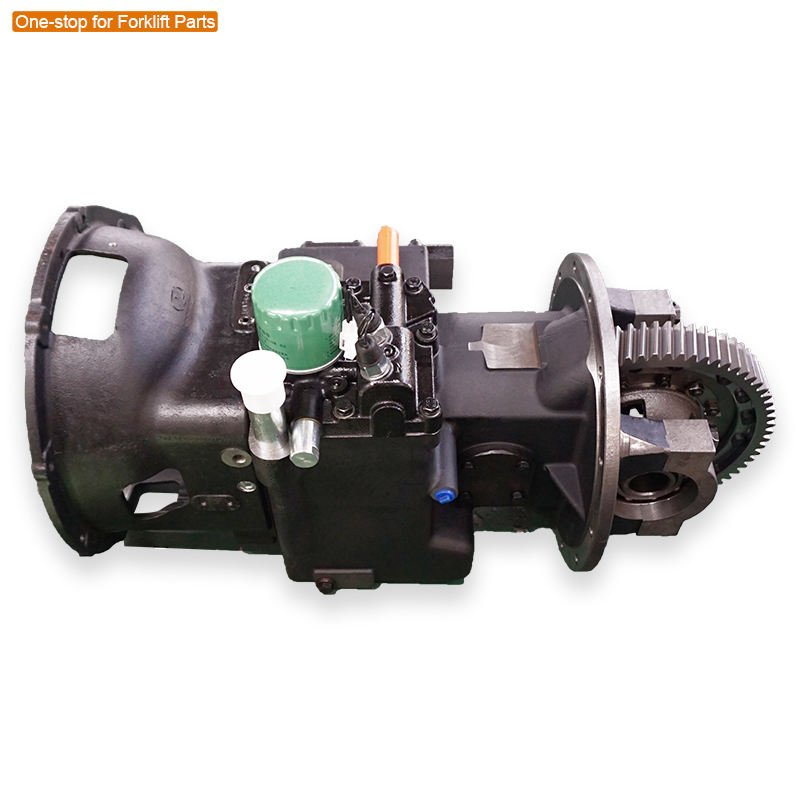

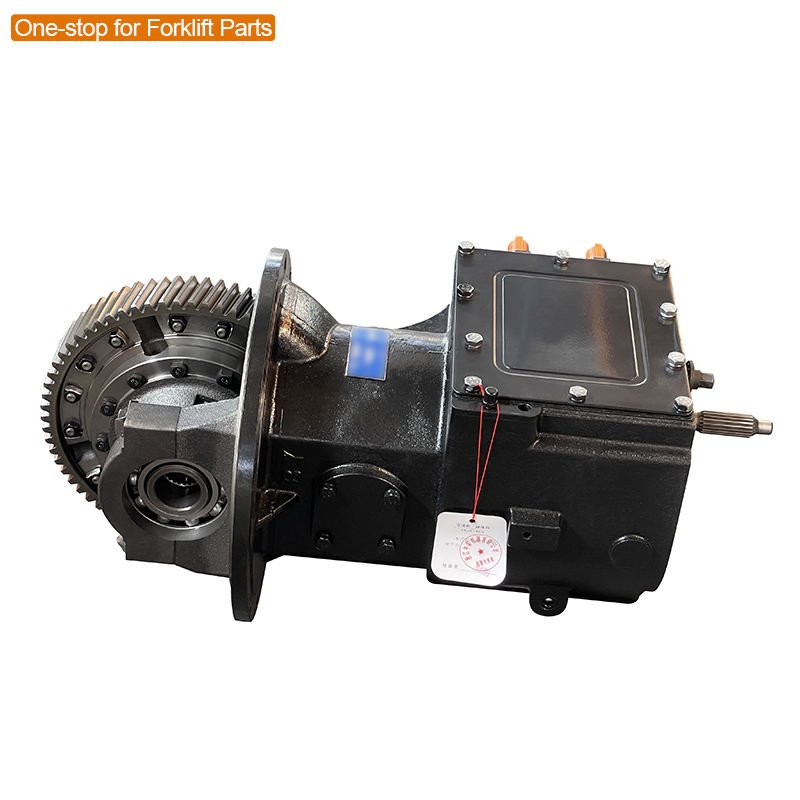

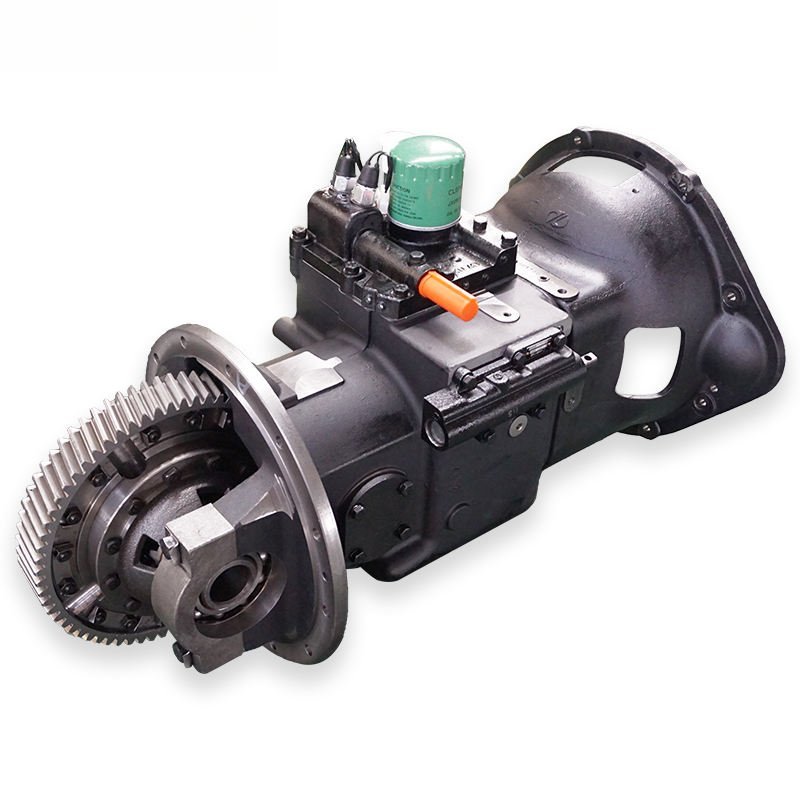

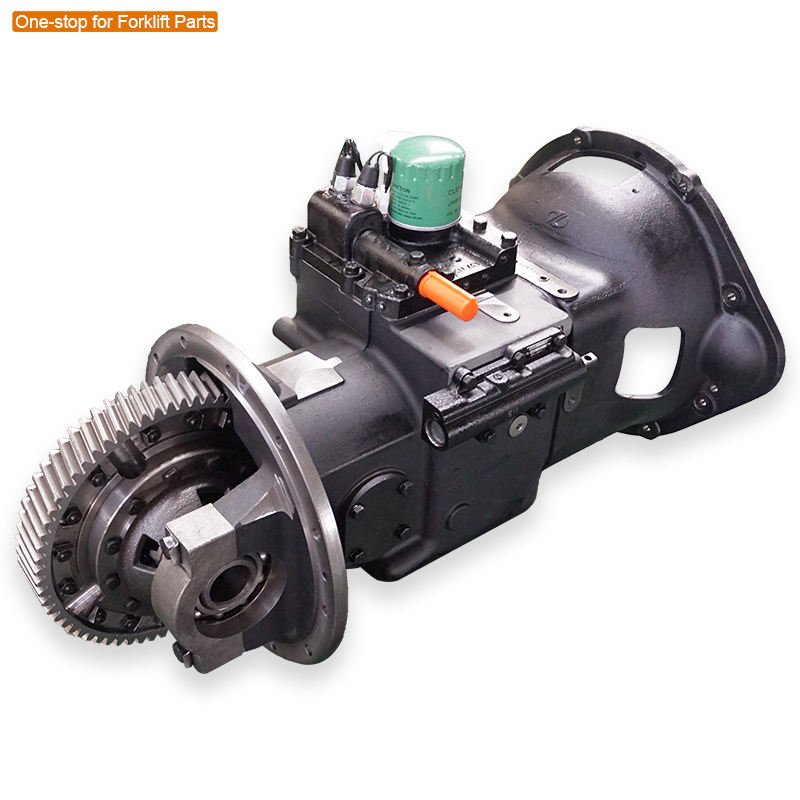

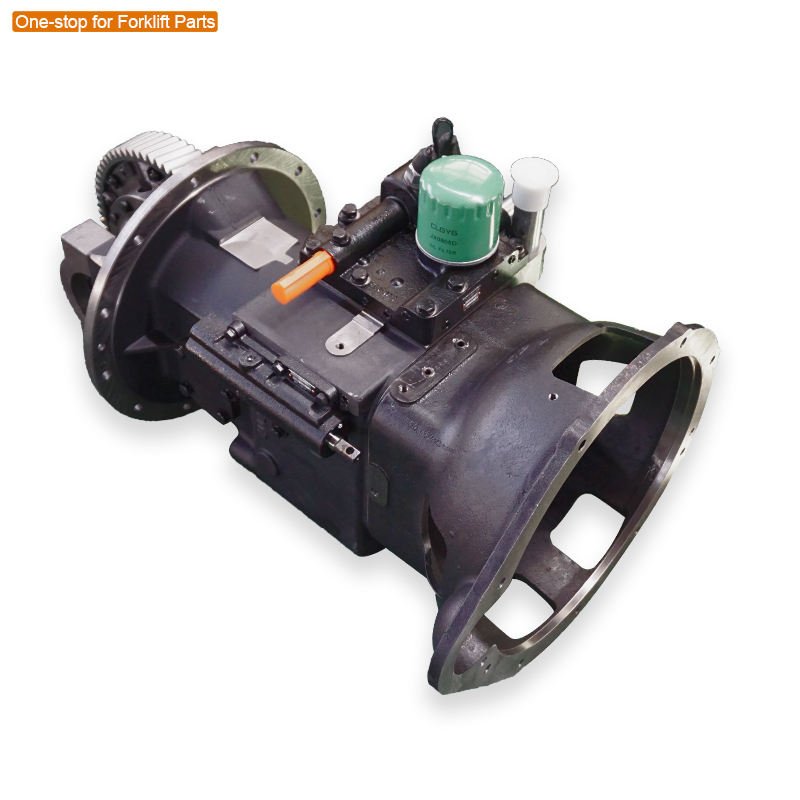

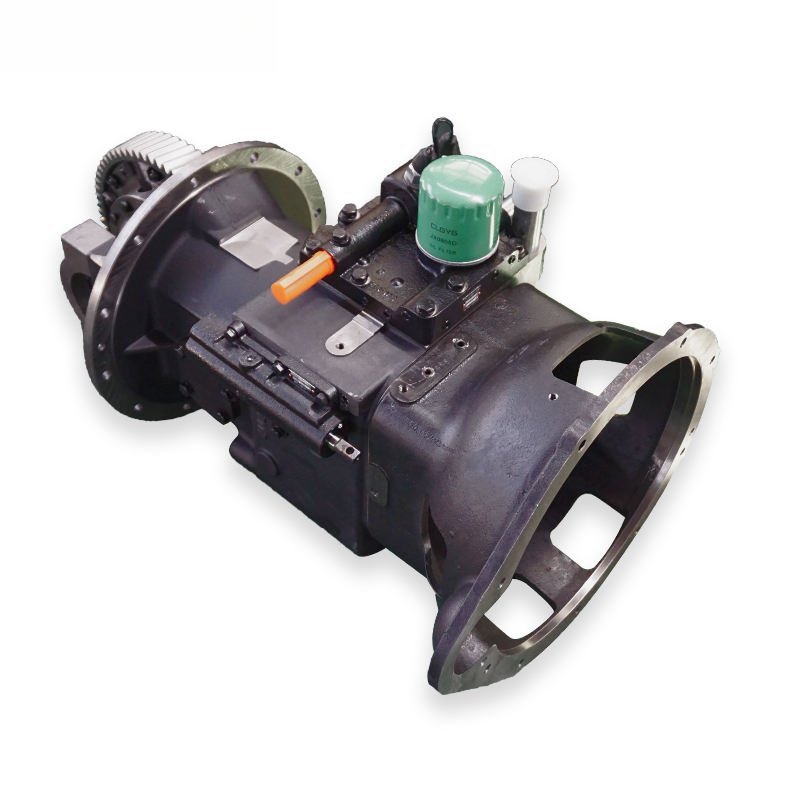

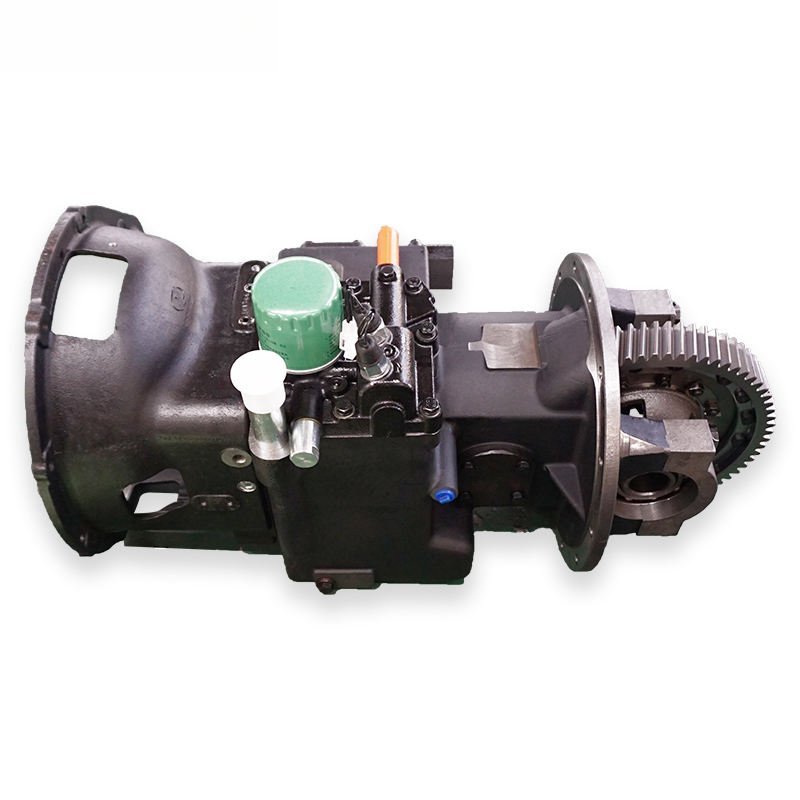

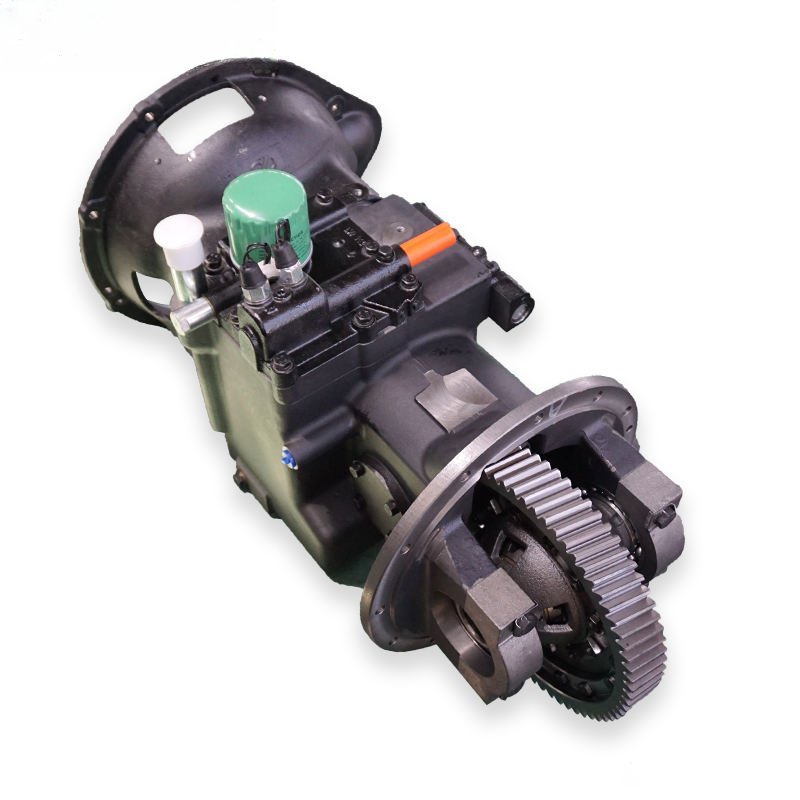

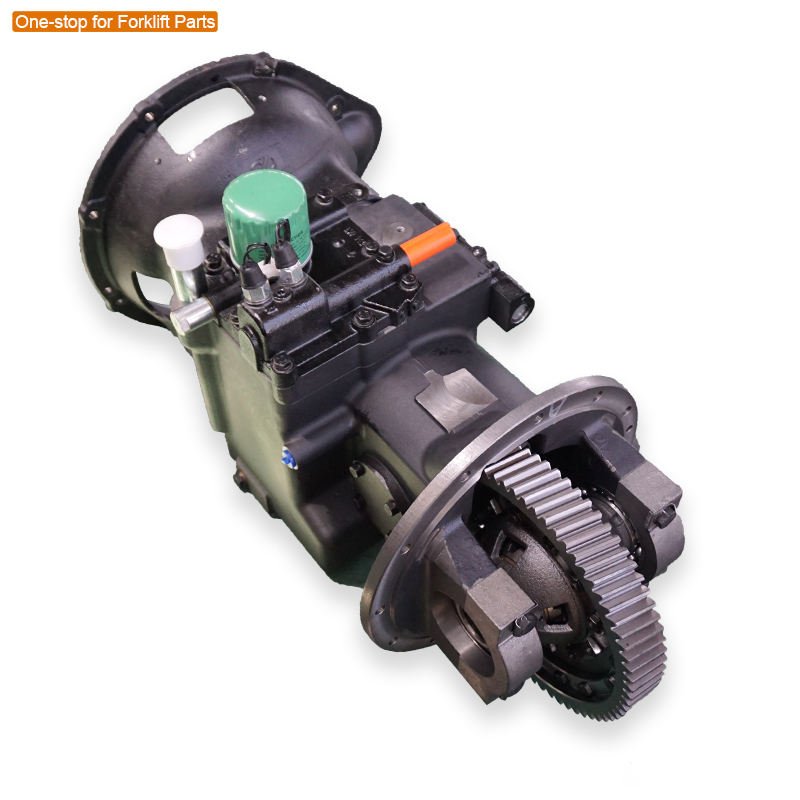

This forklift gearbox assembly part number BSX-A29B2-50201G is a Kingstream OEM hydraulic transmission gearbox for Heli and Komatsu 2-3 ton counterbalance forklift trucks in warehousing, manufacturing, construction, and material handling. The gearbox assembly is the complete hydraulic transmission unit responsible for transferring and multiplying engine power to the drive axle through hydraulic clutch packs and planetary gear sets — it provides forward, reverse, and neutral gear selection with smooth automatic shifting controlled by the transmission control valve. Net weight: 190kg (200kg gross) with 100×56×58cm wooden box or carton packaging. CE, ISO, ROHS, UL certified. 1-year warranty. Kingstream OEM/ODM/customized service available. Supply capacity: 50,000 sets per month. Kingstream OEM quality for Heli/Komatsu 2-3T forklift fleet transmission replacement.

INSTALLATION: Step 1 — Safely support the forklift and remove the counterweight, engine covers, and floor plate. Step 2 — Disconnect the battery, transmission electrical connectors, shift linkage, and hydraulic hoses. Step 3 — Drain the transmission fluid. Step 4 — Support the engine and transmission with a suitable lifting device or crane capable of handling 200kg. Step 5 — Remove the drive shaft, transmission mounting bolts, and bell housing bolts. Step 6 — Carefully separate the transmission from the engine and torque converter. Step 7 — Transfer the torque converter and any external components to the new gearbox assembly. Step 8 — Align the new gearbox with the engine, ensuring the torque converter is properly seated in the pump drive. Step 9 — Install and torque bell housing bolts and transmission mounts to specification. Step 10 — Reconnect drive shaft, hydraulic lines, shift linkage, and electrical connectors. Step 11 — Refill with correct specification transmission fluid. Step 12 — Bleed the hydraulic clutch system if applicable. Step 13 — Start the engine and cycle through all gear positions. Check fluid level hot. Step 14 — Test drive and verify smooth shifting in forward and reverse, with no abnormal noise or vibration. 1-year warranty. Kingstream OEM.

SYMPTOMS OF GEARBOX FAILURE: Grinding or howling noise during operation, failure to engage forward or reverse, slipping in one or more gears, metallic debris in transmission fluid, transmission overheating, and harsh or jerky shifting. For Heli/Komatsu 2-3T forklift fleet transmission maintenance, contact us. Kingstream OEM.

Technical Specifications

1-year warranty. OEM/ODM available. Kingstream OEM. Contact us.
