Forklift Engine Assembly 4D27G31 – Xinchai 3-3.5 Ton Diesel

Forklift Engine Assembly 4D27G31 — Xinchai 4D27G31 3-3.5 Ton Diesel Engine for Heli & Hangcha Forklifts

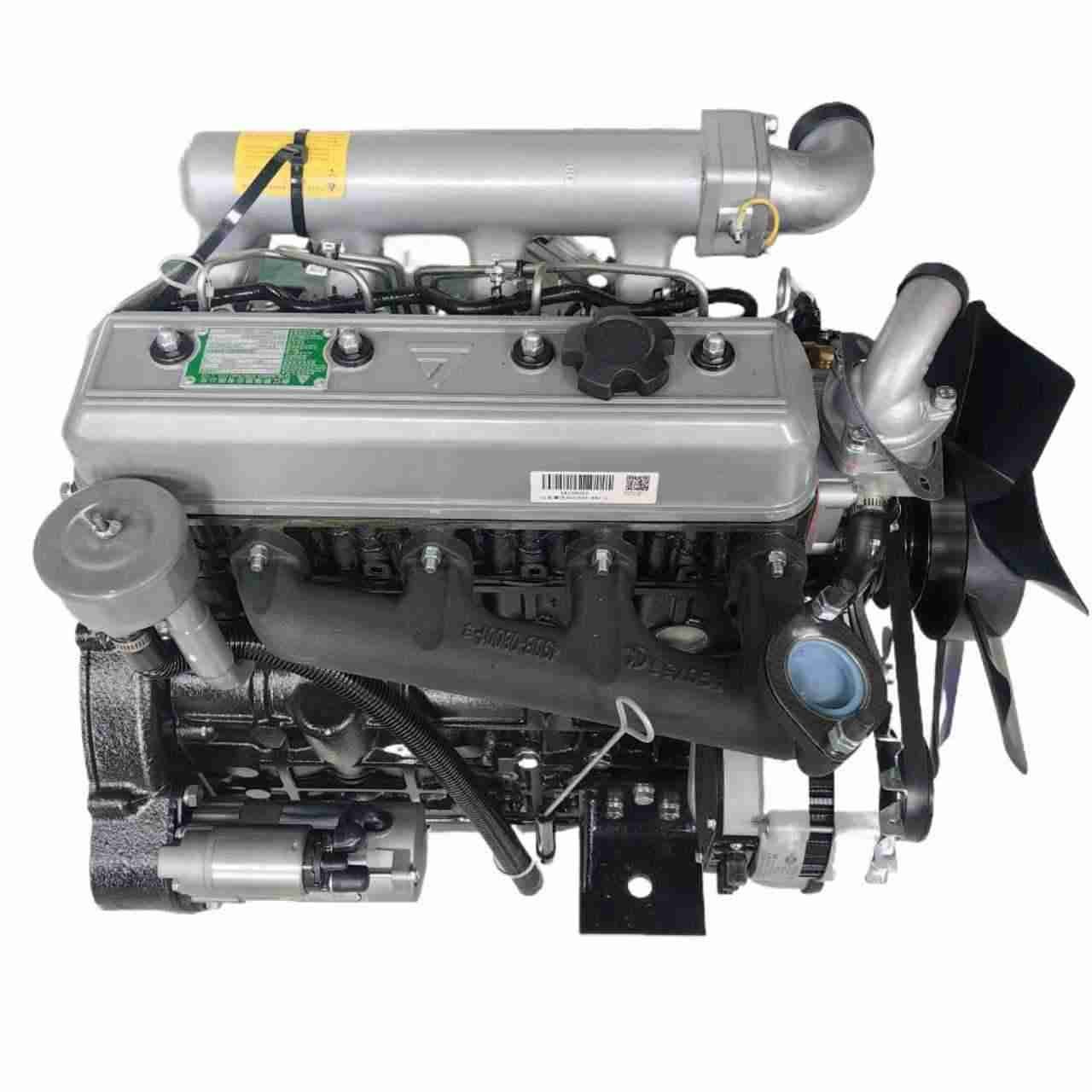

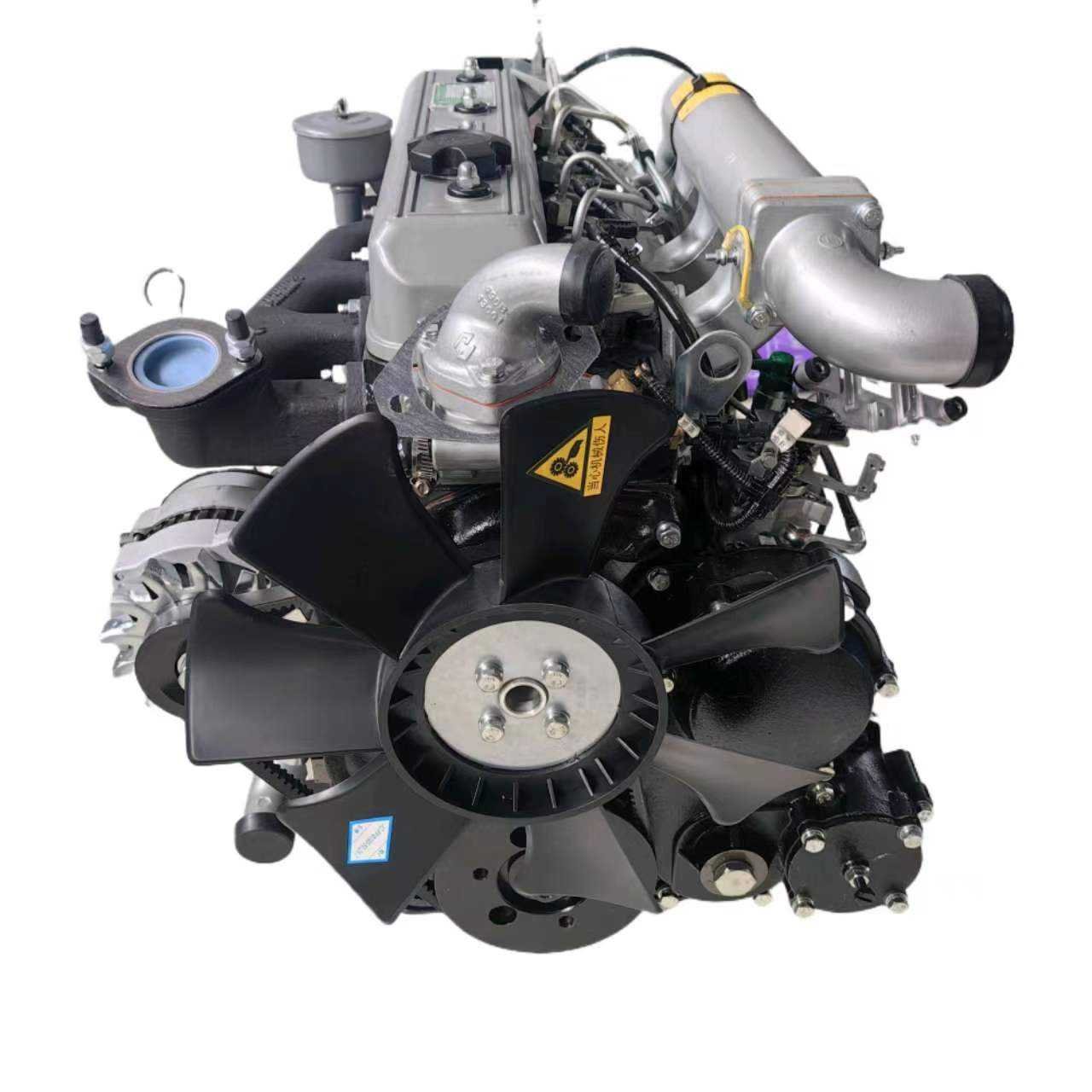

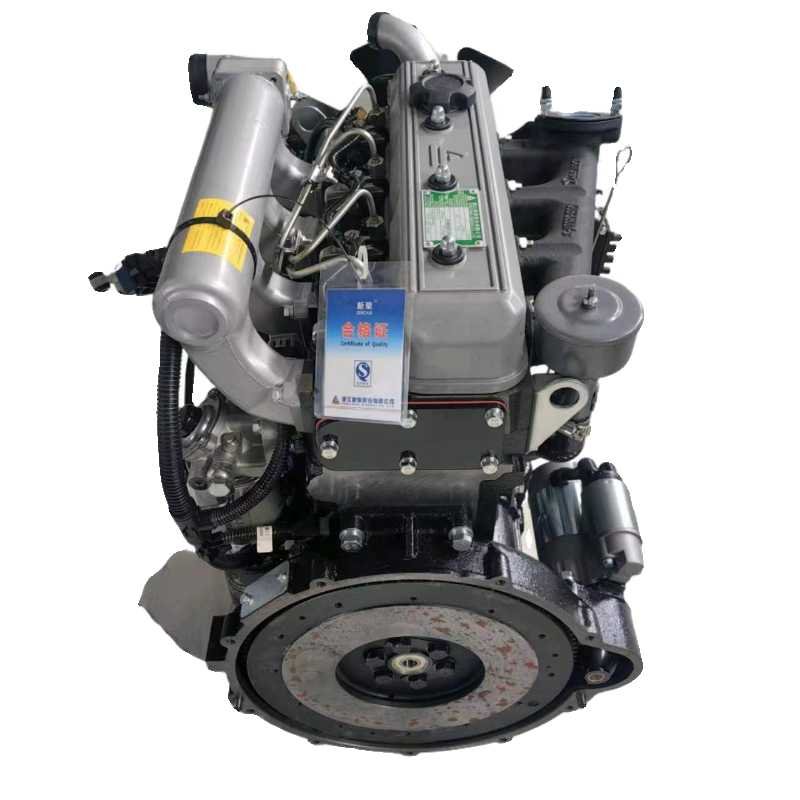

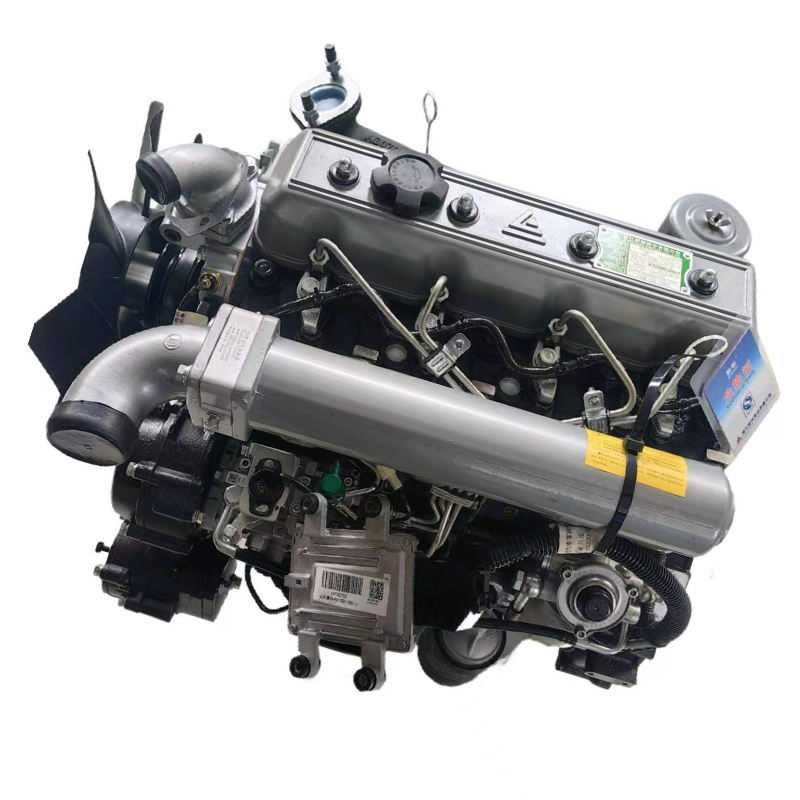

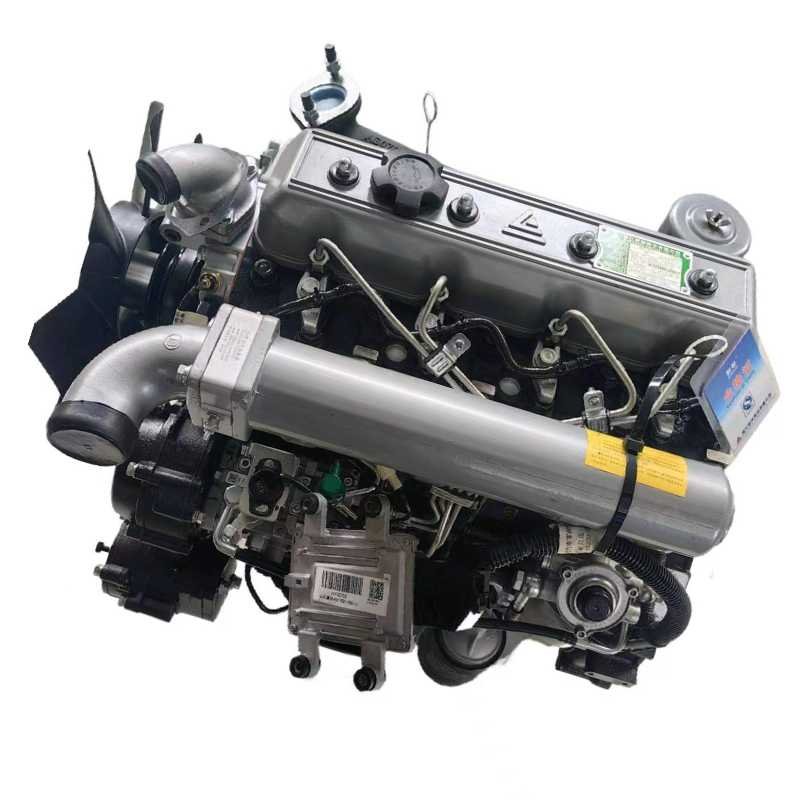

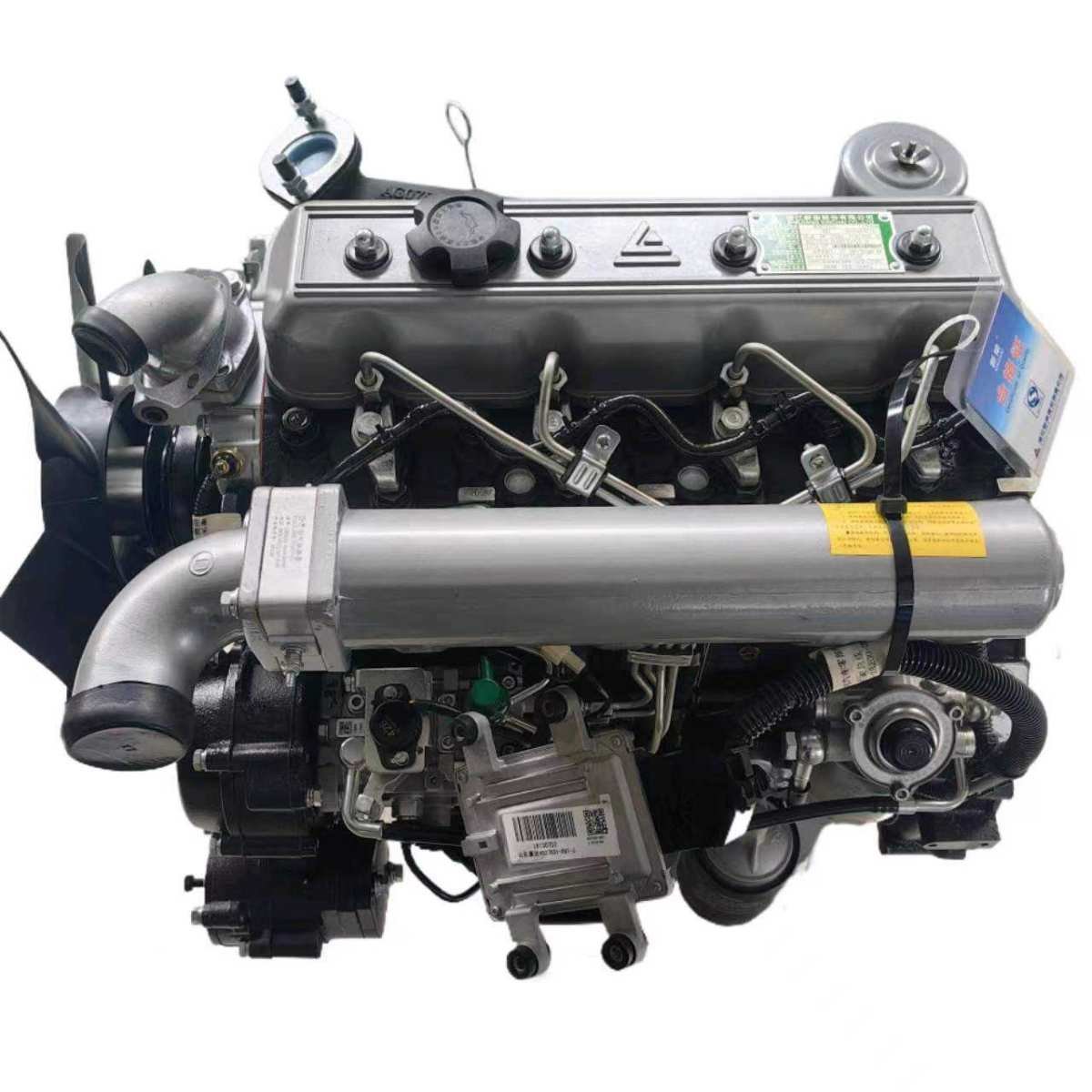

This forklift engine assembly model 4D27G31 is a Kingstream OEM complete Xinchai diesel engine for 3-3.5 ton Heli and Hangcha forklift trucks in manufacturing, construction, port, warehousing, logistics, food processing, and mining environments. The 4D27G31 is a 4-cylinder, water-cooled, 4-stroke diesel engine that is the standard powerplant for Heli CPCD30/CPCD35 and Hangcha CPCD30/CPCD35 forklifts — representing the highest-volume forklift engine class in China for standard 3-ton warehouse and logistics counterbalance trucks. The complete engine assembly includes the cylinder block, cylinder head with valves and camshaft, crankshaft, pistons with rings, connecting rods, timing gear train, fuel injection pump, injectors, intake and exhaust manifolds, oil pump, water pump, starter motor, alternator, flywheel, and engine wiring harness — ready for direct drop-in installation. 260kg with 200×200×100cm wooden box or pallet packaging. 100% professional tested. 7-15 day delivery. Kingstream OEM quality for Heli and Hangcha 3-3.5 ton forklift fleet operators.

INSTALLATION PROCEDURE: Step 1 — Disconnect the battery and drain all fluids (engine oil, coolant, and fuel). Step 2 — Remove the forklift engine hood, side panels, and any access covers. Step 3 — Disconnect the exhaust system from the exhaust manifold. Step 4 — Disconnect all electrical connections: starter main cable and solenoid wire, alternator output and field wires, oil pressure sensor, water temperature sensor, fuel shutoff solenoid, and glow plug wiring harness. Label all connections. Step 5 — Disconnect the throttle linkage and fuel supply and return lines. Step 6 — Disconnect radiator hoses and heater hoses. Step 7 — Support the engine with an overhead crane rated for a minimum of 300kg. Attach lifting chains to the engine lifting eyes. Step 8 — Remove the engine mount bolts at the chassis brackets. Step 9 — Remove the bell housing bolts connecting the engine to the transmission. Step 10 — Carefully separate the engine from the transmission, ensuring the torque converter or clutch remains properly seated. Step 11 — Lift the old engine out and position the new engine on the crane. Step 12 — Align the new engine with the transmission input shaft and bell housing dowels. NEVER force the engine onto the transmission — misalignment will damage the torque converter or clutch splines. Step 13 — Install bell housing bolts and torque to specification. Step 14 — Install engine mount bolts. Step 15 — Reconnect all electrical, fuel, coolant, exhaust, and throttle connections. Step 16 — Refill engine with correct specification diesel engine oil (typically 15W-40 CI-4 for Xinchai). Step 17 — Fill cooling system with correct coolant mixture. Bleed air from the cooling system. Step 18 — Prime the fuel system by operating the manual feed pump. Step 19 — Before starting, crank the engine with the fuel shutoff solenoid disconnected until oil pressure registers on the gauge. Step 20 — Reconnect fuel solenoid, start the engine, and immediately verify oil pressure, alternator charging, coolant circulation, and no abnormal noises or leaks. Step 21 — Run engine at 1000-1500 RPM for 15 minutes, then re-torque cylinder head bolts and adjust valve lash to Xinchai specification. 100% professional tested. Kingstream OEM.

SYMPTOMS OF ENGINE FAILURE: Hard starting or no-start, excessive exhaust smoke (black = overfueling; blue = oil burning; white = coolant leak), loss of power under load, abnormal engine knocking, coolant in oil (milky oil), oil in coolant, excessive oil consumption, overheating, and catastrophic mechanical failure. For Heli and Hangcha 3-3.5 ton forklift fleet engine replacement programs, contact us. Kingstream OEM.

Technical Specifications

100% professional tested. Kingstream OEM. Contact us.
