Forklift Engine Valve Seat – Intake Exhaust Valve Seat Ring

Forklift Engine Valve Seat — Intake & Exhaust Valve Seat Insert Ring, Standard Size, Customizable

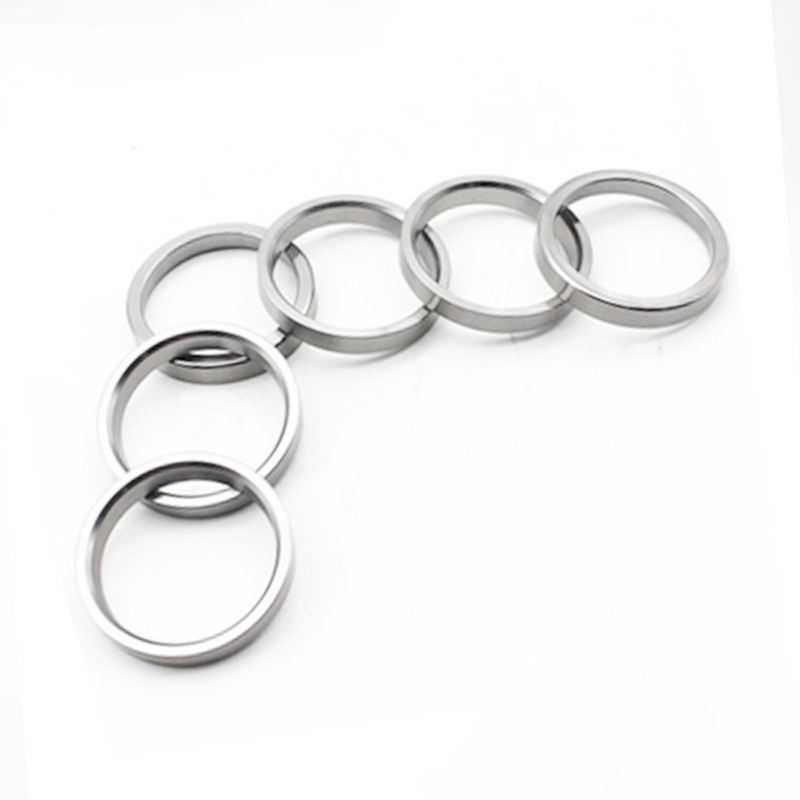

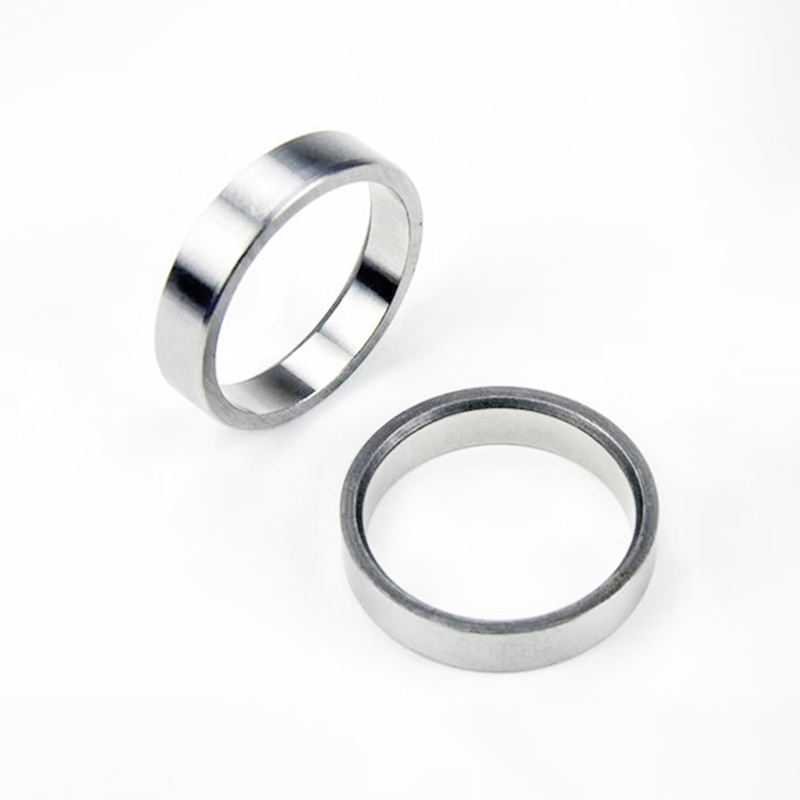

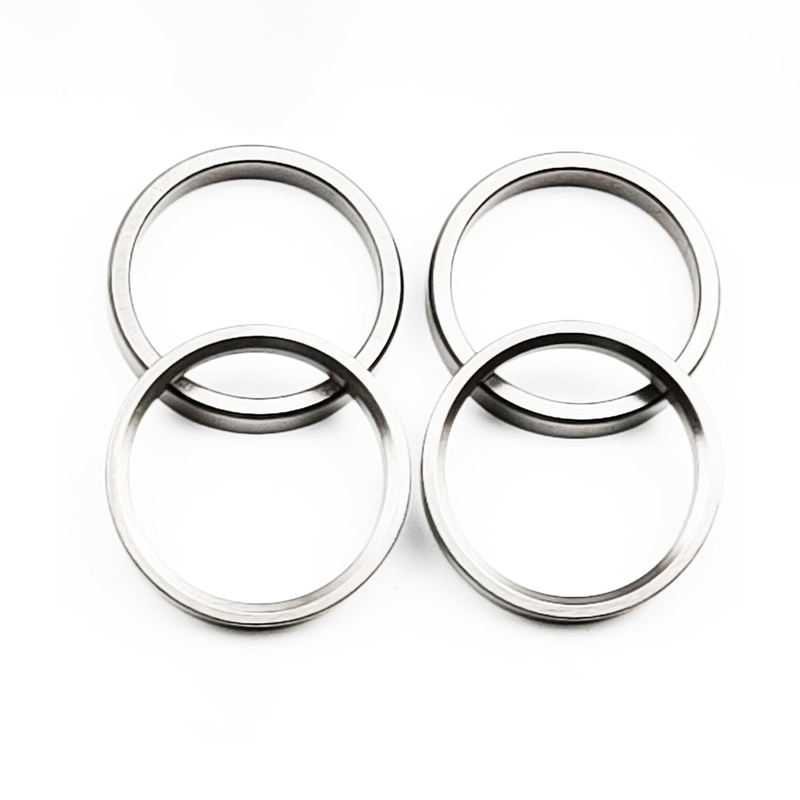

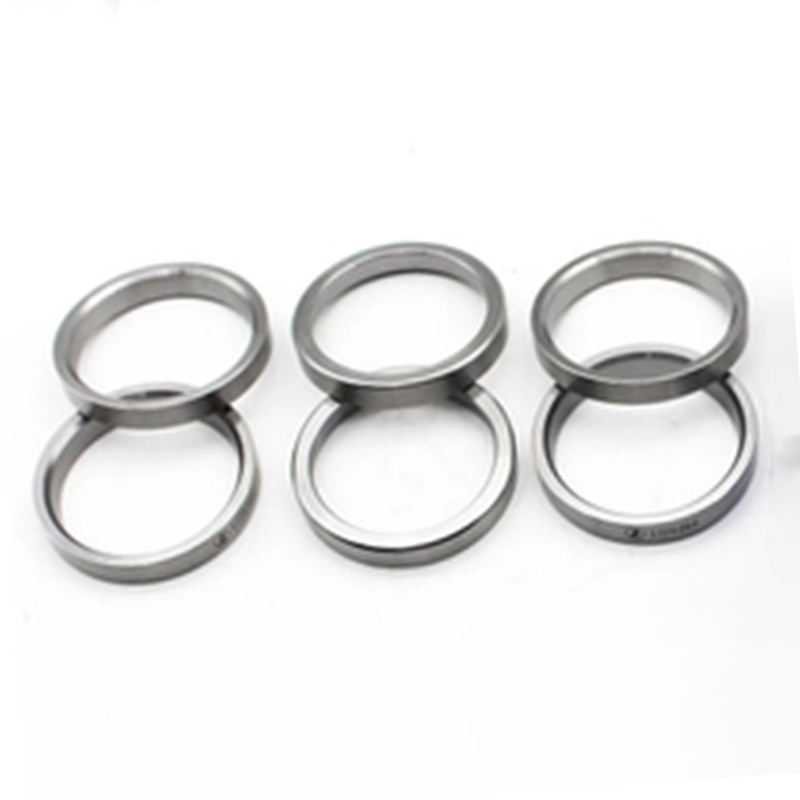

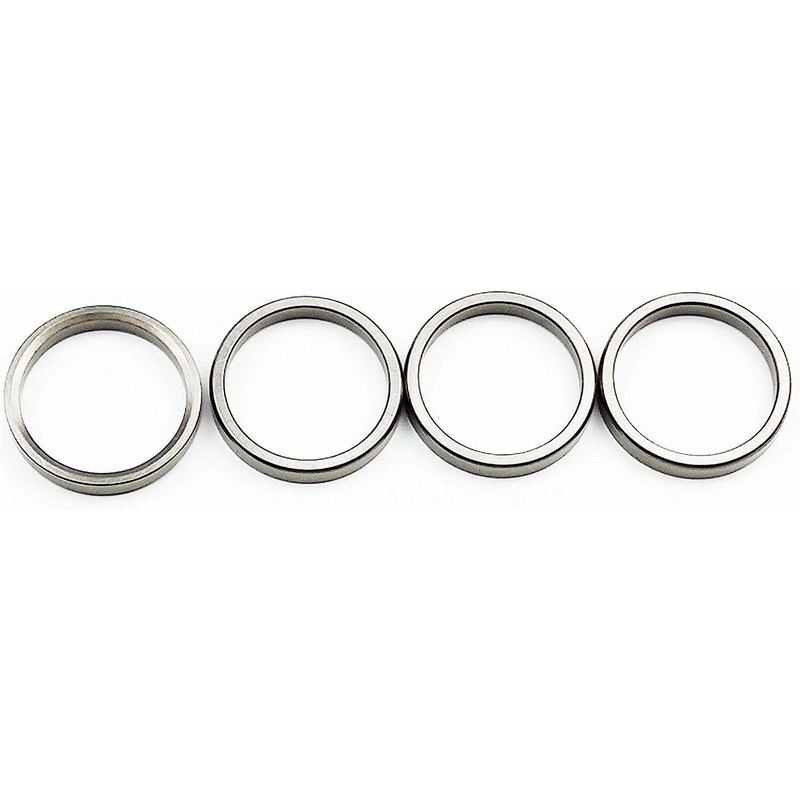

This forklift engine valve seat is a Kingstream OEM precision-machined valve seat insert ring for intake and exhaust valves in forklift, automotive, construction machinery, and industrial engine applications. The valve seat ring is pressed into the cylinder head casting and provides the hardened, heat-resistant sealing surface against which the valve face closes to create a gas-tight combustion chamber seal. The seat insert conducts combustion heat from the valve head into the cylinder head water jacket, preventing valve overheating and warping. During each engine cycle, the valve impacts the seat with significant force — the seat material must resist wear, deformation, and erosion from hot combustion gases over millions of cycles. When the valve seat wears or recedes, the valve sinks deeper into the head, changing combustion chamber volume and reducing compression ratio. 5kg with 8×8×8cm packaging. 12-month warranty. 100% professional tested. Support customization for different engine models and valve sizes. Carton or wooden tray packing. Delivery time based on order quantity. Kingstream OEM quality for industrial engine rebuild programs.

INSTALLATION PROCEDURE: Step 1 — Remove the cylinder head from the engine. Step 2 — Extract the old valve seat insert using a valve seat puller tool — some seats are removed by welding a bead around the seat ID, which shrinks the seat upon cooling and allows extraction. Step 3 — Measure the valve seat counterbore in the cylinder head for diameter and depth to determine if an oversize seat is needed. Step 4 — If the counterbore is worn or damaged, machine it oversize to accept the next size insert. Step 5 — Chill the new valve seat insert in dry ice or liquid nitrogen to shrink it for easier installation. Step 6 — Heat the cylinder head to expand the counterbore (optional, depending on interference fit). Step 7 — Press the new seat into position using a valve seat driver and arbor press — the seat must seat fully and squarely in the counterbore. Step 8 — Machine the valve seat angle using a valve seat cutter to achieve the correct 3-angle valve job (typically 30° top, 45° seat, 60° throat). Step 9 — Lap the valve to the new seat using lapping compound to verify full circumferential contact. Step 10 — Clean all debris thoroughly, reassemble the cylinder head, and verify compression after installation. 12-month warranty. Kingstream OEM.

SYMPTOMS OF VALVE SEAT FAILURE: Low compression in affected cylinders, hissing sound from intake or exhaust during cranking, engine misfire especially at idle, burnt valve from poor heat transfer through worn seat, excessive valve lash requiring frequent adjustment, and visible seat recession or pitting during cylinder head disassembly. For industrial engine valve train overhaul programs, contact us. Kingstream OEM.

Technical Specifications

100% tested. Kingstream OEM. Contact us.
