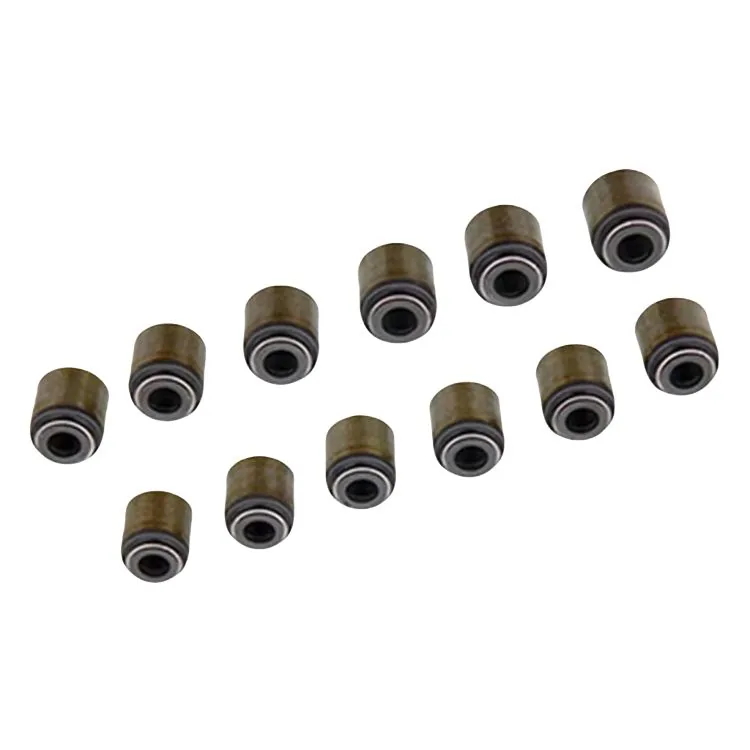

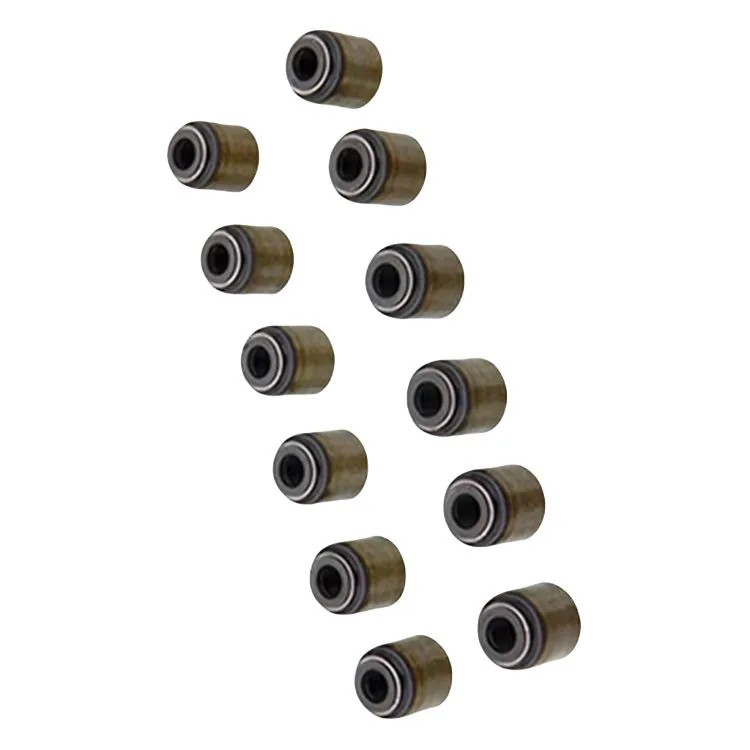

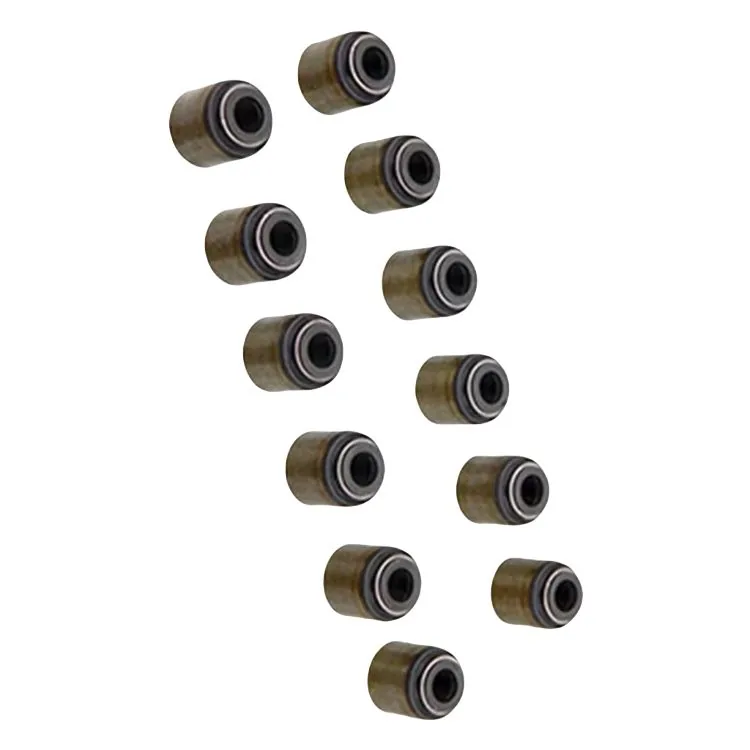

Valve Stem Oil Seal PN Z-1-12569-015-0 for Forklift Diesel Engines

The Z-1-12569-015-0 is an OEM-spec valve stem oil seal designed for a broad range of forklift and industrial diesel engines. This precision-engineered seal fits over the valve stem and seats securely on the valve guide boss, performing the dual function of metering a controlled oil film to lubricate the valve stem-to-guide interface while preventing excess oil from being drawn past the guide into the combustion chamber during the intake stroke. When valve stem seals wear or harden — a common issue in forklifts operating in high-ambient-temperature environments or with extended oil change intervals — the resulting oil consumption manifests as blue-gray exhaust smoke, carbon deposits on valve heads and seats, spark plug fouling in LPG engines, and gradually deteriorating engine performance. Replacing worn seals with this OEM-quality component restores factory-spec oil control and eliminates oil-related combustion chamber contamination.

The seal features a precision-molded FKM (fluoroelastomer) sealing lip supported by a stainless steel garter spring that maintains consistent radial tension of 2-4N on the valve stem throughout the seal’s service life. FKM is selected over standard nitrile for its superior high-temperature resistance — maintaining full elasticity at continuous operating temperatures up to 200°C, which is essential for exhaust valve applications where guide temperatures can exceed 180°C during sustained loaded operation. The lip profile incorporates a hydrodynamic pumping geometry that meters approximately 0.5-1.5cc of oil per hour onto the valve stem, providing adequate lubrication without visible exhaust smoke. An embedded steel reinforcing shell ensures positive mechanical retention on the valve guide boss, preventing the seal from lifting, spinning, or dislodging during high-RPM operation, crankcase pressure pulses, or valve stem withdrawal during cylinder head disassembly.

Direct OEM replacement for forklift and industrial diesel engines specified with the Z-1-12569-015-0 part number. Compatible with select diesel and LPG forklift engine models, including applications where this seal is used on both intake and exhaust valve positions. Always replace the complete set of valve stem seals — all cylinders, intake and exhaust — during any cylinder head service; never replace individual seals as this creates uneven oil control between cylinders. Use a valve seal installation tool with a protective plastic sleeve over the valve stem keeper groove to prevent cutting the new seal lip during installation. Lightly lubricate each seal lip with clean engine oil before inserting the valve stem. For compatible valve guides, intake and exhaust valves, cylinder head gasket sets, valve spring compressors, and complete engine overhaul kits, visit our Forklift Engine Parts section. For valve train service specifications, consult your engine OEM service manual or SKF Valve Stem Seal technical resources.

Technical Specifications

• PN: Z-1-12569-015-0
• Type: Valve Stem Oil Seal with Garter Spring
• Material: FKM Fluoroelastomer with Steel Reinforcing Shell
• Spring: Stainless Steel Garter Spring, 2-4N Lip Tension
• Temperature: -30°C to +200°C Continuous, +230°C Intermittent
• Oil Control: Hydrodynamic Lip Profile, ~1cc/hr Metering
• Application: Intake & Exhaust Valve Guide Boss

Compatible Applications

Each Kingstream Z-1-12569-015-0 seal undergoes optical comparator inspection for lip ID accuracy, digital force gauge verification of garter spring tension, and dimensional checks on shell OD and overall height. Seals are individually packaged in anti-static sealed bags. 12-month warranty against manufacturing defects. Blue smoke on cold startup is the telltale sign of leaking valve stem seals — oil pools around the valve guide overnight and is drawn into the combustion chamber on the first few strokes. If this symptom matches your forklift engine, replacing the valve stem seals is the most cost-effective first repair before considering a full cylinder head rebuild. For technical assistance with seal identification or bulk fleet maintenance programs, contact our team with your engine model and desired seal quantity.
