3-Ton Forklift Clutch Pressure Plate — General-Purpose Aftermarket Replacement (Multi-Brand)

This is a general-purpose aftermarket clutch pressure plate for 3-ton diesel forklifts — a universal-fit replacement designed to cover multiple brands within the 3-ton class rather than matching a single OEM part number. The fundamental difference from an OEM-locked pressure plate (which must match a specific flywheel bolt circle, dowel pin location, and manufacturer-specific diaphragm finger profile) is that this unit uses a slightly modified bolt pattern layout with elongated or dual-pattern mounting holes that accommodate the minor variations between Heli CPCD30, TCM FD30, Toyota 7FD30, and Komatsu FD30 flywheel housings — all of which are 3-ton machines but use marginally different pressure plate mounting dimensions that prevent a true OEM plate from crossing between brands. A TCM-branded pressure plate will not bolt onto a Heli flywheel without modification, but this general-purpose unit will fit both — saving fleet operators who run mixed-brand equipment from stocking three different SKUs for three brands of 3-ton forklifts.

The trade-off with a general-purpose pressure plate — and this is what separates it from the OEM-specific unit — is that the diaphragm spring clamp load is calibrated to a middle-ground value that works safely across all 3-ton engines (typically 5,200-5,800 N) rather than being optimized for a single engine’s exact torque curve. This means the pedal effort and engagement feel may differ slightly from the original factory plate on any given brand, but the clamp force is sufficient to prevent slippage under the rated 3-ton load on all supported models. The pressure ring friction surface is finished to the same flatness specification as OEM plates (≤0.05mm), and the diaphragm spring is shot-peened for fatigue resistance. The factory-installed release bearing contact ring is hardened to the same depth as OEM units. Installation requires verifying that the mounting bolts fully seat in your flywheel’s threaded holes — on some Heli models with shallow-threaded flywheels, you may need to use supplied spacer washers under the bolt heads to prevent bottoming-out before full clamp torque is achieved. This is the most common installation error on general-purpose plates and the leading cause of warranty claims that turn out to be bolt-bottoming, not product failure.

Direct bolt-on for Heli CPCD30, Hangcha CPCD30, TCM FD30, Toyota 7FD30/7FG30, Komatsu FD30/FG30, and Lonking LG30D — specifically the 275mm disc diameter, diaphragm-spring 3-ton class. Always verify your flywheel bolt thread depth, compare the pressure plate mounting face to your old unit before torqueing, and use a torque wrench in a star-pattern sequence. Replace the release bearing and pilot bearing simultaneously. For OEM-specific 3-ton pressure plates with exact factory bolt patterns, browse our clutch pressure plate category. For OEM cross-reference, visit Heli official website.

Technical Specifications

• SKU: CLUTCH-PP-3T-GEN
• Key Differentiator: General-Purpose Multi-Brand Fit — elongated bolt pattern accommodates Heli/TCM/Toyota/Komatsu 3-ton flywheel variations. NOT brand-locked like OEM plates.
• Clamp Load: 5,200-5,800 N (Mid-Range, Safe for All 3-Ton 4-Cylinder Diesels)

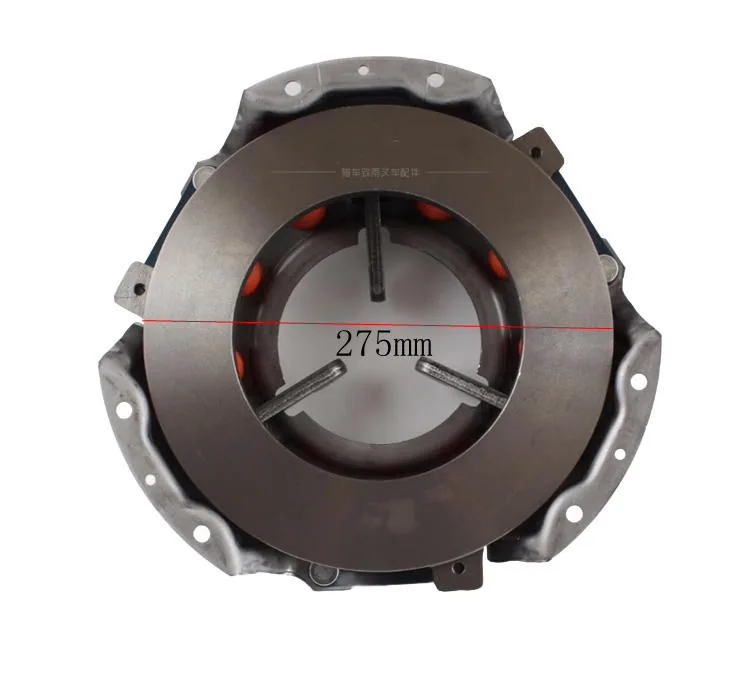

• Disc Compatibility: 275mm Diameter, 10-Spline Hub
• Spring Type: Shot-Peened Diaphragm Spring, Cast Iron Cover
• ⚠ Installation Note: Verify flywheel bolt thread depth — may require spacer washers on some Heli models
• Warranty: 12 Months

Compatible 3-Ton Forklift Models (General-Purpose Fit)

Kingstream general-purpose pressure plates are factory-balanced, individually VCI-wrapped, and packed in rigid export cartons with foam inserts. Spacer washers included. QC: diaphragm finger height ±0.3mm, pressure ring flatness ≤0.05mm, bolt hole PCD gauge check. 12-month warranty. Contact us with your forklift brand and flywheel housing type for fitment confirmation or bulk pricing.
