6.00-9 Forklift Steel Wheel Rim — 1.5-2 Ton Standard Fitment

This 6.00-9 steel wheel rim is the standard rim size specified on 1.5-2 ton electric and internal combustion counterbalance forklifts — the workhorse light-duty class deployed in virtually every warehouse, distribution center, manufacturing plant, and retail logistics operation worldwide. The 6.00-9 size is the smallest standard forklift rim dimension and is fitted across the product lines of every major manufacturer including Heli, Hangcha, Toyota, Komatsu, Clark, Nissan, and TCM for their 1.5-2 ton models. This rim accepts both 6.00-9 press-on solid tires (the default choice for puncture-proof indoor operation where downtime from a flat tire is unacceptable) and 6.00-9 pneumatic tires (preferred for operations that transition between warehouse floors and outdoor yards). Despite its compact dimensions, this rim performs the same critical structural and safety functions as larger rims: maintaining positive tire bead retention under the full 2-ton rated load, transmitting drive torque and braking forces from the hub to the tire contact patch, and surviving millions of load and direction-change cycles in high-intensity operations without fatigue failure. A corroded, cracked, or impact-damaged 6.00-9 rim must be replaced immediately to maintain safe operating conditions.

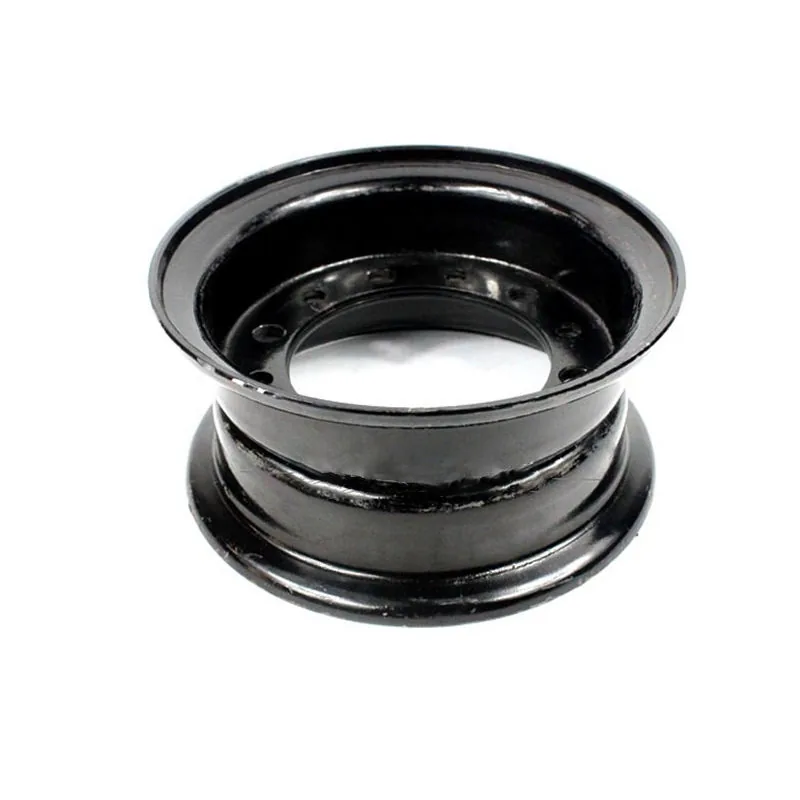

Manufactured from heavy-gauge structural steel, this rim begins as a flat blank that is progressively cold-rolled into the precise 6.00-9 bead-seat profile with correct flange height, bead-seat angle, and well contour. The center disc is stamped from structural steel plate, CNC-machined for accurate bolt-hole positioning and center bore concentricity, then robotically seam-welded to the rim barrel with full-penetration circumferential welds. Post-welding processing includes shot-blasting to SA 2.5, zinc phosphate anti-corrosion treatment, and electrostatic powder coating in durable semi-gloss black — providing excellent resistance to the warehouse and light industrial environments where these compact forklifts typically operate. Runout is held within 1.5mm TIR.

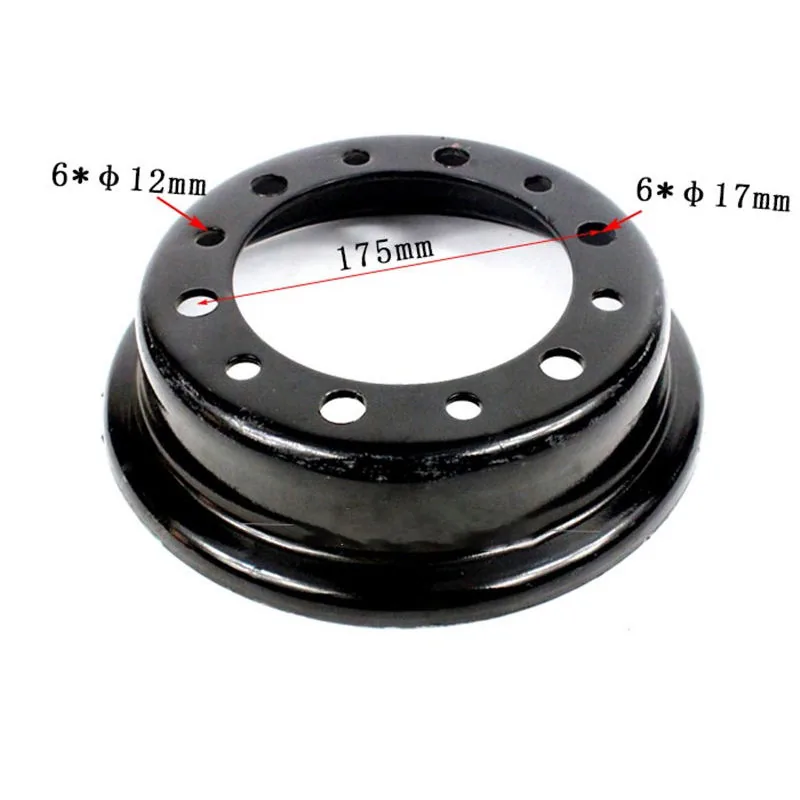

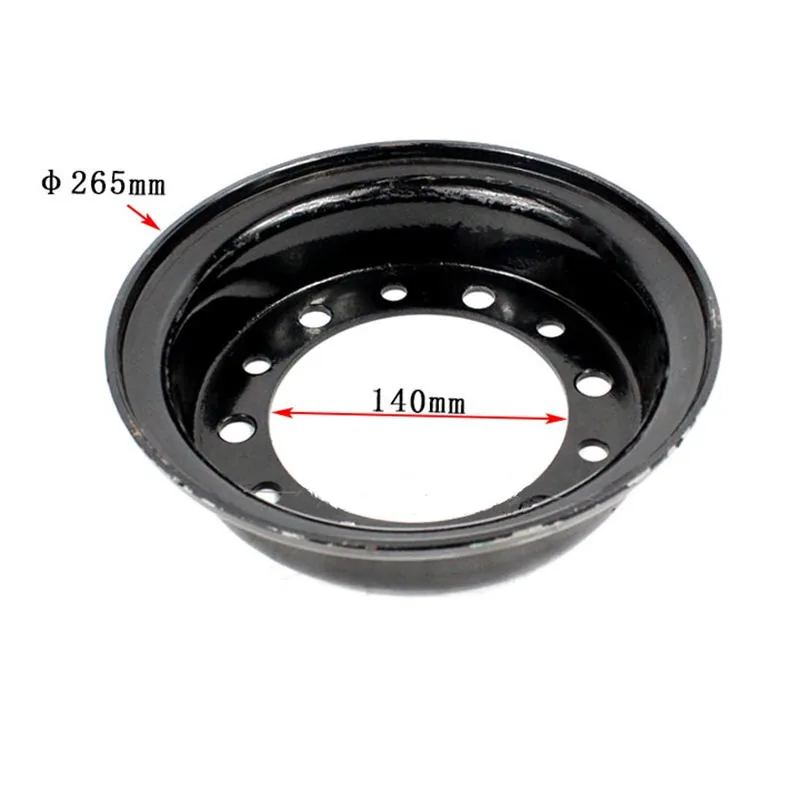

Direct bolt-on fitment for Heli CPD15-CPD20 and CPCD15-CPCD20; Hangcha CPD15-CPCD20; Toyota 7FB15-7FB20 and 7FBE15-7FBE20 three-wheel electric; Komatsu FB15-FB20 and FG15-FG20; Clark ECG15-ECG20; and other 1.5-2 ton forklifts specifying 6.00-9 rims. Always verify bolt pattern, center bore, and offset before ordering. For matching tires, browse our tire and wheel category. Reference OEM data at Heli official website.

Technical Specifications

• SKU: RIM-600-9
• Size: 6.00-9
• Type: Forklift Steel Wheel Rim — Solid & Pneumatic Tire Compatible
• Material: Structural Steel, Cold-Rolled Bead Seat, Welded, Zinc Phosphate + Powder Coated
• Runout: ≤1.5mm TIR
• Application: 1.5-2 Ton Electric & IC Counterbalance Forklifts

Compatible Forklift Models

Kingstream 6.00-9 rims are individually packed in reinforced cartons with protective wrapping. QC includes bolt-hole PCD gauge check and dial indicator runout measurement. 12-month warranty. Contact us for volume pricing or fitment verification.
