Forklift Seat 230x280mm — Shock-Absorbing Spare Parts Replacement

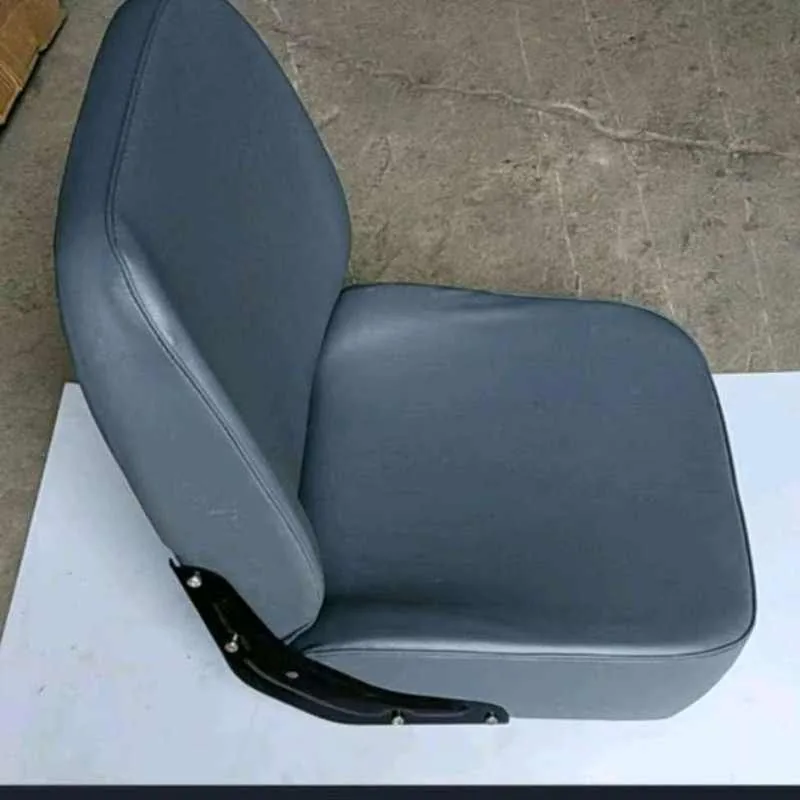

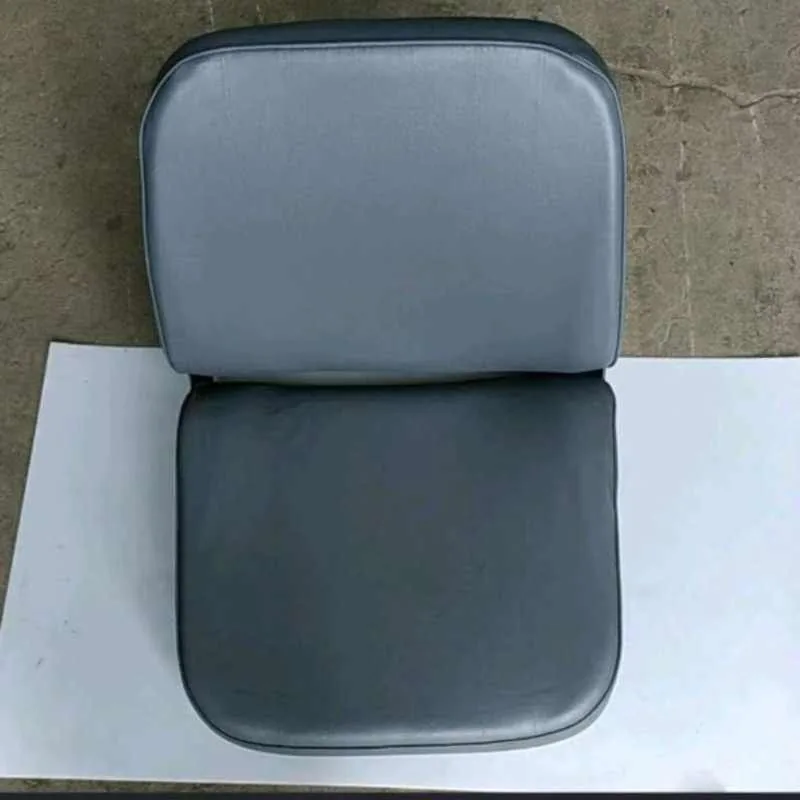

The forklift seat 230x280mm is a replacement operator seat assembly engineered for counterbalance forklifts with 230mm × 280mm seat base mounting dimensions. When the original factory seat foam collapses after 5,000-8,000 operating hours — losing its vibration isolation properties and exposing the operator to whole-body vibration levels exceeding ISO 2631 comfort thresholds — the forklift seat 230x280mm restores ergonomic support and reduces operator fatigue in multi-shift warehouse, port, and manufacturing operations. Unlike economy seats that use a single-density foam pad, this seat employs a dual-layer cushion system with a firm 55 kg/m³ polyurethane base layer for structural support and a softer 40 kg/m³ top layer for pressure-point relief under the ischial bones, where 70% of seated body weight is concentrated.

The seat frame is constructed from powder-coated Q235 structural steel with zinc-plated fasteners providing corrosion resistance in humid and mildly corrosive environments. The PVC upholstery features double-stitched seams with reinforced stress points at the leading edge where operators slide in and out of the seat 20-50 times per day. The fore/aft slide rail system provides 120mm of adjustment travel with a spring-loaded latch mechanism, accommodating operators from 150cm to 190cm in height. The reclining backrest offers 90° to 130° angle adjustment via a lever-operated ratchet mechanism, allowing operators to find their optimal driving posture for extended shift comfort.

Direct bolt-on replacement for HELI, Hangcha, Toyota, Komatsu, Linde, TCM, Dalian, and Lonking forklifts from 1T to 3.5T capacity with compatible 230×280mm seat mounting bolt patterns. Includes mounting hardware. For seat suspension bases, armrests, and seat belt kits, browse our forklift seat category.

Technical Specifications

• Type: Shock-absorbing forklift replacement operator seat
• Mounting Dimensions: 230mm × 280mm bolt pattern
• Frame: Q235 structural steel, powder-coated, zinc-plated fasteners
• Cushion: Dual-layer PU foam — 55 kg/m³ base + 40 kg/m³ top

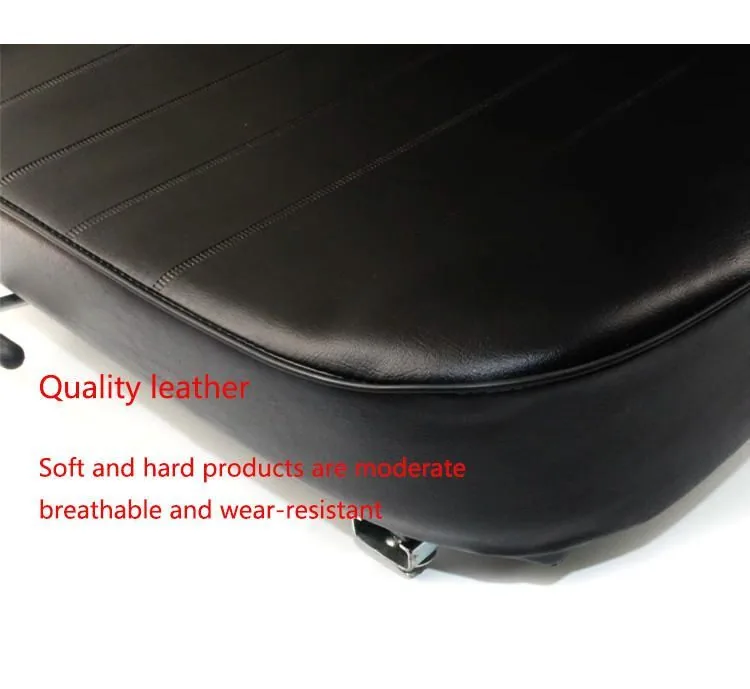

• Upholstery: PVC, double-stitched seams, reinforced leading edge
• Slide Adjustment: Fore/aft, 120mm travel, spring-loaded latch
• Backrest: Reclining 90°–130°, lever-operated ratchet
• Operator Range: 150cm–190cm height
• Capacity Range: 1T–3.5T counterbalance forklifts
• Installation: 4-bolt mount, hardware included

Compatible Forklift Brands (230×280mm Mounting)

Each forklift seat 230x280mm ships pre-assembled. Position the seat at mid-slide before final bolt tightening to ensure balanced adjustment range. Check slide rail latch engagement by applying fore/aft pressure — a latch that slips under moderate force indicates a bent pawl requiring replacement. Inspect seat mounting bolts quarterly; solid-tire vibration can loosen bolts within 500 operating hours. Never operate the forklift with a seat that shifts during braking — loss of steering control from seat movement is a serious safety hazard. For ergonomics and seat maintenance guidelines, consult Baldwin Filters. Kingstream stocks forklift seat 230x280mm for same-day dispatch — worldwide shipping with online tracking.
