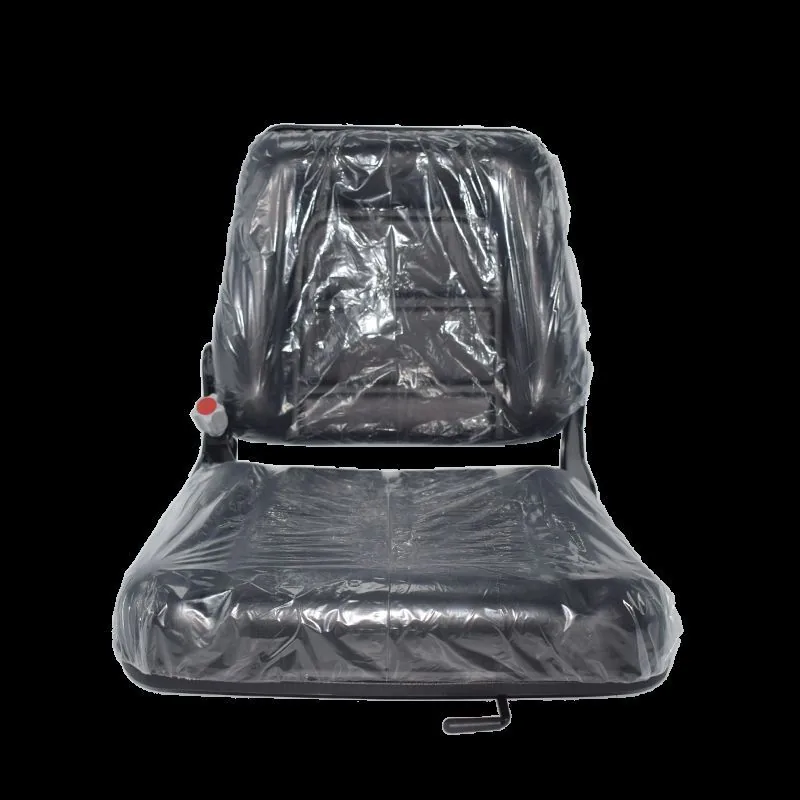

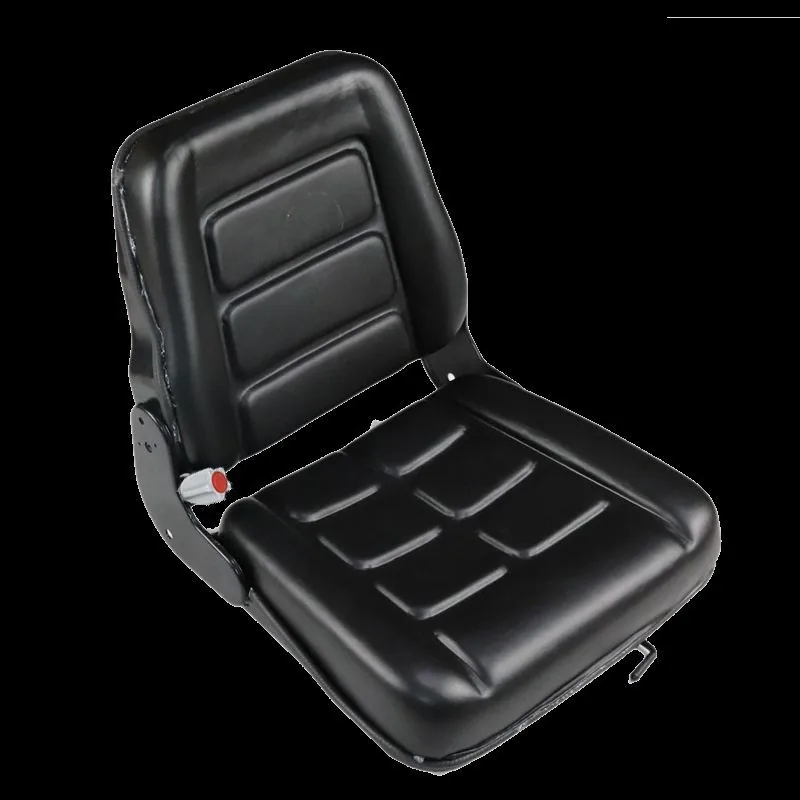

Standard Vacuum-Formed Seat 230x285mm with Safety Belt _ Industrial Vehicle Seat Cushion

Standard Vacuum-Formed Seat 230x285mm with Safety Belt — Industrial Vehicle Cushion

The standard vacuum-formed seat 230x285mm is a cost-effective OEM-replacement operator seat featuring an integrated retractable safety belt, engineered for counterbalance forklifts, terminal tractors, sweepers, and industrial utility vehicles where a durable, no-frills seat meets operational and safety compliance requirements. The vacuum-formed manufacturing process produces the seat cushion shell from a single heated ABS plastic sheet drawn over a precision mold under vacuum — resulting in a seamless, waterproof seat pan that cannot delaminate, crack at weld joints, or trap moisture between layered components, the three most common failure modes of multi-piece assembled seat pans in outdoor and cold-storage forklift operations. The integrated 2-point retractable safety belt with a push-button metal buckle meets OSHA 1910.178 seat belt requirements without requiring a separate belt kit installation, simplifying the replacement process to four mounting bolts.

The seat cushion uses a single-layer 55 kg/m³ high-resilience polyurethane molded foam bonded directly to the vacuum-formed ABS base, providing consistent support density across the entire seating surface without the soft spots that develop in economy seats where foam separates from the base pan after 2,000-3,000 hours of use. The PVC upholstery is heat-welded at the seams — not stitched — creating a completely waterproof covering that prevents hydraulic oil, diesel fuel, and pressure-washer water from saturating the foam cushion. This is particularly important for forklifts operated outdoors or in food processing facilities where seats are pressure-washed daily as part of sanitation protocols. The 230mm × 285mm mounting bolt pattern is the most common seat base dimension across Chinese and Japanese-manufactured 1T-3.5T forklifts.

Direct bolt-on replacement for HELI, Hangcha, Toyota, Komatsu, Linde, TCM, Dalian, and Lonking forklifts from 1T to 3.5T capacity with 230×285mm seat base mounting. Includes mounting bolts, flat washers, and Nyloc lock nuts. For upgraded models with suspension bases, armrests, and adjustable slide rails, browse our forklift seat category.

Technical Specifications

• Type: Standard vacuum-formed forklift operator seat with safety belt
• Manufacturing: Vacuum-formed ABS shell, seamless one-piece construction
• Seat Base: ABS plastic, waterproof, non-delaminating
• Mounting Dimensions: 230mm × 285mm bolt pattern
• Cushion: 55 kg/m³ high-resilience PU molded foam, bonded to base
• Upholstery: PVC, heat-welded waterproof seams
• Safety Belt: Integrated 2-point retractable lap belt, push-button metal buckle
• Belt Compliance: Meets OSHA 1910.178, ISO 6683 requirements
• Slide Adjustment: Fixed position (non-sliding) for standard operator fit
• Capacity Range: 1T-3.5T counterbalance forklifts
• Hardware Included: Mounting bolts, flat washers, Nyloc lock nuts

Compatible Forklift Brands (230×285mm Mounting)

Each vacuum-formed seat ships with the safety belt pre-installed and retracted. Torque the four mounting bolts to 35 Nm — the ABS seat base requires lower torque than steel seat frames, and overtightening can crack the mounting ears. Inspect the safety belt monthly for webbing fraying, buckle latch function, and retractor spring tension; a belt that fails to retract fully when unbuckled must be replaced before the forklift returns to service. Never operate the forklift with the safety belt buckled behind the operator or disconnected — this is a direct OSHA violation and the most commonly cited safety infraction during warehouse inspections. For seat and safety restraint compliance guidelines, consult Baldwin Filters. Kingstream stocks standard vacuum-formed forklift seats for same-day dispatch — worldwide shipping with online tracking.
