Suction Oil Filter Forklift Accessories Hydraulic Oil Filter for 5-10 Ton Forklift

Forklift Hydraulic Suction Filter — Tank Intake Strainer for 5-10 Ton Heavy-Duty Forklifts

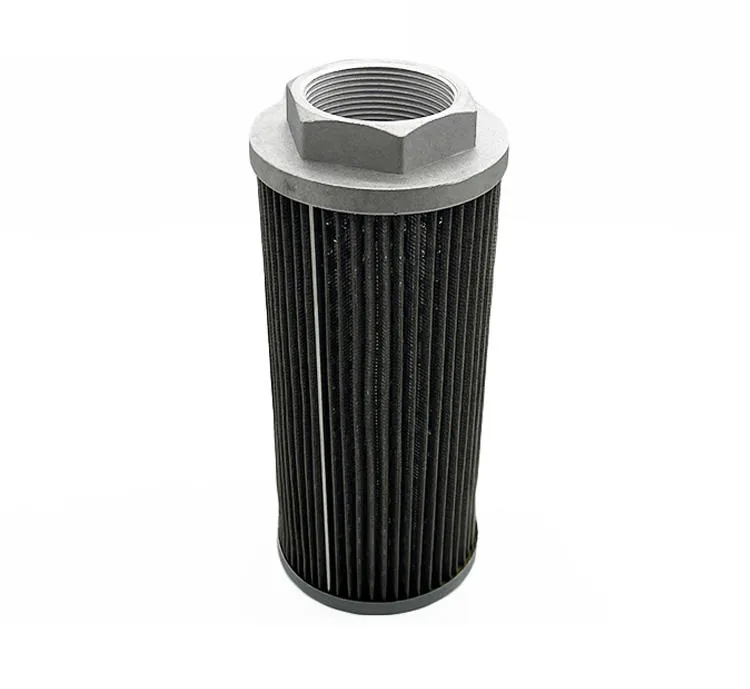

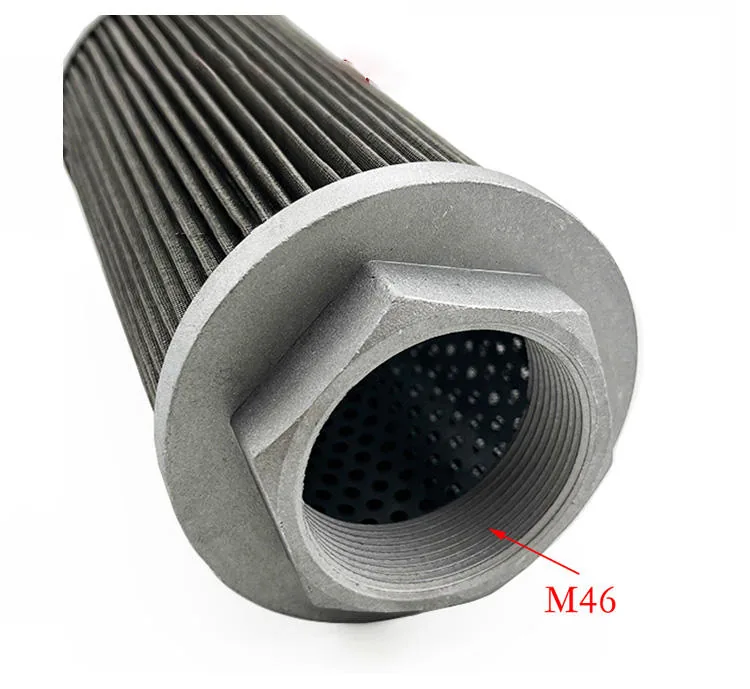

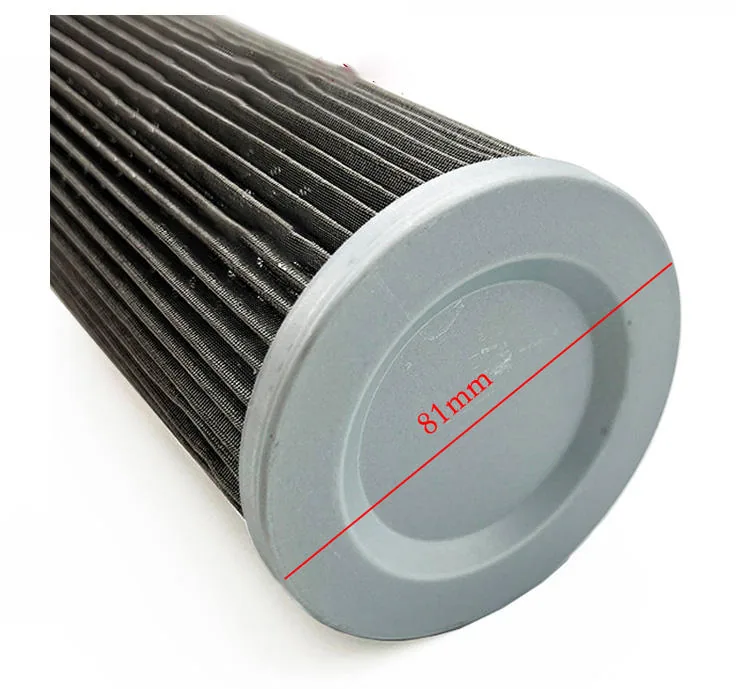

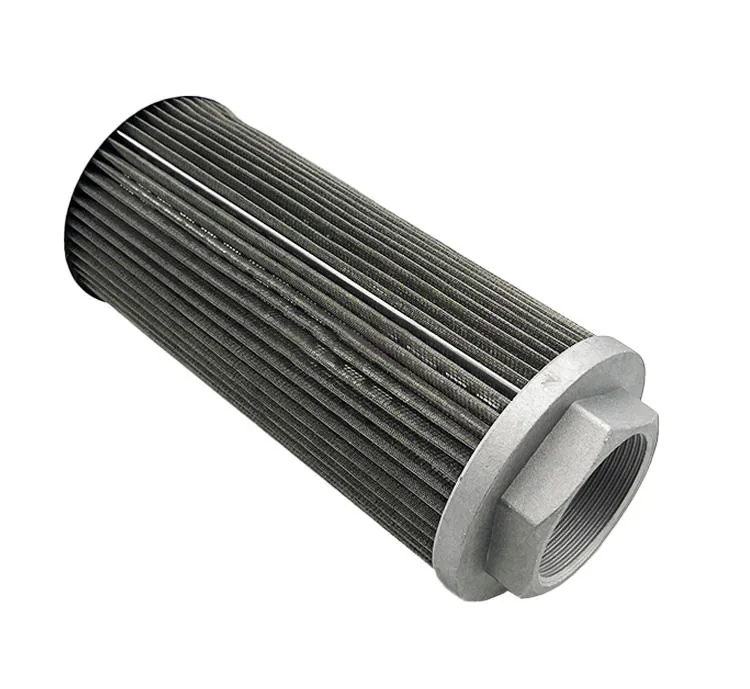

This suction oil filter is a tank-mounted intake strainer designed for 5-10 ton heavy-duty forklift hydraulic systems. At this tonnage class, hydraulic pumps deliver 150-250 L/min and the suction strainer must balance two conflicting requirements: mesh fine enough to protect the pump (80-100 microns) yet open enough to avoid creating inlet vacuum that causes cavitation. This strainer uses a 100-micron stainless steel mesh with a calculated open area ratio of 60% — meaning the total mesh open area is 60% of the strainer surface area, providing approximately 3x the flow capacity margin recommended by pump manufacturers for flooded suction applications. The mesh is welded to a steel mounting flange with a Viton gasket rated for continuous immersion in hydraulic oil at temperatures up to 120°C. The flange bolt pattern is a standard 4-bolt square configuration at 90mm center-to-center, compatible with most Chinese-manufactured 5-10T forklift hydraulic tanks including Heli, Hangcha, and Lonking models.

Suction strainer maintenance is the most neglected item in forklift hydraulic systems because the strainer is inside the tank and not visible without draining the oil. A restricted suction strainer is the silent killer of hydraulic pumps — it does not trigger any warning light or gauge until the pump has already sustained cavitation damage. The strainer should be removed and cleaned during every hydraulic oil change (1,000 hours for standard operation, 500 hours in dusty environments). To access the strainer, drain the tank completely and remove the suction pipe flange. Clean the mesh with solvent and compressed air blown from the inside outward. If the mesh shows any dark varnish-like coating, this is oxidized oil residue that has baked onto the mesh from localized heating at restricted flow areas — the strainer has been running restricted and should be replaced rather than cleaned. Common failure symptoms: hydraulic pump making a loud “hammering” noise at full RPM (severe cavitation from completely clogged strainer), all hydraulic functions noticeably slower in the first 10 minutes of cold-start operation (cold oil viscosity compounding the restriction), and the pump case temperature exceeding 80°C within 15 minutes of operation (cavitation-generated heat).

This universal suction strainer fits 5-10 ton forklift hydraulic tanks with a standard 4-bolt 90mm flange pattern. Measure your existing strainer’s flange dimensions before ordering. For pressure-line and return-line hydraulic filters, visit our Forklift Hydraulic Components section.

Technical Specifications

• Filter Type: Tank-Mounted Suction Strainer
• Filtration Rating: 100 Microns (Stainless Steel Mesh)
• Open Area Ratio: 60% (3x Flow Margin)
• Flange Pattern: 4-Bolt Square, 90mm Center-to-Center
• Gasket Material: Viton (120°C Continuous Rating)
• Application: 5-10 Ton Heavy-Duty Forklifts

Compatible Forklift Brands

Each strainer is inspected for mesh integrity and flange flatness, packed in protective packaging, and ships within 1-2 business days. 12-month warranty. Browse our Forklift Maintenance Parts catalog.
