0815 2-3T Hydraulic Oil Filter Spare Parts Forklift Accessories Hydraulic Oil Filter for TCM Forklif

Forklift Hydraulic Oil Filter 0815 — Return Line Filtration for TCM 2-3 Ton Forklifts

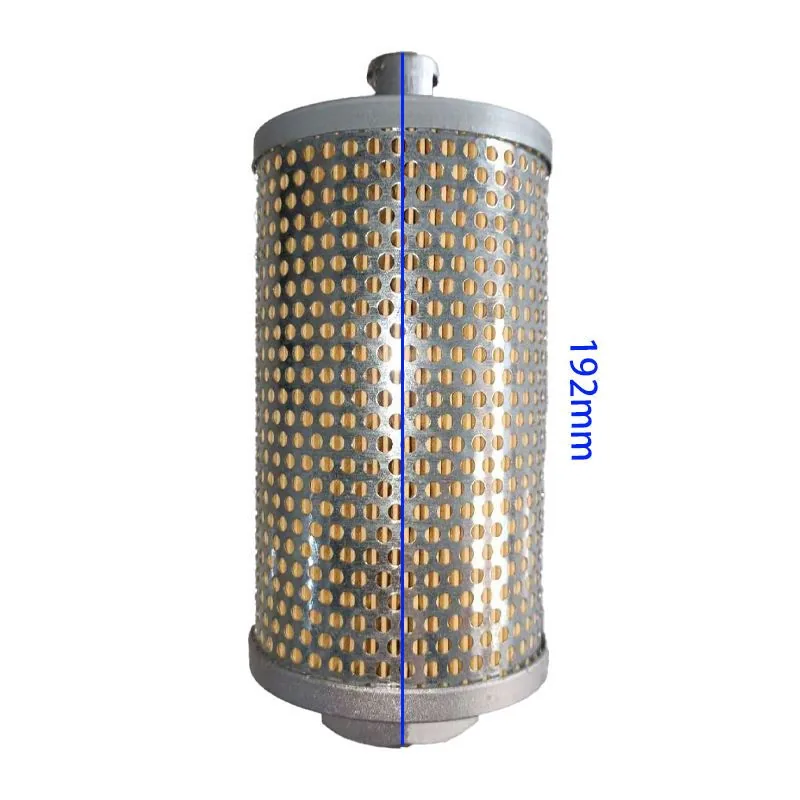

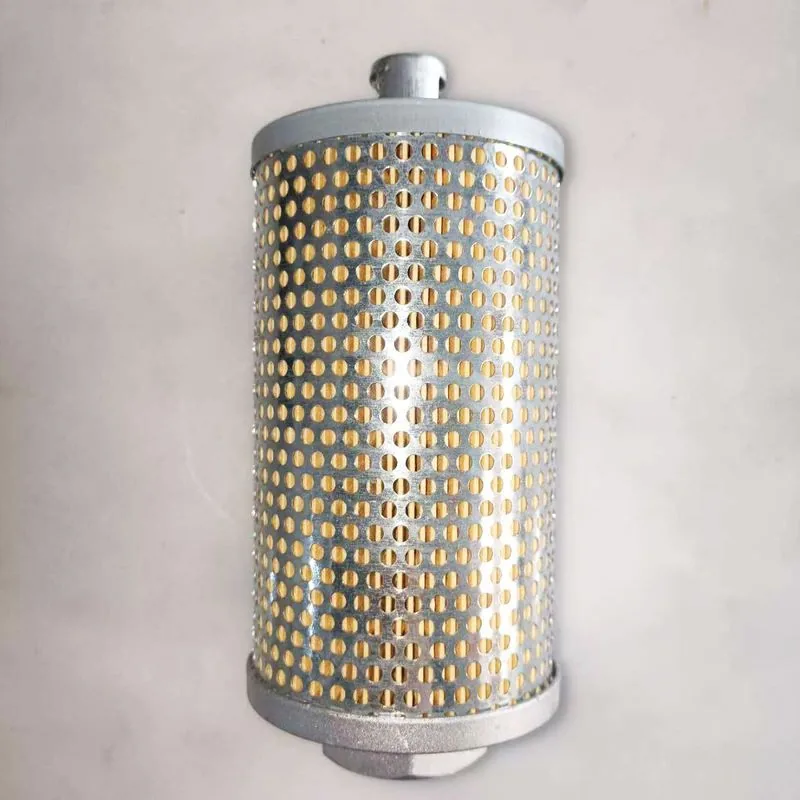

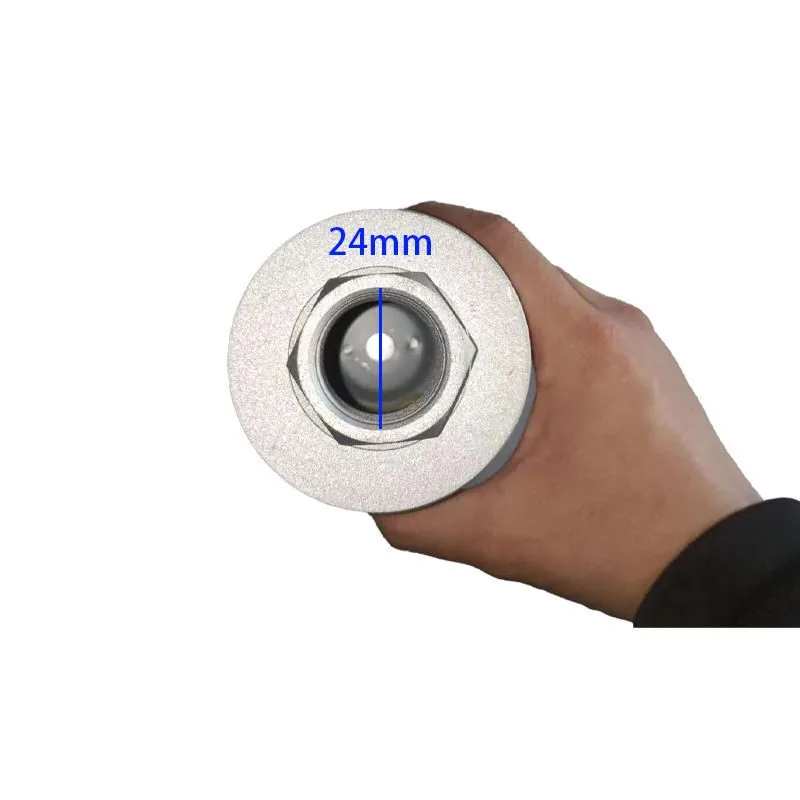

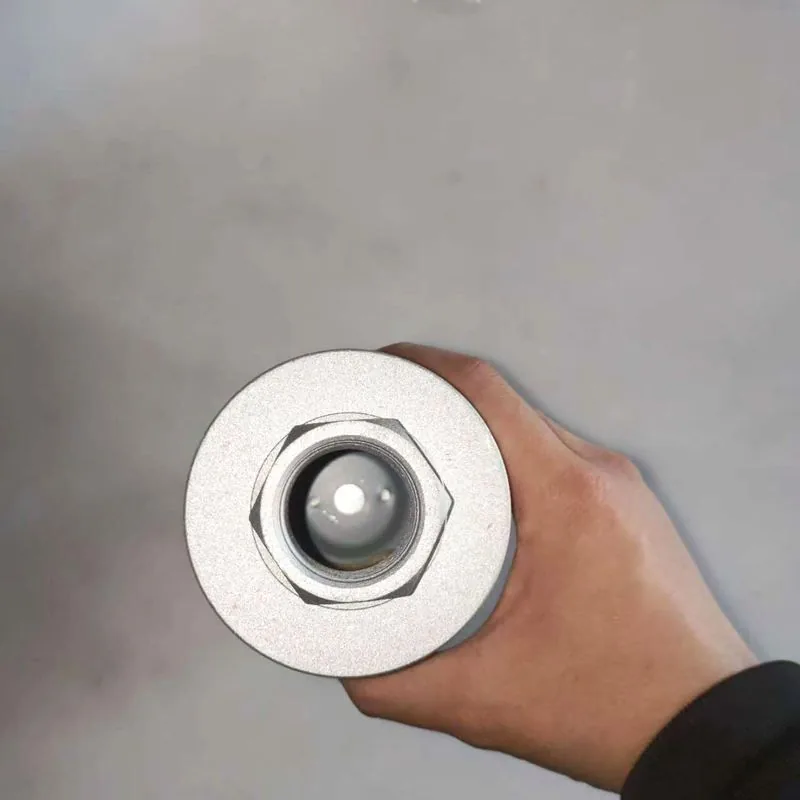

This 0815 hydraulic oil filter is a return-line filter element designed for TCM 2-3 ton forklift hydraulic systems. Unlike engine oil filters that operate under positive pressure from an oil pump, hydraulic return-line filters work under lower pressure (typically 5-10 bar) but must handle significantly higher flow rates — up to 60-80 L/min in a 2-3 ton forklift hydraulic circuit during simultaneous lift and tilt operations. The filter media is a resin-impregnated cellulose element with a nominal rating of 10 microns, specifically selected to capture the steel wear particles generated by hydraulic cylinder rod seals and gear pump tooth contact — particles in the 15-25 micron range that are the primary cause of directional control valve spool scoring. The filter housing includes an integrated bypass valve set to 2.5 bar differential pressure, which opens to protect the filter element from collapse during cold-start conditions when hydraulic oil viscosity can exceed 500 cSt at temperatures below 0°C.

Hydraulic filter replacement on TCM forklifts requires depressurizing the hydraulic system before removing the filter housing — the accumulator in the lift circuit can retain 30-50 bar of pressure even with the engine off. Cycle the lift and tilt levers through their full range 3-4 times with the engine off to release stored pressure before loosening the filter housing bolts. Always replace the housing O-ring simultaneously with the filter element — a compressed O-ring that has taken a permanent set will leak at operating temperature, causing hydraulic oil spray that is both a fire hazard and an environmental contamination issue. After installing the new filter, cycle all hydraulic functions through their full range 5-6 times to purge air from the system before checking the hydraulic oil level — the filter housing holds approximately 0.5L of oil that will lower the reservoir level after the first operation cycle. Common failure symptoms: sluggish lift response (restricted filter causing pump cavitation), hydraulic oil overheating above 80°C at the reservoir (bypass valve stuck closed forcing all flow through a clogged element), and visible metal particles in a hydraulic oil sample (filter element ruptured or bypass valve failed open).

This 0815 filter fits TCM FD20-FD30 series forklifts and other 2-3 ton class machines using the standard TCM hydraulic filtration system. Verify your existing filter part number (0815 or cross-reference) before ordering. For related hydraulic system components, visit our Forklift Hydraulic Components section.

Technical Specifications

• Part Number: 0815
• Filter Type: Return-Line Hydraulic Filter
• Filtration Rating: 10 Microns (Nominal)
• Flow Rate: 60-80 L/min
• Bypass Valve: 2.5 bar Differential Pressure
• Application: TCM 2-3 Ton Forklift Hydraulic Systems

Compatible Forklift Models

Each filter is individually packed and ships within 1-2 business days. 12-month warranty. For bulk orders, contact us. Browse our Forklift Maintenance Parts catalog.
