Engine Oil Filter — GX630-690 / B&S 420 Series Diesel Engine Replacement

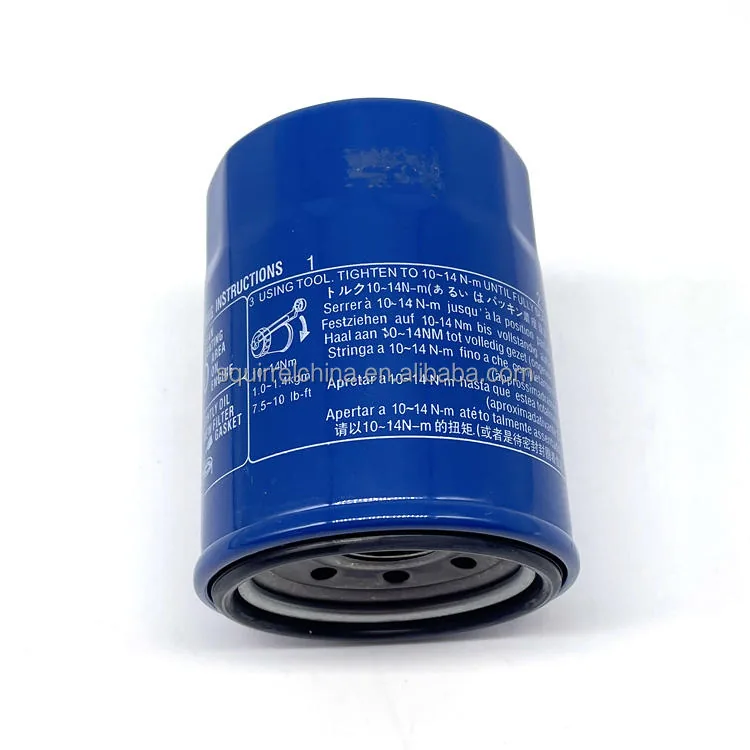

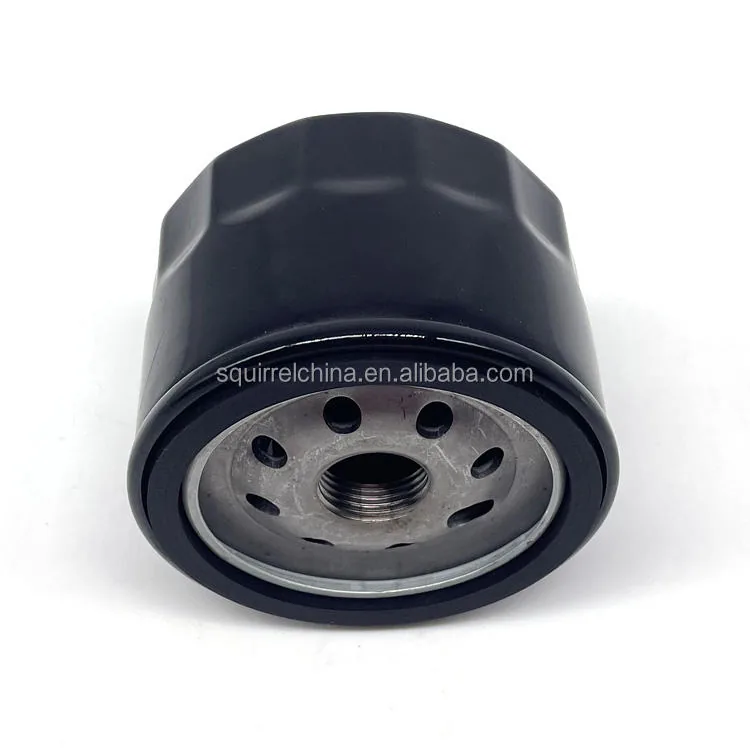

This replacement oil filter is compatible with Honda GX630 and GX690 V-twin engines, as well as Briggs & Stratton 420 Series diesel engines commonly used in commercial pressure washers, generators, compact construction equipment, and industrial power units. The filter features a high-burst-strength steel canister rated to 350 PSI (24 bar) — necessary for diesel applications where cold-start oil pressure spikes can reach 2-3x normal operating pressure before the relief valve responds. The filtration media is a blend of cellulose and synthetic glass fibers, achieving 95% single-pass efficiency at 20 microns, which is the industry standard for small diesel engine oil filtration. The anti-drainback valve uses a nitrile rubber diaphragm rather than a simple flap design — the diaphragm provides a positive seal against the base plate even at low temperatures below -15°C, preventing the “dry start” rattle that occurs when oil drains back to the sump through a leaky anti-drainback valve during extended shutdown periods.

Installation of this filter requires attention to the gasket seating surface on the engine block — GX630/690 engines use an aluminum oil filter adapter that is easily scored by filter wrench slippage. Before installing the new filter, run a fingertip around the adapter sealing surface to feel for any burrs or gouges; even a 0.1mm-deep scratch will create a weep path for oil under pressure. The correct installation torque for this filter is 12-15 N·m (hand-tight plus 2/3 to 3/4 turn after gasket contact). Over-tightening with a filter wrench not only crushes the gasket but can also deform the base plate, causing the internal bypass valve to bind in the partially-open position — a condition that produces normal oil pressure at idle but drops pressure by 0.3-0.5 bar at governed speed as unfiltered oil bypasses the element. Common failure symptoms: oil leaks from the filter-to-block interface within 50 hours of installation (scored adapter surface or over-tightened gasket), lower-than-normal oil pressure at rated speed (stuck bypass valve), and a dry filter element when removed after an overnight shutdown (failed anti-drainback diaphragm).

This oil filter is compatible with Honda GX630 and GX690 engines, Briggs & Stratton 420 Series diesel engines, and other small industrial diesel engines using a 3/4″-16 UNF thread with a 65-70mm OD canister. Always cross-reference your existing filter part number before ordering. For related filtration products including air filters and fuel filters, visit our Forklift Maintenance Parts section.

Technical Specifications

• Compatible Engines: Honda GX630, GX690 / B&S 420 Series Diesel
• Canister Burst Rating: 350 PSI (24 bar)
• Filtration Efficiency: 95% at 20 Microns
• Filter Media: Cellulose + Synthetic Glass Fiber Blend
• Anti-Drainback Valve: Nitrile Diaphragm Type
• Thread Size: 3/4″-16 UNF, 65-70mm OD Canister

Compatible Applications

Each filter is factory-sealed and ships within 1-2 business days. 12-month warranty. For bulk orders, contact us. Browse our Forklift Maintenance Parts catalog.
