Forklift Steering Wheel — Standard OEM Replacement for Hangcha A30 3-Ton Forklift

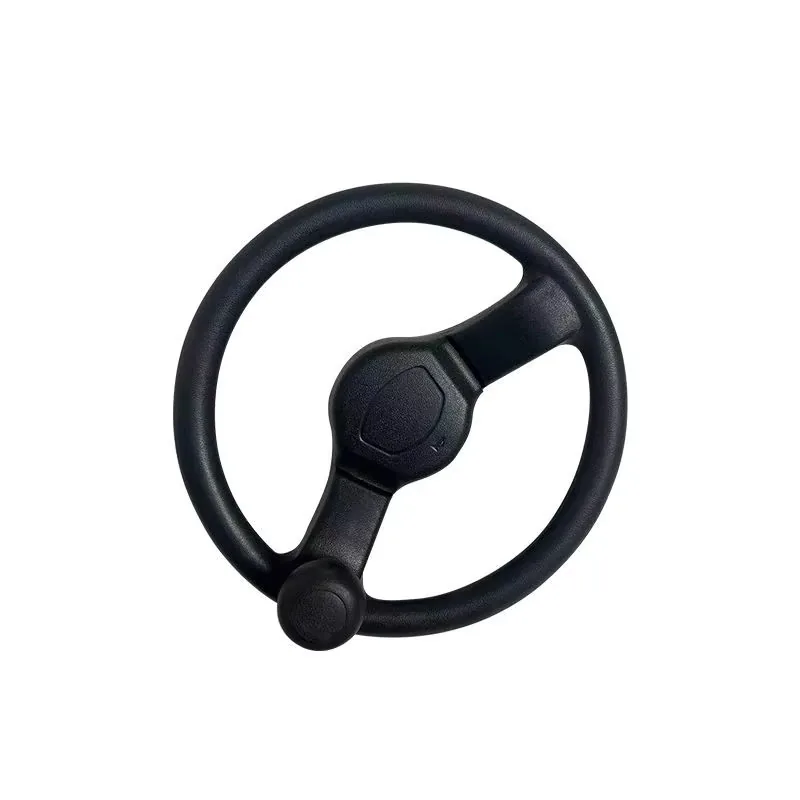

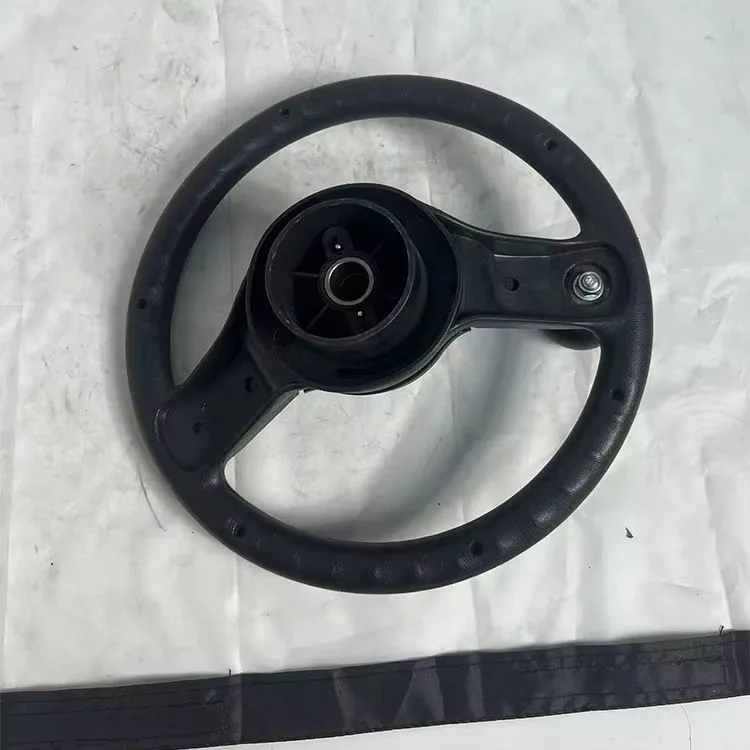

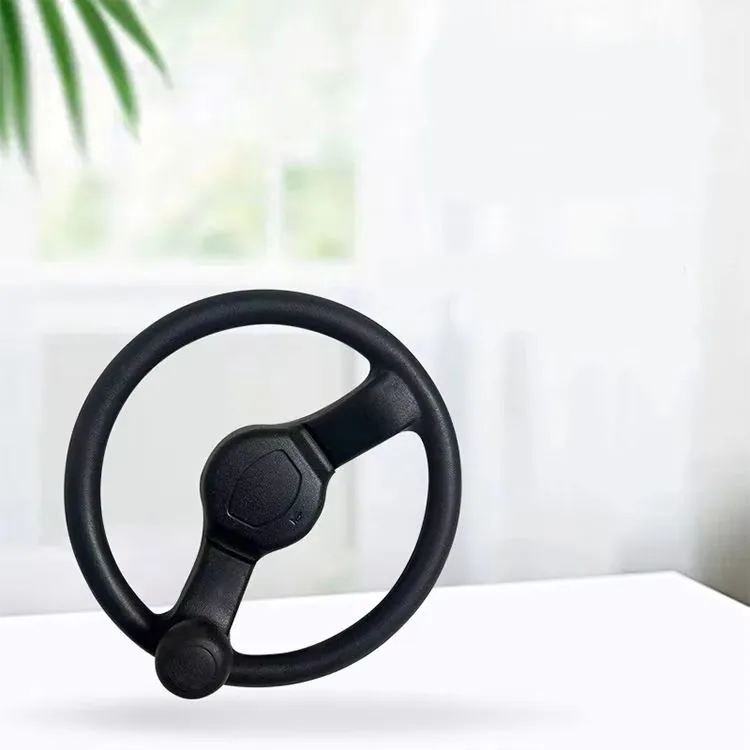

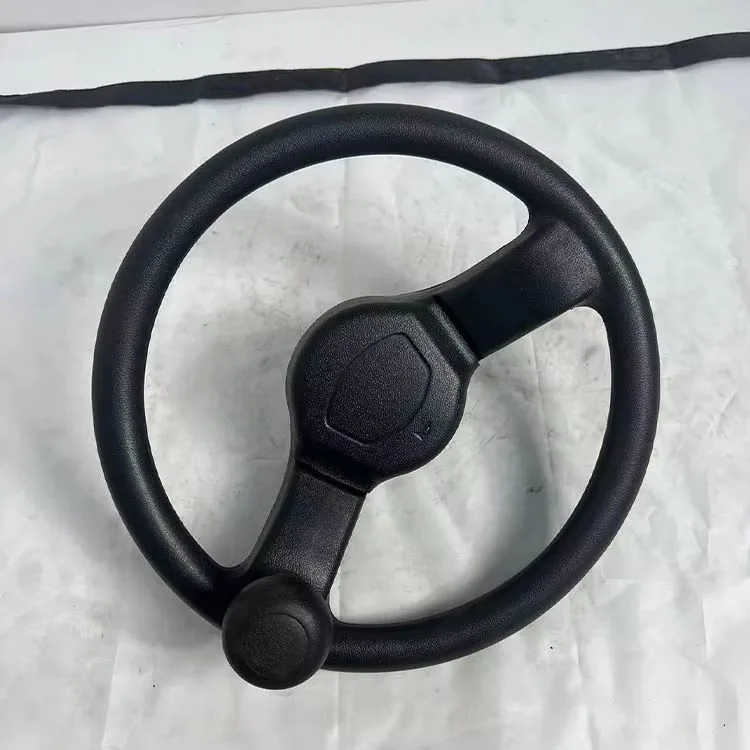

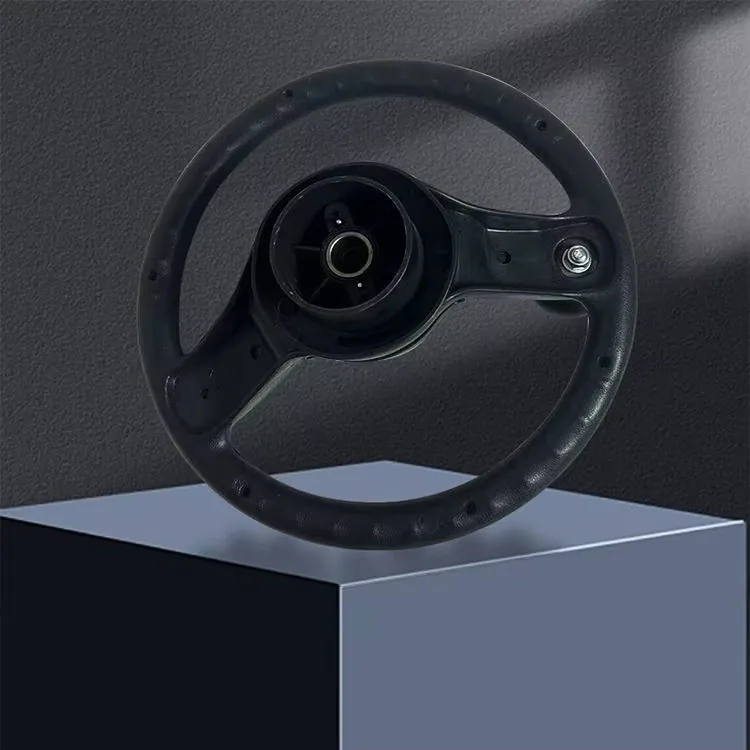

This is the standard OEM-specification steering wheel for Hangcha A30 series 3-ton internal combustion and electric forklifts. The wheel features a two-spoke design with a 380mm outside diameter molded from high-density polyurethane over a steel armature. The two-spoke configuration provides unobstructed visibility of the instrument panel — a practical consideration in the A30 chassis where the dash-mounted gauges (engine temperature, fuel level, hour meter) are positioned directly behind the upper steering wheel arc. The polyurethane rim has a Shore A hardness of 75-80, selected to provide sufficient rigidity for positive steering feel while absorbing the high-frequency vibration transmitted through the steering column from the orbitrol hydraulic unit. The hub incorporates a steel insert with a multi-tooth tapered spline that self-centers on the steering shaft during installation, and the hub face has a formed recess that accepts the horn button assembly with three retaining clips.

This standard steering wheel differs from the customizable A30 steering wheel in two respects: the rim is a single-color black polyurethane (not available in custom colors), and the spoke design is the factory two-spoke configuration rather than the optional three-spoke ergonomic design. For applications requiring color customization or ergonomic spoke options, the customizable variant is available separately. Steering wheel installation on the A30 series is straightforward: remove the horn button by depressing and rotating counterclockwise, remove the M18×1.5 retaining nut (40-50 N-m), and pull the wheel straight off the tapered shaft. If the wheel resists removal, use a two-jaw puller engaging the hub slots — never use a hammer on the rim or spokes. During installation, verify the wheel is centered (equal turns lock-to-lock after mounting) and that the horn contact ring makes positive contact with the spring-loaded pin in the steering column. Common wear indicators: the polyurethane rim developing a sticky or tacky surface texture (plasticizer migration from prolonged heat exposure — common in non-air-conditioned forklifts operating in hot climates), cracks radiating from the hub-to-spoke junction (fatigue from repeated operator pull-up force during entry and exit), and horn intermittent operation (worn contact ring on the hub underside).

This steering wheel is specific to the Hangcha A30 3-ton series. Verify the spline count (typically 36-spline for A30) before ordering. For related steering components, visit our Forklift Steering Axle section.

Technical Specifications

• Application: Hangcha A30 Series 3-Ton Forklift (Standard OEM)
• Design: Two-Spoke, 380mm Diameter
• Rim: Black Polyurethane, Shore A 75-80
• Hub Spline: 36-Spline Tapered, Self-Centering
• Retaining Nut: M18×1.5, 40-50 N-m
• Horn Mount: Three-Clip Retainer, Spring-Loaded Contact Pin

Compatible Forklift Models

Each wheel is inspected for spline fit and rim integrity, packed in protective packaging, and ships within 1-2 business days. 12-month warranty. Browse our Forklift Steering Axle catalog.
