Forklift Steering Wheel — Customization Steering Wheel for Hangcha A30 Series 3-Ton Forklift

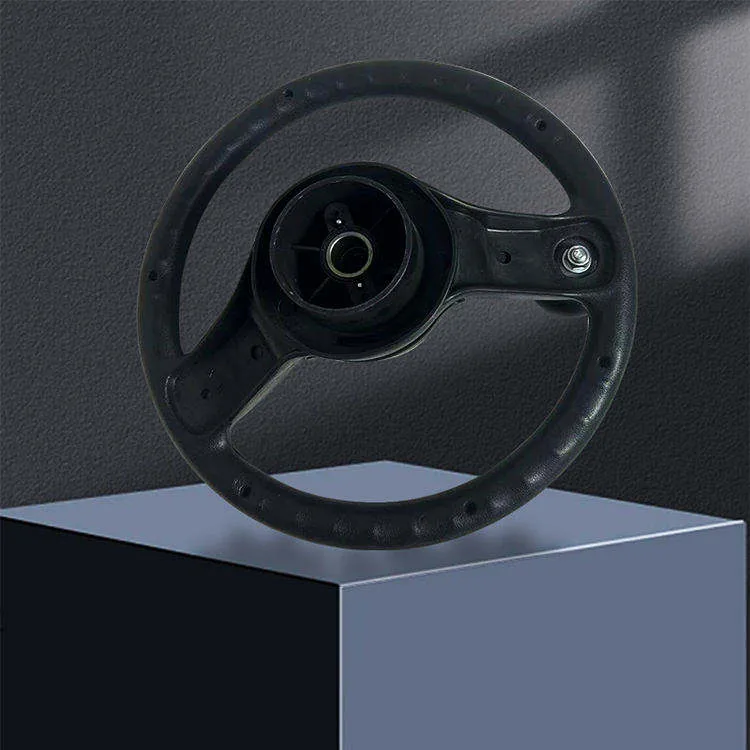

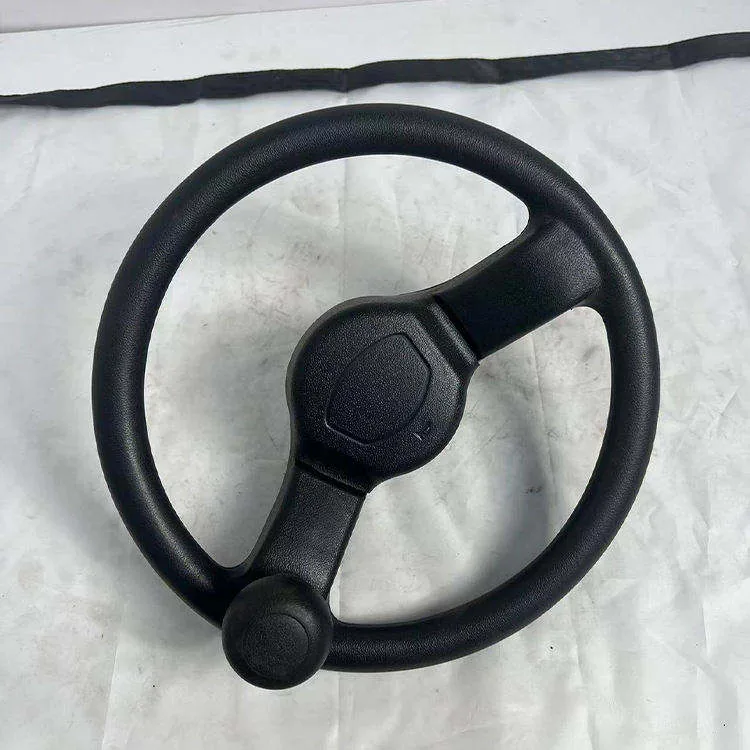

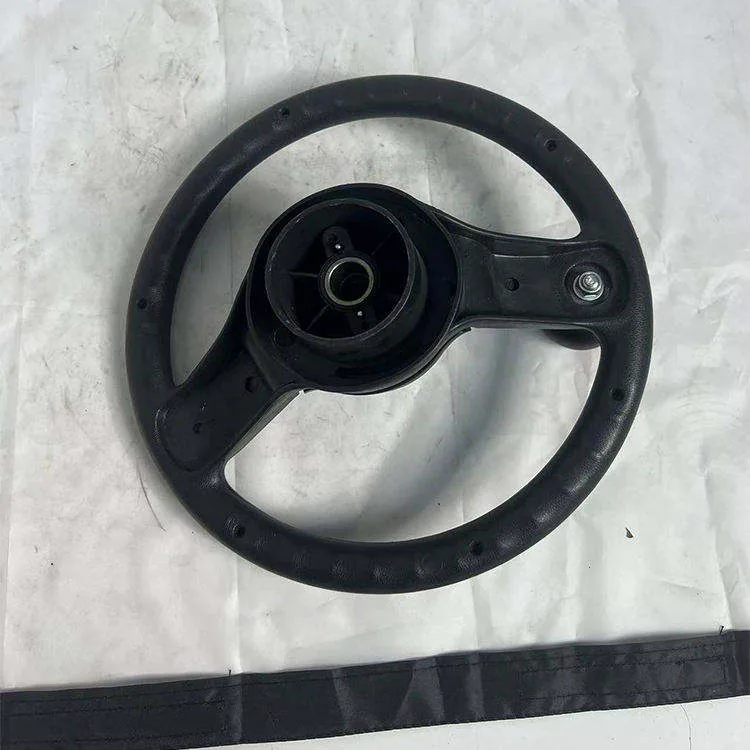

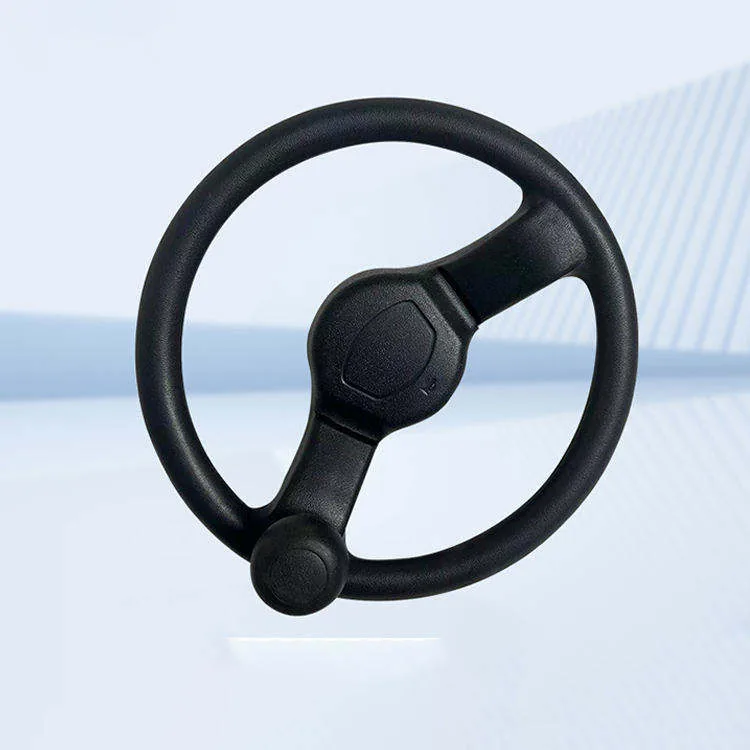

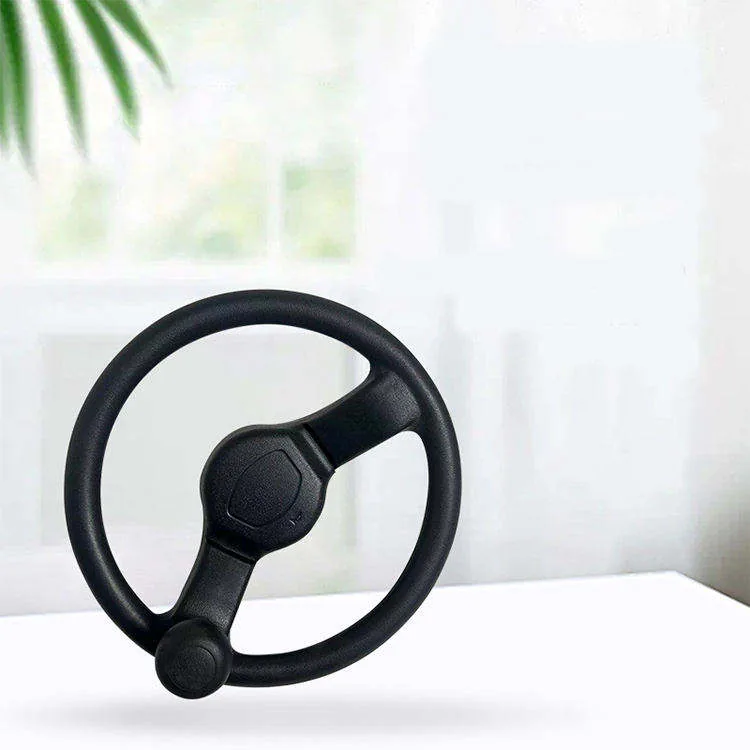

This steering wheel is a direct replacement for the Hangcha A30 series 3-ton forklift, featuring a durable molded polyurethane rim bonded to a steel hub with a splined center bore that mates to the orbitrol steering unit input shaft. The steering wheel outside diameter is approximately 380mm — a size selected to provide the optimal balance between steering effort (larger diameter = more leverage = easier turning) and operator cabin space (the wheel must clear the operator’s knees during entry and exit). The rim has a textured, non-slip surface molded into the polyurethane during the injection molding process, providing secure grip even with gloved hands or when the wheel is wet from rain or condensation in cold-storage applications. The steel hub is zinc-plated for corrosion resistance and features a tapered spline that is self-centering on the steering shaft — the taper ensures zero rotational play between the wheel and shaft, eliminating the “steering wheel wobble” that develops with worn straight-spline hubs.

Steering wheel replacement on a Hangcha A30 requires removing the center horn button (pry gently from the edge with a plastic trim tool to avoid cracking the horn button retainer), then removing the central retaining nut (typically M18×1.5, torqued to 40-50 N-m). The steering wheel is a taper-fit on the shaft and may require a steering wheel puller for removal — never hammer on the back of the steering wheel to remove it, as this will deform the steel hub and destroy the spline taper fit, making the wheel impossible to re-center on the shaft. Before installing the new wheel, align the steering wheel spokes to the straight-ahead position with the steered wheels centered — the spline is keyed so the wheel can only be installed in the correct orientation, but verify by turning the wheel lock-to-lock after installation: the number of turns should be equal in both directions. Tighten the retaining nut to 40-50 N-m and verify the horn functions correctly before replacing the horn button. Common failure symptoms: steering wheel rim cracked or split (UV degradation of the polyurethane — common in outdoor-stored forklifts), steering wheel wobble at the hub (worn taper spline from operation with loose retaining nut), and horn not functioning (broken contact ring or horn wire pulled from connector during previous wheel removal).

This steering wheel fits Hangcha A30 series 3-ton forklifts and is available with customization options for rim color and spoke design. Verify the spline count and shaft diameter before ordering. For related steering components including orbitrol units and steering columns, visit our Forklift Steering Axle section.

Technical Specifications

• Application: Hangcha A30 Series 3-Ton Forklift
• Outside Diameter: ~380mm
• Rim Material: Molded Polyurethane, Non-Slip Texture
• Hub Material: Zinc-Plated Steel, Tapered Spline
• Retaining Nut: M18×1.5, Torque 40-50 N-m
• Mount Type: Taper-Spline (Keyed, Self-Centering)

Compatible Forklift Models

Each wheel is inspected for spline fit and rim integrity, packed in protective packaging, and ships within 1-2 business days. 12-month warranty. Browse our Forklift Steering Axle catalog.
