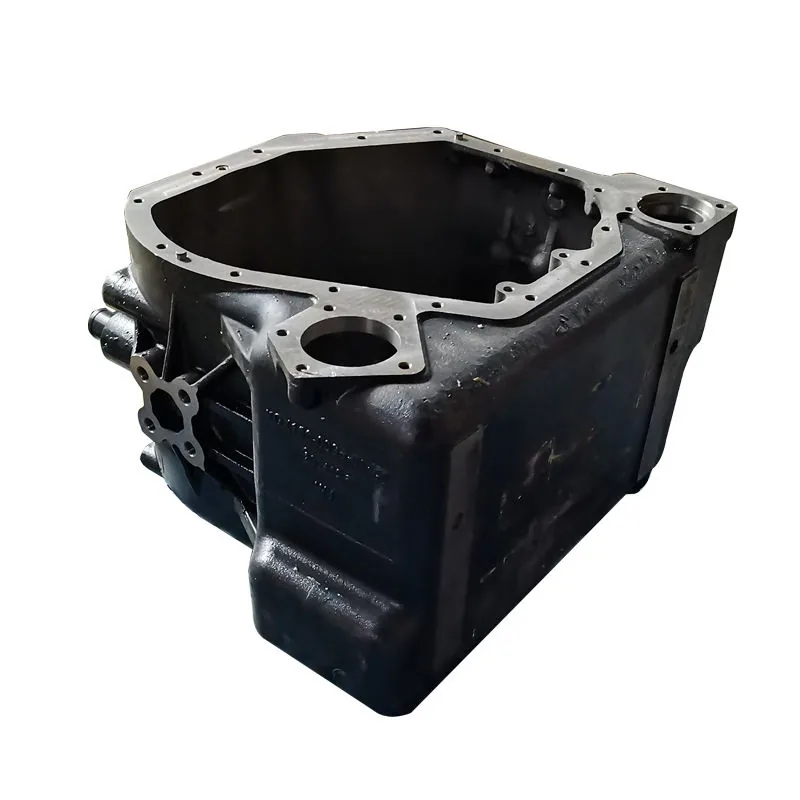

Hangcha Forklift Transmission Gearbox Housing YQX100-0036 – CPCD50-100R

Hangcha Forklift Transmission Gearbox Housing YQX100-0036 — CPCD50-100R Heavy-Duty 5-10 Ton

The YQX100-0036 transmission gearbox housing is the main structural casing for Hangcha CPCD50 through CPCD100R heavy-duty forklift transmissions. This large-frame cast housing encloses the complete powershift transmission gear train, providing the rigid framework that maintains precise alignment between the input shaft, countershaft, and output shaft bearing bores. For 5-10 ton capacity forklifts operating in ports, steel mills, and lumber yards, the housing must withstand continuous high-torque loads and shock loading during heavy material handling — any housing crack, warp, or bearing bore wear immediately compromises gear mesh across all transmission stages, leading to catastrophic transmission failure.

The YQX100-0036 housing fits the entire Hangcha CPCD50R, CPCD60R, CPCD70R, CPCD80R, and CPCD100R model range — the transmission housing casting is shared across all 5-10 ton R-series forklifts, with internal gear ratios and clutch specifications varying by tonnage class. This housing is specific to the R-series (refined) models and does NOT fit earlier CPCD50-100 non-R variants — those use a different bolt pattern for the transmission-to-engine mounting. The YQX100-series transmission is a purpose-built heavy-duty powershift design, not a scaled-up version of the smaller YQX30-series used in 1-3.5 ton forklifts. Verify your data plate for “CPCD” with “R” suffix and the YQX100 transmission designation.

Replacing this gearbox housing is a full transmission overhaul — the transmission must be removed from a 5-10 ton forklift (the transmission assembly alone weighs several hundred kilograms), completely disassembled, and all internal components transferred to the new housing. Critical procedures: measure all bearing bore diameters in the replacement housing before assembly — oversized bores from casting variations will cause bearing outer race spinning and housing destruction; check shaft end-play after reassembly with a dial indicator to confirm correct bearing preload; pressure-test the assembled transmission for housing porosity at 0.5 bar before installation; and torque all housing bolts to Hangcha specification in the correct sequence. For related Hangcha drivetrain components, browse our Forklift Hydraulic Transmission Parts catalog.

Technical Specifications

Compatible Forklift Models

Each gearbox housing is packaged in a reinforced wooden crate rated for heavy freight. Standard sea and air freight delivery to major ports worldwide. For compatibility verification or bulk orders, contact our team with your Hangcha model and serial number.
