HELI Forklift Straight Type Transmission Gearbox Housing 120M3-82011DB

HELI Forklift Transmission Gearbox Housing 120M3-82011DB — CPCD20 / CPCD25 / CPCD30 Straight Type

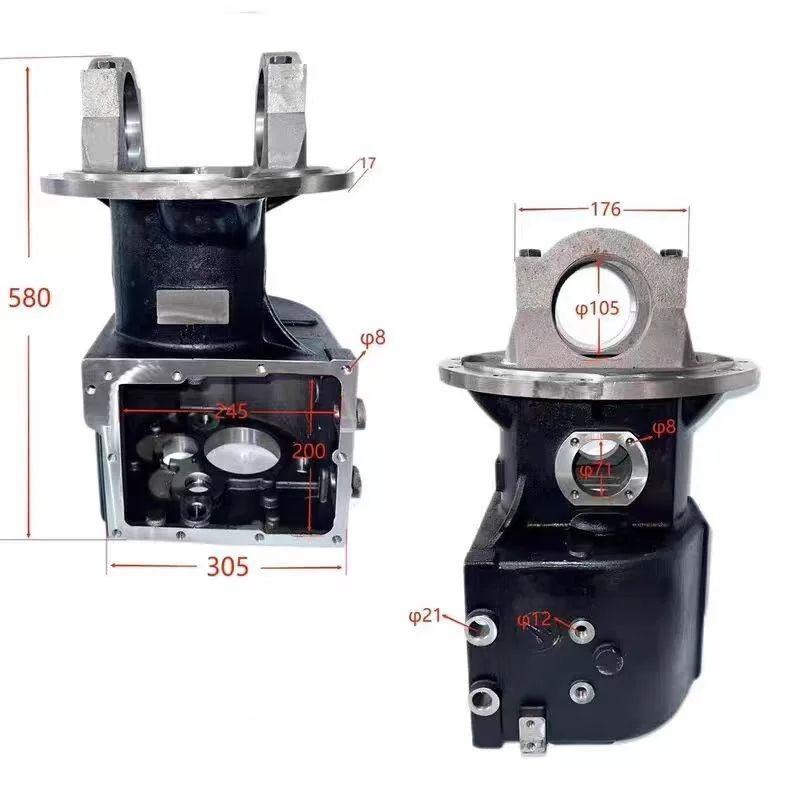

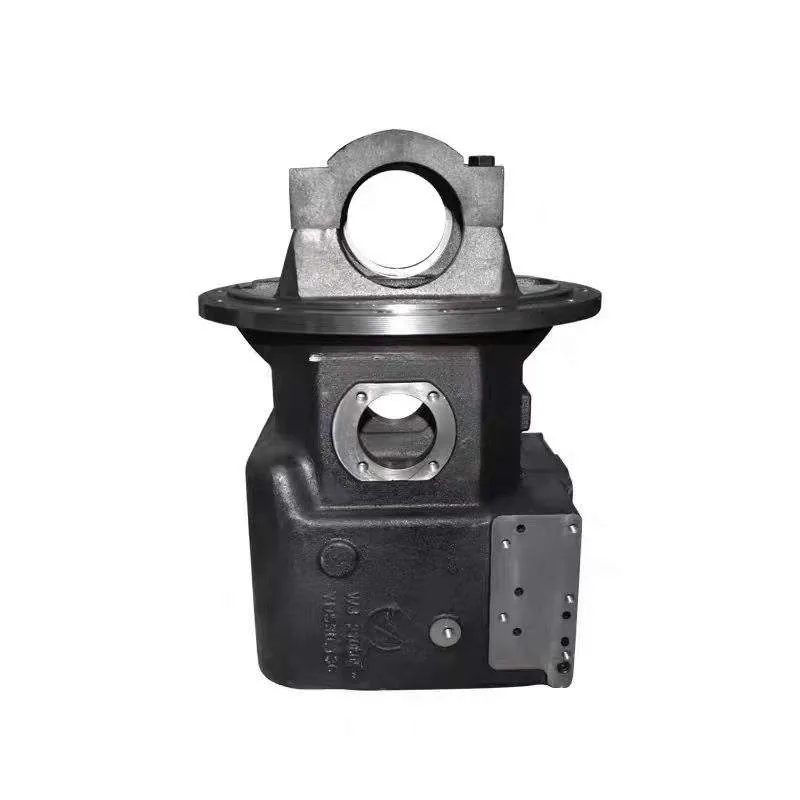

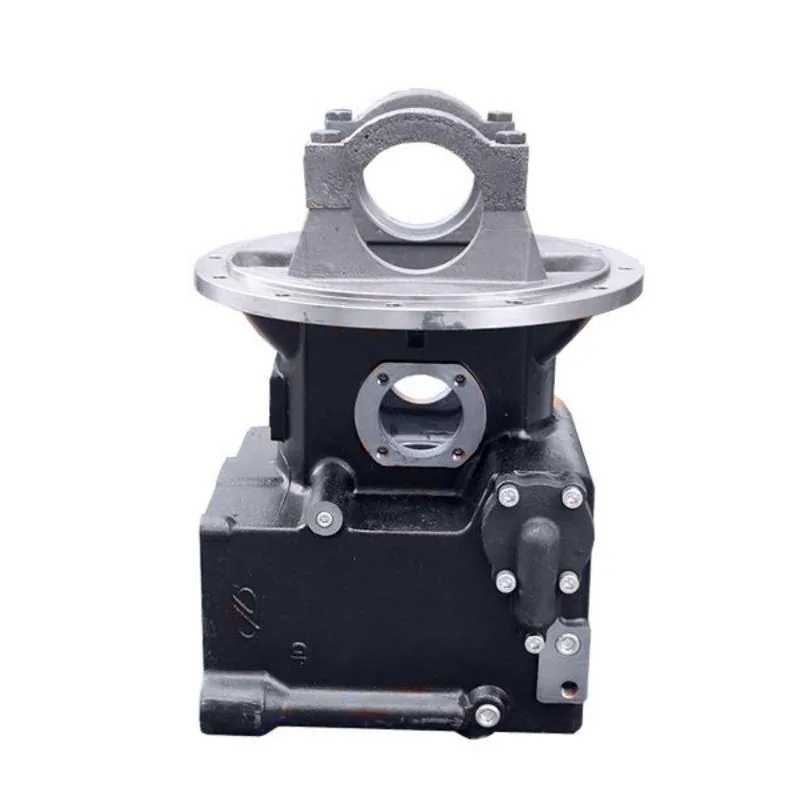

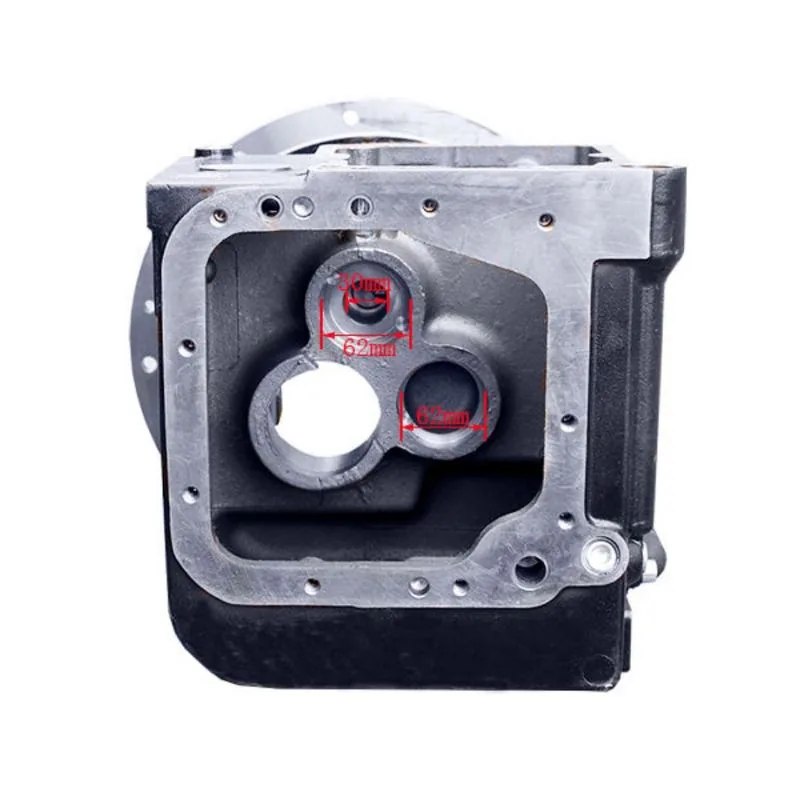

The 120M3-82011DB is the straight-type transmission gearbox housing for HELI CPCD20, CPCD25, and CPCD30 2-3 ton diesel forklifts. This cast housing provides the main structural casing for the powershift transmission, holding the gear train, shafts, bearings, and clutch assemblies in precise alignment. At 59.5 kg, this is a substantial cast component that forms the backbone of the transmission system — the housing must maintain exact bearing bore concentricity and mounting face flatness to prevent gear misalignment that leads to accelerated tooth wear, bearing failure, and transmission fluid leaks at the gasket surfaces.

The straight-type designation distinguishes this housing from the earlier angled-type design used on pre-2015 CPCD models — the straight-type provides improved transmission fluid drainage back to the sump and better access to the control valve mounting surface during service. This housing fits HELI CPCD20 (2-ton), CPCD25 (2.5-ton), and CPCD30 (3-ton) diesel forklifts with the powershift transmission. The bolt pattern, dowel pin locations, and bearing bore diameters are identical across the three capacity classes — only the internal gear ratios differ. This housing does NOT fit the smaller CPCD10-18 series or CPCD35 and above.

Replacing this housing requires complete transmission removal and disassembly. All internal components — gears, shafts, bearings, clutch packs, seals, and gaskets — must be transferred to the new housing in the correct sequence. Before assembly, inspect the replacement housing for casting flash in the bearing bores and oil passages; any debris left in an oil gallery will starve a bearing of lubrication and cause seizure within the first operating hour. Measure all bearing bore diameters with a bore gauge to confirm they are within HELI specification — oversized bores allow the bearing outer race to spin, destroying the housing. After reassembly, check shaft end-play and verify the transmission rotates freely by hand before installation. For related HELI transmission components, browse our Forklift Hydraulic Transmission Parts catalog.

Technical Specifications

Compatible Forklift Models

Each gearbox housing is packaged in a reinforced wooden crate for safe freight. Standard air and sea delivery to major ports worldwide. For compatibility confirmation or bulk orders, contact our team with your HELI model and serial number.
