HELI Forklift Clutch Housing 10063-11070G — 2-3T Mechanical Clutch Bell Housing, Kingstream/OEM, 22kg

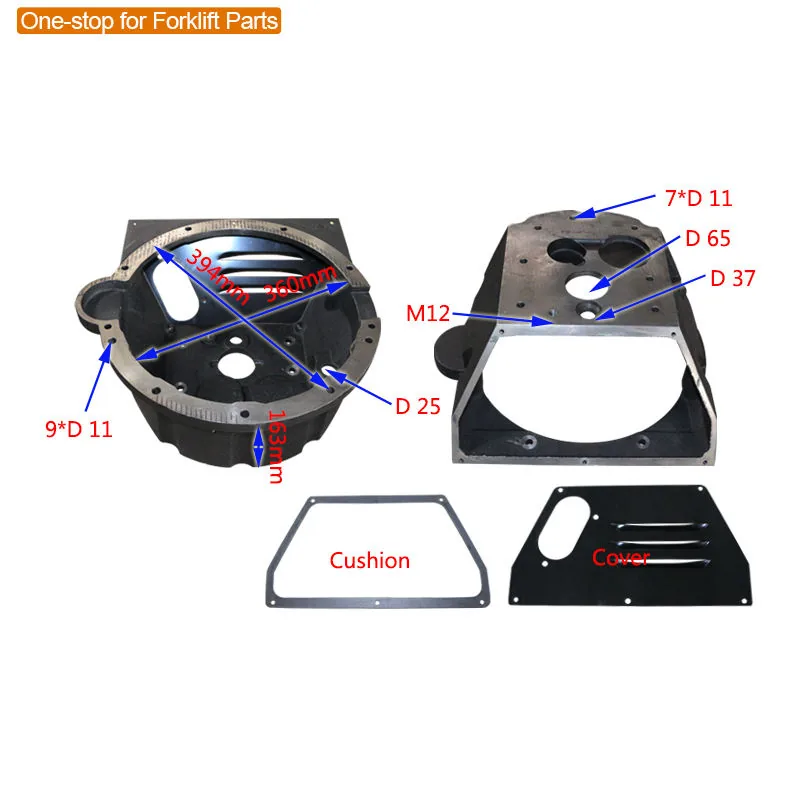

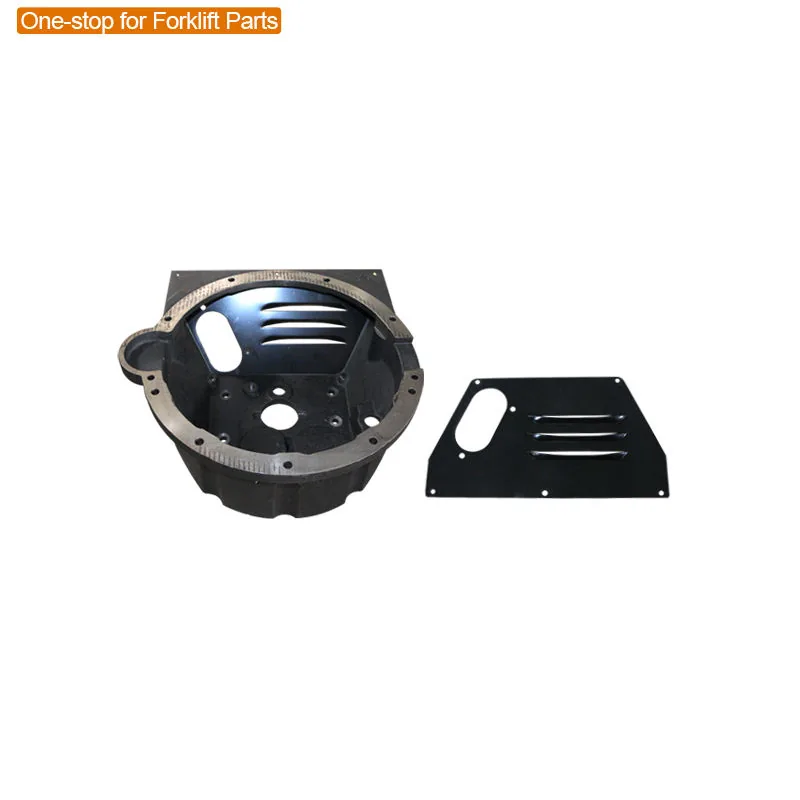

This is the clutch housing (part number 10063-11070G) for HELI 2-3 ton mechanical forklifts — the cast iron bell housing that bolts between the engine block and the transmission, enclosing the clutch assembly and providing the critical alignment between the engine crankshaft centerline and the transmission input shaft. The clutch housing — also called a bell housing due to its bell-like shape — serves three essential functions simultaneously: it physically connects the engine to the transmission with a rigid bolted joint that must maintain alignment under torque loads exceeding the engine’s rated output, it provides a sealed enclosure that protects the clutch disc, pressure plate, and release bearing from dust, water, and debris, and it positions the release bearing fork and clutch actuation mechanism (mechanical linkage or hydraulic slave cylinder) at the correct geometry for smooth clutch engagement and disengagement. A cracked, warped, or misaligned clutch housing causes the transmission input shaft to run at an angle to the crankshaft centerline — the resulting angular misalignment destroys the pilot bearing (the small bearing in the crankshaft that supports the transmission input shaft nose), causes the clutch disc hub splines to wear prematurely from vibration, and creates a shudder during clutch engagement that the operator feels through the pedal and the entire forklift chassis. A clutch housing with a damaged bolt pattern (stripped or elongated bolt holes at the engine-to-housing or housing-to-transmission interface) cannot maintain the precise alignment required for long transmission and clutch life — the assembly will shift under torque and create exactly the angular misalignment described above.

Kingstream/OEM brand, manufactured in Anhui, China with CE and ISO9001 certification. New condition. 22 kg gross weight (46×42×21 cm package in carton box or wooden box). 6-month warranty. OEM, ODM, and customized service available — Kingstream offers full customization for specific forklift models beyond the HELI 2-3T application. Metal and iron construction. Applied model: HELI forklift 2-3T. Supply capacity: 50,000 sets per month — indicating large-scale manufacturing capability. Port of dispatch: Shanghai and other ports. When installing a clutch housing, always replace the pilot bearing at the same time — access requires removing the clutch housing, so doing the pilot bearing later is the same amount of labor. Verify the housing-to-engine bolt holes are clean and the bolt threads are intact — chase threads with a tap if there is any resistance. Torque the housing bolts to the factory specification in a cross-pattern sequence to prevent warping the housing flange. After installation, check the transmission-to-housing bolt torque after the first 50 hours of operation — thermal cycling causes the cast iron to relax slightly and bolt torque can drop.

Compatible with HELI 2-3 ton mechanical forklifts using the 10063-11070G clutch housing. Browse our clutch housing selection for other forklift brands. For OEM specifications, visit HELI official website.

Technical Specifications

Compatible Models

CE/ISO9001. 50,000 sets/month. Confirm your HELI model and part number →
