Forklift Wheel Rim for Heli CPCD45 — OEM H3QA4-40301 (New Style)

This is the new-style OEM wheel rim (part number H3QA4-40301) for the Heli CPCD45 4.5-ton diesel forklift, one of the most popular mid-capacity forklifts in global logistics, manufacturing, and construction operations. The wheel rim is not simply a mounting surface for the tire — it is a load-bearing structural component that must reliably transmit engine torque, braking force, and steering input through the tire to the ground while supporting the full rated load of 4.5 tons plus dynamic forces from acceleration, cornering, and uneven surfaces. A damaged, rusted-through, or bent rim compromises tire bead sealing, accelerates tire wear patterns, creates dangerous vibration at travel speeds, and in worst-case scenarios can catastrophically separate from the hub — making timely replacement with a genuine-specification rim essential for operator safety and fleet reliability.

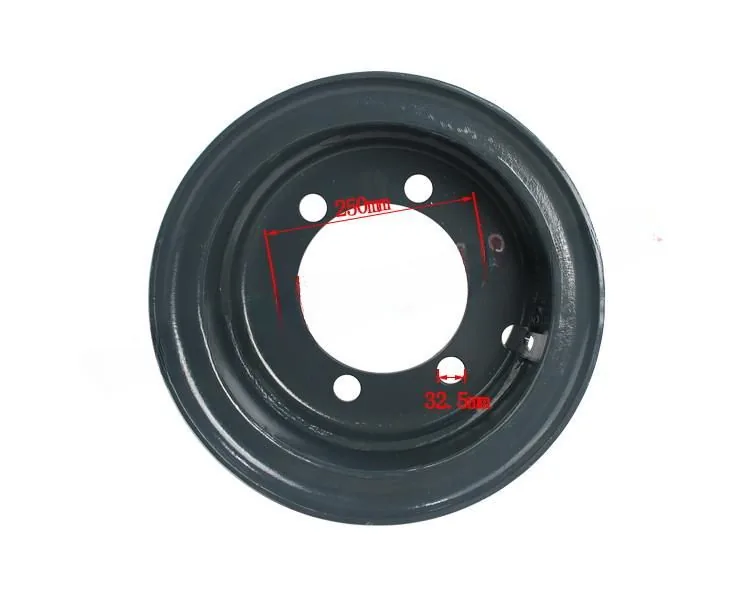

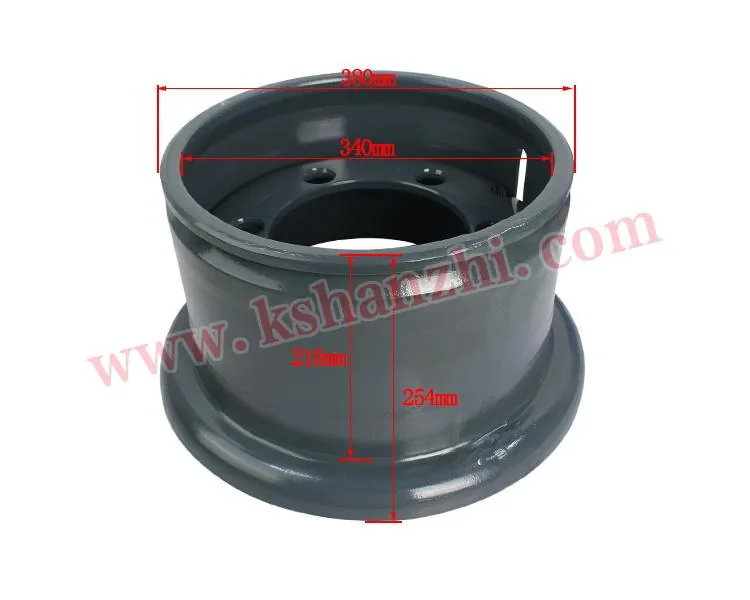

Manufactured to Heli factory specifications, this rim features a heavy-gauge structural steel construction with precision-rolled bead seats and flange profiles that match the original CPCD45 tire specification exactly. The center disc incorporates the correct bolt circle diameter (PCD), center bore diameter, and offset dimensions for direct bolt-on fitment to the CPCD45 hub — no adapter rings, spacers, or field modifications required. The disc-to-rim junction is continuously seam-welded with full-penetration passes verified by ultrasonic inspection, ensuring structural integrity under the combined stresses of vertical load, cornering side forces, and braking torque. Post-welding, the complete assembly undergoes shot-blasting to SA 2.5 surface preparation standard, zinc phosphate anti-corrosion treatment, and a durable electrostatic powder coat finish in equipment-matching orange or standard black. Radial and lateral runout is controlled to within 1.5mm TIR (total indicated runout) to prevent speed-related vibration and ensure even tire tread wear across the full service life of the tire.

Direct replacement for Heli CPCD45 4.5-ton diesel forklifts — new style design. Always install with proper torque on all wheel nuts using a calibrated torque wrench in a star/cross pattern sequence, re-torque after the first 50 operating hours of initial operation, and inspect rims for cracks, corrosion pitting, flange deformation, and excessive runout during every routine tire change interval. For matching solid tires, pneumatic tires, and complete wheel assemblies, browse our comprehensive tire and wheel category. Reference original equipment specifications and torque values at the Heli official website.

Technical Specifications

• SKU: H3QA4-40301
• OEM Part Number: H3QA4-40301
• Type: Forklift Wheel Rim — Heli New Style Design
• Material: Heavy-Gauge Structural Steel, Seam-Welded, Zinc Phosphate + Powder Coated
• Fitment: Heli CPCD45 4.5-Ton Diesel Forklift
• Runout Tolerance: ≤1.5mm TIR Radial & Lateral
• Warranty: 12 Months

Compatible Forklift Models

Kingstream wheel rims are individually wrapped in protective polyethylene film with foam rim-edge guards and packed in reinforced double-wall export cartons for secure container shipping. QC inspection includes bolt pattern gauge verification, dial indicator runout measurement across both radial and lateral planes, and visual weld inspection. Full material traceability and dimensional inspection reports available upon request. 12-month replacement warranty against manufacturing defects. Contact us for bulk order pricing, custom color powder coating requests, or technical fitment verification with your forklift serial number.
