Heli H2000 Fork Carriage – 3 Ton

Heli H2000 Fork Carriage — 3-Ton Manual Carriage with Adjustable Forks, 50kg, 1-Year Warranty

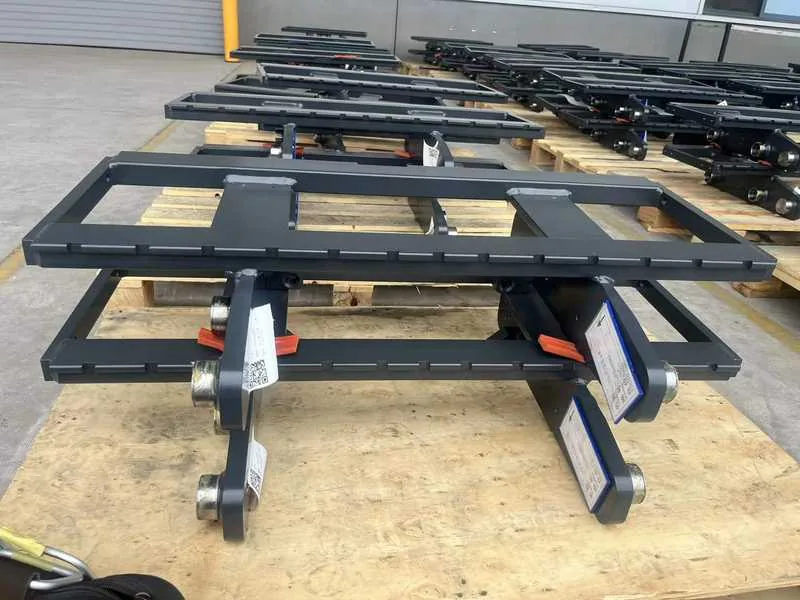

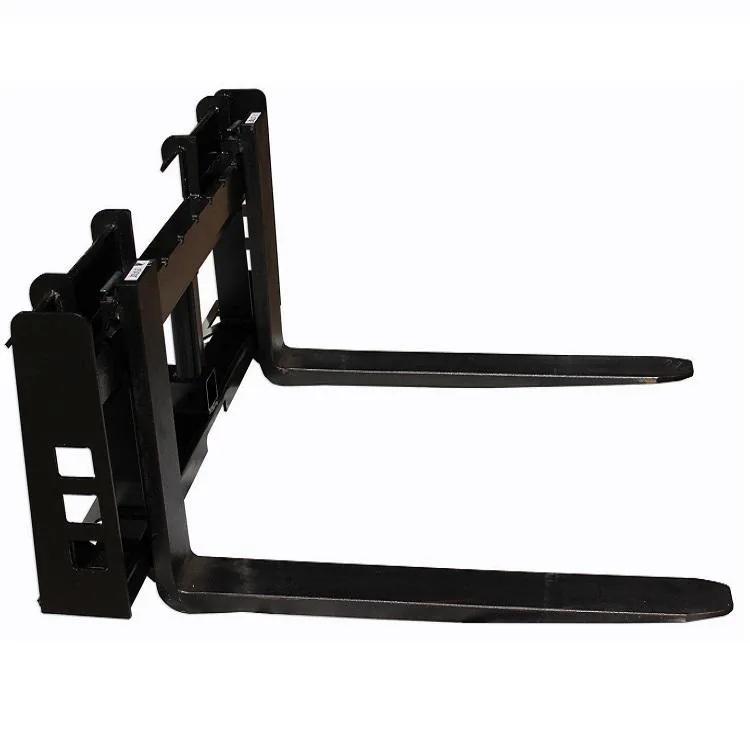

This manual fork carriage is a direct replacement for the Heli H2000 3-ton counterbalance forklift, featuring adjustable fork width from 76mm to 450mm and fork length from 920mm to 2440mm to accommodate diverse pallet sizes and load configurations. At 50kg, this steel carriage is designed for building material shops, manufacturing plants, farms, construction sites, and energy/mining operations where the Heli H2000 series is a widely deployed platform. The manual design requires no auxiliary hydraulics, making it a simple bolt-on replacement compatible with all H2000 model variants regardless of hydraulic configuration. Each unit includes a machinery test report and video outgoing inspection, with a 1-year warranty on core pin kit components. Dispatched from Qingdao port on steel pallet packaging, this carriage is available as a single-unit order with supply capacity for bulk fleet replacement programs.

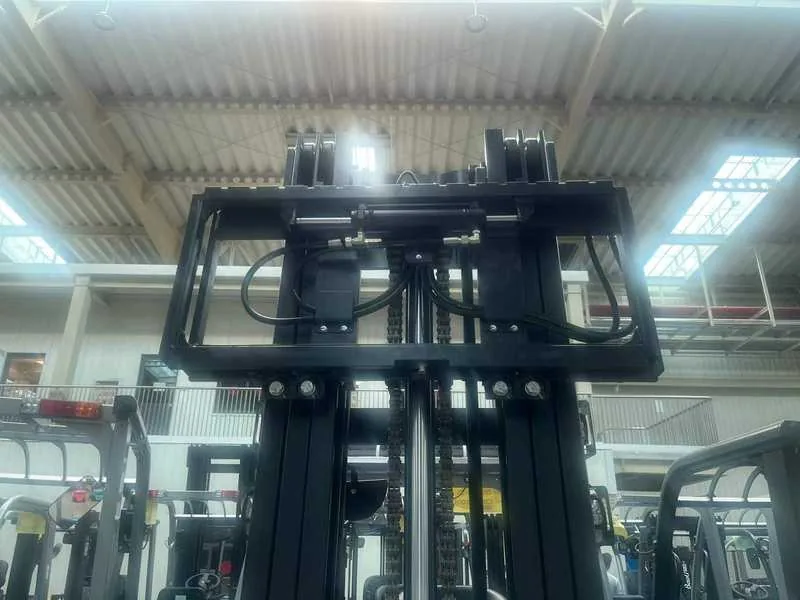

Replacing the fork carriage on a Heli H2000 3-ton forklift requires supporting the carriage weight during removal — use a workshop crane or overhead hoist rated for at least 100kg safe working load. Remove the forks and fork pins first, then unbolt the carriage from the mast roller assembly. The adjustable fork width feature (76-450mm) enables quick repositioning without removing the carriage — to adjust, loosen the fork locking pins, slide each fork to the desired position, then re-tighten. The fork length adjustment (920-2440mm) is set by positioning the fork locking collar during initial installation; verify both forks are at identical lengths to prevent asymmetric load distribution that accelerates hinge pin and carriage bar wear. Post-installation, verify fork slide smoothness across the full carriage bar width and cycle through full lift and tilt range to confirm no interference with the mast, backrest, or overhead guard. Common failure points on H2000 carriages include carriage bar wear at the fork heel contact zones, hinge pin elongation from dry operation, and fork locking pin groove deformation from frequent width adjustments. 1-year warranty covers core pin kit components; machinery test report provided with each unit.

This carriage is exclusive to Heli H2000 3-ton counterbalance forklifts. Verify your model and mast dimensions before ordering. Browse our Fork Carriage category for Heli CPCD carriages and other brand options. For OEM specifications, visit HELI Forklift official site. For bulk orders or technical inquiries, contact us.

Technical Specifications

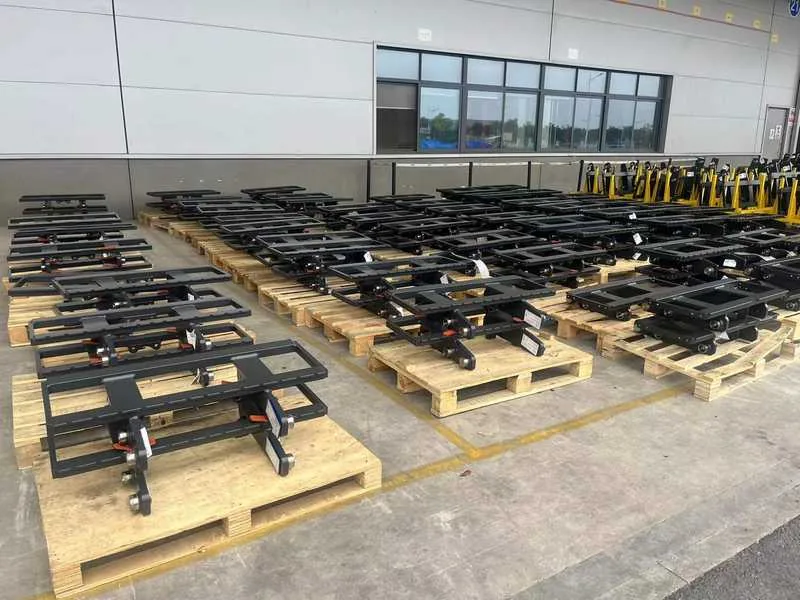

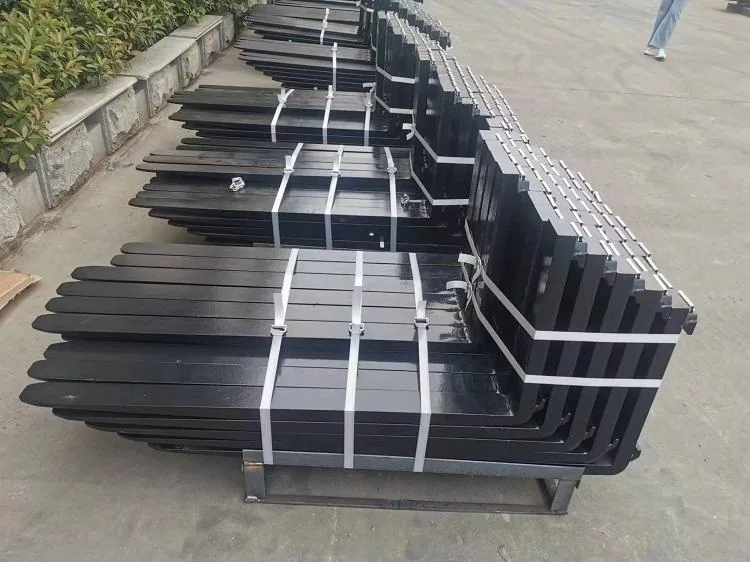

Machinery test report and video outgoing inspection provided. Steel pallet packaging. Qingdao port dispatch. 1-year warranty on core pin kit components. For bulk orders, contact us.
