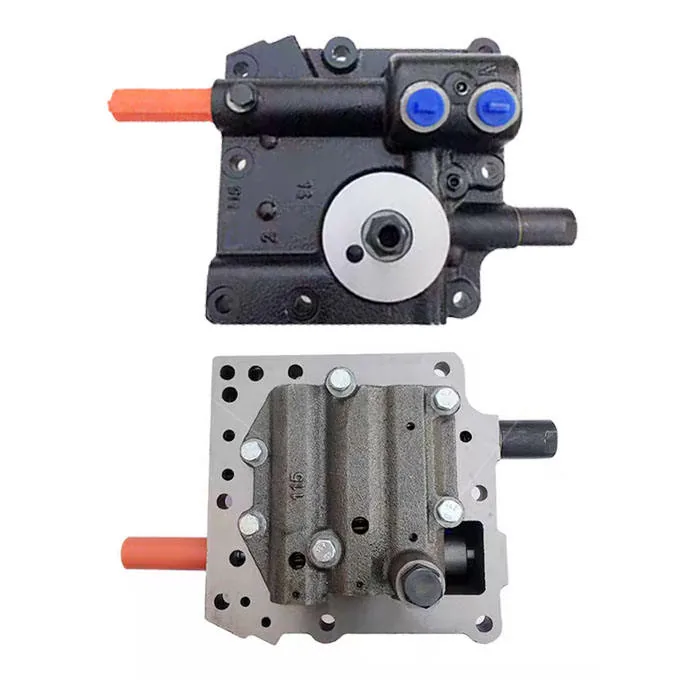

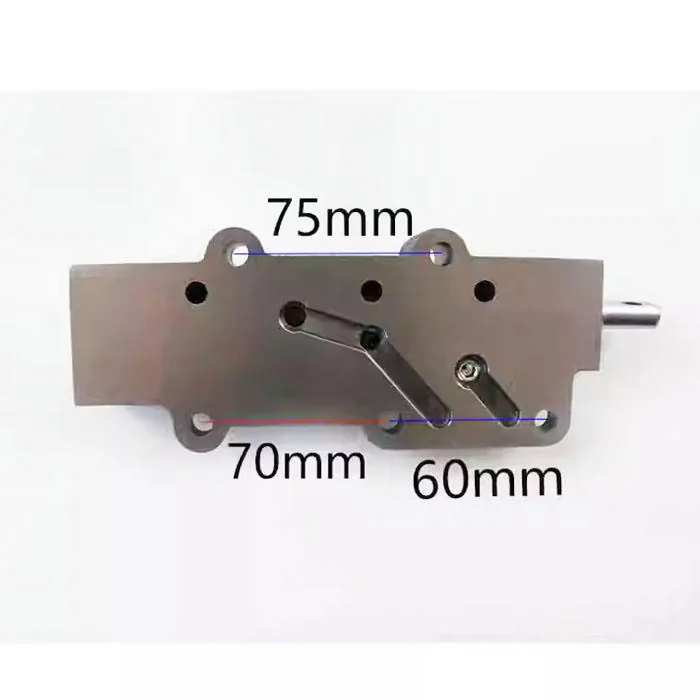

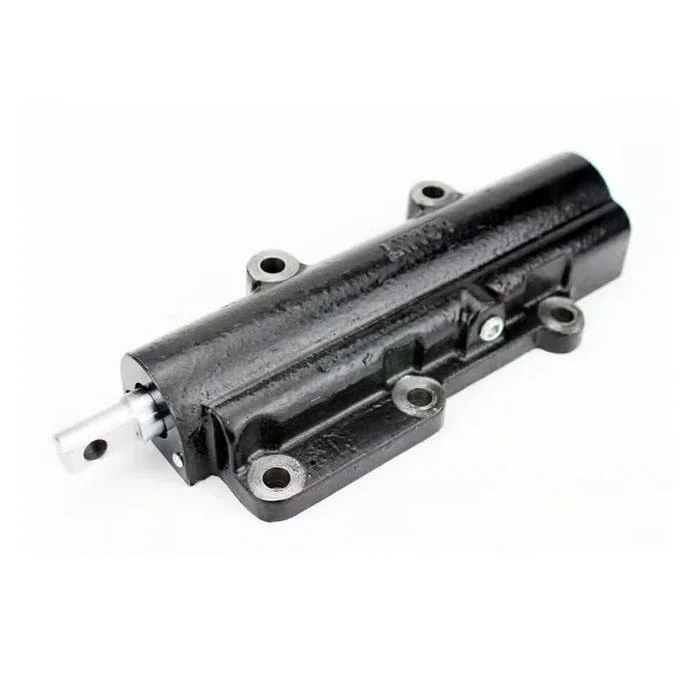

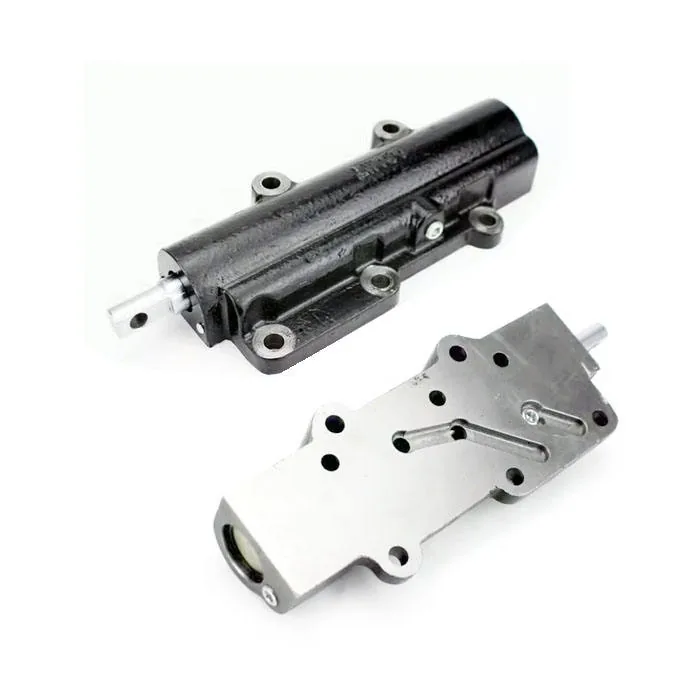

HELI Forklift Inching Valve — CPCD30 Diesel Powershift Transmission

The HELI CPCD30 inching valve is the clutch modulation valve that controls forward clutch engagement pressure in the CPCD30 3-ton diesel forklift powershift transmission. When the operator presses the inching pedal, this spool-type valve progressively bleeds hydraulic pressure from the forward clutch circuit — allowing the forklift to creep at extremely low speed for precision load positioning without fully disengaging the transmission. This valve is critical for safe load handling in tight warehouse aisles, container loading, and any operation requiring millimeter-precision fork placement.

A worn or failed inching valve on the CPCD30 produces distinct symptoms: the forklift jerks forward abruptly when shifting from neutral to forward gear — the valve spool is stuck and cannot modulate clutch pressure; the forklift creeps forward continuously even with the inching pedal fully depressed — the valve is not fully bleeding pressure from the clutch circuit, causing permanent clutch drag and accelerated clutch pack wear; the inching pedal feels spongy or goes to the floor with no effect — the valve’s internal return spring has broken or the spool seal has failed; transmission fluid shows signs of overheating and darkening during extended inching operations — the valve is not providing smooth pressure modulation, causing excessive clutch slippage that generates heat. At 5 kg, this valve bolts directly to the CPCD30 transmission control valve body and is accessible by removing the transmission cover plate.

Before installing the replacement valve, inspect the control valve body bore for scoring or debris contamination — metal particles from a worn spool or spring fragments from a failed return spring will seize the new valve immediately. Flush the transmission hydraulic circuit and replace the transmission filter during this service. The CPCD30 uses a water-cooled diesel engine paired with a powershift transmission — the inching valve works in conjunction with the transmission control valve to provide smooth clutch engagement across the full engine RPM range. For related HELI transmission components, browse our Forklift Hydraulic Transmission Parts catalog. OEM documentation is available through HELI Forklift.

Technical Specifications

Compatible Forklift Models

Each inching valve is inspected for spool movement, spring tension, and seal integrity before packaging. Standard air freight delivery to major ports worldwide in 5-10 business days. For compatibility questions or bulk orders, contact our team with your HELI CPCD30 serial number.
