Forklift Transmission Inching Valve 410116-01577 – Doosan D20GP D25GP D30GP

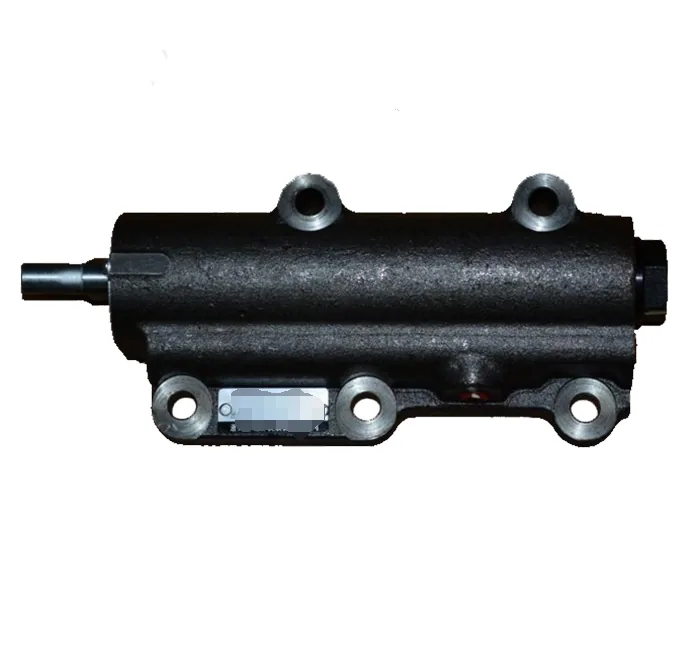

Forklift Inching Valve 410116-01577 — Doosan D20GP / D25GP / D30GP Powershift Transmission

The 410116-01577 inching valve controls the clutch engagement pressure in Doosan D20GP, D25GP, and D30GP powershift transmissions — it is the valve that allows the operator to creep the forklift forward at extremely low speed by partially engaging the forward clutch pack through the inching pedal. When the operator presses the inching pedal, this valve bleeds hydraulic pressure from the forward clutch circuit, allowing controlled slippage for precision positioning during load handling. A failed inching valve causes either complete loss of inching control (the forklift jerks forward abruptly when the brake is released) or permanent clutch drag (the forklift creeps forward even with the inching pedal fully depressed).

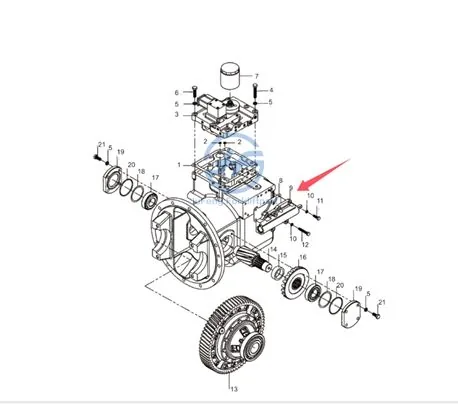

Common symptoms of a failing 410116-01577 inching valve include: forklift lurches forward aggressively when shifting from neutral to forward — the valve spool is stuck in the closed position and cannot bleed pressure; transmission fluid overheating during extended inching operations — the valve is not modulating pressure correctly, causing excessive clutch slippage; complete loss of inching pedal function — the valve’s internal return spring has broken or the spool is seized in its bore from contaminated fluid; and clutch pack burning smell after short operating periods — the valve is holding residual pressure on the clutch pack when it should be fully released. This valve weighs approximately 2.8 kg and mounts directly to the transmission control valve body on Doosan D-GP series forklifts.

Installation requires draining the transmission fluid and removing the transmission control valve cover to access the inching valve mounting location. Before installing the replacement valve, inspect the valve bore in the control body for scoring or debris — any contamination in the bore will seize the new valve spool within hours. Flush the transmission fluid circuit and replace the transmission filter when replacing an inching valve, as the failure mode often involves metal particles from a worn spool contaminating the hydraulic circuit. For related Doosan transmission components, browse our Forklift Hydraulic Transmission Parts collection. OEM service information is available through Doosan authorized service centers.

Technical Specifications

Compatible Forklift Models

Each inching valve is individually tested for spool movement and pressure modulation before packaging. Standard air freight delivery to major ports worldwide in 5-10 business days. For compatibility verification or bulk orders, contact our team with your Doosan model and serial number.
