Forklift Synchronizer — OEM BSX-12493-41000 for Heli 3-Ton Manual Transmission

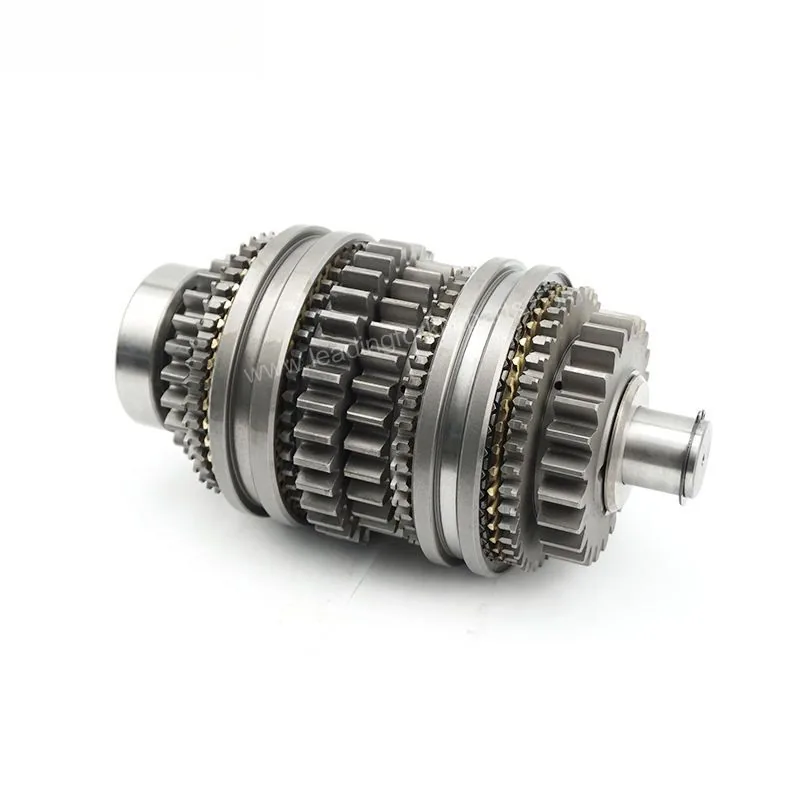

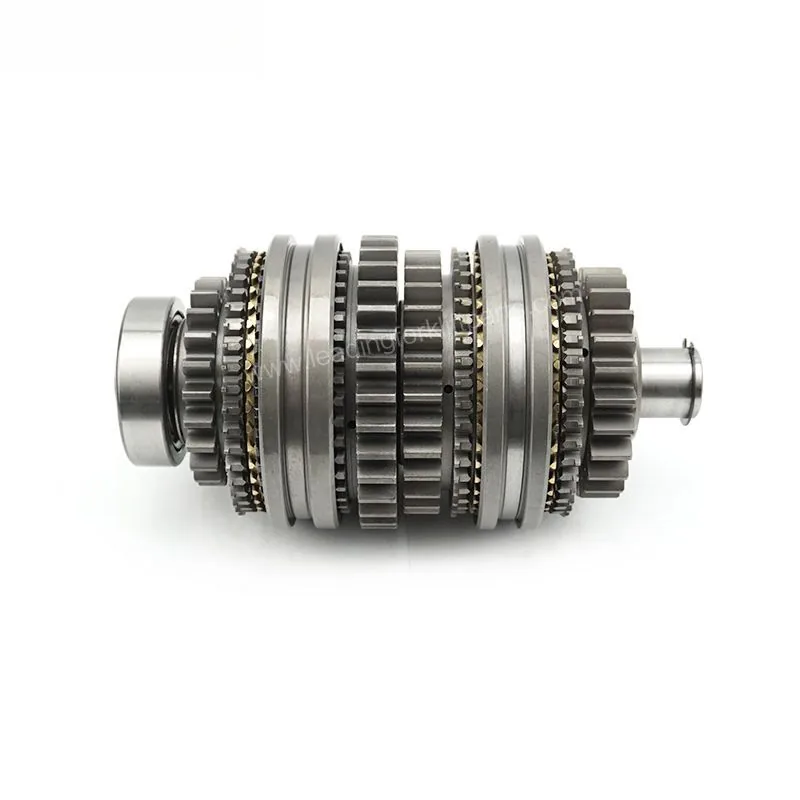

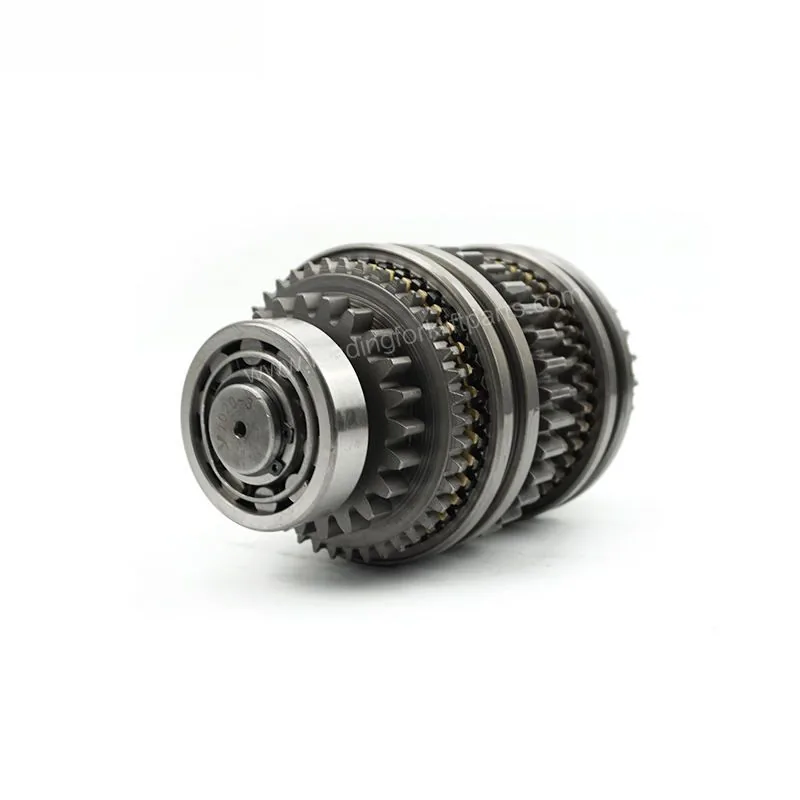

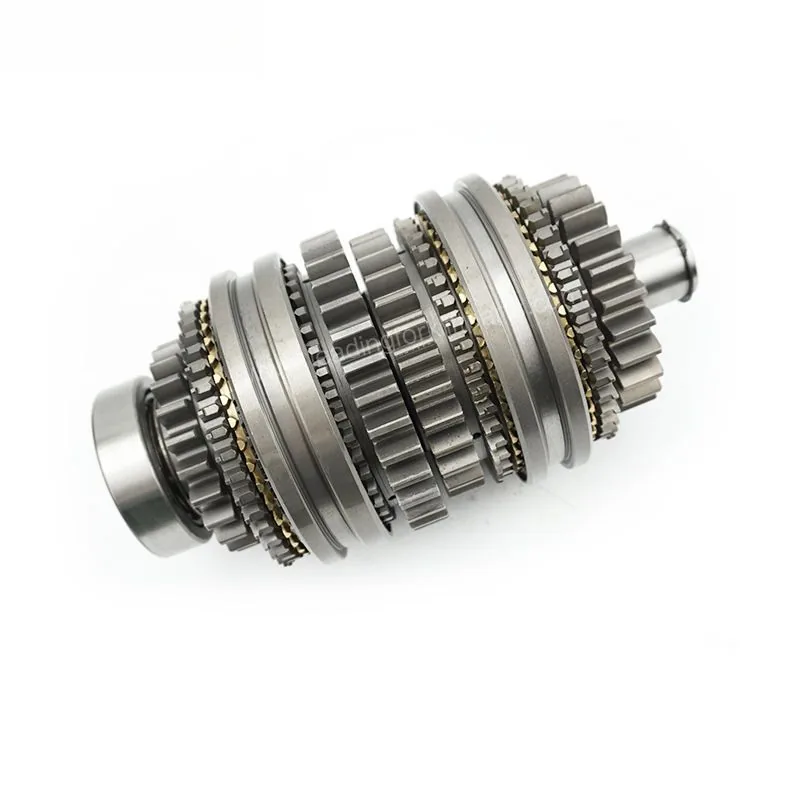

The BSX-12493-41000 synchronizer assembly is a transmission shifting component designed specifically for Heli 3-ton forklifts equipped with manual gearboxes. Unlike the cone-clutch synchronizers used in lighter 1.5-2 ton forklifts (which use a single-cone brass ring), this 3-ton class synchronizer employs a dual-cone steel-brass design — two friction cones working in parallel to achieve the higher synchronizing torque needed to match gear speeds in a heavier transmission with larger rotating inertia. The inner cone is made of sintered bronze with a 7.5-degree taper angle, while the outer cone is hardened steel with a molybdenum plasma-sprayed friction surface rated for 50,000+ synchronization cycles. The synchronizer hub spline is machined to H7 tolerance for a precise sliding fit on the output shaft; any wear beyond 0.05mm on the hub spline will cause the synchronizer sleeve to cock during engagement, resulting in notchy 2-3 upshifts. This assembly is designed exclusively for Heli 3T manual transmissions and is NOT cross-compatible with Hangcha or TCM synchronizers — the blocker ring key slot positions differ by 12 degrees between manufacturers.

Installing a synchronizer assembly requires the transmission to be disassembled to access the mainshaft. Before removing the old synchronizer, measure and record the axial clearance between the synchronizer hub and the adjacent gear with a feeler gauge — this clearance (typically 0.15-0.25mm) must be replicated on reassembly using the correct thickness snap ring. Using a snap ring that is 0.1mm too thin will allow the synchronizer hub to float axially, causing the blocker ring keys to disengage prematurely and resulting in gear clash during shifts. The new synchronizer cones must be pre-lubricated with the transmission’s specified gear oil before assembly — running them dry for even the first few rotations will score the molybdenum friction surface and permanently reduce synchronizing efficiency by 30-40%. After installation, the synchronizer should be bench-tested by rotating the output shaft while applying light pressure to the shift sleeve; the sleeve should engage smoothly with a single “click” as the keys seat. Common failure symptoms specific to this BSX-12493 unit: grinding during 2-3 upshift (worn outer cone friction surface), difficulty engaging 3rd gear at any RPM (collapsed blocker ring key springs), and a metallic rattling noise at idle in neutral that disappears when the clutch is depressed (loose synchronizer hub due to worn snap ring groove).

This BSX-12493-41000 synchronizer is a direct replacement for Heli CPCD30 and CPQD30 series 3-ton forklifts with manual transmissions. Always verify your transmission model number stamped on the gearbox case before ordering — early production Heli 3T models used a single-cone synchronizer that is not interchangeable with this dual-cone design. For related transmission shifting components including shift forks, shift rails, and gear sets, visit our Forklift Mechanic Transmission section. For OEM service specifications, refer to the Heli Official Website.

Technical Specifications

• OEM Part Number: BSX-12493-41000
• Synchronizer Type: Dual-Cone (Steel-Bronze)
• Inner Cone Material: Sintered Bronze, 7.5° Taper
• Outer Cone Coating: Molybdenum Plasma Spray
• Hub Spline Tolerance: H7 (Precision Sliding Fit)
• Axial Clearance: 0.15-0.25mm (Snap Ring Selection)

Compatible Forklift Models

Each synchronizer is factory-lubricated with assembly oil, sealed in protective packaging, and ships within 1-2 business days. 12-month warranty. For bulk orders or other Heli forklift transmission parts, contact our team. Browse our Forklift Mechanic Transmission catalog.
