HELI TCM Forklift 2-3T Forklift Spare Parts Transmission Forklift Solenoid Valve

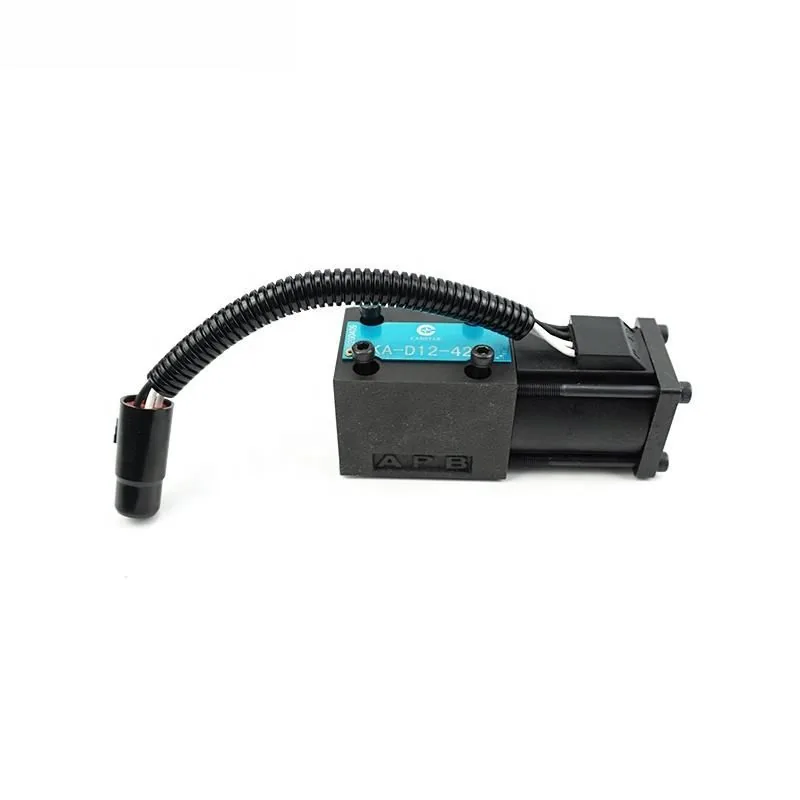

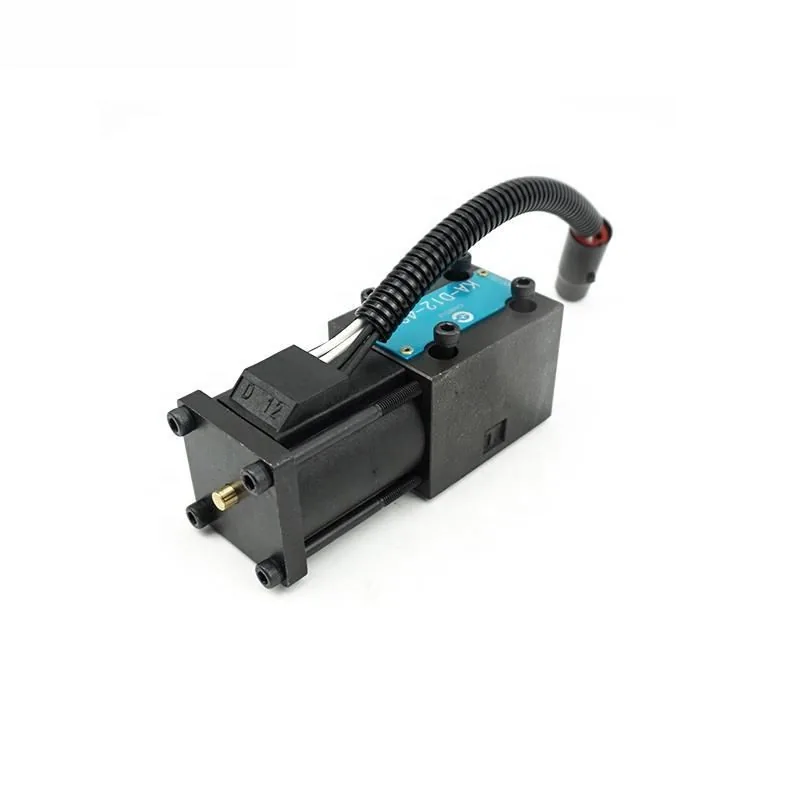

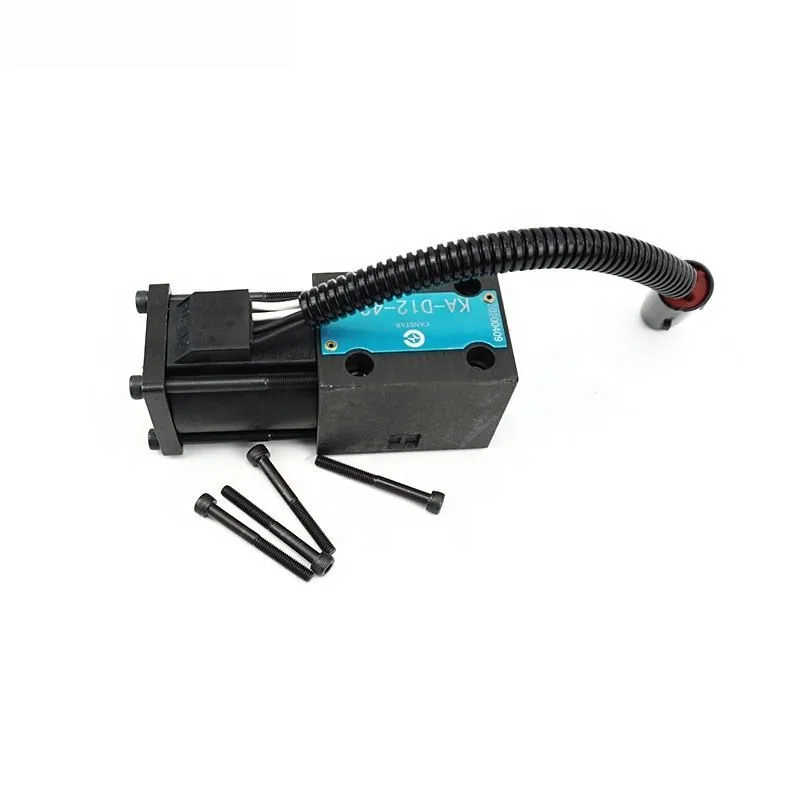

HELI TCM Forklift 2-3T Transmission Solenoid Valve

This HELI TCM transmission solenoid valve is engineered for HELI and TCM 2-3 ton internal combustion forklifts, controlling hydraulic fluid flow within the powershift transmission system. The solenoid valve operates as an electro-hydraulic actuator — when energized by the transmission control unit (TCU), it opens to direct pressurized ATF (Automatic Transmission Fluid) to specific clutch packs, enabling smooth forward/reverse directional shifts and gear changes. Built to OEM specifications, this solenoid assembly features a precision-ground spool valve with hardened steel plunger, high-temperature copper coil winding rated for continuous duty at 12V or 24V DC, and Viton O-ring seals that maintain consistent hydraulic pressure even under high-heat conditions typical of forklift transmission service.

The solenoid body is CNC-machined from billet aluminum with an anodized finish for corrosion resistance, while the internal flow passages are honed to exacting tolerances to prevent internal leakage and ensure crisp shift response. The electrical connector features a weatherproof Deutsch-style 2-pin plug with integrated diode suppression to protect vehicle electronics from voltage spikes when the solenoid de-energizes. Key performance parameters include a response time of under 50ms from signal to full open, operating pressure range of 150-300 PSI, and fluid temperature tolerance of -40°F to 300°F (-40°C to 150°C). This valve is a direct bolt-in replacement that requires no modifications to the transmission valve body, making it ideal for both repair shops and on-site maintenance crews.

Compatible with select HELI CPCD20-CPCD35, HELI H2000 series, and TCM FD20-FD35T9 forklift models equipped with powershift transmissions. Before installation, always replace the transmission filter and flush the system with fresh ATF to prevent debris from contaminating the new solenoid. Check the electrical connector for clean, corrosion-free terminals and apply dielectric grease before reconnection. For troubleshooting transmission shift issues, inspect all solenoids for proper resistance (typically 3-6 ohms at room temperature) and listen for the audible click when energized. For additional HELI and TCM transmission parts, browse our Electronic Control Parts catalog. For technical service manuals, refer to HELI Forklift official documentation.

Technical Specifications

• SKU: HELI-SOL-TCM
• Voltage: 12V / 24V DC (Common Variations)
• Response Time: <50ms
• Operating Pressure: 150 – 300 PSI
• Fluid Type: ATF (Dexron III / Equivalent)
• Connector: Weatherproof Deutsch 2-Pin
• Body Material: CNC Anodized Aluminum

Compatible Forklift Models

Each solenoid valve is individually vacuum-tested for internal leakage and pressure-tested at 300 PSI before packaging. The valve is sealed in anti-static VCI (Vapor Corrosion Inhibitor) film and packed in a custom foam insert box to protect the electrical connector and precision-machined surfaces during shipping. We stock extensive inventory of HELI and TCM forklift transmission parts — solenoids, clutch packs, torque converters, filter kits, and complete valve body assemblies. All products include a 12-month warranty. For urgent orders, technical fitment questions, or bulk fleet maintenance inquiries, reach out to our support team for same-day response.
